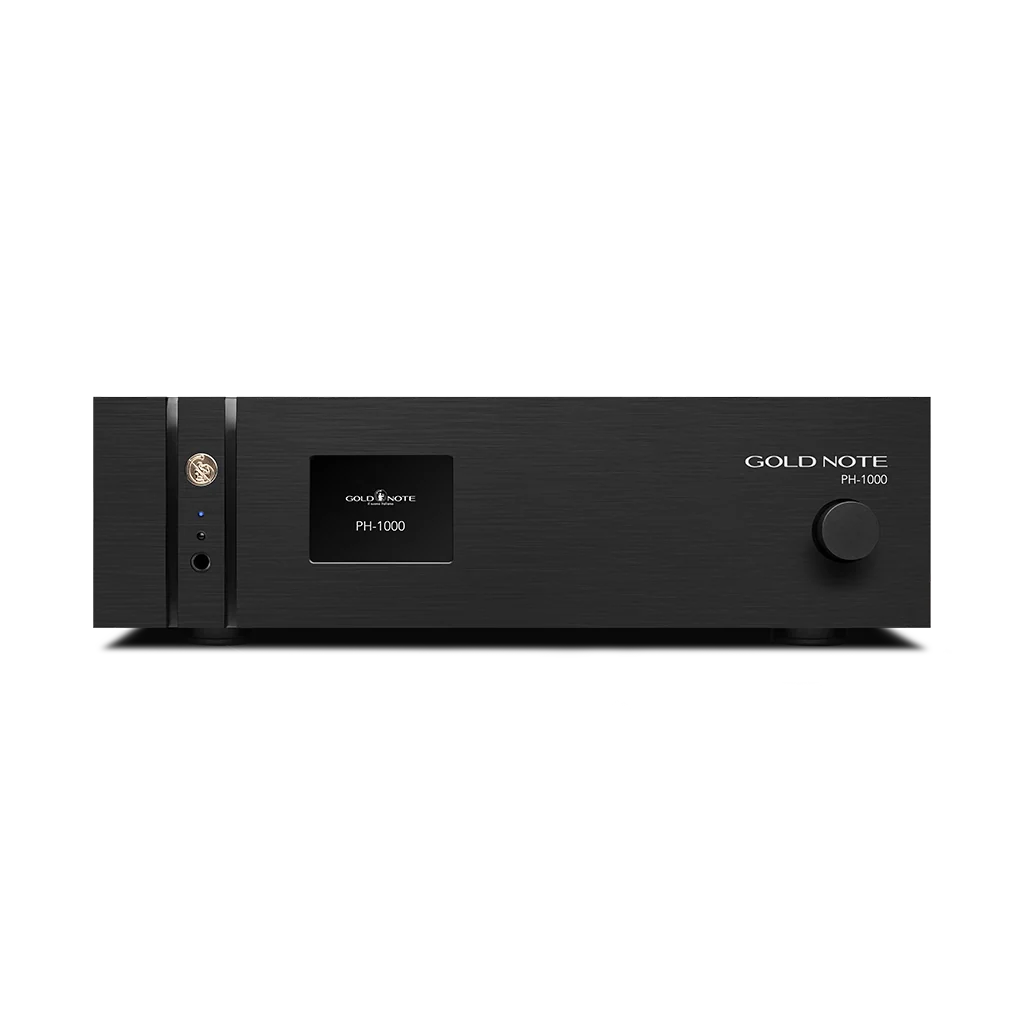

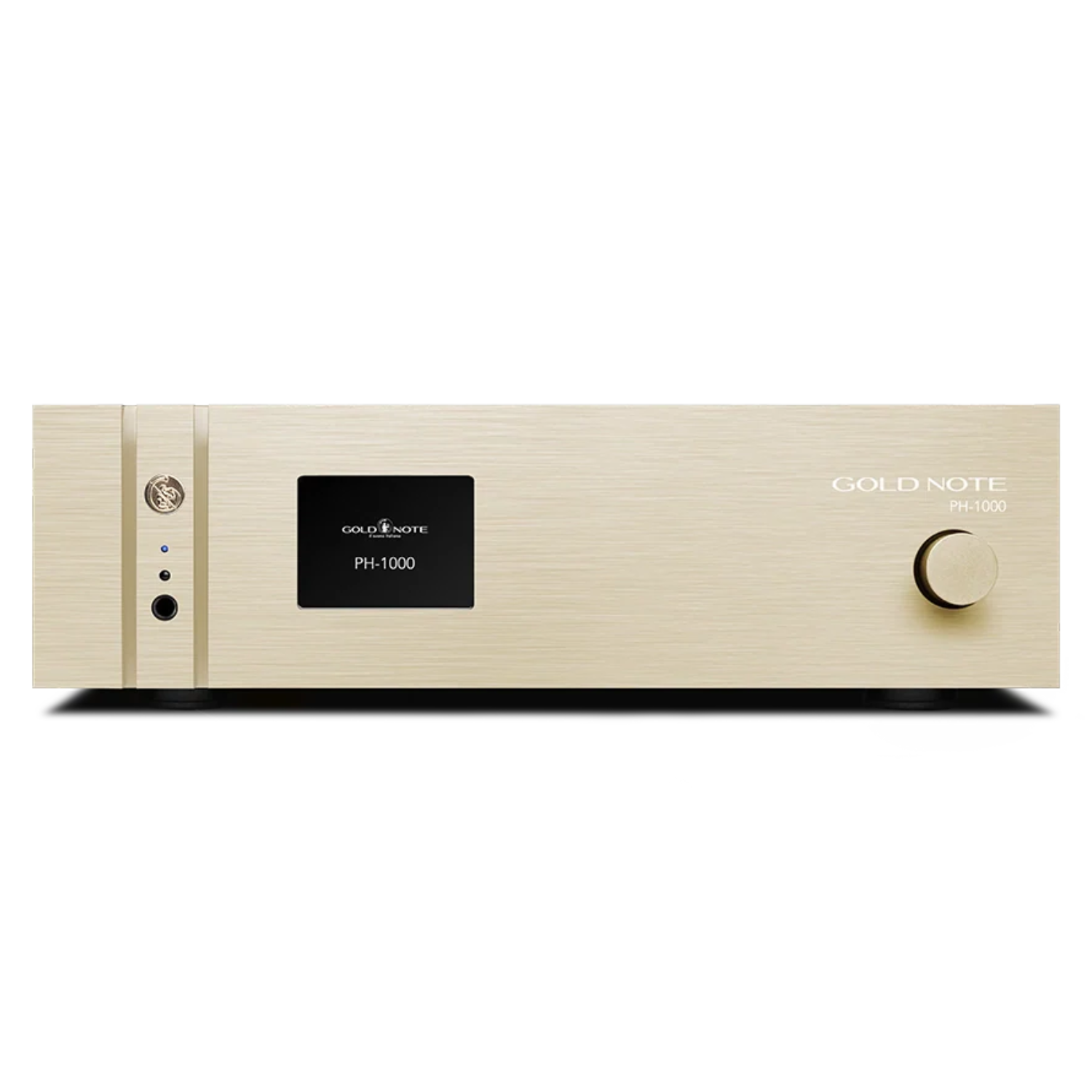

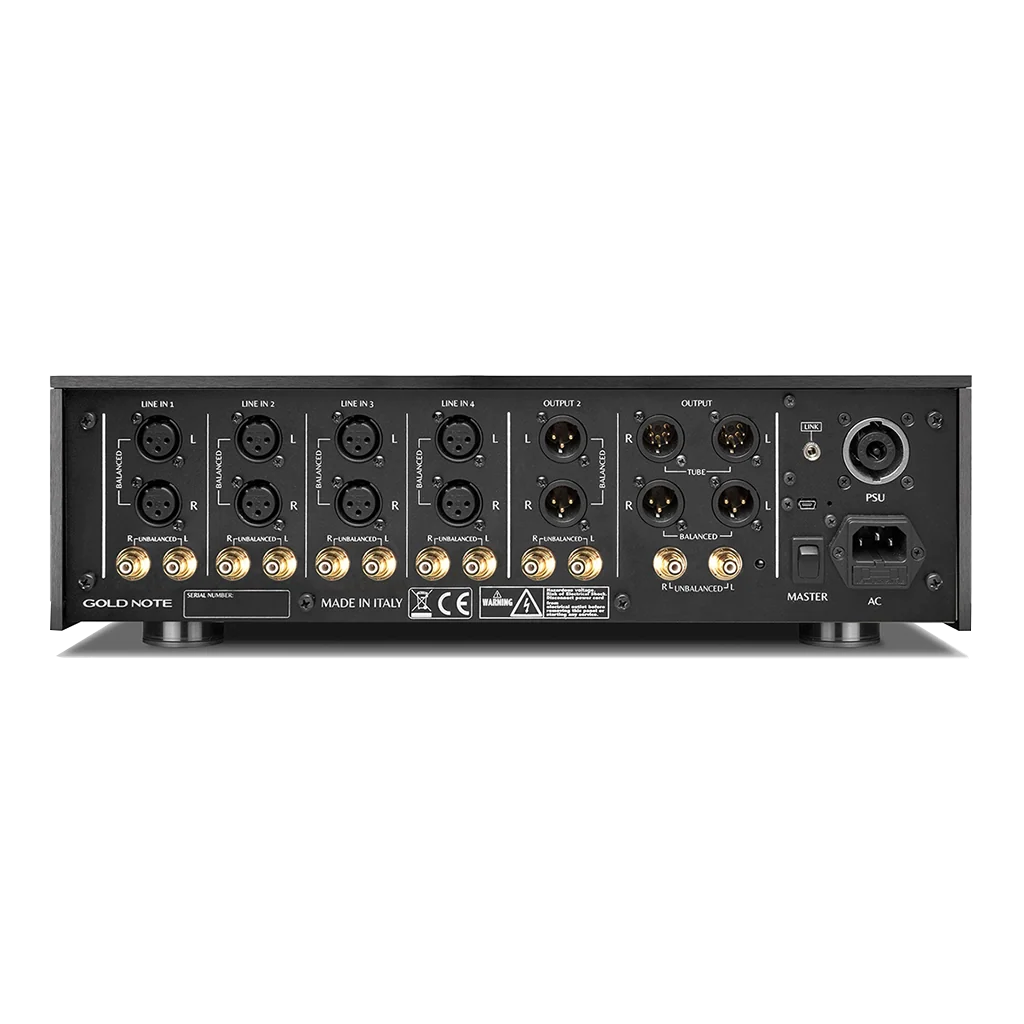

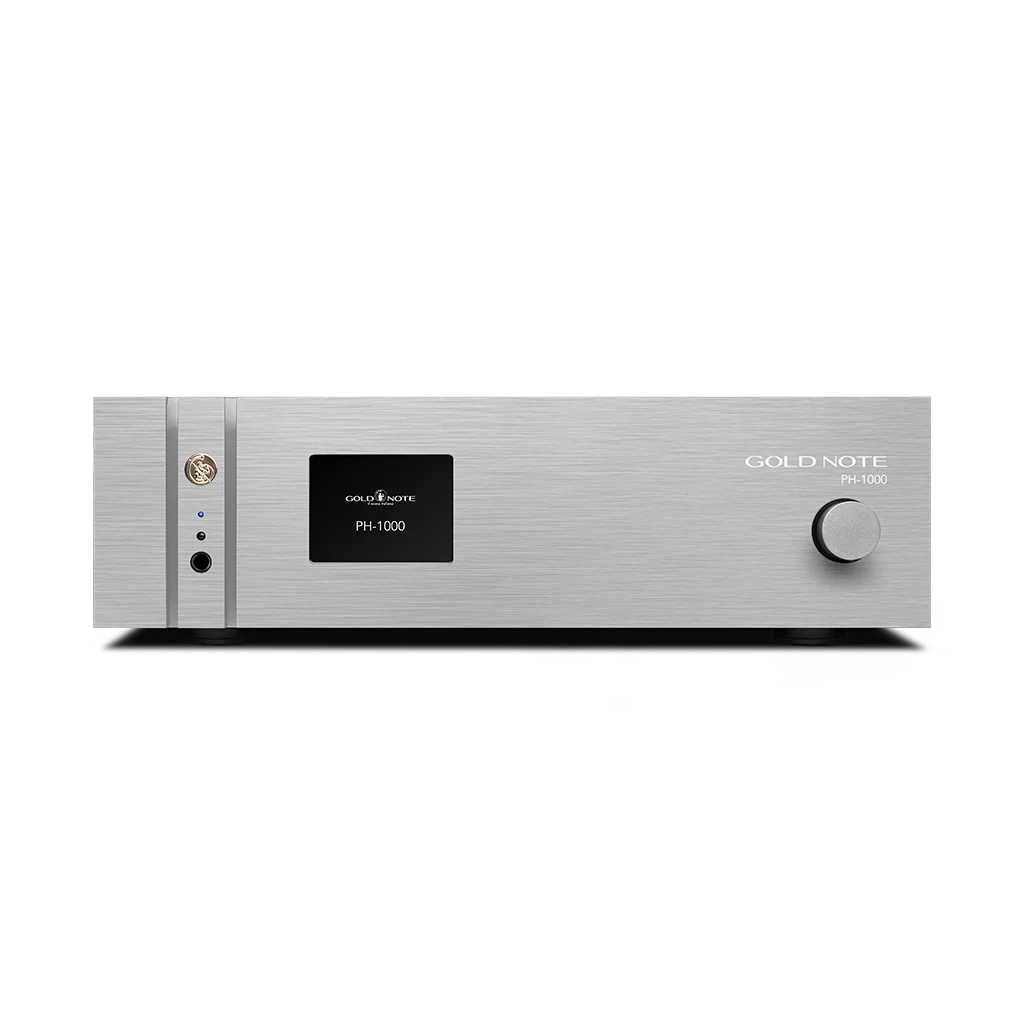

Gold Note Phono Stage PH-1000 LITE
$8,895.00
Product Details
High-performance phono stage without limits
The Gold Note PH-1000 LITE delivers premium analog performance with essential features for serious vinyl playback. 3 independent inputs (2 RCA, 1 XLR), 18+ Enhanced EQ curves, headphone output, and extensive gain/loading adjustments support all MM/MC cartridges perfectly.
Essential PH-1000 performance
Inherits core technology from flagship PH-1000: 40-60dB gain (7 steps), 12 RCA + 8 XLR load options (10Ω-100kΩ), 7 capacitance settings (100pF-1000pF). Perfect match for ES-78 MM through Tuscany Gold MC cartridges from our lineup.
18 Enhanced EQ curves
18 selectable EQ curves (RIAA, Decca, Columbia, etc.) with Enhanced option (±0.3dB accuracy). Real-time adjustment via intuitive SKC knob and color TFT display during playback for perfect vinyl reproduction.
Class-A outputs + headphone amp
RCA/XLR balanced Class-A outputs, dedicated headphone amplifier, Mono/Stereo control, L/R channel swapping, 10Hz infrasonic filter. Fully analog signal path with discrete components preserves ultimate purity.
Upgrade path to full PH-1000
Modular design supports PSU-1250/1000 external power supplies and TUBE-1012/1006 valve stages. Dimensions: 430×135×375mm, 12kg. Available in Black, Silver, Gold finishes with brushed aluminum chassis.
Core Gold Note vinyl solution
Engineered for Gold Note turntables (Giglio, Pianosa, Valore), B-5.1/B-7 Ceramic tonearms, and Tuscany/Giotto cartridges. Exclusive at Vinyl Sound Buffalo, NY.
Technical Specifications
| Parameter | Value |
|---|---|
| Phono Inputs | 2× RCA + 1× XLR |
| Gain | 40dB MM to 60dB MC (7 steps: 0/±3/±6/±9dB) |
| Load Impedance | 12 RCA + 8 XLR options (10Ω-100kΩ) |
| Capacitance | 100/150/220/330/470/1000pF + OFF |
| EQ Curves | 18 curves + Enhanced option (±0.3dB) |
| Frequency Response | 20Hz-20kHz |
| THD | <0.01% max |
| SNR | >100dB |
| Dynamic Range | 110dB |
| Infrasonic Filter | 10Hz/36dB octave (ON/OFF) |
| Outputs | RCA, XLR balanced, Headphone |
| Dimensions (WxHxD) | 430×135×375mm |
| Weight | 12kg net / 17kg boxed |
Build your high-performance vinyl system
Pair with PA-1175 amplifiers and speakers. Contact Vinyl Sound Buffalo for complete analog chain optimization.
