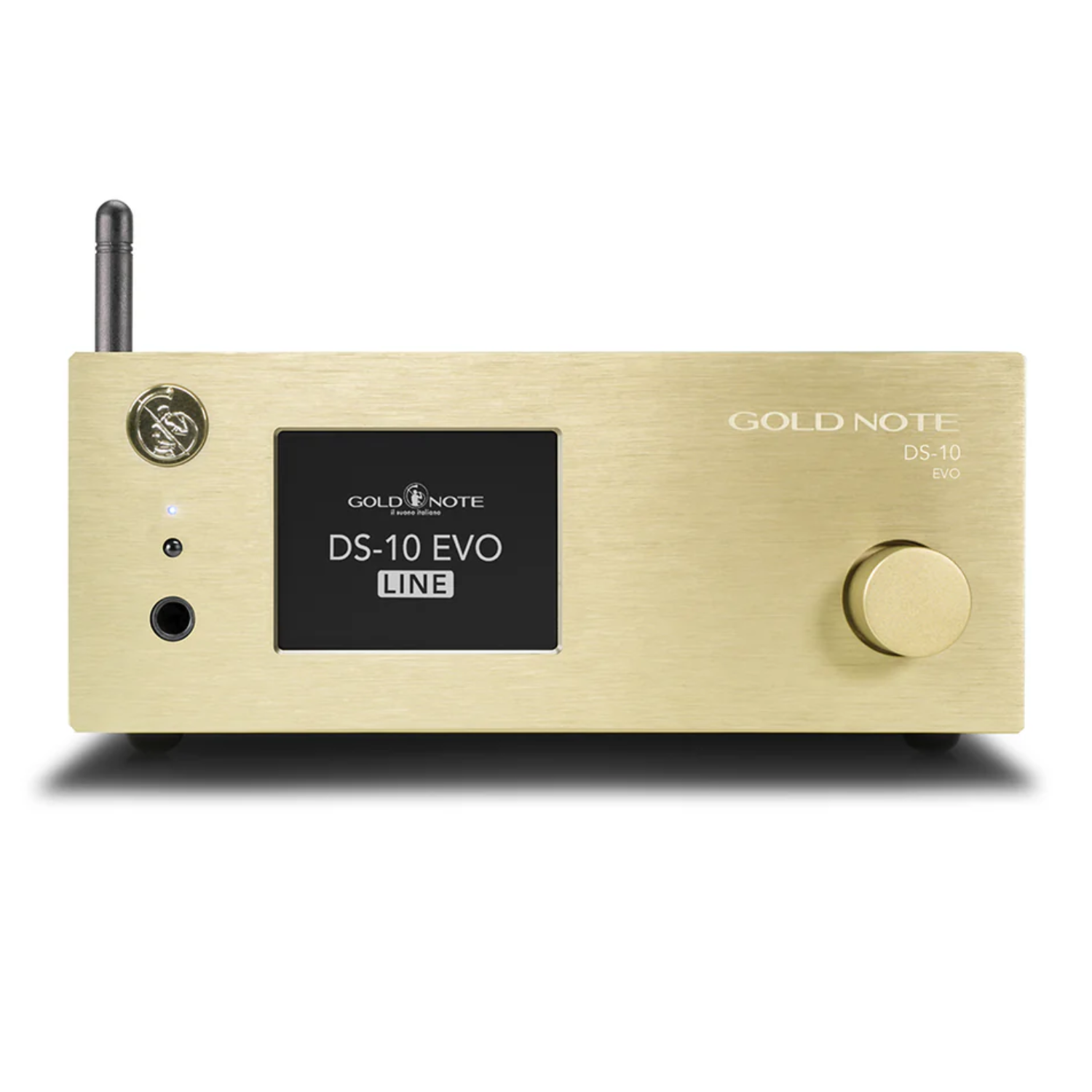

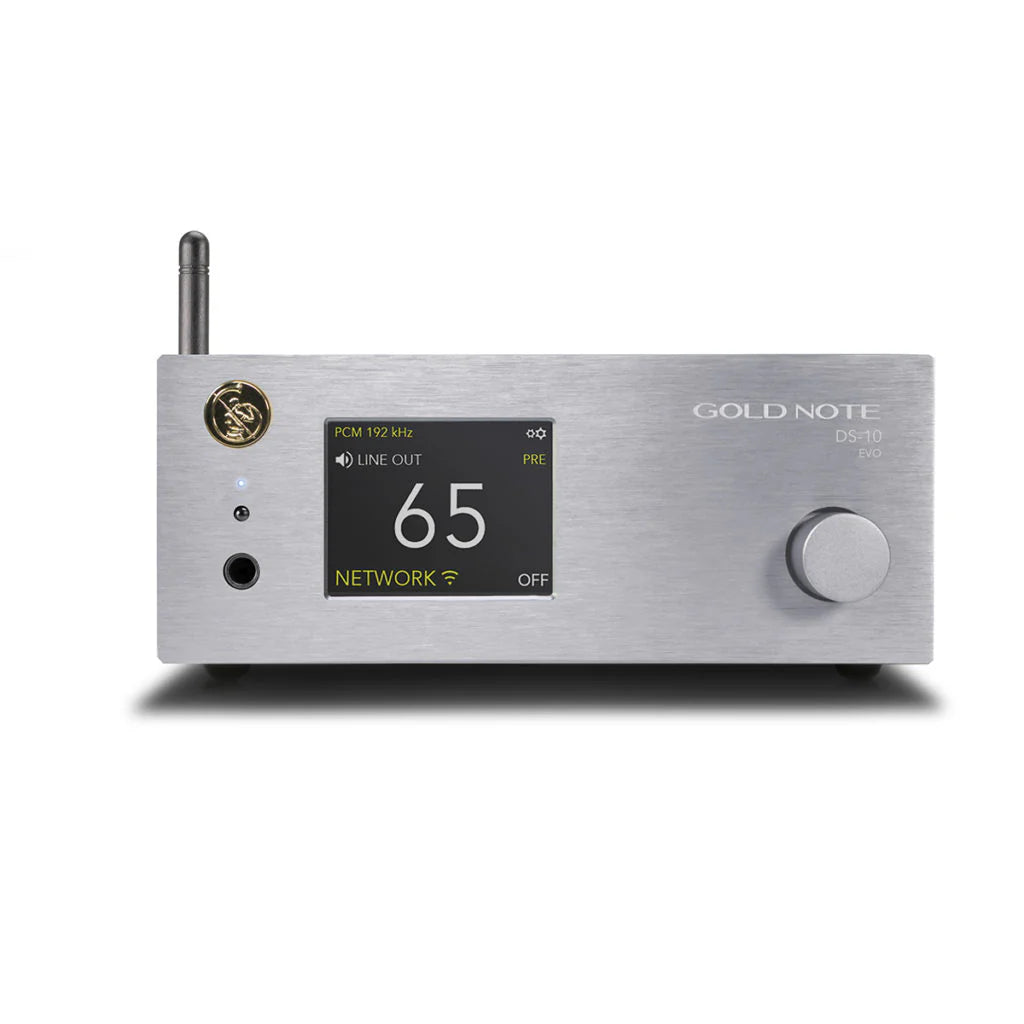

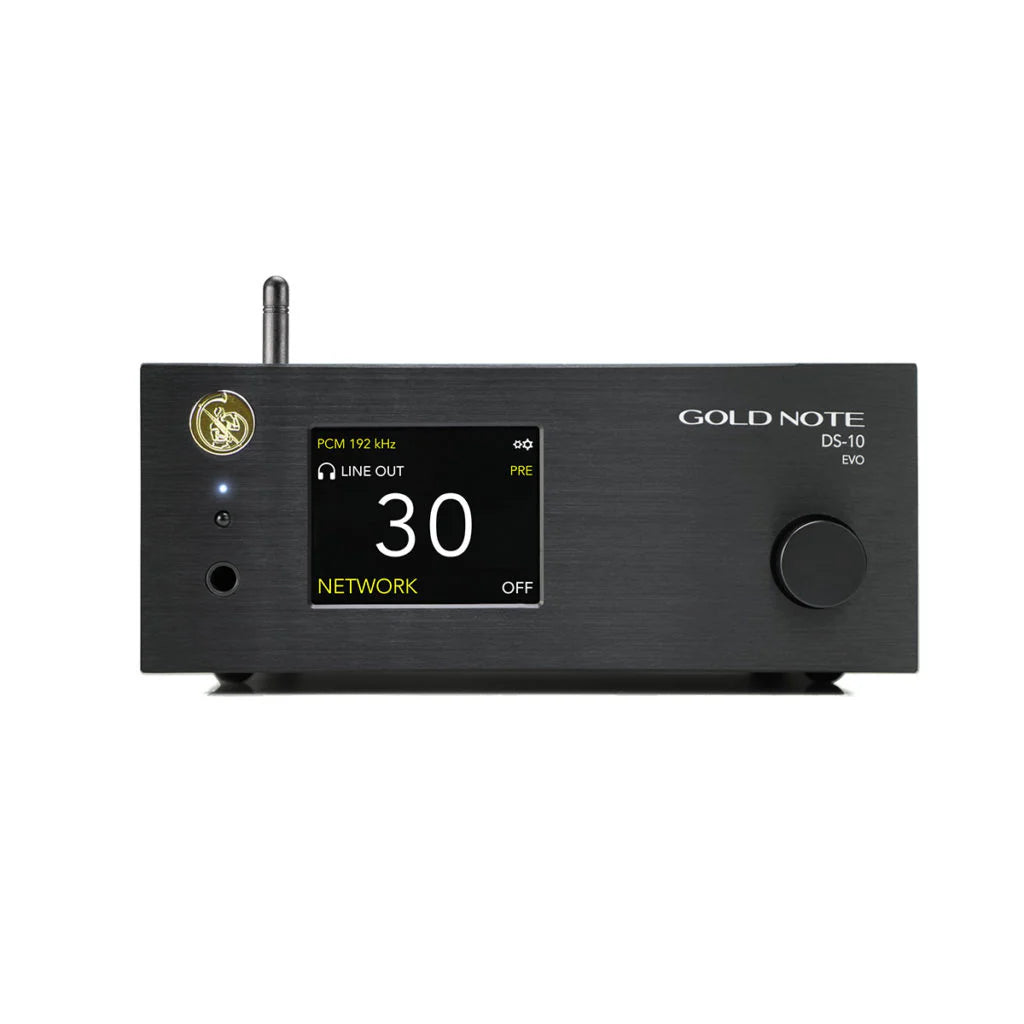

Gold Note DS-10 EVO LINE
$4,095.00
Product Details
Versatile streaming DAC with analog preamp
The Gold Note DS-10 EVO LINE combines cutting-edge streaming DAC, switchable Class A line preamplifier, and professional headphone amplifier in compact 200×80×260mm chassis. Supports PCM 32/384kHz, DSD512 USB, MQA with unique real-time DAC profile adjustment.
AK4493 DAC with adjustable profiles
AKM AK4493 converter with 3 selectable profiles (deemphasis, low-pass filters, DSD filter) adapts instantly to music playback. 20Hz-20kHz ±0.1dB response, 0.001% THD, 125dB S/N ratio, 120dB dynamic range for reference performance.
Complete streaming platform
Roon Ready, Tidal Connect, Spotify Connect, Qobuz Connect, AirPlay 2.0, Deezer, vTuner. Dual Band WiFi 802.11ac (10/433Mbps), Bluetooth HD 5.0, UPnP/DLNA. GN Control app displays track resolution and metadata on iOS/Android devices.
LINE model analog integration
Exclusive 3.5mm mini-jack analog input (10kΩ) pairs perfectly with PH-10 phono stages. Switchable Class A preamp stage with remote/SKC/app volume control. 6.3mm headphone output with dual gain settings.
Comprehensive digital connectivity
Inputs: USB-B async (DSD512/32-384), USB-A (DSD256/32GB FAT32/NTFS), AES/EBU, Coax, 2× TOS-Link (24/192). Outputs: RCA/XLR DAC (2Vrms, 50Ω), RCA/XLR preamp, headphone. 2.8″ TFT display + OTA firmware updates.
Perfect 10 Series digital source
Ideal match for CD-10/CD-5 players, T-5 turntables, and B-5.1 tonearms. Available exclusively at Vinyl Sound Buffalo, NY.
Technical Specifications
| Parameter | Value |
|---|---|
| D/A Converter | AKM AK4493 |
| Resolution | PCM 32/384kHz, DSD512 USB, DSD256 streaming |
| Frequency Response | 20Hz-20kHz ±0.1dB |
| THD | 0.001% max |
| S/N Ratio | 125dB |
| Dynamic Range | 120dB |
| Streaming | Roon Ready, Tidal/Spotify/Qobuz Connect, AirPlay 2 |
| Network | WiFi Dual Band 802.11ac, Ethernet, Bluetooth 5.0 HD |
| Digital Inputs | USB-B, USB-A, AES/EBU, Coax, 2× TOS-Link |
| Analog Input | 3.5mm mini-jack (10kΩ impedance) |
| Outputs | RCA/XLR DAC (2Vrms, 50Ω), RCA/XLR Preamp, Headphone 6.3mm |
| Power Supply | Multiple transformer (35W consumption) |
| Dimensions (WxHxD) | 200 × 80 × 260mm |
| Weight | 4kg net / 5kg boxed |
Complete digital/analog integration
Upgrade path: PSU-10 EVO external power supply. Pairs perfectly with PA-10 amplifiers. Contact Vinyl Sound Buffalo for hybrid streaming/vinyl system design.
