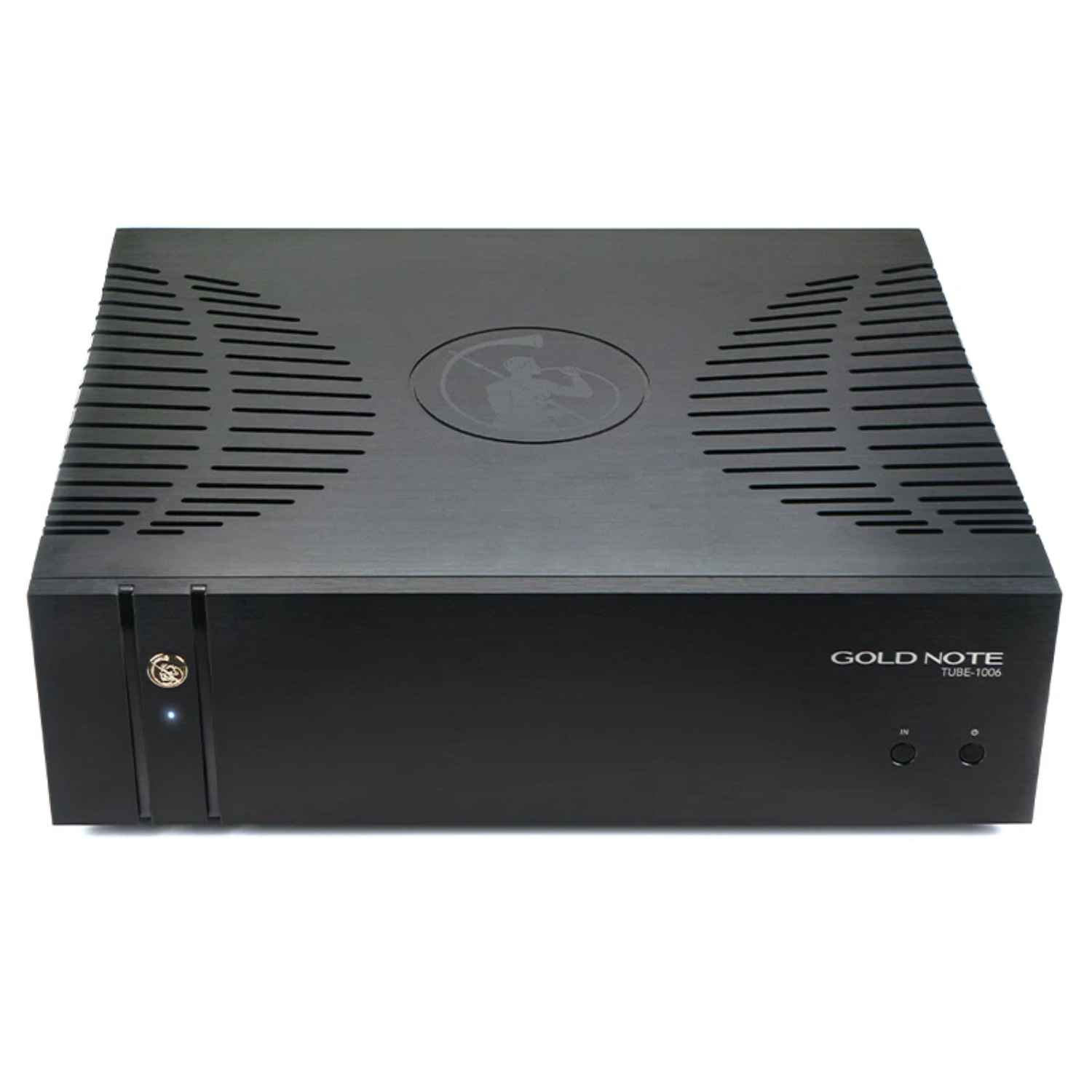

Gold Note Tube-1006 Class-A Tube Output Stage

6-valve Class-A output stage

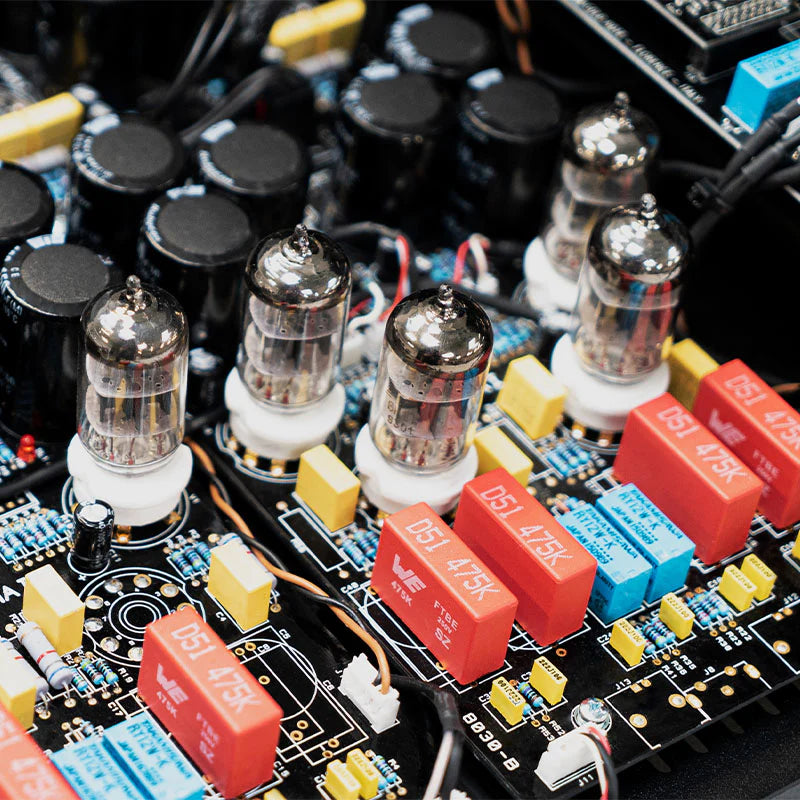

The Gold Note TUBE-1006 adds legendary tube warmth to 1000 Series solid-state electronics using 6x 6N1P valves in proprietary Totem-Pole Output Stage design. Six independent audio stages per tube deliver ultra-wide bandwidth, ultra-low distortion (0.0028% THD+N), >100dB S/N ratio for perfect solid-state/tube synergy.

Reference tube implementation

Transforms IS-1000 integrated amps, PH-1000 preamps, DS-1000 DACs with natural musicality, enhanced midrange bloom while retaining solid-state control. Max input 12Vrms XLR/6Vrms RCA, max output 16Vrms XLR/8Vrms RCA, <600Ω impedance, >10kΩ recommended load, 2dB gain.

Dual source connectivity

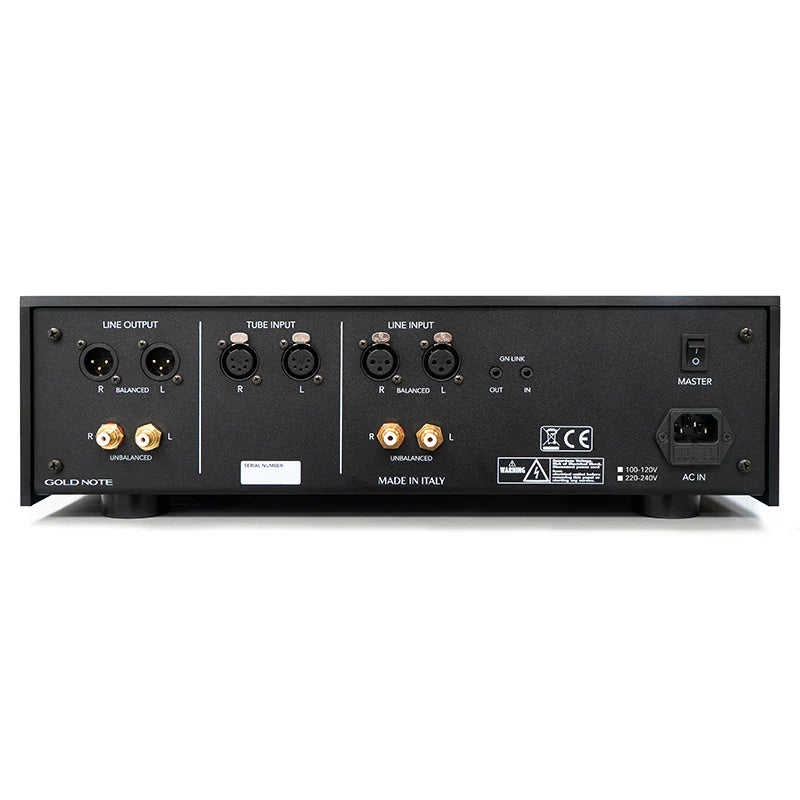

TUBE INPUT (5-pole XLR) for Gold Note sources + LINE INPUT (RCA/XLR) for other manufacturers. Front-panel source selection. No coupling transformers preserve signal purity. GN Link master-slave control synchronizes with 1000 Series components.

Compact high-performance design

50W consumption, 2x custom Gold Note transformers. 430×135×370mm chassis, 13.3kg net/19kg boxed. Universal 100-240V power supply, 3.15A fast-blow fuse. Brushed Black/Silver/Gold aluminum finishes.

Perfect 1000 Series companion

Matches IS-1000 Classic/Deluxe/Line, PH-1000 preamps. Modular plug-and-play connection via dedicated GN TUBE cable. Essential upgrade for tube enthusiasts.

Ultimate hybrid performance

Pairs perfectly with PSU-1250 power supplies, PH-1000 phono stages. Available exclusively at Vinyl Sound Buffalo, NY.

Technical Specifications

Complete 1000 Series tube solution

Instant modular connection, dual source capability. Contact Vinyl Sound Buffalo for TUBE-1006 integration and optimal 1000 Series system matching.[web:277][web:278]
