Gold Note Tube-1012 Class-A Tube Output Stage

Class-A valve output stages

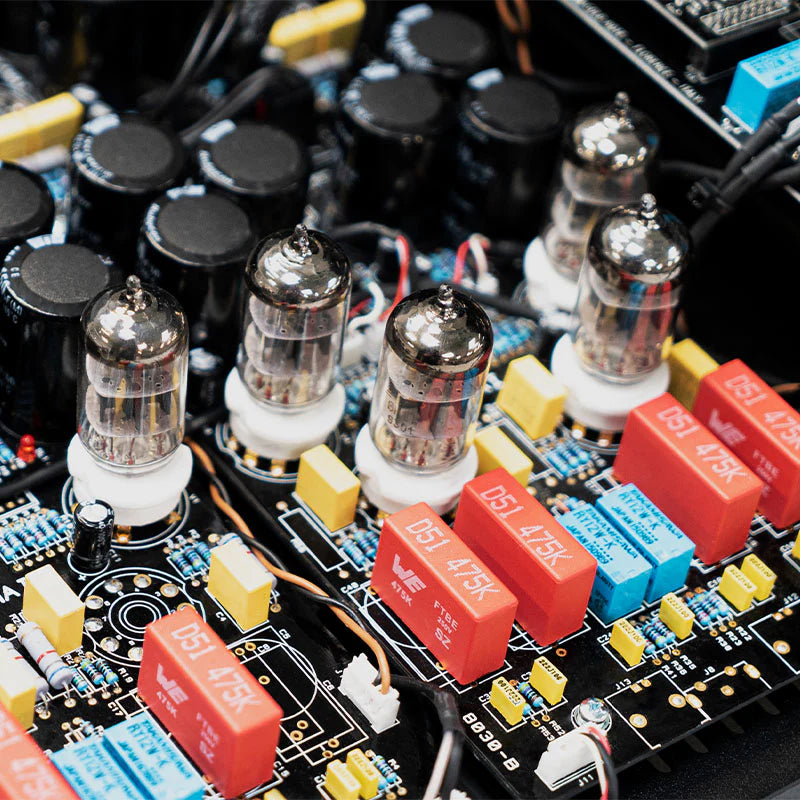

The Gold Note TUBE-1012 (12x 6N1P tubes) and TUBE-1006 (6x 6N1P tubes) add legendary tube warmth to 1000 Series solid-state electronics. Proprietary Totem-Pole Output Stage with six independent audio stages per tube delivers ultra-wide bandwidth and ultra-low distortion for perfect solid-state/tube synergy.

Hybrid solid-state + tube perfection

Transforms IS-1000 Classic/Deluxe/Line integrated amps, PH-1000 preamps, DS-1000 DACs with natural musicality while retaining solid-state control and definition. 20Vrms XLR / 10Vrms RCA maximum output, <600Ω impedance, >5kΩ recommended load.

Dual input source switching

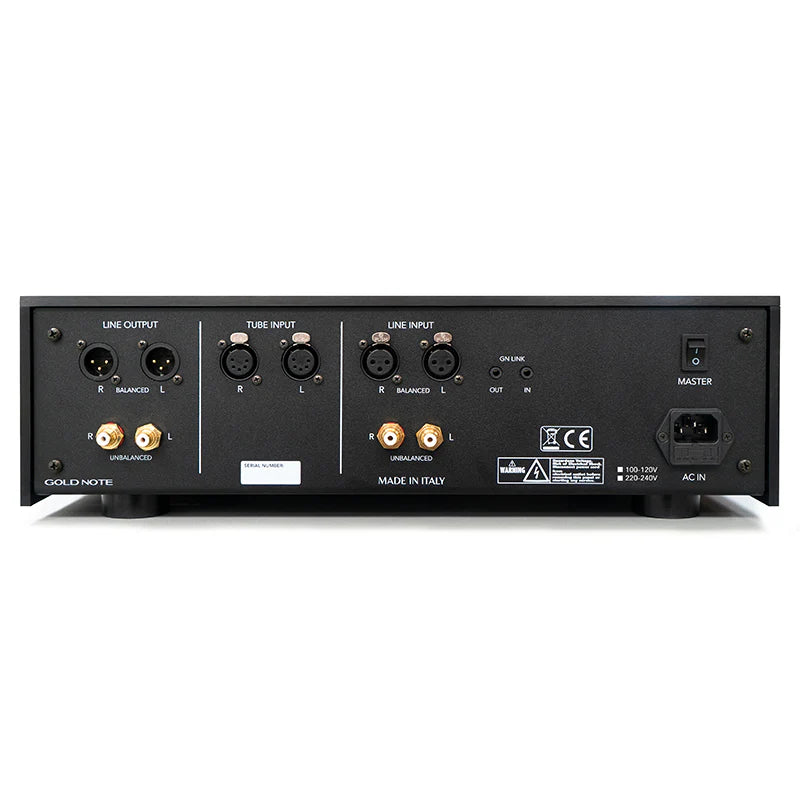

TUBE INPUT for Gold Note sources + LINE INPUT for other manufacturers. Front-panel source selection. 8Vrms maximum input, +3.5dB gain, no coupling transformers preserve signal purity. Super Linear Vacuum Tube Regulator (TUBE-1012) with 4 inductive choke filters.

Reference tube implementation

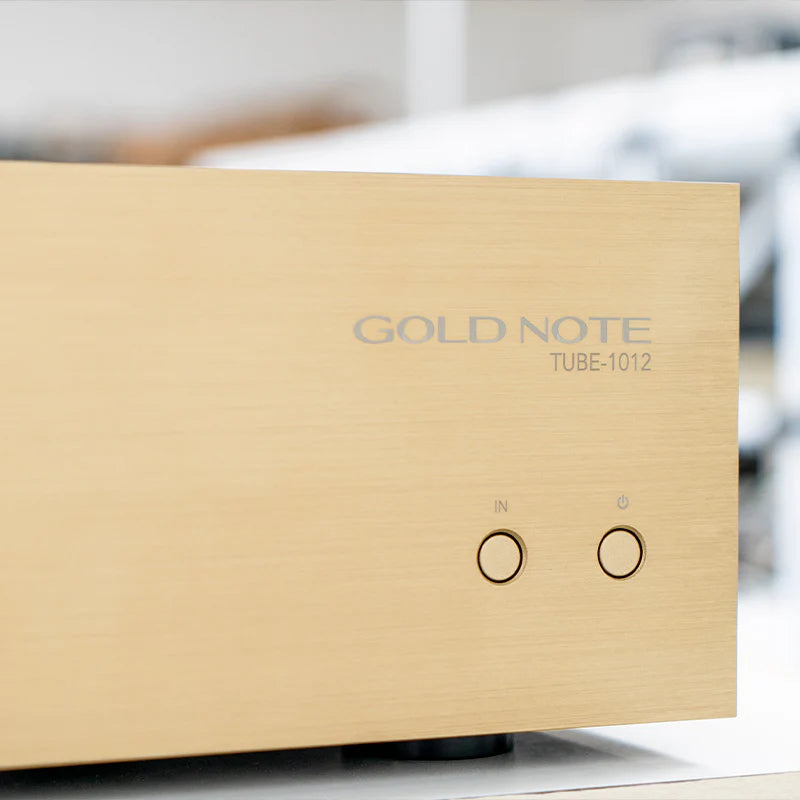

TUBE-1012: 80W consumption, 16kg net. TUBE-1006: 50W consumption, 13.3kg net. Custom Gold Note transformers. Universal 100-240V power supply. 430×135×370mm chassis available in Black/Silver/Gold brushed aluminum.

Perfect 1000 Series upgrade

Matches IS-1000 integrated amps, PH-1000 preamps, DS-1000 DACs. Modular design connects instantly via rear-panel audio inputs.

Ultimate high-end synergy

Essential upgrade for tube enthusiasts seeking reference performance. Available exclusively at Vinyl Sound Buffalo, NY. Pairs perfectly with PSU-1250 power supplies.

Technical Specifications

Complete 1000 Series tube solution

Dual source capability, instant connection. Contact Vinyl Sound Buffalo for TUBE-1012/1006 integration and optimal 1000 Series system matching.
