PSB CS 500W Subwoofer Amplifier

PSB CS 500W Architectural Subwoofer Amplifier at Vinyl Sound Buffalo NY

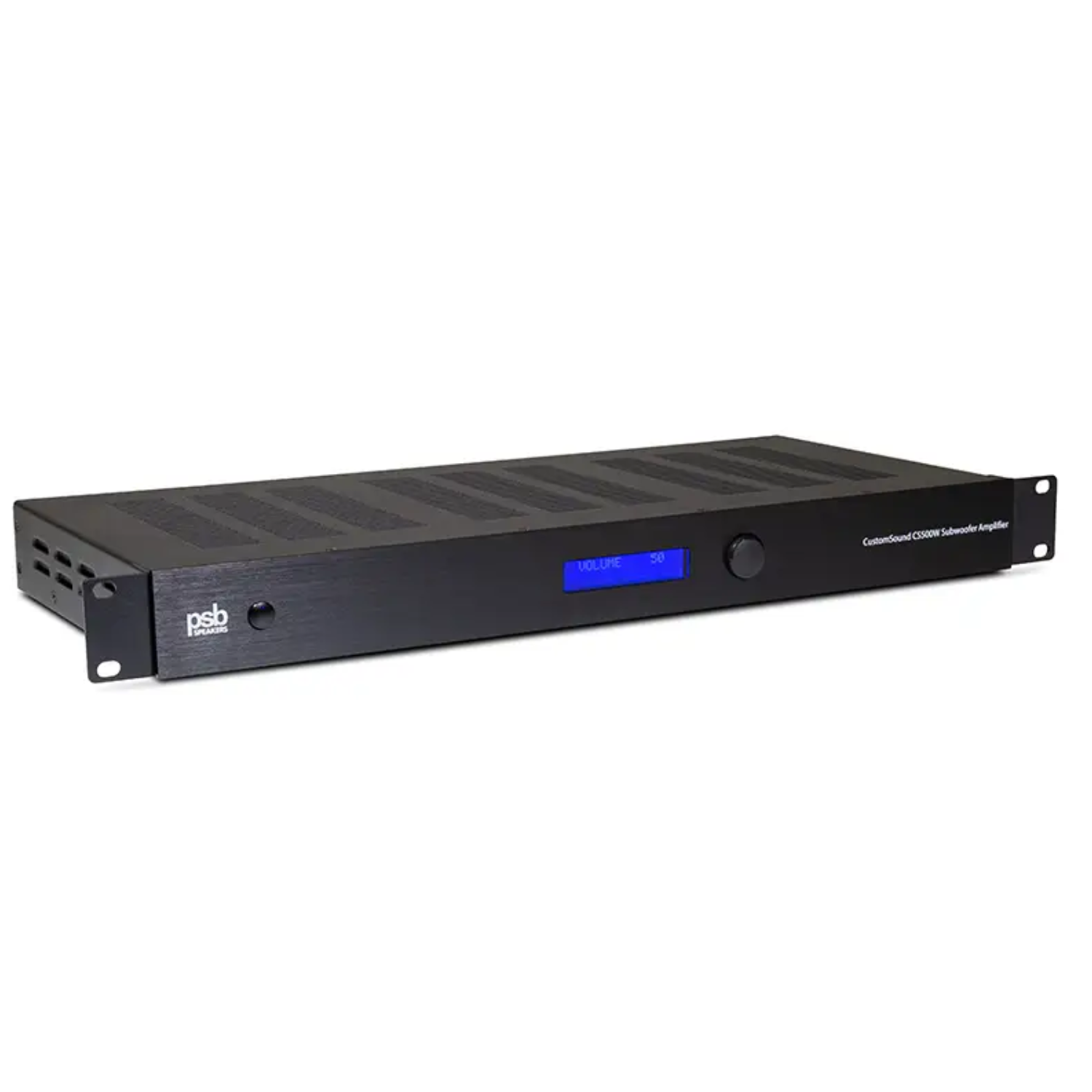

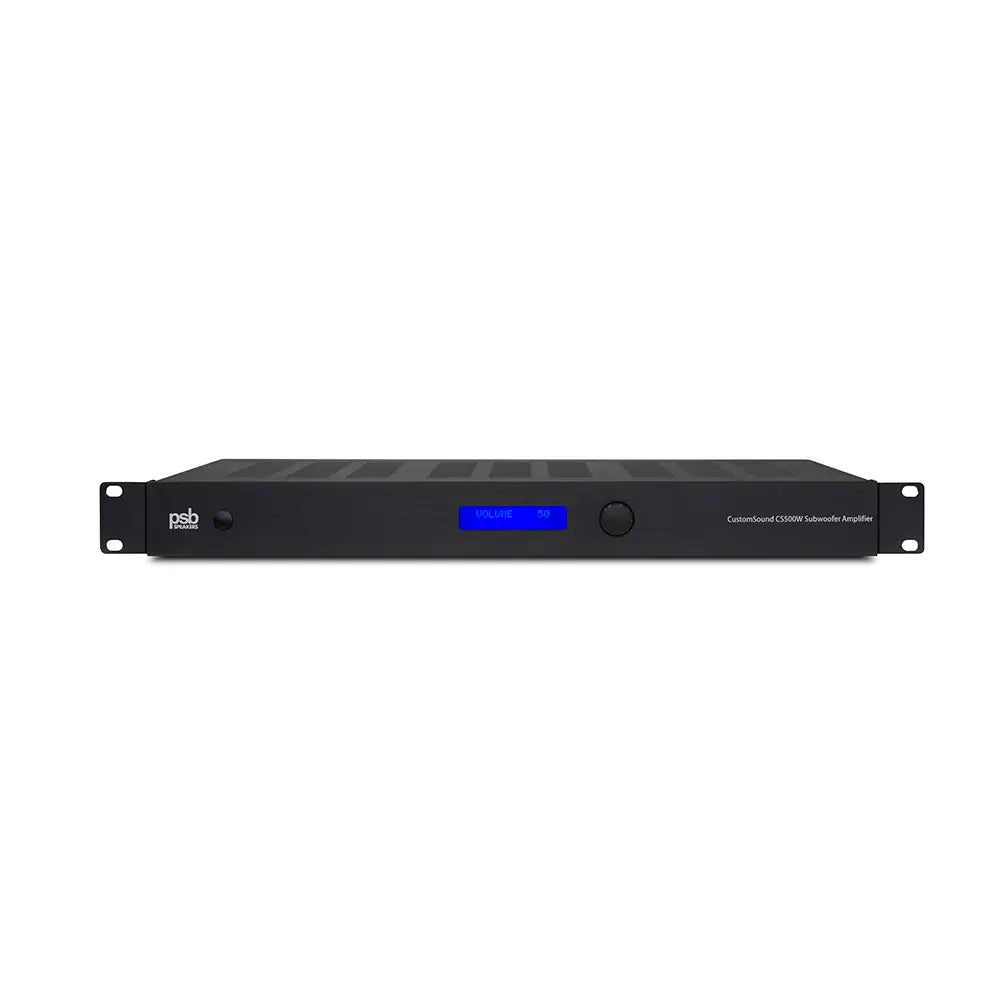

The PSB CS 500W is a 500-watt RMS digital subwoofer amplifier with built-in DSP, designed to drive one or two passive subwoofer enclosures in architectural home audio and home theater installations. Available at Vinyl Sound in Buffalo, New York, the CS 500W delivers 500 watts RMS into a 4-ohm load and 250 watts RMS into an 8-ohm load, with a frequency response spanning 20Hz to 500Hz and a -10dB cutoff at 10Hz. The integrated DSP provides predefined EQ curves calibrated for specific PSB subwoofer models, as well as adjustable profiles for movies, music, and flat response. A built-in limiter circuit prevents the amplifier and connected subwoofers from operating beyond safe parameters at high output levels. The CS 500W occupies a single 1U rack height slot at 16⅞ inches wide by 1¾ inches tall by 8⅛ inches deep, and ships with a rack mounting kit including removable rack ears and feet. Terminal block speaker connectors accommodate up to 10-gauge speaker cable for high-current subwoofer connections. Power-on options include auto signal-sensing and a 12-volt trigger input. Low-level inputs and outputs, IR input with up to four selectable IR channels, a switchable power supply, detachable power cord, and under 0.5-watt standby power consumption round out the feature set. The CS 500W is the designated amplifier for PSB's CSIR SUB In-Room Subwoofer and other passive PSB subwoofer enclosures. It is part of Vinyl Sound Buffalo's full speaker collection, which includes architectural subwoofer systems, in-ceiling speakers, on-wall speakers, and amplification from leading audio brands.

500W DSP Amplifier with Predefined EQ Profiles, Limiter, and Dual Subwoofer Drive

The CS 500W's 500-watt digital amplifier section uses a Class D switching amplifier topology, which provides high power output from a compact 1U chassis at low heat dissipation — important for rack installations where ventilation space between components is limited. The rated output of 500 watts RMS at 4 ohms halves to 250 watts RMS at 8 ohms, which reflects standard amplifier behavior: the same voltage swing into half the impedance delivers twice the current and twice the power. Two passive subwoofer enclosures with 8-ohm nominal impedance wired in parallel present a 4-ohm combined load to the amplifier, allowing a dual-sub installation to draw the full 500-watt rated output. The integrated DSP handles both the predefined PSB subwoofer EQ profiles and the user-selectable content optimization modes. Predefined profiles are factory-calibrated EQ curves mapped to the frequency response and port tuning characteristics of specific PSB subwoofer enclosures — when a PSB sub is selected in the DSP menu, the amplifier applies the correct equalization to optimize bass extension, output, and distortion behavior for that enclosure. The movies, music, and flat DSP modes adjust the overall bass character for different content types: movies mode typically emphasizes deep sub-bass for low-frequency effects tracks, music mode optimizes the midrange bass texture for instrument tonality, and flat mode applies no additional EQ beyond the subwoofer profile correction. The limiter circuit monitors output level and clips the signal peak before the amplifier or connected driver reaches a condition that could cause thermal damage or mechanical overexcursion.

1U Rack Installation, Control Inputs, and System Integration

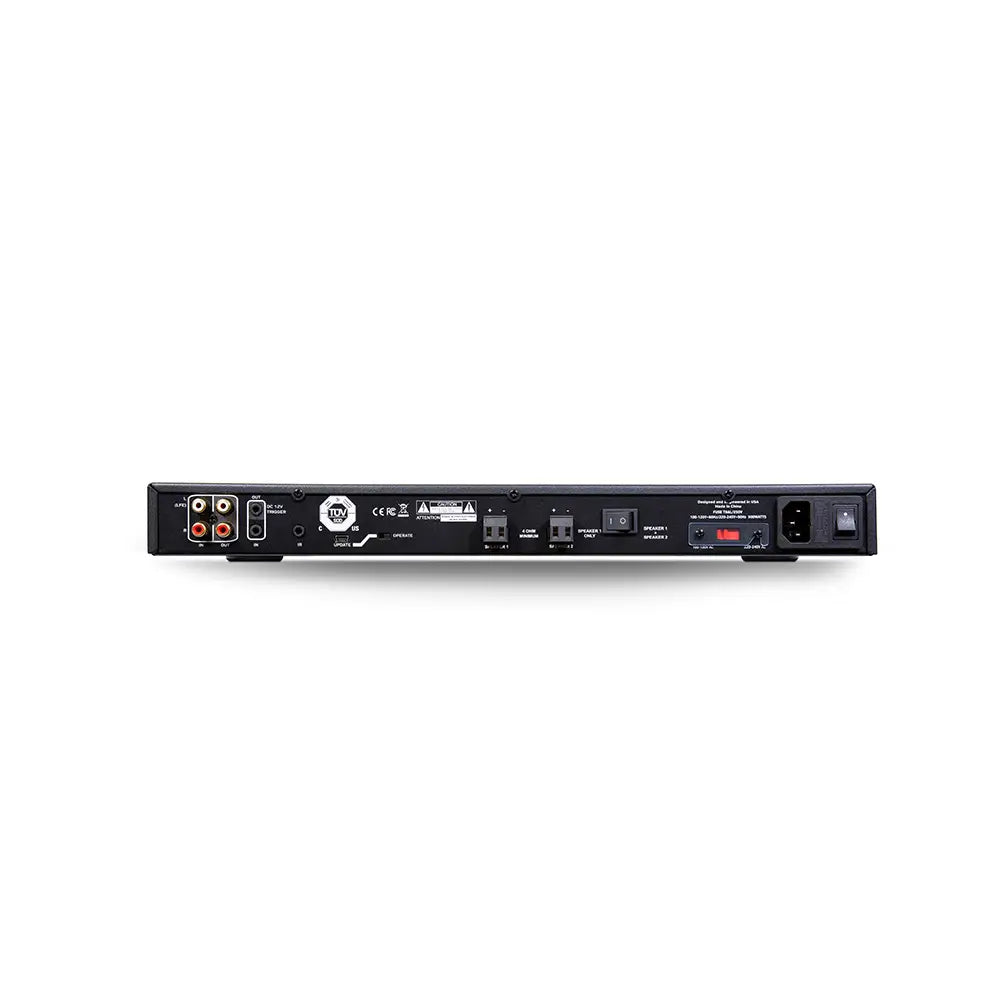

The CS 500W is a 1U rack unit — 1¾ inches tall, fitting a standard 19-inch equipment rack in the smallest single-unit slot. Removable rack ears mount to standard 19-inch rack rails; the ears can be removed and replaced with feet for shelf or closet installation without a rack. At 8.5 lb (3.9 kg), the CS 500W can be installed anywhere along a rack column without loading the rack structure. The 12-volt trigger input allows the CS 500W to power on automatically when any component in the system outputs a 12V control signal — typically an AV receiver or preamplifier that switches its trigger output on when the system is activated and off when the system enters standby. The auto signal-sensing power mode detects an audio signal at the low-level input and powers the amplifier on without requiring a trigger connection, making it suitable for installations where the source component does not have a 12V trigger output. The IR input with up to four selectable IR channels allows an IR distribution system to send remote control commands to the CS 500W — the channel selection determines which IR code set the unit responds to, preventing conflicts when multiple IR-controlled devices share a distribution hub. The terminal block speaker connector accepts bare wire up to 10-gauge, providing a secure, vibration-resistant connection appropriate for in-wall and in-ceiling speaker cable runs where a push-terminal or binding post connector could loosen over time. The detachable power cord and switchable power supply simplify rack installation and allow the unit to operate on 120V or 240V mains.

Specifications

Frequently Asked Questions

What does 500 watts at 4 ohms and 250 watts at 8 ohms mean for my subwoofer installation?

The CS 500W's output power rating changes with the impedance of the connected subwoofer load. At 4 ohms, the amplifier delivers 500 watts RMS; at 8 ohms, it delivers 250 watts RMS. This is standard amplifier behavior: the amplifier's voltage output is fixed at a given gain setting, and halving the impedance doubles the current draw and doubles the output power. In a single-subwoofer installation using one 8-ohm passive enclosure, the CS 500W delivers 250 watts to that enclosure. In a dual-subwoofer installation where two 8-ohm enclosures are wired in parallel, the combined load drops to 4 ohms and the amplifier delivers the full 500 watts — 250 watts to each enclosure. This makes the dual-subwoofer configuration the most efficient use of the CS 500W's power rating and is how PSB designs the unit to be used with a pair of CSIR SUB In-Room Subwoofer enclosures.

What does the DSP do and how do the predefined PSB EQ profiles work?

The CS 500W's digital signal processor performs equalization on the subwoofer output signal before it reaches the amplifier stage. Equalization adjusts the frequency response — boosting or cutting specific frequency bands — to correct for the acoustic characteristics of the subwoofer enclosure it is driving. Every passive subwoofer enclosure has a native frequency response shaped by its port tuning, internal volume, and driver parameters. PSB has measured the specific frequency response of each supported PSB subwoofer enclosure and programmed a corresponding correction curve into the CS 500W's DSP. When the installer selects a PSB sub's profile in the DSP menu, the amplifier applies that enclosure-specific correction to flatten the subwoofer's output across the bass range and extend usable low-frequency output below what the enclosure would produce without correction. The movies, music, and flat modes layer an additional global adjustment on top of the enclosure profile: movies emphasizes sub-bass for LFE track impact, music optimizes upper bass texture, and flat applies no global adjustment beyond the profile correction.

Can the CS 500W drive two passive subwoofers at the same time?

Yes. The CS 500W is specifically rated and designed to drive two passive subwoofer enclosures simultaneously from its single speaker output. PSB recommends wiring two 8-ohm subwoofer enclosures in parallel, presenting a combined 4-ohm load to the amplifier. At 4 ohms, the CS 500W delivers its full 500-watt RMS rating, splitting approximately 250 watts to each enclosure. Using two subwoofers in a room rather than one provides more even bass distribution across the listening area — a dual-sub arrangement reduces the room mode peaks and nulls that a single-sub placement creates in most rectangular rooms, producing more consistent bass response at different seating positions. The CS 500W's terminal block speaker output connects to both subwoofer enclosures via parallel wiring runs, with the 10-gauge cable capacity allowing sufficient current delivery to both drivers at high output levels.

What is a 12V trigger and how does it work with the CS 500W?

A 12-volt trigger is a low-voltage DC control signal used in home audio systems to remotely switch components on and off. When an AV receiver, preamplifier, or control processor is turned on, it outputs 12V DC on its trigger output terminal; when the source component enters standby, the trigger signal drops to 0V. The CS 500W's 12V trigger input monitors this signal — when 12V is present, the amplifier powers on; when the signal drops, the amplifier enters standby. This eliminates the need to manually power the subwoofer amplifier on and off as part of a system operation sequence. In a rack installation where the CS 500W is hidden from direct access, trigger control is essential for practical day-to-day use. The CS 500W also supports auto signal-sensing power-on as an alternative: in this mode, the amplifier monitors the low-level audio input and powers on when it detects a signal above the sensing threshold, without requiring a trigger connection to the source component.

What PSB subwoofers is the CS 500W designed to work with?

PSB specifically names the CSIR SUB In-Room Subwoofer as the primary companion for the CS 500W, and the unit includes predefined DSP EQ profiles calibrated for specific PSB passive subwoofer enclosures in the CS (Custom Sound) architectural series. The predefined profiles are the key integration feature — using a CS 500W with a matched PSB passive enclosure allows the installer to select the factory-calibrated EQ profile rather than manually adjusting the DSP, ensuring the subwoofer system performs to PSB's engineering specifications without requiring an additional measurement microphone and room correction process. The CS 500W can also be used as a general-purpose subwoofer amplifier for other compatible passive 4-ohm or 8-ohm subwoofer enclosures using the flat or manually adjusted DSP modes. Contact Vinyl Sound Buffalo for current availability of PSB CSIR SUB enclosures and CS 500W amplifier packages.

What does IR input with 4 selectable channels do in a home audio system?

IR stands for infrared — the same transmission protocol used by most home audio and video remote controls. The CS 500W's IR input accepts a connection from an IR distribution system, which is a separate component that receives infrared signals from a remote control in one room and distributes them via wire to components installed in other rooms, equipment racks, or closets where the original IR signal cannot reach. The four selectable IR channels on the CS 500W determine which IR code set or address the unit responds to. In an installation where multiple IR-controlled components share the same IR distribution bus — an AV receiver, a streaming player, a preamplifier, and the CS 500W — each component is assigned a different IR channel to prevent command conflicts: a volume command intended for the receiver does not accidentally trigger the CS 500W. The channel selection is made during installation and allows the CS 500W to participate in a fully controllable architectural audio system without the amplifier needing to be physically accessible for manual operation.

Where to buy the PSB CS 500W subwoofer amplifier in Buffalo NY?

The PSB CS 500W is available from Vinyl Sound, an authorized PSB dealer in Buffalo, New York. Vinyl Sound carries the CS 500W alongside PSB's passive subwoofer enclosures and in-ceiling and in-wall speaker systems for complete architectural audio installations. Free shipping is available across the continental United States. Contact Vinyl Sound Buffalo by phone or email to purchase the CS 500W, pair it with a PSB CSIR SUB enclosure, or discuss amplification requirements for a custom architectural subwoofer installation.
