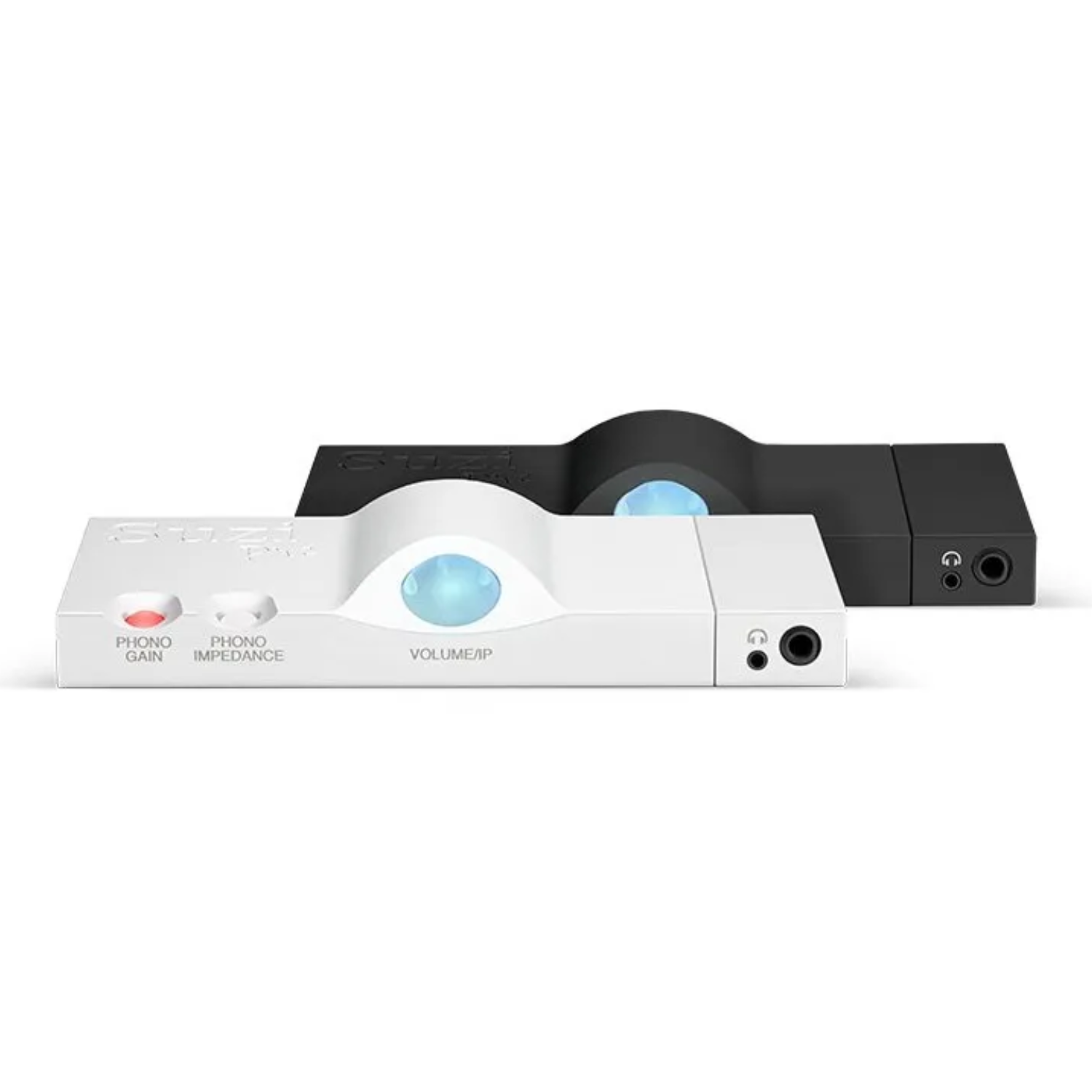

Chord Suzi Pre Pre/headphone Amplifier And Phono Stage

The Suzi Pre is a versatile and compact pre-amplifier with a built-in MM/MC phono stage with selectable gain and impedance. The Suzi Pre allows the direct integration of the new Suzi Amp stereo power amplifier to create a compact pre/power amp, or can be used as a standalone pre-amplifier.

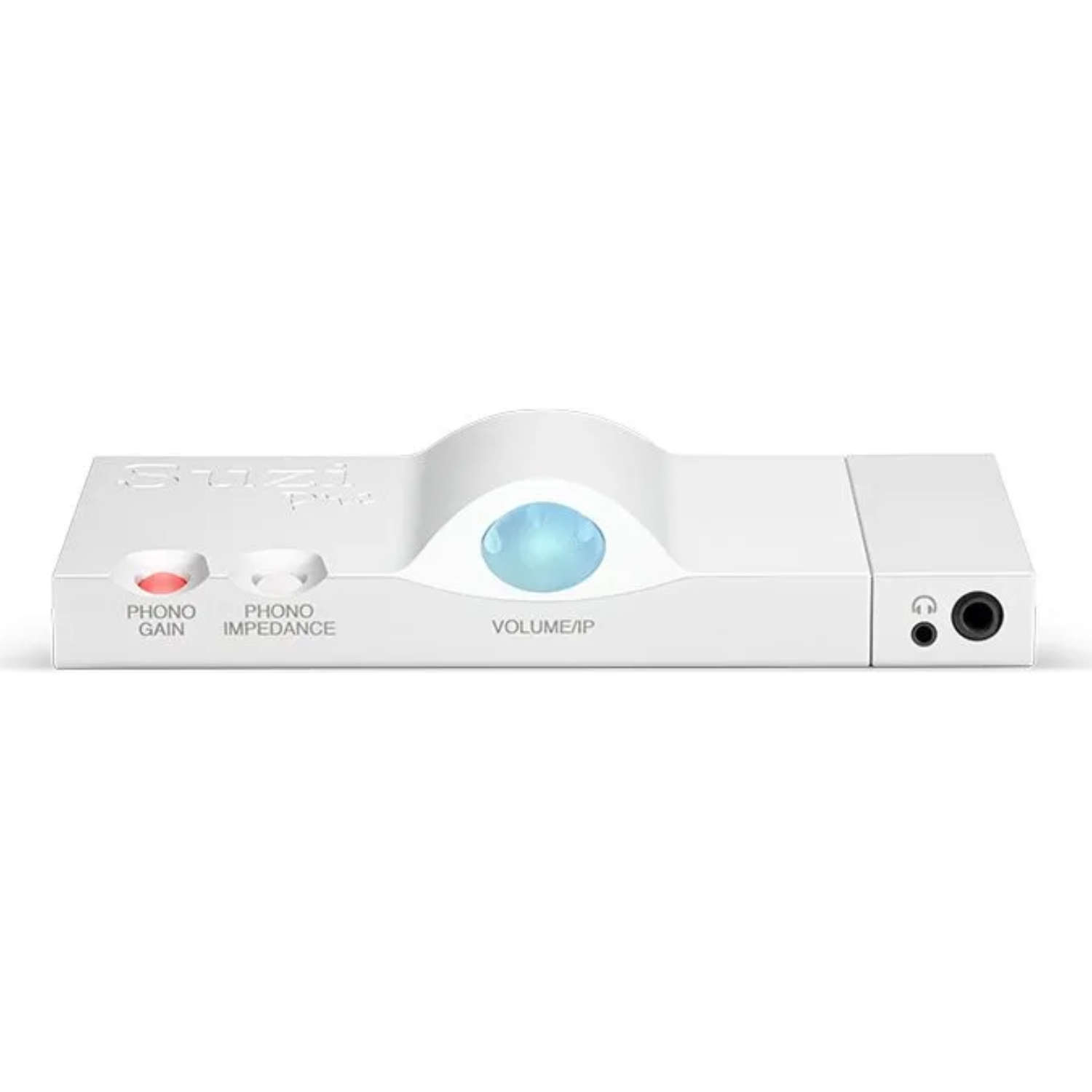

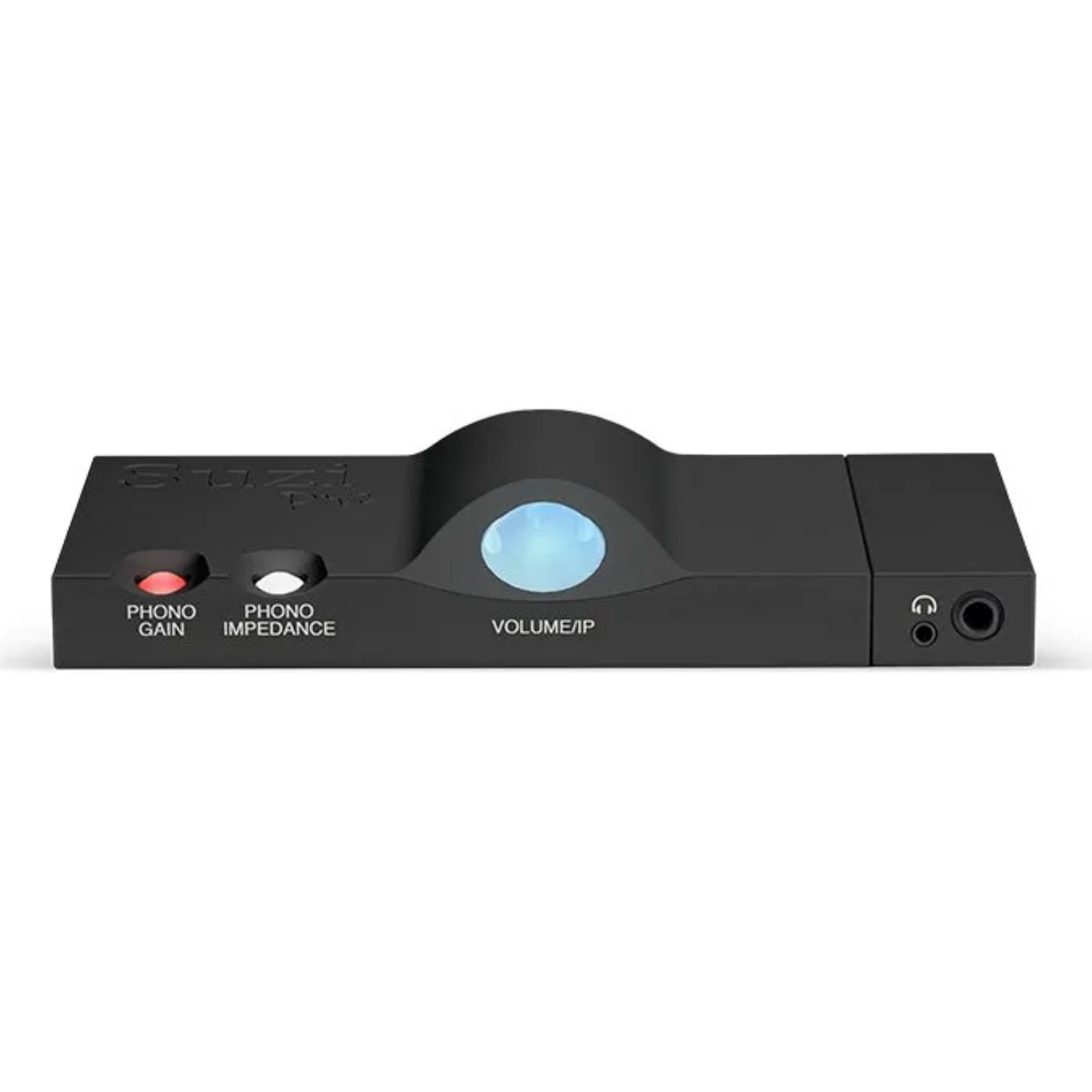

It features both 3.5 mm and 6.35 mm headphone outputs, three RCA inputs, one RCA output, and a 12 V DC output. A central polychromatic control sphere handles volume and input selection.

Along with the matching Suzi Amp power amp, the Suzi concept offers many versatile configurations including:

Suzi Pre/Suzi Amp: a compact pre/power amplifier with phono stage and headphone out

Suzi Amp with a Hugo 2: a DAC/amplifier (add USB-C/B inputs with the Multiplexer, below)

Suzi Amp with a Hugo 2 and 2go: A streaming DAC/amp with up to 2 TB MicroSD storage

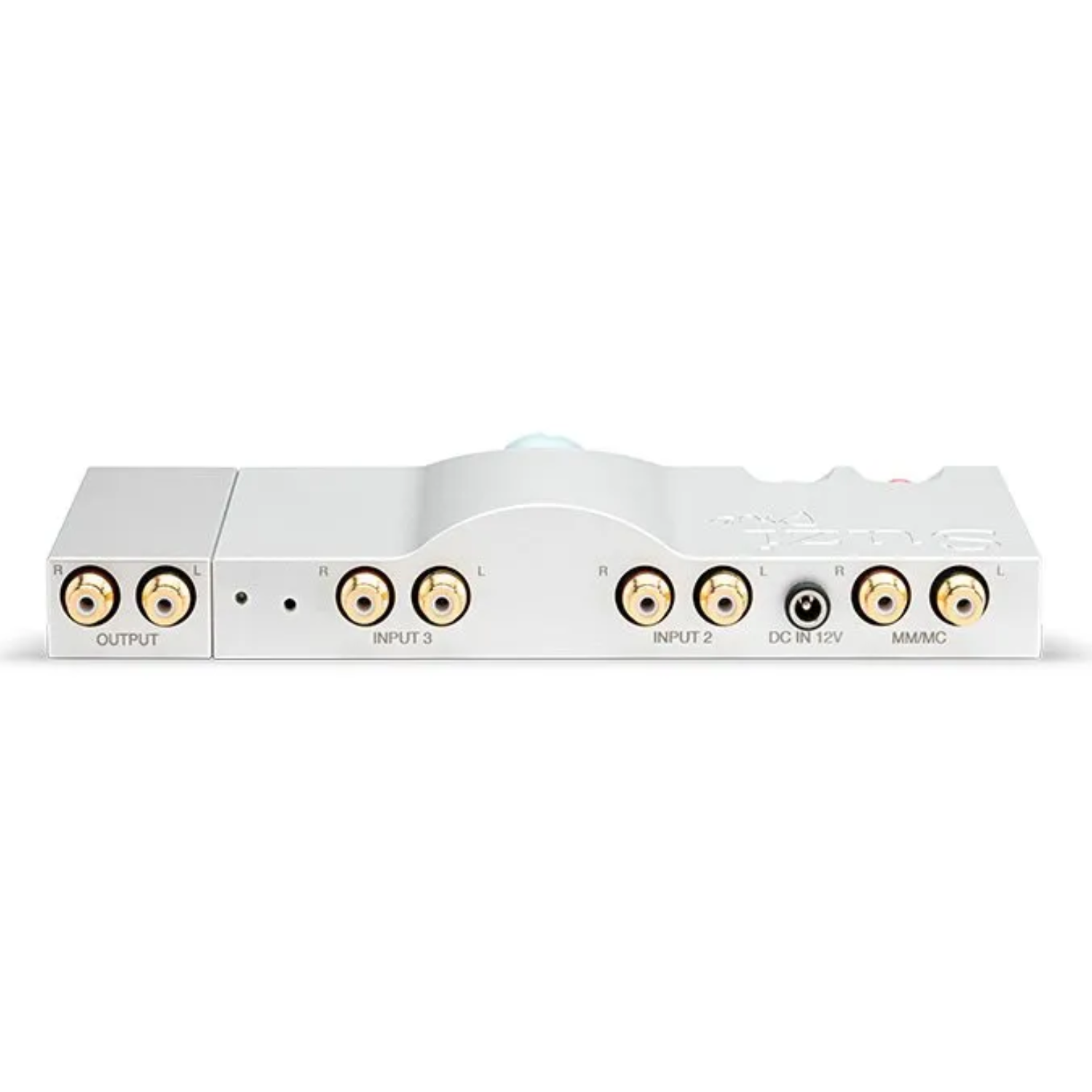

Input:

1 x Stereo RCA turntable input (MM/MC)

2 x Stereo RCA

1 x 12 V DC jack

Output:

2 x Headphone jack (1 x 3.5 mm + 1 x 1/4″)

1 Stereo RCA

Output power (Headphones): 160 mW into 100 Ω
THD: 0.0007% A-weighted
Input maximum voltage: 3.5 V RMS
Output max voltage: 3.5 V RMS
Frequency response: 7 Hz – 30 kHz +/-3 dB
Signal to Noise: -103 dB
Operation voltage: 12 V DC
