Gold Note Diana Center 2-way Center Channel Speaker
$1,495.00
Product Details
Diana series center channel speaker
The Gold Note Diana Center delivers precise dialogue and immersive soundstaging through MTM 2-way sealed design with dual 6.5" treated paper mid-woofers flanking 1.1" silk dome tweeter. High 91dB sensitivity and 8Ω impedance ensure tube-friendly performance with exceptional dynamic range.
Symmetric driver configuration
Dual 6.5" woofers + 1.1" tweeter in D'Appolito MTM array provides uniform horizontal dispersion and pinpoint center imaging. 2900Hz crossover maintains phase coherence for natural vocal timbre. Sealed 23dm³ cabinet delivers tight bass to 60Hz F3.
Anti-resonance engineering

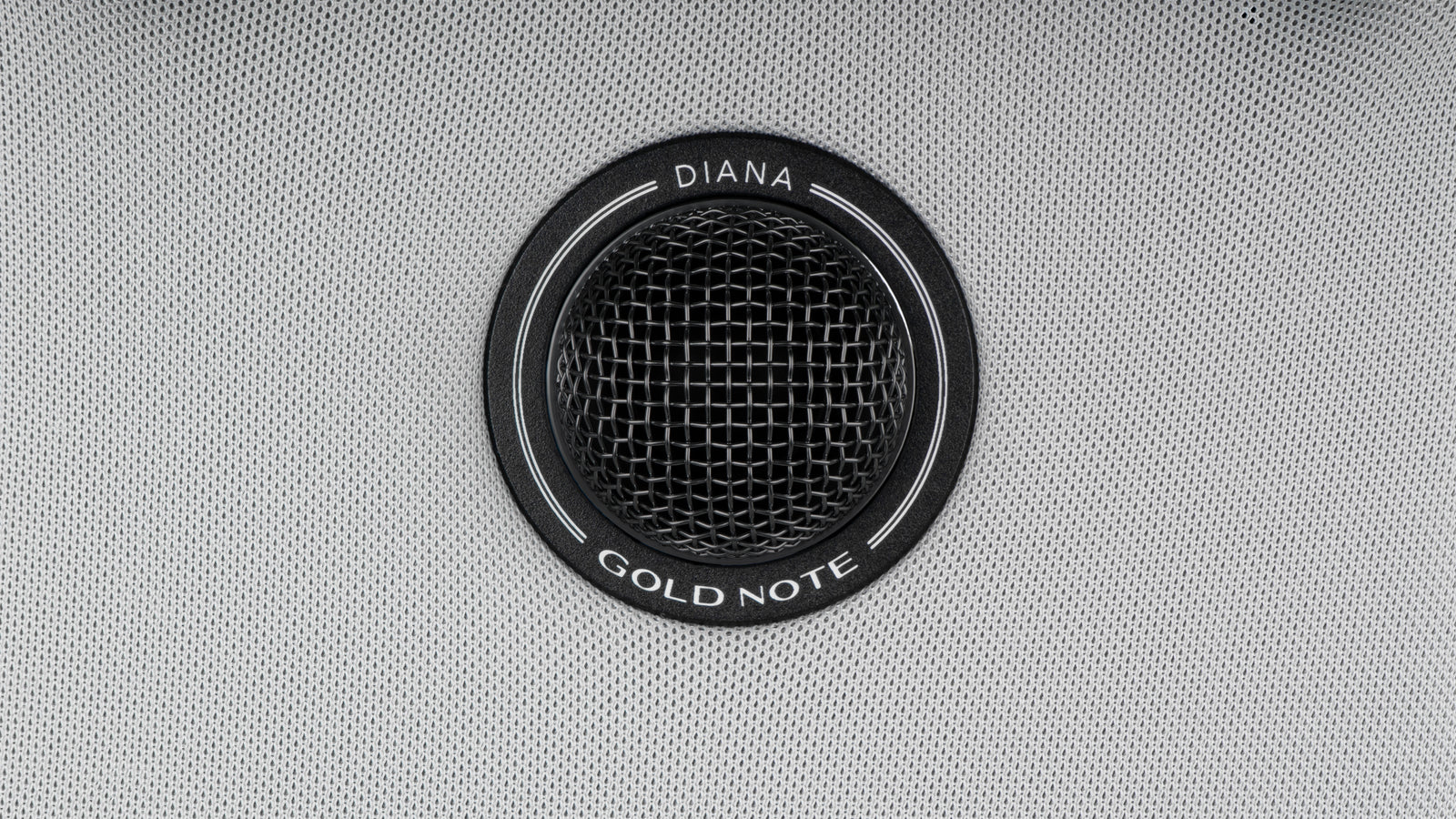

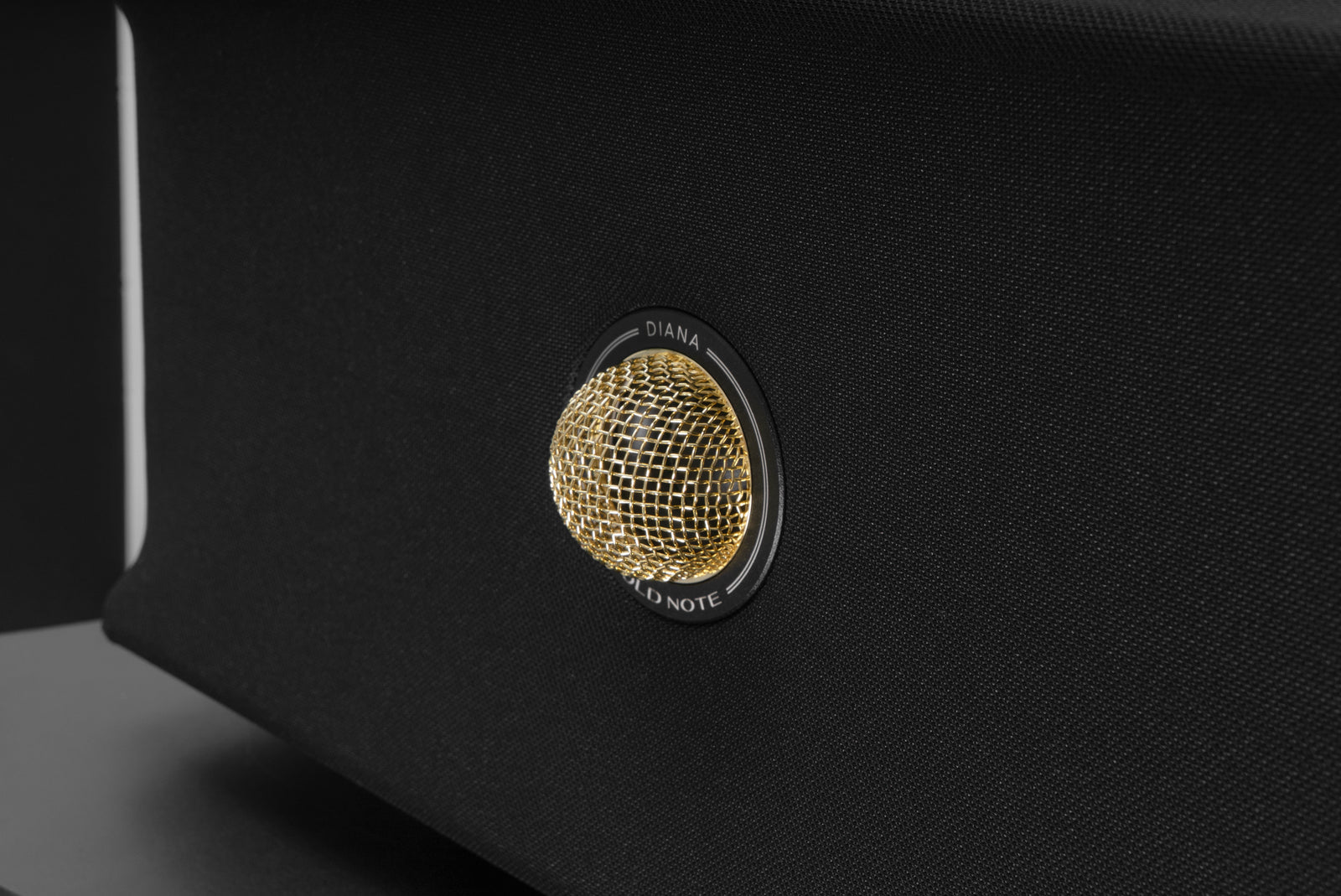

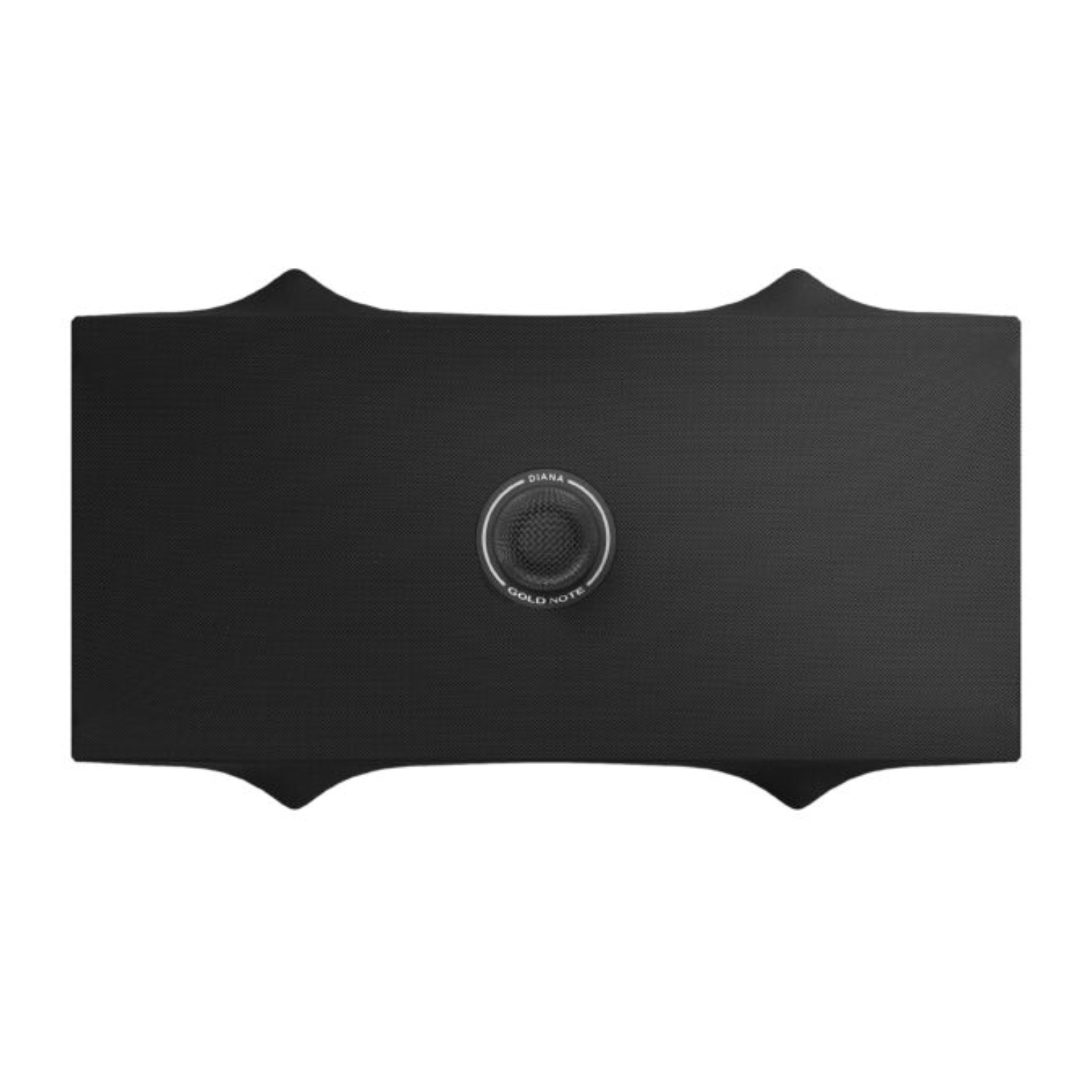

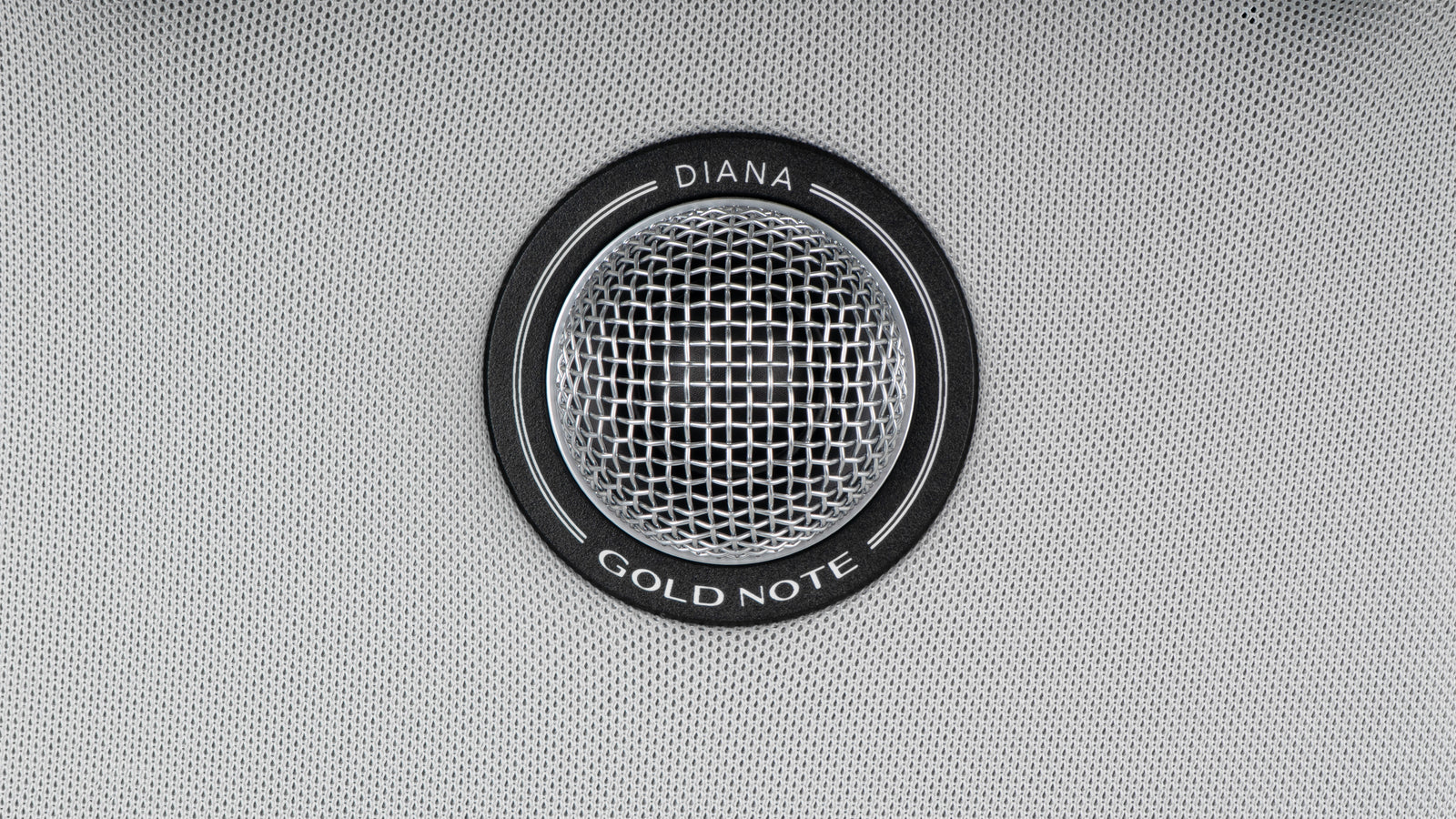

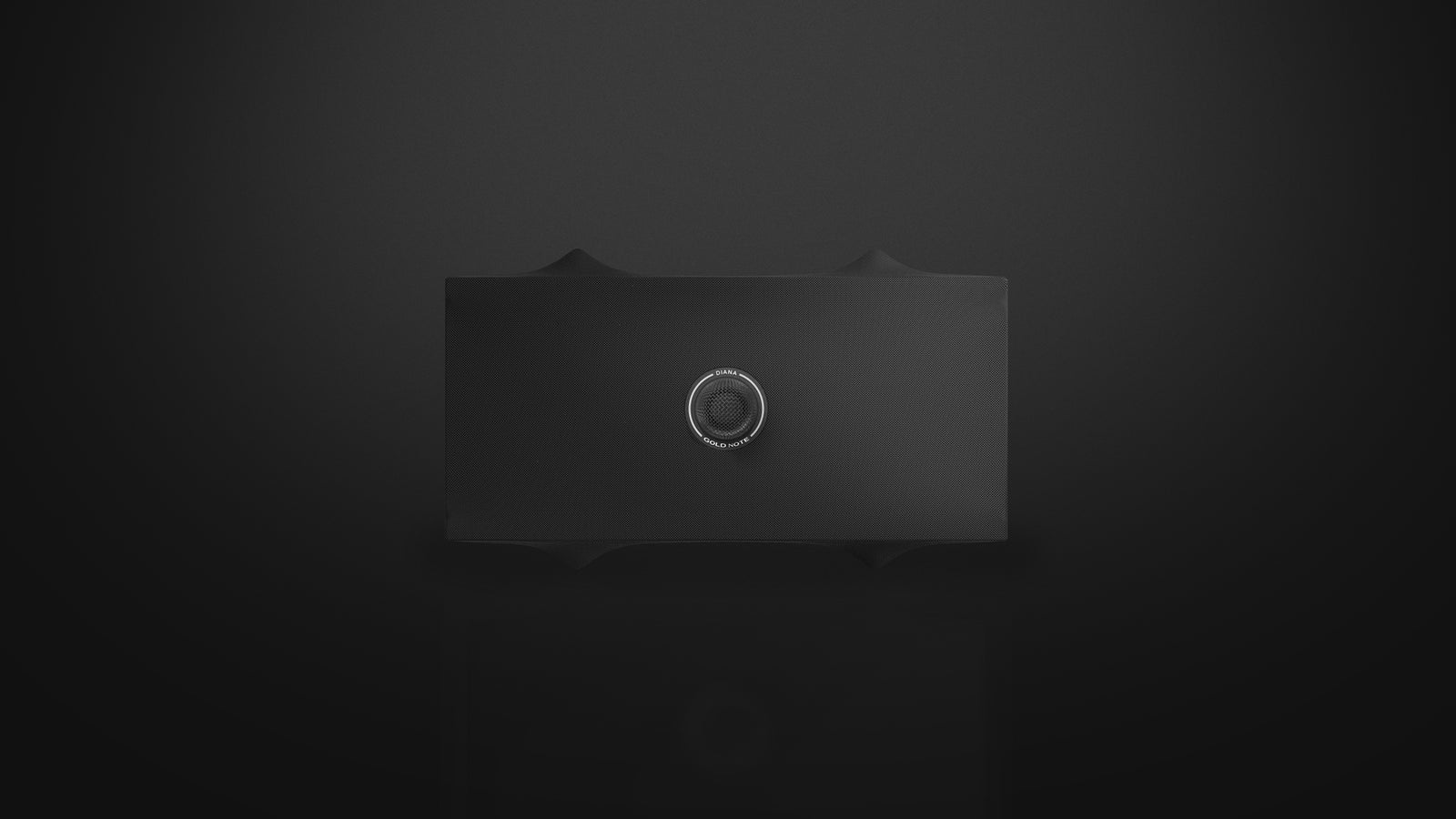

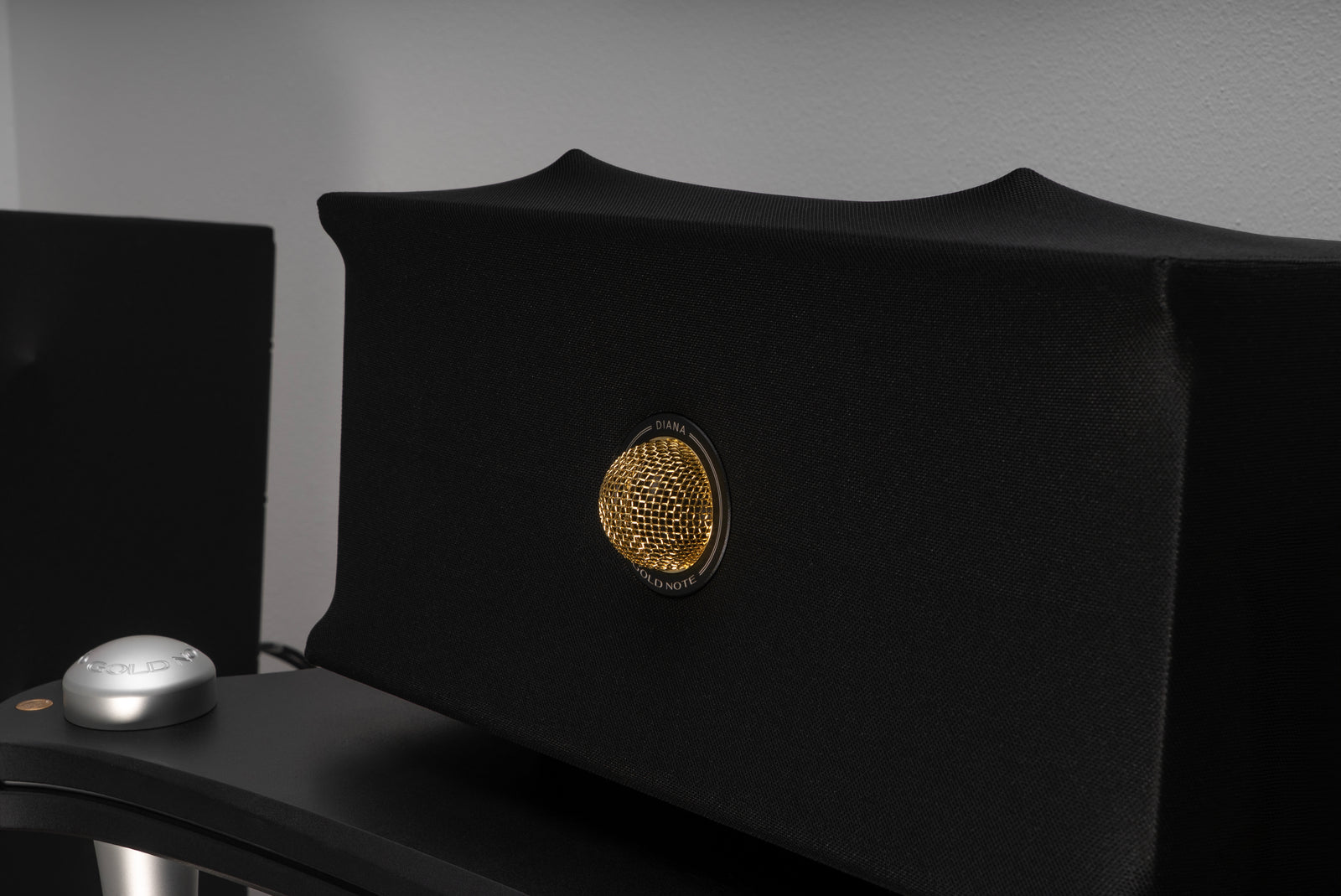

Four semi-elliptical mechanical resonators reduce cabinet vibration along mid-woofer axis. Mechanical dome phaser enhances tweeter dispersion and high-frequency clarity. Fabric-covered cabinet (Black Rebel/Grey Arctic) with customizable phaser colors matches Diana series aesthetics.
Flexible amplification compatibility

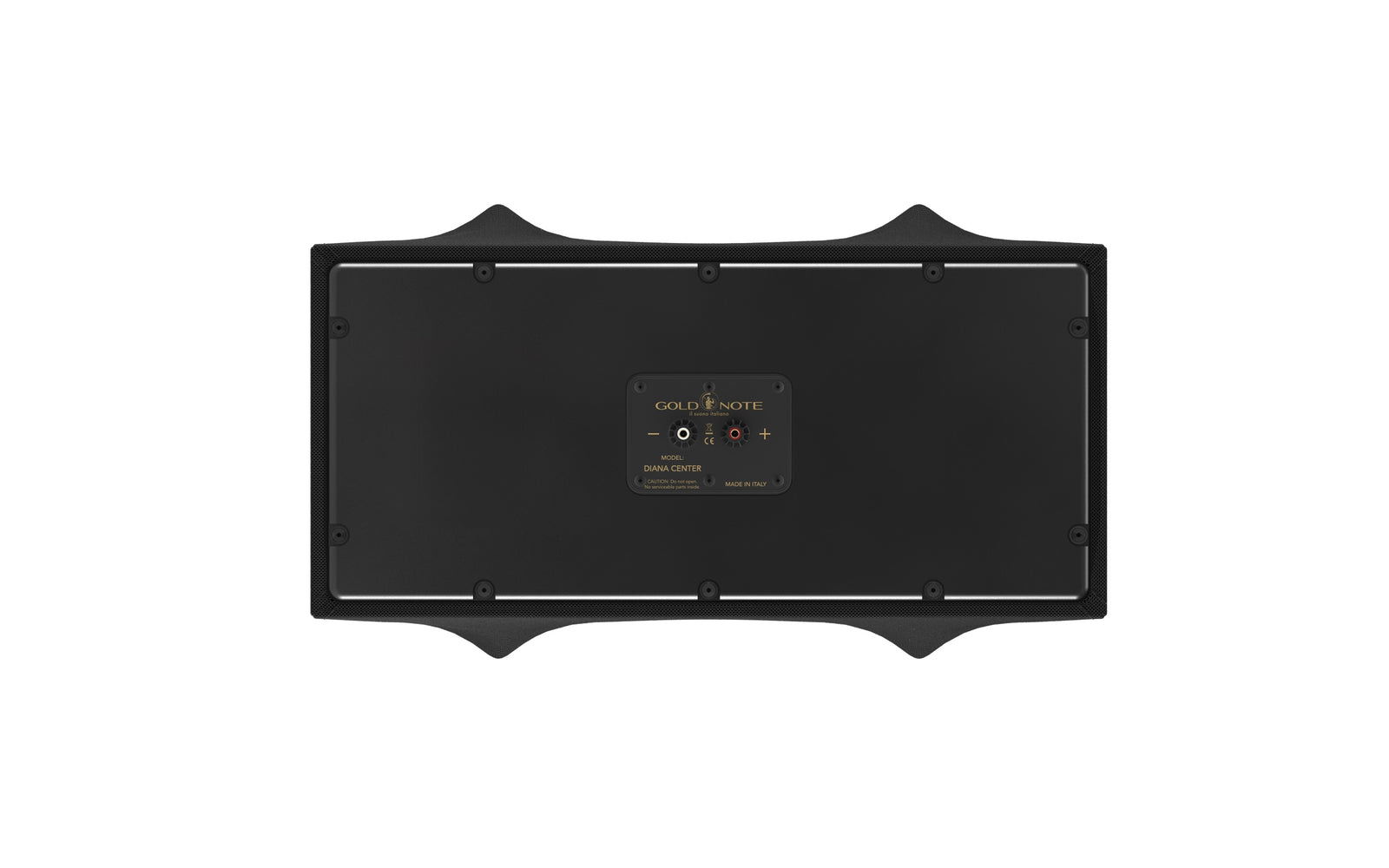

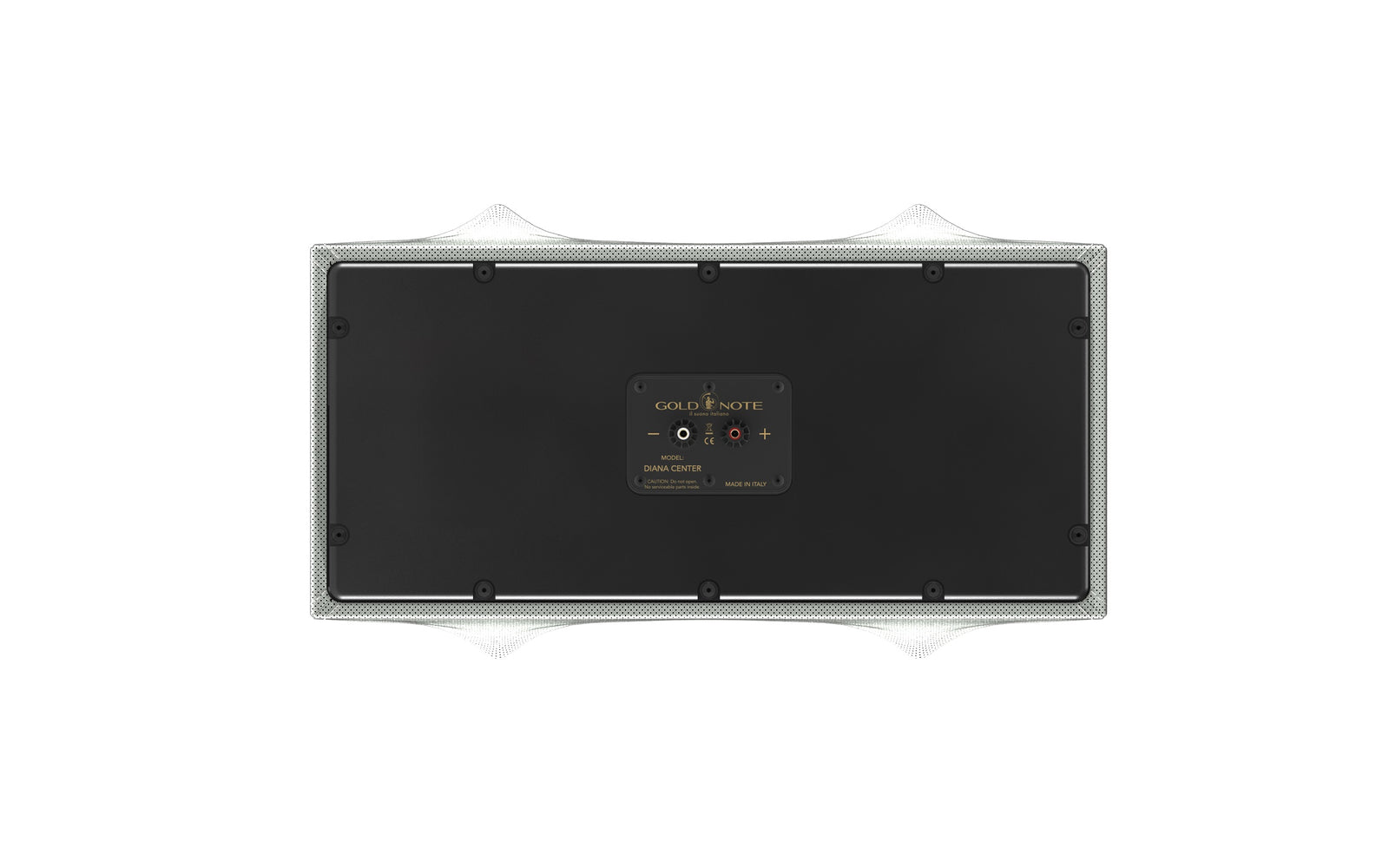

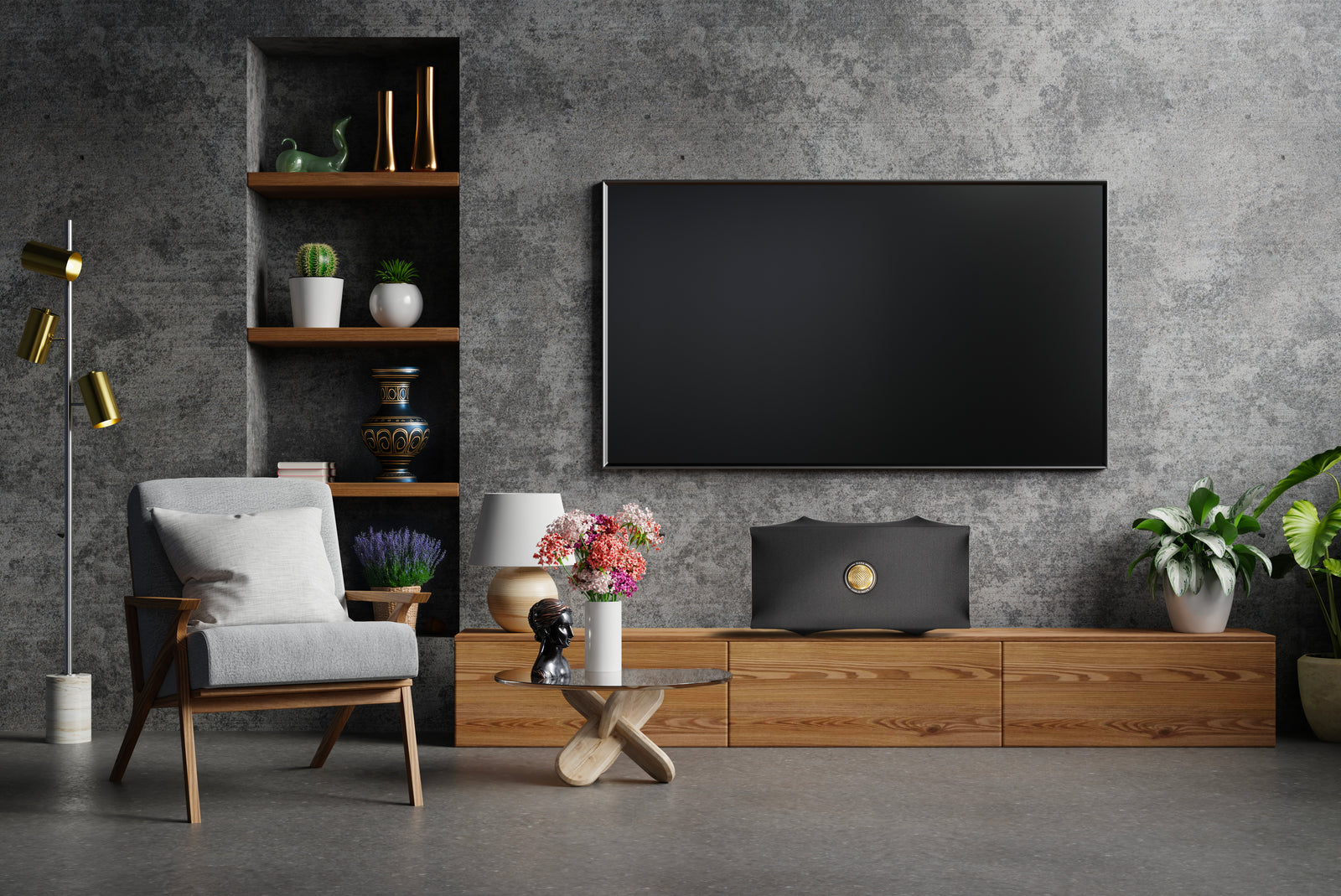

10-120W power range accommodates SET tubes through high-current solid-state. Rear-panel gold-plated binding posts ensure optimal signal transfer. 460×260×375mm dimensions, 11kg net weight optimize placement under/above screen.
Perfect Diana home theater foundation
Required for complete Diana I/II/III-F surround system. Ideal match for PA-10 EVO power amps, PH-10 preamps. Complements modular Gold Note ecosystem.
Reference center channel performance
Transforms stereo into immersive cinema. Available exclusively at Vinyl Sound Buffalo, NY.
Technical Specifications
| Parameter | Value |
|---|---|
| Configuration | 2-way MTM center channel, sealed |
| Frequency Response | 60-20,000Hz ±3dB |
| Sensitivity | 91dB SPL (2.83V/1m) |
| Nominal Impedance | 8Ω |
| Crossover Point | 2900Hz |
| Tweeter | 1.1" silk dome |
| Mid-Woofers | 2x 6.5" treated paper |
| F3 | 60Hz |
| Volume | 23 dm³ |
| Power Handling | 10-120W |
| Dimensions (WxHxD) | 460 × 260 × 375mm |
| Weight | 11kg net |
Complete Diana surround solution
Seamless series integration, mechanical resonance control. Contact Vinyl Sound Buffalo for Diana Center system matching and home theater optimization.[web:323][web:328]
