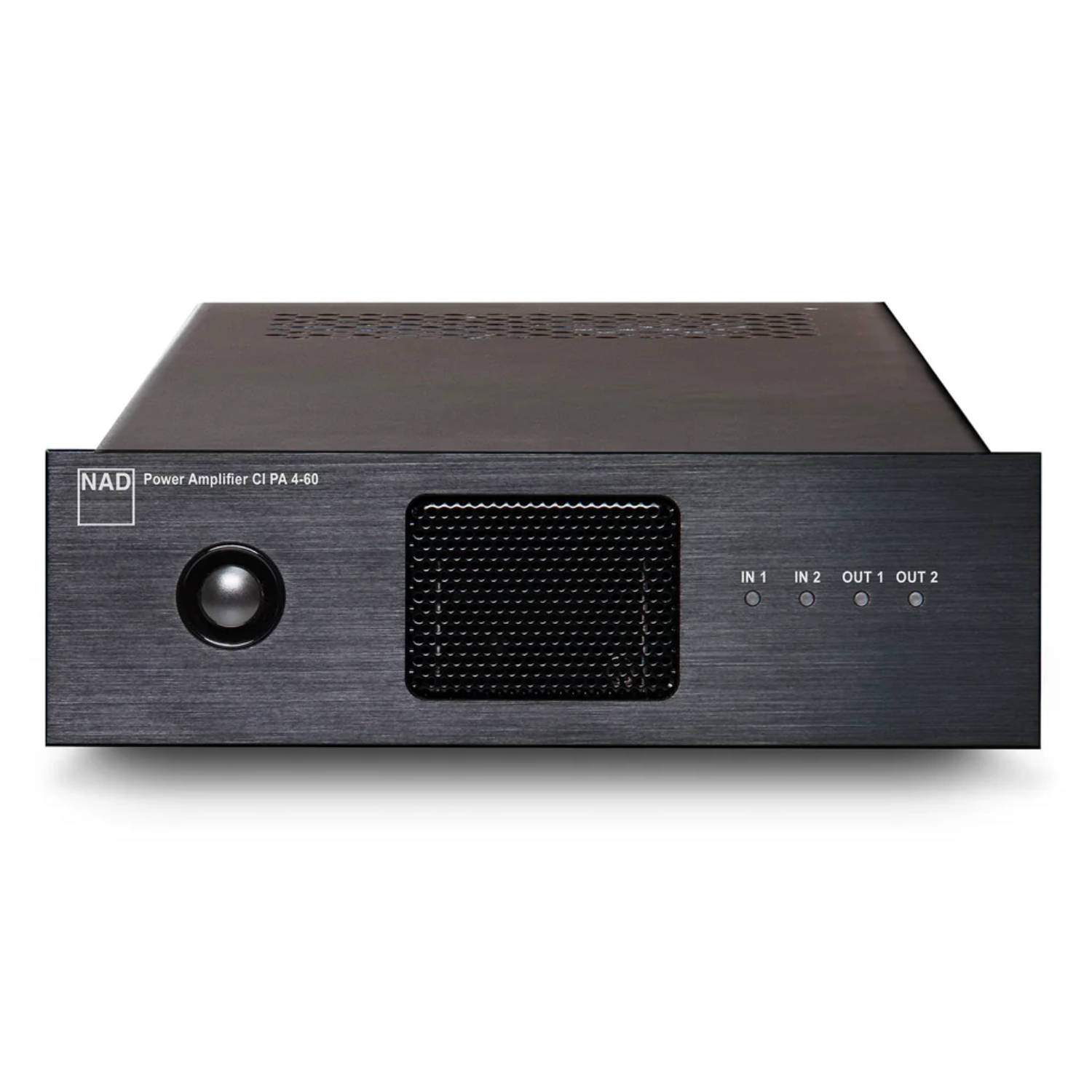

NAD CI PA4-60 Power Amplifier Module

The NAD CI PA4-60 is a compact, high-performance four-channel power amplifier designed specifically for custom installation and distributed audio systems. Delivering 60 watts per channel into 8 ohms using NAD’s proven HybridDigital™ amplification, it provides clean, reliable power for multi-room music and zone-based installations. Its bridgeable channel architecture allows the CI PA4-60 to be configured as a higher-power two-channel amplifier when required, giving installers greater flexibility across different system designs. Housed in a 1U rack-mount chassis with efficient thermal management, global power support, and installer-friendly control options, the CI PA4-60 is built to integrate seamlessly into professional CI racks while delivering consistent, high-quality sound throughout the home.

KEY FEATURES

• Four-channel power amplification delivering 60 watts per channel into 8 ohms
• HybridDigital™ amplification for efficient, low-distortion performance
• Bridgeable channel pairs for high-power two-channel operation
• Stable performance for distributed and multi-zone audio systems
• Compact 1U rack-mount chassis for efficient rack integration

• Efficient thermal design for reliable long-term operation
• Global power supply for international installations
• Line-level inputs for flexible system compatibility
• Auto-sense and trigger control for seamless system automation

Four-Channel Power for Distributed Audio

The CI PA4-60 delivers 60 watts per channel into 8 ohms across four independent channels, making it ideal for powering multiple speakers or zones in distributed audio systems. This configuration allows installers to drive in-ceiling, in-wall, or surface-mount speakers with consistent output and control. Designed for continuous operation, the amplifier maintains stable performance across long listening sessions, ensuring reliable sound in every room. Its multi-channel architecture reduces the need for multiple amplifiers, simplifying rack layouts while maintaining the sound quality expected from NAD Custom Install solutions.

HybridDigital Amplification

Built around NAD’s HybridDigital amplification technology, the CI PA4-60 combines high efficiency with low noise and distortion. This design minimizes heat generation while delivering clear, dynamic sound across all channels. By maintaining tight control over connected speakers, the amplifier preserves detail and balance at both low and higher listening levels. The result is clean, dependable audio performance that meets the demands of modern custom installation environments without compromising sound quality or long-term reliability.

Flexible Configuration

To accommodate a wide range of system requirements, the CI PA4-60 features bridgeable channel pairs that allow it to operate as a higher-power two-channel amplifier when needed. This flexibility enables installers to adapt a single amplifier model for different applications, from background music zones to more demanding listening areas. By supporting multiple configuration options, the CI PA4-60 helps streamline inventory while giving system designers greater freedom to tailor solutions to each project.

Specifications:

AUDIO
Signal-to-Noise Ratio	-102dBA
Distortion	THD+N, 0.005%
Amplification	DirectDigital™
Rated Power Output	Dynamic Power Management - 120W x 2 or 60W x 4 (8 Ohms)
IHF Dynamic Power	300W (4ohm)/200w (8ohm)

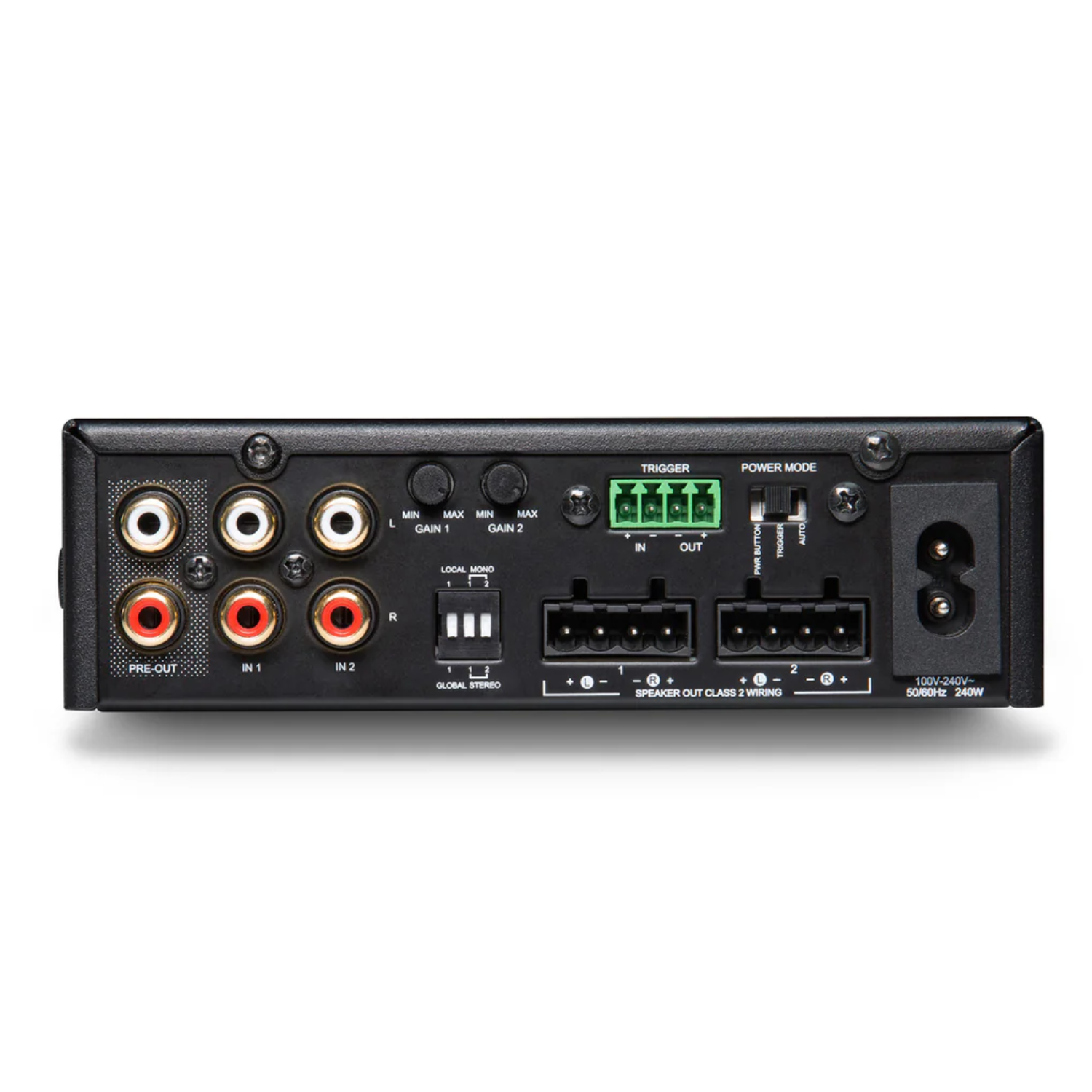

CONNECTIONS
Power Supply	Universal 2-pin AC cord input (100-240AC)
Inputs	2 x Stereo RCA
Outputs	1 x Stereo RCA Pre-Out, 2 x Speaker outputs
Speaker Terminals	2x 4-PIN Snap On PHX 5.08mm Connector (Supports up to 12 AWG)
12v Trigger Input	x1 (Unit Power On)
12v Trigger Output	x1
USER INTERFACE & CONTROL
Input Gain Control	x2 Input Gain Potentiometers (-6 to +6 dB range)
Power Mode Control	3-way switch (Power Button, 12v Trigger, Signal Sense options)
Input Control	Input 1 Local/Global, x2 Input Stereo/Mono selection
Status Indicator	Power Status LED
Source Status Indicator	x2, Connected Input Active
Output Status Indicator	x2, Output pair 1, Output Pair 2 (Output active, Temperature/Protection warning)
GENERAL
Finish	Black
Included Accessories	120V AC Power Cord
Max Power Consumption	TBD
Storage Environment	-10°C to 50°C, 20% to 80% relative humidity
Operating Environment	0°C to 40°C
Dimensions (Product)	(WxHxD metric) 146.5 x 44 x 384 mm
Weight (excluding rack ears & connectors)	2.35 kg/5.18 lbs
Dimensions (Shipping, Single Unit)	(LxWxH metric) 520 x 228 x 140 mm
Weight	3.35 kg/7.4 lbs
Dimensions (Shipping, Masterpack)	Units per carton: 6
Weight	20.3kg
GS1/UPC/EAN Codes	Black
SKU/Version	PA4-60
Generation	1
NOTE
*Specifications subject to change without notice.
