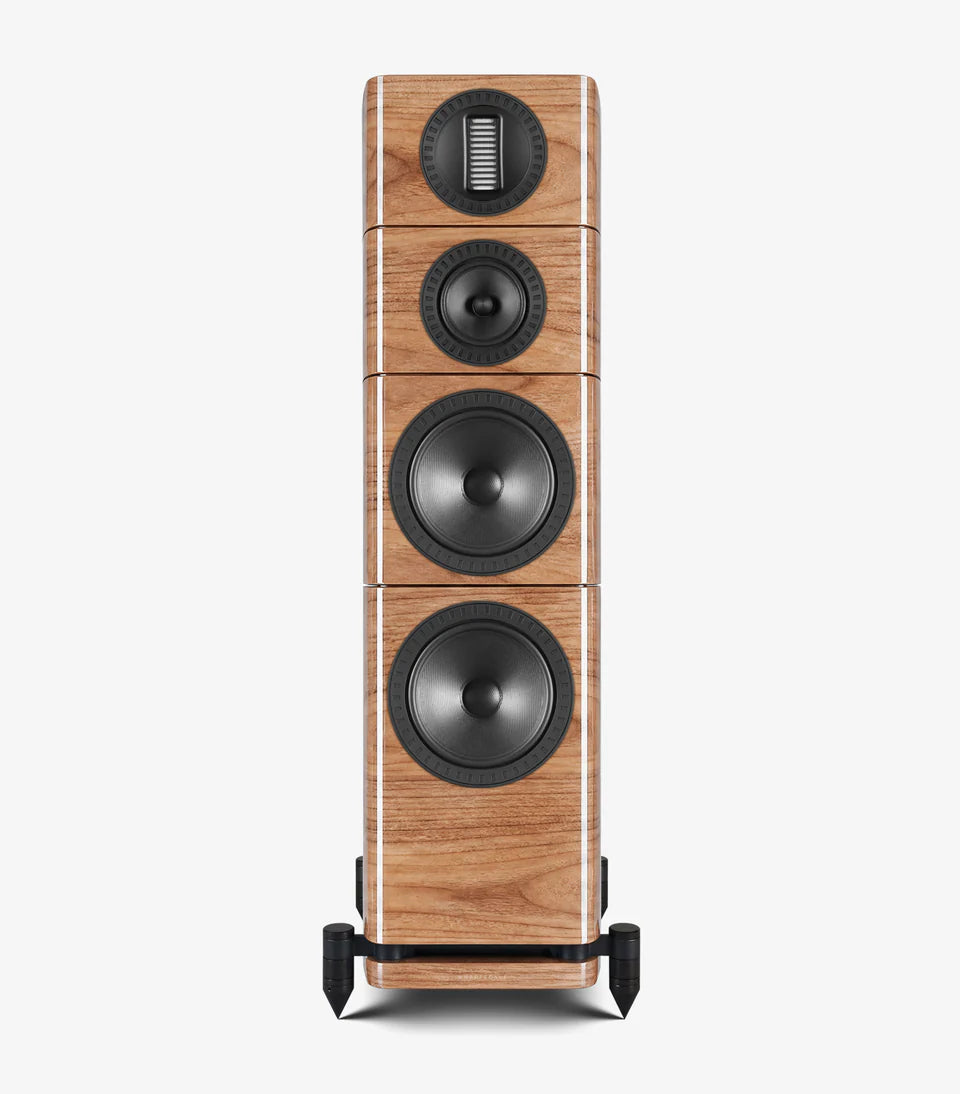

Wharfedale ELYSIAN 4R Flagship Floorstanding Speaker at Vinyl Sound Buffalo, NY USA

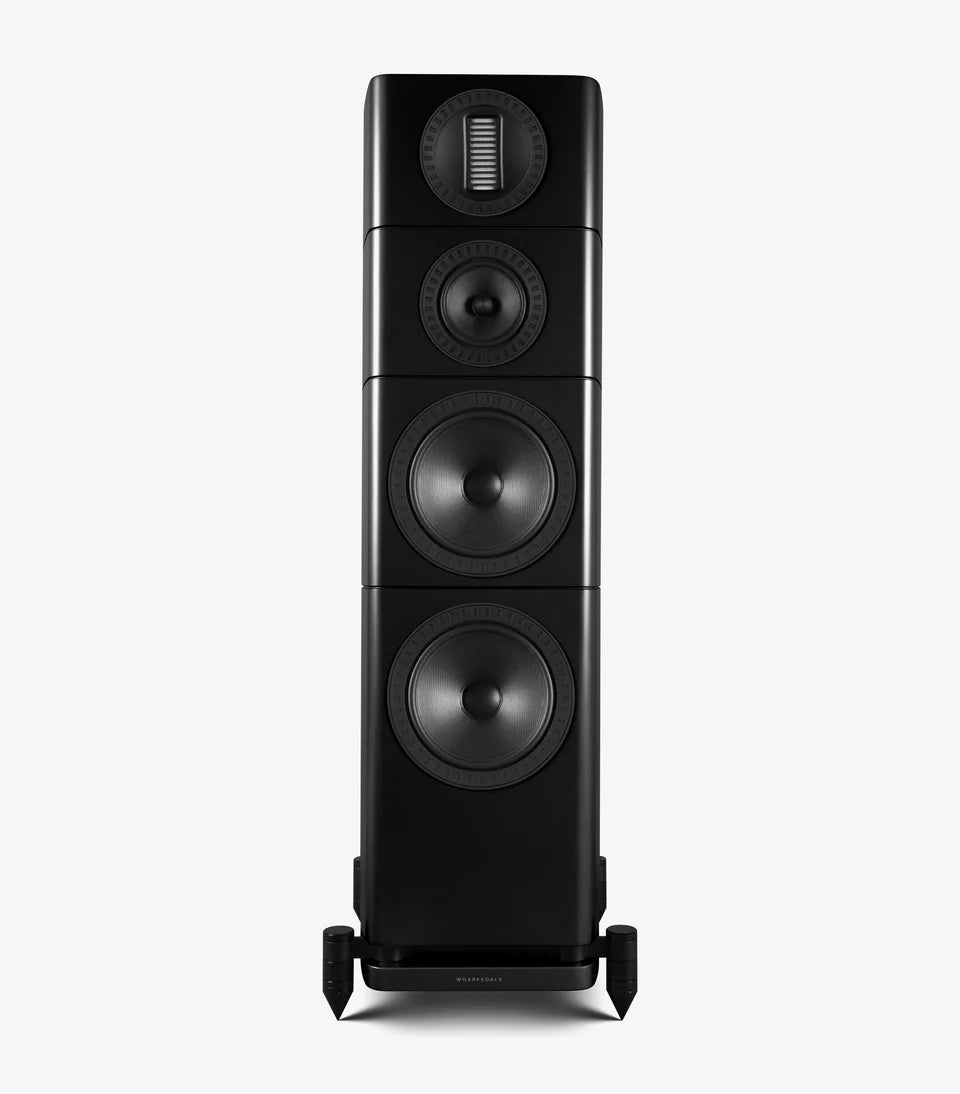

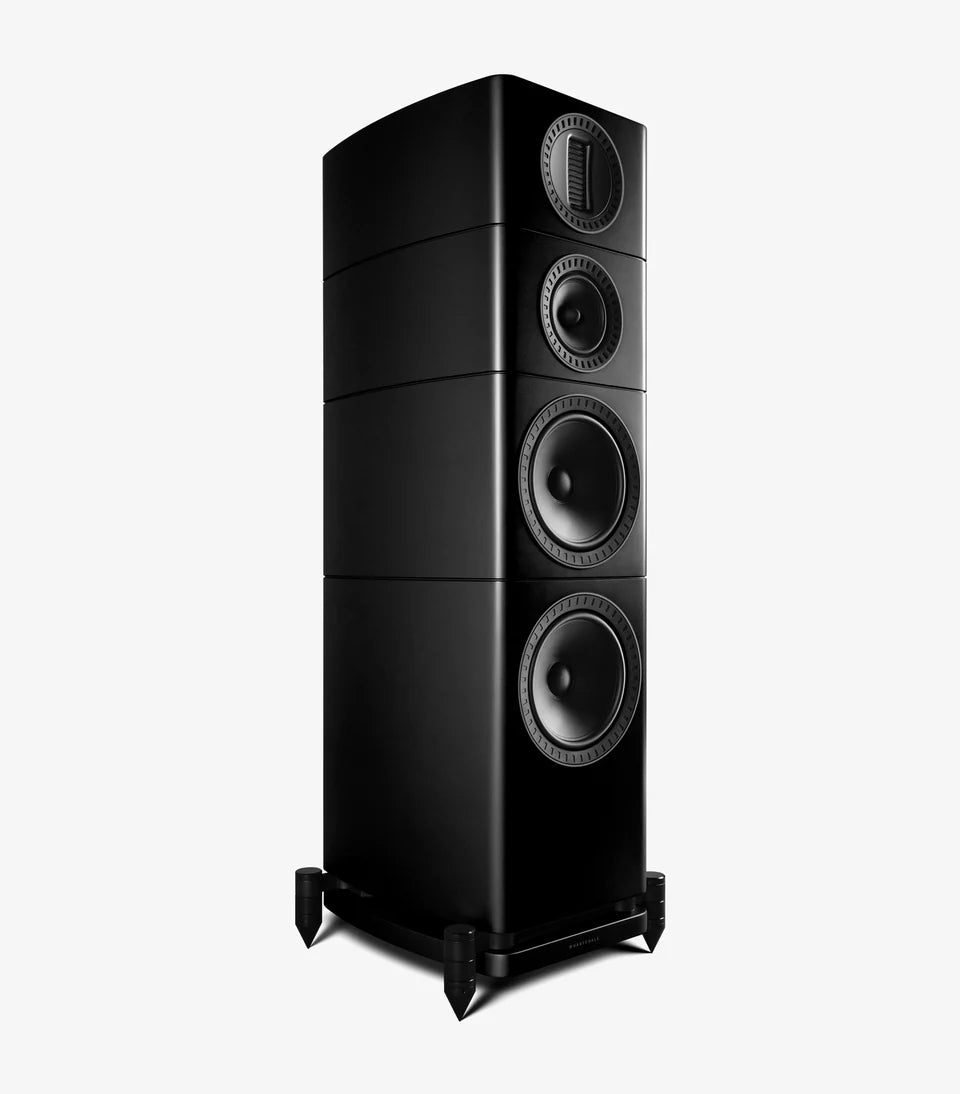

The Wharfedale ELYSIAN 4R is the flagship floorstanding loudspeaker in the new ELYSIAN R Series from Wharfedale (Huntingdon, UK), available at Vinyl Sound in Buffalo, NY USA. Created as the most complete expression of Generation R and the definitive statement in Wharfedale's high-end loudspeaker engineering, the ELYSIAN 4R combines dual 8.5" coated glass fibre matrix bass drivers in a combined 117.4-litre cabinet with a dedicated 6" coated glass fibre matrix midrange driver and the further-developed 27 x 90mm AMT high-frequency driver with updated ultra-light PET diaphragm and acoustically damped rear chamber. With 92dB sensitivity, a frequency response of 30Hz to 22kHz (±3dB) and bass extension to 24Hz (-6dB), and 110dB peak SPL, the ELYSIAN 4R delivers the greatest scale, bass authority, and dynamic headroom in the ELYSIAN R range — the loudspeaker for listeners who want the full depth, power, and refinement of Wharfedale's flagship design at Vinyl Sound Buffalo, NY USA. What Hi-Fi? reported that Wharfedale describes the ELYSIAN R range as delivering greater accuracy, transparency, and musical realism through components revisited and refined across the series.

Dual 8.5" Bass Drivers, 24Hz Extension, and Flagship Bass Architecture

The ELYSIAN 4R's dual 8.5" coated glass fibre matrix bass drivers operate below the 340Hz crossover point in a combined 117.4-litre bass reflex enclosure — 38 litres and 79.4 litres in separate chambers — providing the deep, controlled low-frequency authority that Wharfedale identifies as the defining characteristic separating the 4R from the ELYSIAN 3R. Where the ELYSIAN 3R's dual 7" drivers deliver 35Hz bass extension in a slim 263mm-wide cabinet, the 4R's dual 8.5" drivers and larger 402mm-wide enclosure achieve 24Hz bass extension at -6dB, extending well below the typical 30Hz lower limit of music reproduction and encompassing the fundamental frequencies of bass guitar and kick drum with the physical weight and impact that large-driver, large-cabinet designs provide. The SLPP (Slot-Loaded Profiled Port) bass management system enhances this extension with turbulence reduction and improved room placement flexibility, allowing the 4R to be positioned further from rear walls than sealed-box or conventional ported designs while maintaining consistent bass performance. The coated glass fibre matrix cone of each 8.5" driver provides the lightweight, high-stiffness, well-damped pistonic behaviour across the low-frequency band that minimises cone breakup and colouration at the bass/midrange crossover transition.

Dedicated Midrange, AMT Tweeter, and Generation R Crossover

The ELYSIAN 4R's dedicated 6" coated glass fibre matrix midrange driver covers the 340Hz to 3.1kHz band — a crossover topology optimized for the 4R's larger cabinet and higher bass driver cone area relative to the ELYSIAN 3R's 375Hz lower crossover point. By assigning a dedicated driver to the vocal and instrumental midrange frequencies, the 4R ensures that the substantial bass output of the dual 8.5" drivers has no effect on midrange driver excursion, preserving the natural tonal accuracy, spatial precision, and freedom from intermodulation distortion that a dedicated midrange unit achieves when operating without the mechanical excursion demands of bass reproduction. The further-developed 27 x 90mm AMT high-frequency driver covers frequencies above 3.1kHz with the pleated diaphragm principle's inherently low distortion and high transient speed, with the Generation R update's ultra-light PET diaphragm and acoustically damped rear chamber extending the resolution and openness improvements across the full ELYSIAN R lineup. The Generation R crossover is reworked with direct-path PCBs and premium component selection — high-silicon-iron-cored coils for bass, air-core coils for midrange and treble, Super Audiophile polypropylene capacitors, and low-inductance resistors — with tightened driver manufacturing tolerances for greater unit-to-unit consistency and improved acoustic transparency through optimized cabinet resonance control. The Elysian 4R at $11,995 per pair competes in a category where many rivals cost three to five times more, with Wharfedale making a very strong technical and financial argument for the series.

Key Features

• Dual 8.5" Coated Glass Fibre Matrix Bass Drivers: Two large-format bass drivers in a 117.4-litre combined cabinet for deep, controlled bass with 24Hz extension at -6dB and the physical weight and impact of flagship floorstander design.
• Dedicated 6" Coated Glass Fibre Matrix Midrange Driver: Independent midrange driver covering 340Hz to 3.1kHz for natural vocal tone, instrumental texture, and spatial precision isolated from bass driver excursion.
• Further-Developed 27 x 90mm AMT Tweeter: Updated ultra-light PET pleated diaphragm with acoustically damped rear chamber for speed, extension, and low-distortion high-frequency performance above 3.1kHz.
• Generation R Crossover (340Hz and 3.1kHz): Reworked with direct-path PCBs, high-silicon-iron-cored bass coils, air-core midrange and treble coils, Super Audiophile polypropylene capacitors, and low-inductance resistors.
• SLPP Bass Management: Slot-Loaded Profiled Port for 24Hz bass extension, turbulence reduction, and reduced room placement sensitivity.
• 30Hz to 22kHz Frequency Response (±3dB), 24Hz Extension (-6dB): The deepest bass extension in the ELYSIAN R range, covering the full low-frequency spectrum of music reproduction.
• 92dB Sensitivity: The highest sensitivity in the ELYSIAN R range, making the 4R responsive to amplifiers from as little as 15W while accepting up to 250W for large-room listening levels.
• 110dB Peak SPL: The highest dynamic headroom in the ELYSIAN R range for effortless reproduction at the loudest listening levels.
• Tightened Driver Manufacturing Tolerances: Improved unit-to-unit driver consistency across the Generation R production run for greater stereo matching accuracy.
• Optimized Cabinet Resonance Control: Further-optimized cabinet behaviour for reduced structural resonance and preserved acoustic transparency.

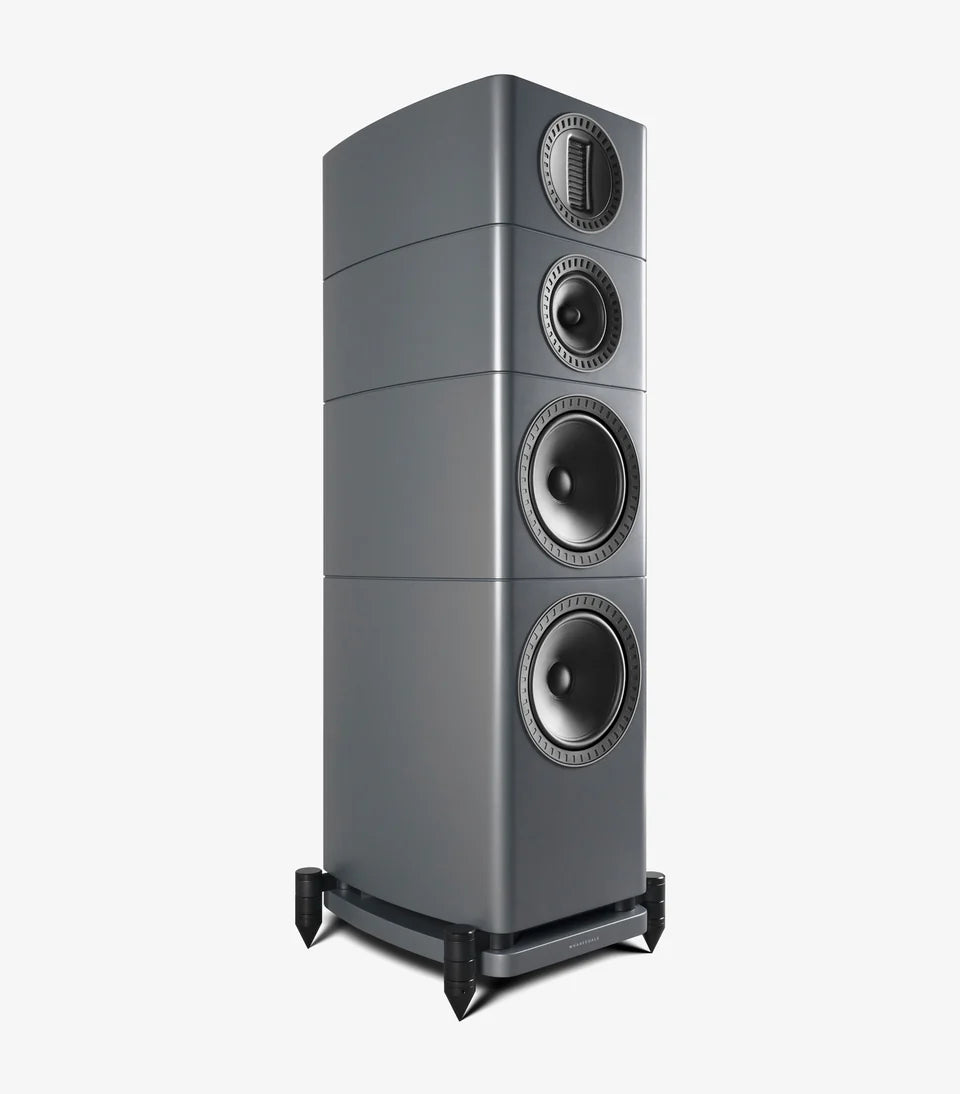

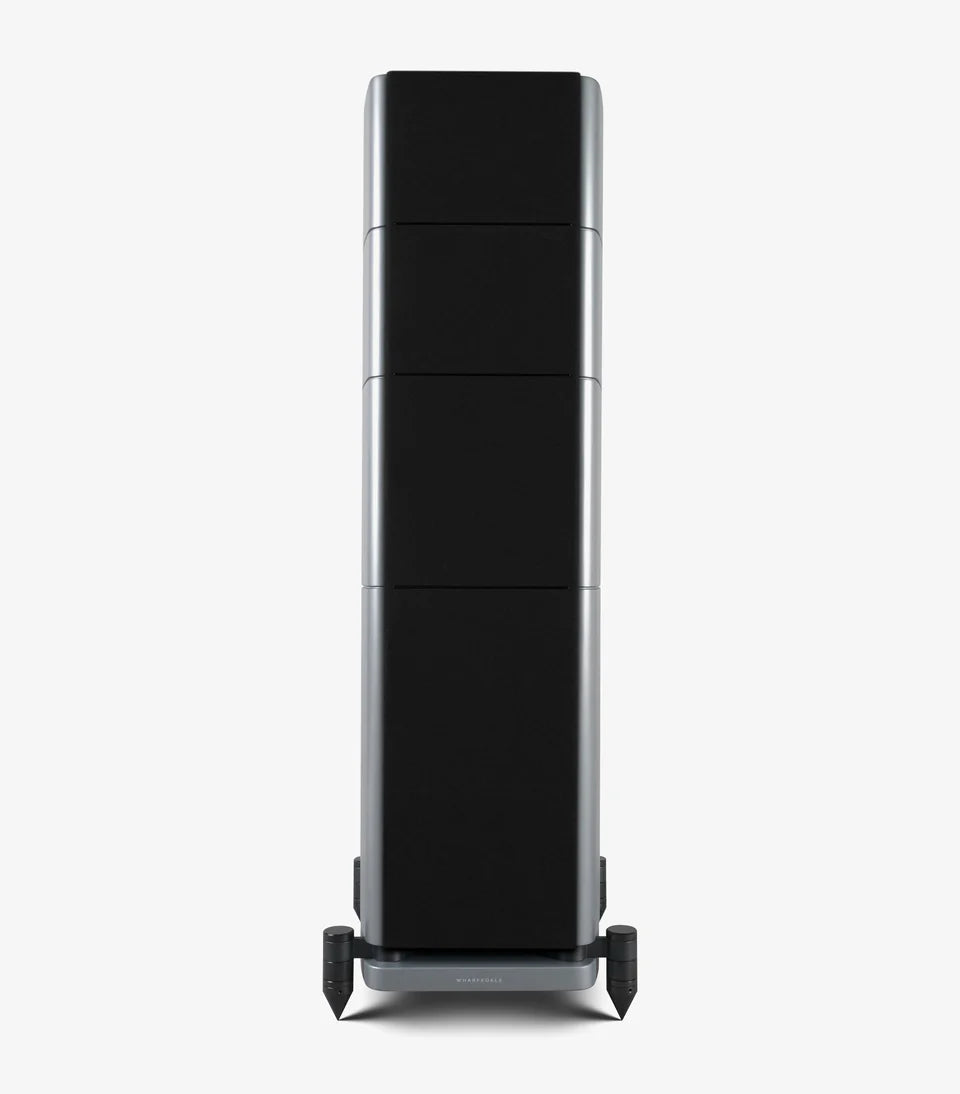

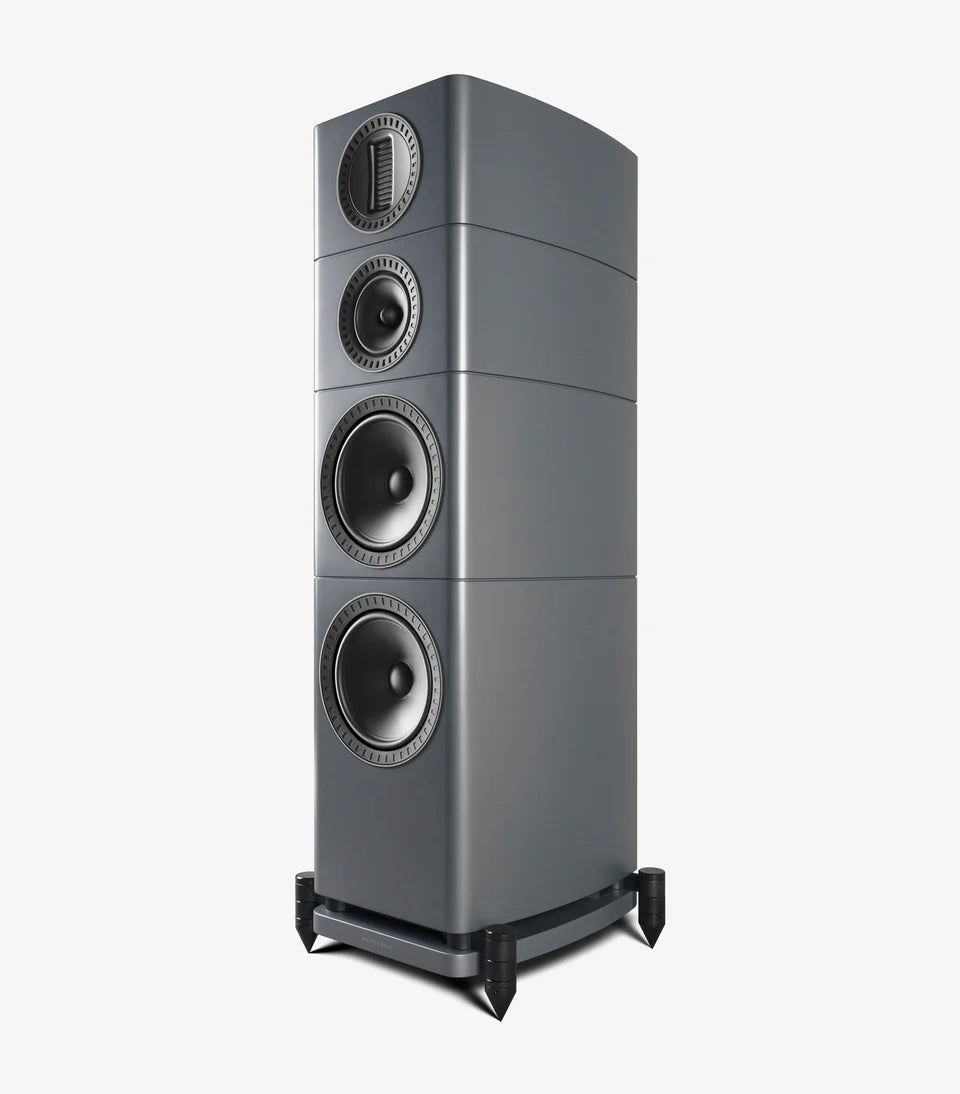

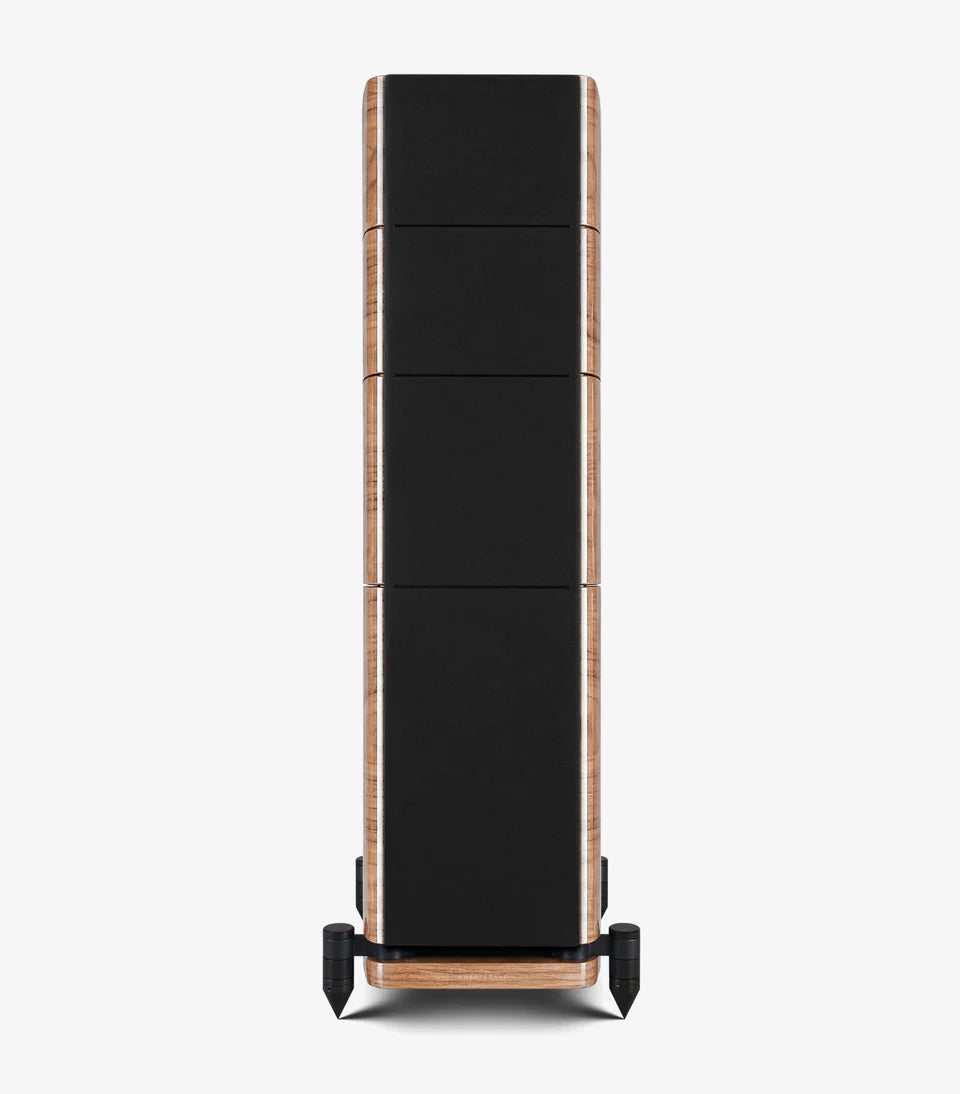

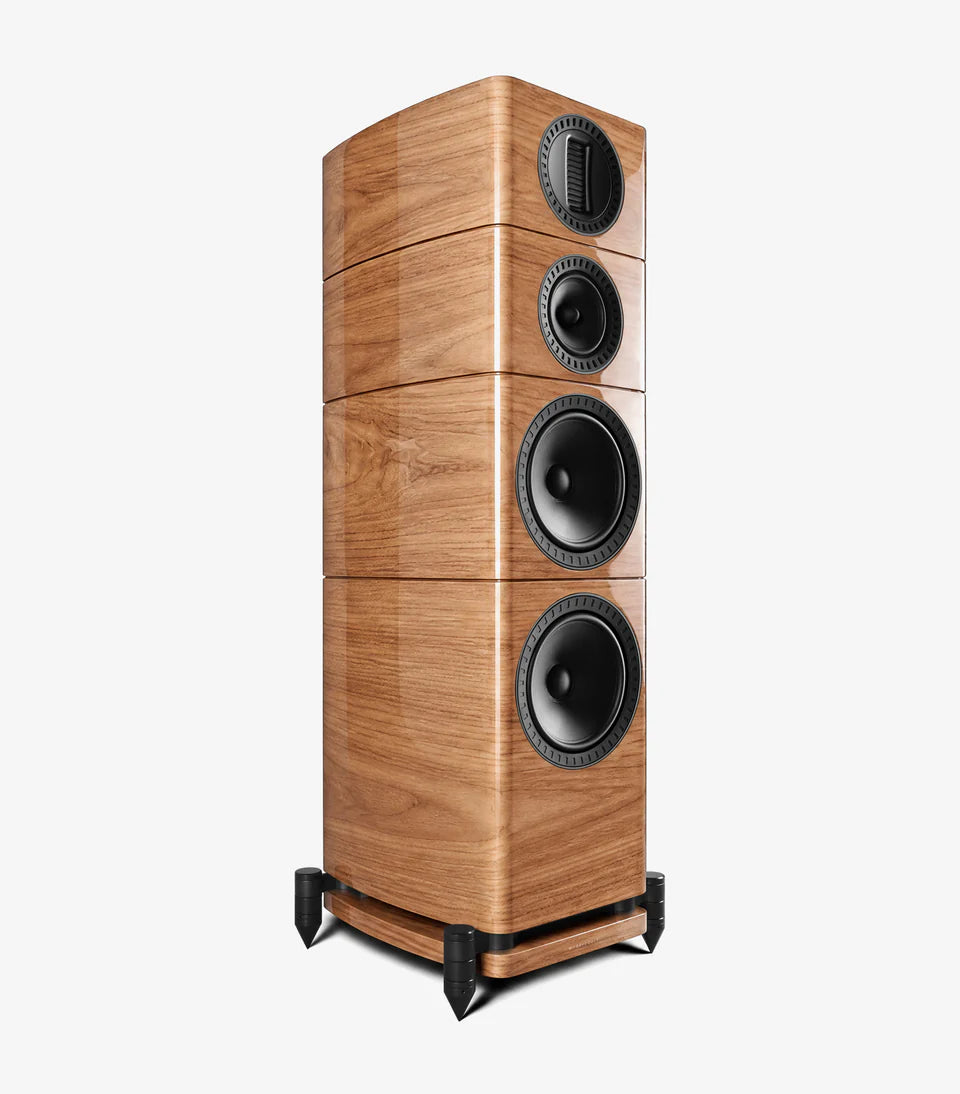

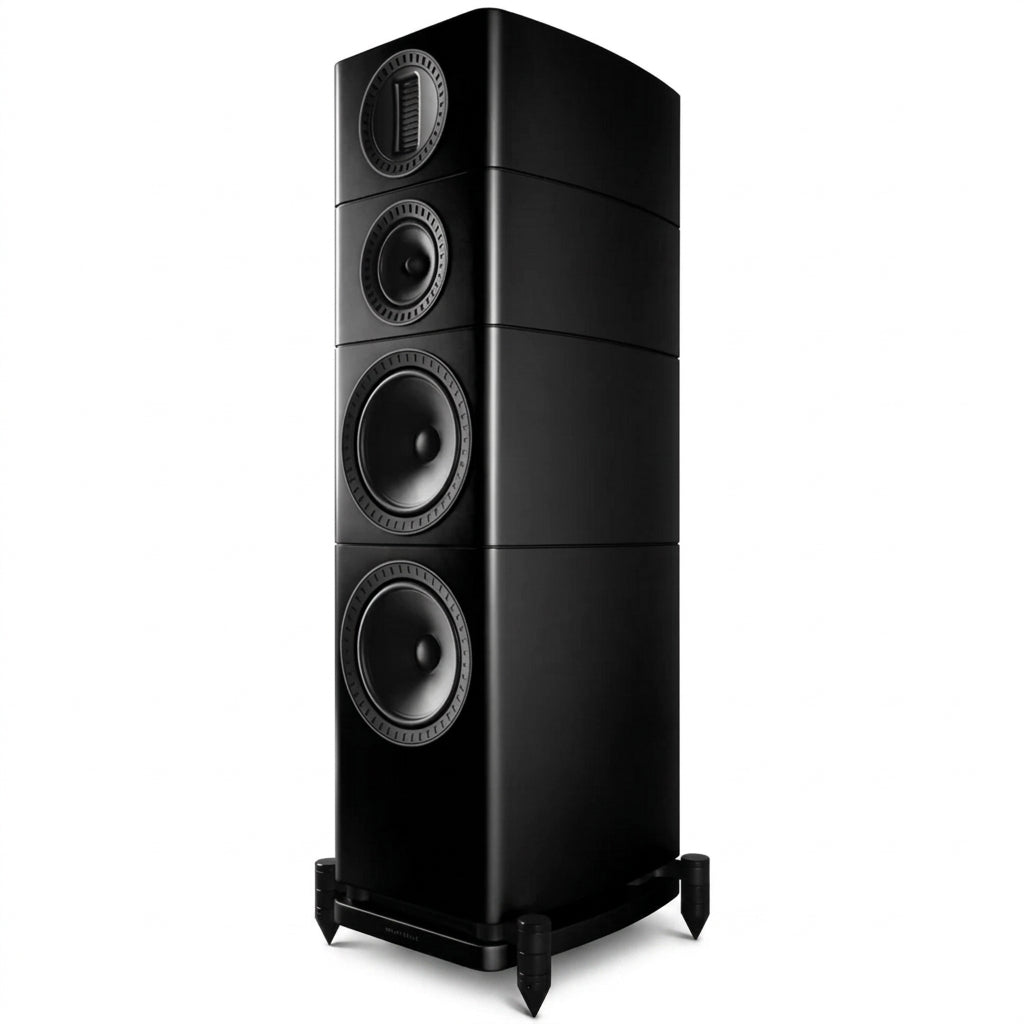

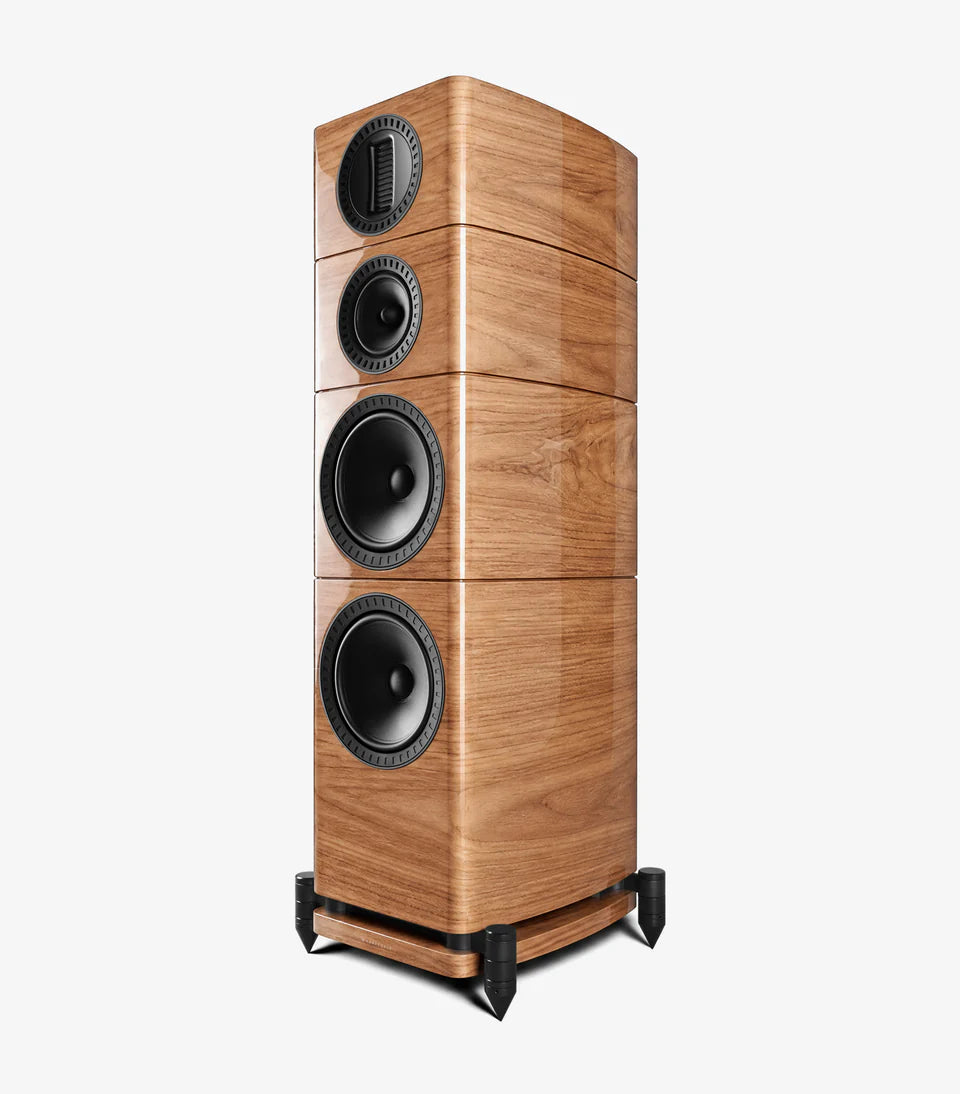

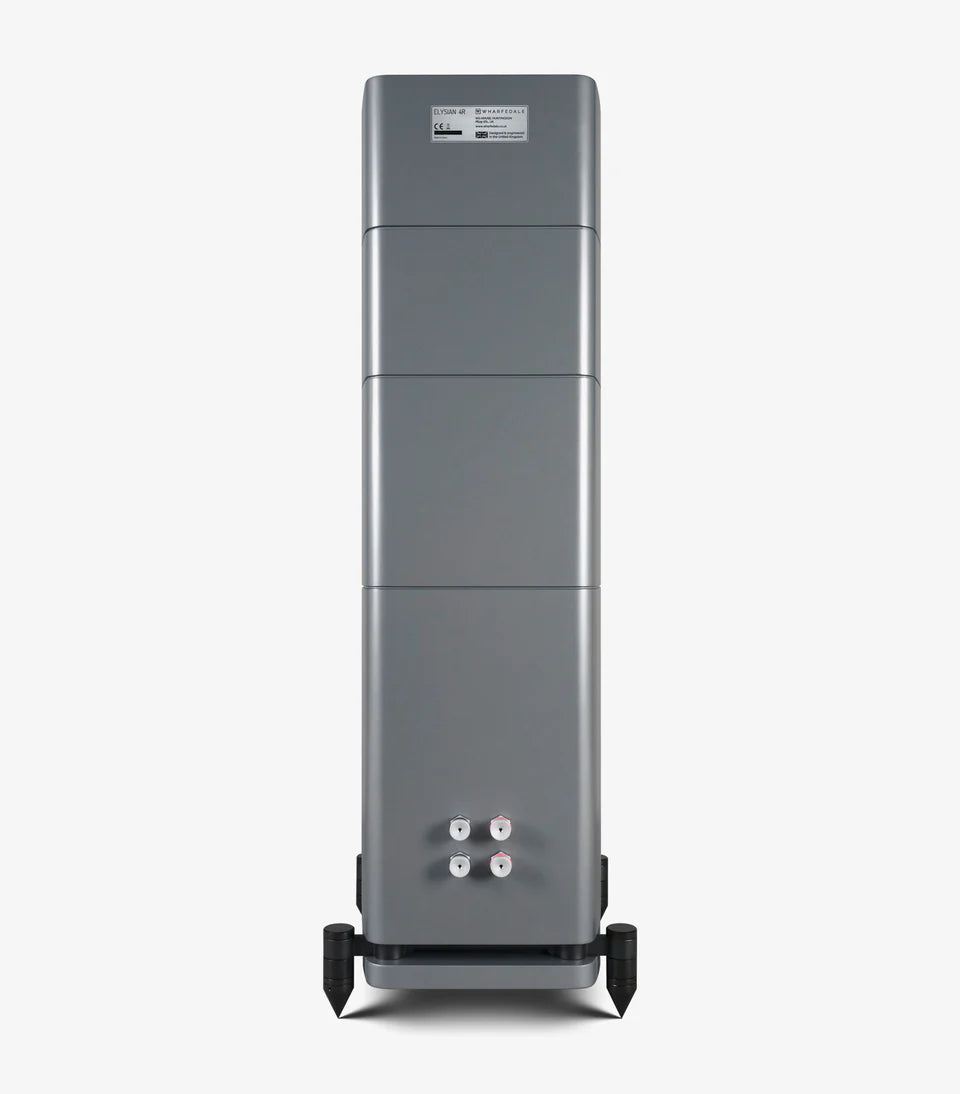

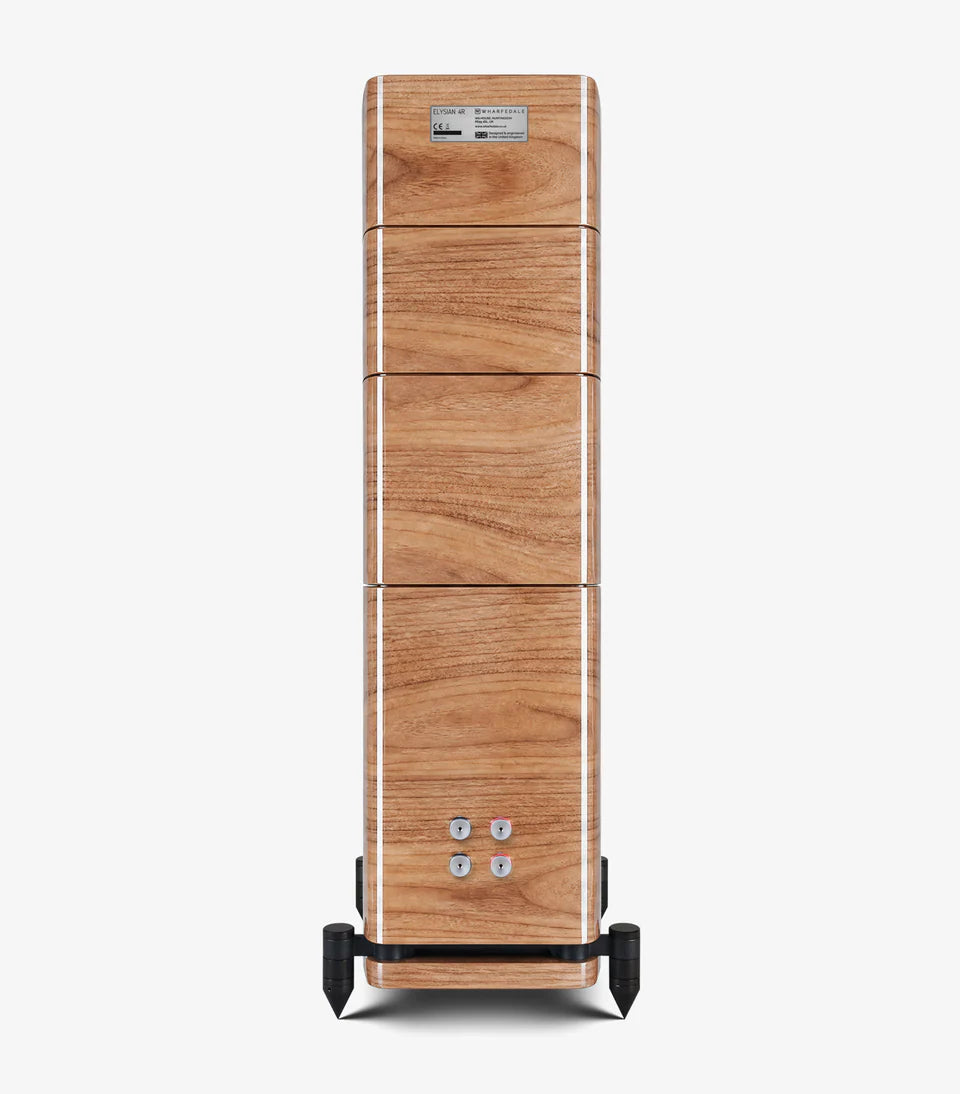

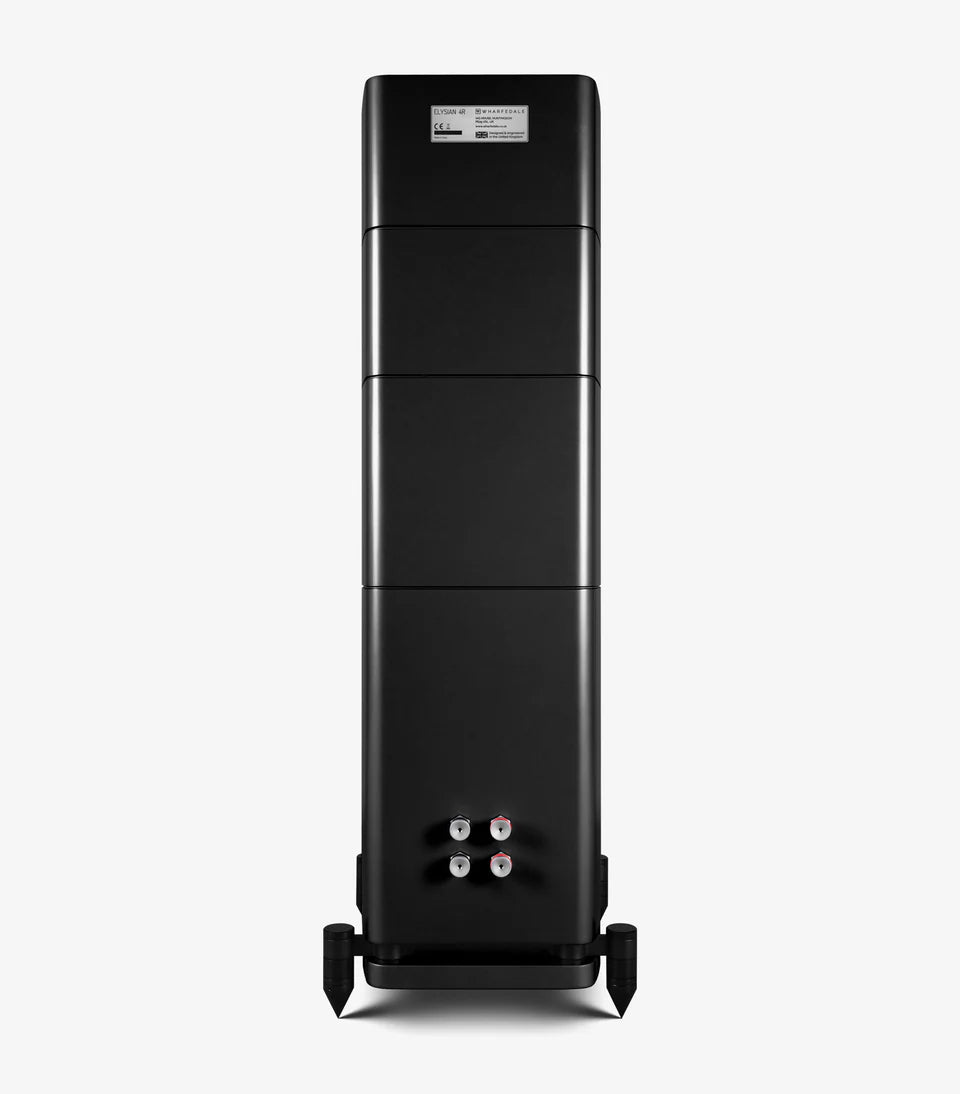

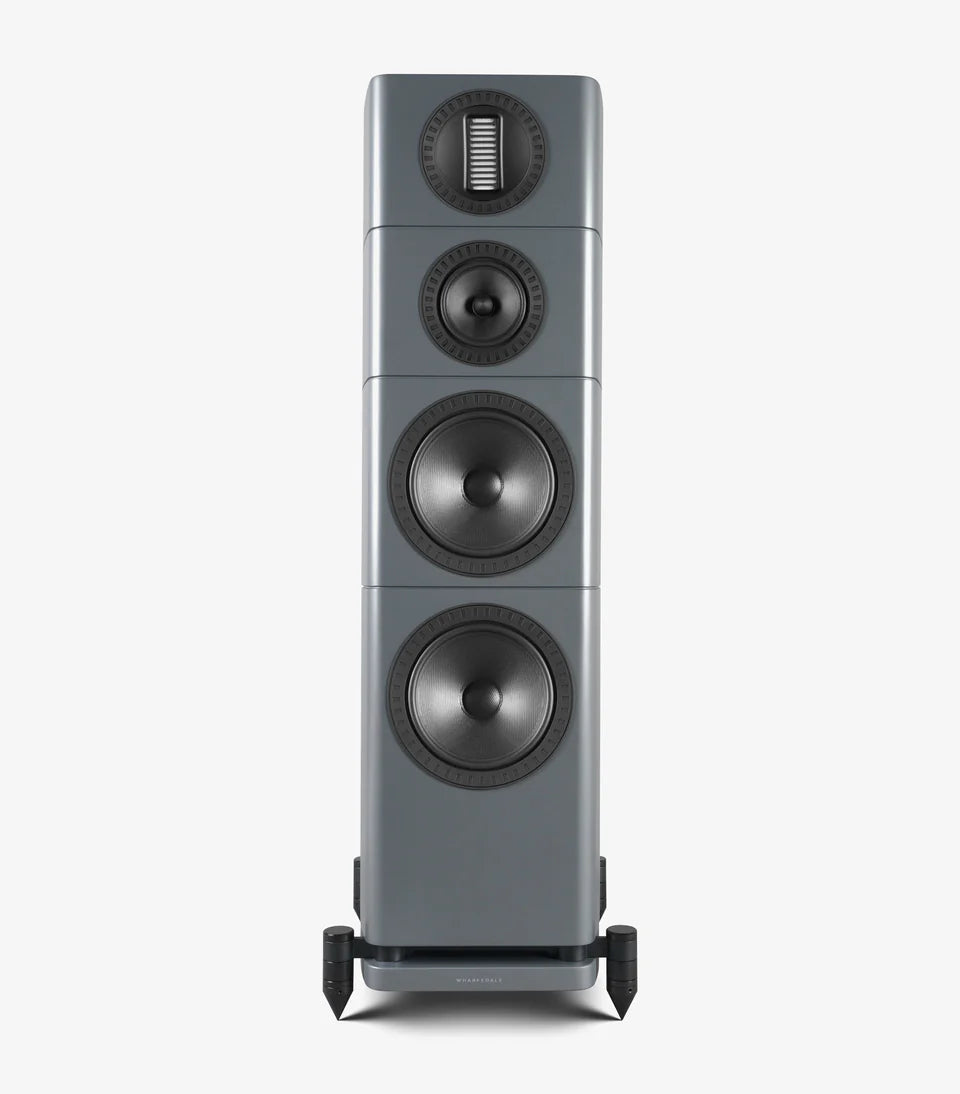

• Three Finishes: Walnut High Gloss, Matte Black, and Lunar Grey with refined matte-black trim detailing.
• 3-Year Warranty: Wharfedale 3-year manufacturer warranty.

Technical Specifications

Frequently Asked Questions

What is the Wharfedale ELYSIAN 4R?

The Wharfedale ELYSIAN 4R is the flagship floorstanding loudspeaker in the ELYSIAN R Series, available at Vinyl Sound Buffalo. It is the most complete expression of Generation R, using dual 8.5" coated glass fibre matrix bass drivers, a dedicated 6" coated glass fibre matrix midrange driver, and the further-developed 27 x 90mm AMT tweeter with Generation R crossover at 340Hz and 3.1kHz. It delivers 30Hz to 22kHz (±3dB) with 24Hz bass extension, 92dB sensitivity, 110dB peak SPL, and up to 250W amplifier compatibility, weighing 49.5kg per speaker.

How does the ELYSIAN 4R compare to the ELYSIAN 3R and the original ELYSIAN 4?

The ELYSIAN 4R advances over the ELYSIAN 3R through its dual 8.5" bass drivers versus the 3R's dual 7" units, providing a larger combined cone area, deeper 24Hz bass extension versus the 3R's 35Hz, higher 92dB sensitivity versus 89dB, greater 110dB peak SPL, and the larger 402mm-wide cabinet with 117.4 litres combined volume versus the 3R's 44.4 litres total. The 4R is the definitive large-room flagship model while the 3R serves smaller rooms with its slim 263mm profile. Compared to the original ELYSIAN 4, the Generation R refinements bring tightened driver tolerances, reworked crossover with direct-path PCBs, and the updated AMT diaphragm and rear chamber for improved resolution and transient accuracy throughout.

What amplifiers pair best with the ELYSIAN 4R?

The ELYSIAN 4R's 92dB sensitivity and 15 to 250W amplifier recommendation make it responsive to a wide range of amplifiers, from lower-powered Class A designs through high-power solid-state amplifiers. For Class A amplification, the Accuphase E-800S at 50W or A-48S at 50W provide sufficient power with the purity and harmonic character that complement the ELYSIAN 4R's natural presentation. For higher-power requirements in larger rooms, the Accuphase E-5000 at 120W, Hegel H590 at 301W, or NAD M33 at 200W provide the dynamic reserves the 4R's 110dB peak SPL capability can exploit. The 3.2 ohm minimum impedance is manageable for all these amplifiers. Vinyl Sound Buffalo can advise on optimal pairings based on room size and listening level preferences.

What does 24Hz bass extension mean in practice?

24Hz bass extension at -6dB means the ELYSIAN 4R reproduces frequencies as low as 24 Hz with only 6dB of output reduction from its reference level. In musical terms, 24Hz is below the fundamental frequency of the lowest note on a standard bass guitar (41Hz), encompassing the sub-bass energy of large pipe organs, synthesiser bass, and the room-pressurizing low-frequency content of orchestral recordings. Most loudspeakers — including many floorstanders — roll off significantly above 40Hz. The ELYSIAN 4R's 24Hz capability in a domestic loudspeaker format is exceptional and reflects the dual 8.5" driver array and 117.4-litre combined cabinet volume that few competing designs at this price can match.

How does the 92dB sensitivity of the ELYSIAN 4R compare to the rest of the ELYSIAN R range?

The ELYSIAN 4R's 92dB sensitivity is the highest in the ELYSIAN R Series, 3dB greater than the 89dB of the ELYSIAN 1R, 2R, and 3R models. A 3dB sensitivity advantage means the 4R produces the same sound pressure level with half the amplifier power, or 3dB more SPL at the same power output. This makes the 4R uniquely suited to low-power amplification — hence the 15W minimum amplifier recommendation — while still accepting up to 250W for the highest dynamic headroom. The higher sensitivity is primarily a function of the dual 8.5" bass driver area and the larger cabinet efficiency, which shifts the bass sensitivity upward relative to the smaller-cabinet models in the range.

Where can I buy the Wharfedale ELYSIAN 4R in Buffalo, NY?

The Wharfedale ELYSIAN 4R Flagship Floorstanding Loudspeaker is available at Vinyl Sound USA Inc. in Buffalo, NY, your authorised Wharfedale dealer serving Western New York and the United States. Vinyl Sound carries the complete Wharfedale ELYSIAN R Series. Visit vinylsound.com or contact the Buffalo store for current availability, finish options, and expert amplifier matching guidance for the ELYSIAN 4R in your listening room.
