Accuphase DF-75 Digital Frequency Dividing Network at Vinyl Sound Buffalo, NY USA

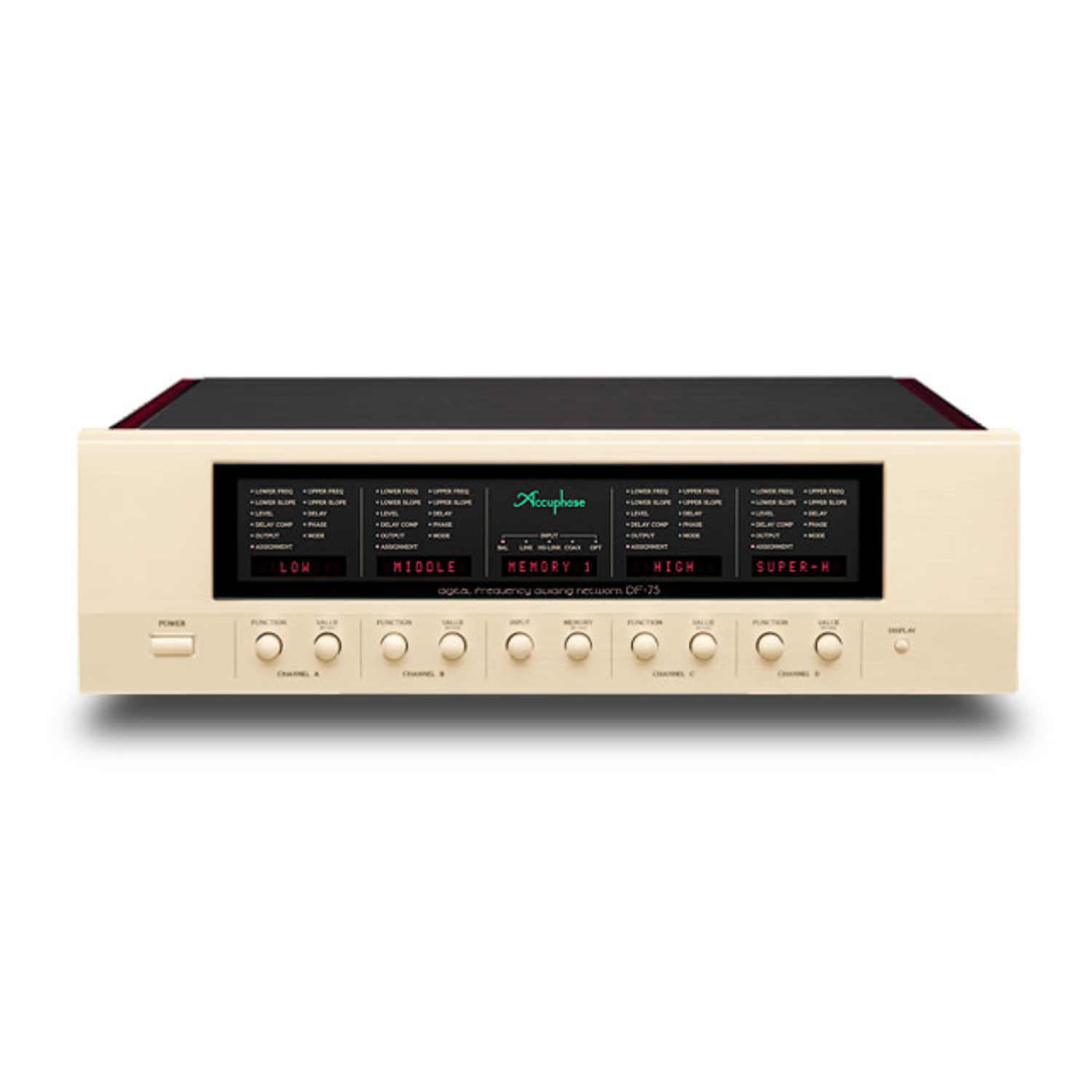

The Accuphase DF-75 is a reference digital frequency dividing network (active crossover) from Accuphase (Yokohama, Japan), available at Vinyl Sound Buffalo, NY USA. The full model change successor to the DF-65, the DF-75 is designed to serve as the core component of a multi-amplified loudspeaker system, dividing the audio spectrum into up to four frequency bands and routing each band to a dedicated power amplifier and speaker driver for the highest level of sound reproduction achievable in high-end audio. At the center of the DF-75 is a 64-bit floating-point DSP (52-bit mantissa, 12-bit exponent) enabling accurate digital filter computation across 3,101 selectable cutoff frequency points — expanded dramatically from the DF-65's 59 points — with slopes from 6 to 96 dB/octave, time alignment in 0.5cm steps, automatic delay compensation, and ANCC-equipped 4-parallel MDS+ D/A conversion using four ESS ES9028PRO chips alongside a 4-parallel ANCC A/D converter input stage for the lowest noise and distortion available in any current-production digital active crossover at Vinyl Sound Buffalo, NY USA.

64-Bit DSP and 3,101 Cutoff Frequency Points

The DF-75's signal processing capability centers on its 64-bit floating-point DSP — a 52-bit mantissa combined with 12-bit exponent section — which performs all crossover filter calculations with a precision that eliminates the rounding errors that accumulate in lower bit-depth fixed-point DSP architectures when steep filter slopes and multiple filter stages are applied simultaneously. The jump from the DF-65's 59 cutoff frequency points to 3,101 represents an expansion of more than 50 times in frequency resolution, providing crossover point selection at intervals fine enough to optimize driver integration at any crossover frequency from bass-to-midrange through midrange-to-tweeter with the precision that the physical acoustic characteristics of specific drivers require. Filter slopes are selectable from 6 dB/octave through 12, 18, 24, 48, and 96 dB/octave, with the 96 dB/octave slope providing steep enough attenuation to protect tweeters and midrange drivers from frequencies that would damage them in a high-power multi-amplified system while maintaining the phase coherence that 64-bit floating-point arithmetic preserves through even the steepest filter configurations. A delay compensator automatically corrects for the signal delays introduced by the filter circuits themselves, ensuring that the time alignment function reflects only the physical acoustic delays between drivers rather than being confounded by filter group delay variations between bands.

ANCC MDS+ A/D and D/A Conversion with Monophonic Output Mode

The DF-75 applies Accuphase's 4-parallel MDS+ D/A conversion to the crossover output stage, driving four ESS ES9028PRO Hyperstream DAC chips in parallel per channel. As with the DC-500 processor and DP-570S SACD player, the parallel operation improves theoretical distortion, noise, and linearity by a factor equal to the square root of the number of parallel circuits — a factor of 2 from four parallel converters — and the ANCC (Accuphase Noise and Distortion Cancelling Circuit) at the I-V converter output stage actively cancels residual noise and distortion components for further noise floor reduction beyond what the parallel averaging achieves. The A/D converter input stage applies the same 4-parallel ANCC architecture to the analog-to-digital conversion, ensuring that the noise floor of the conversion from the analog preamplifier output into the DSP stage is as low as the DAC output stage noise. Each divider unit can be configured in monophonic output mode, which concentrates the processing resources of both channels into a single channel for improved specifications in mono applications including large horn subwoofer systems, center channel loudspeakers in home theater multi-amplified systems, or any application where a single high-performance mono driver requires reference-grade digital crossover processing at Vinyl Sound Buffalo, NY USA.

Key Features

• 64-Bit Floating-Point DSP: 52-bit mantissa and 12-bit exponent section eliminates calculation errors in steep filter implementations for accurate crossover filtering of the highest order.
• 3,101 Selectable Cutoff Frequency Points: Over 50 times more frequency resolution than the DF-65's 59 points for surgical precision in driver integration at any crossover frequency.
• 96 dB/Octave Maximum Attenuation Slope: Six selectable slopes from 6 to 96 dB/octave for protection of high-frequency drivers and precise band separation in complex multi-amplified systems.
• 4-Way System Support: Standard configuration divides the audio spectrum into up to four bands for woofer, midbass, midrange, and tweeter amplification in a multi-amplified system.
• Time Alignment in 0.5cm Steps: Delay time adjustment in equivalent acoustic distance steps of 0.5cm for precise physical alignment of driver acoustic centers at the listening position.
• Automatic Delay Compensator: Automatically corrects signal delays introduced by the filter circuits themselves, ensuring time alignment reflects only physical acoustic driver offset.
• 4-Parallel ANCC MDS+ D/A Conversion (4x ES9028PRO): Four ESS ES9028PRO DAC chips in parallel per channel with ANCC at I-V conversion for √4 noise floor improvement beyond single-chip conversion.
• 4-Parallel ANCC A/D Conversion: Four parallel ADC circuits with ANCC input stage for equivalent noise performance at the analog input as at the analog output.
• Monophonic Output Mode: Each divider unit configurable as a high-specification mono processor for demanding single-driver applications.

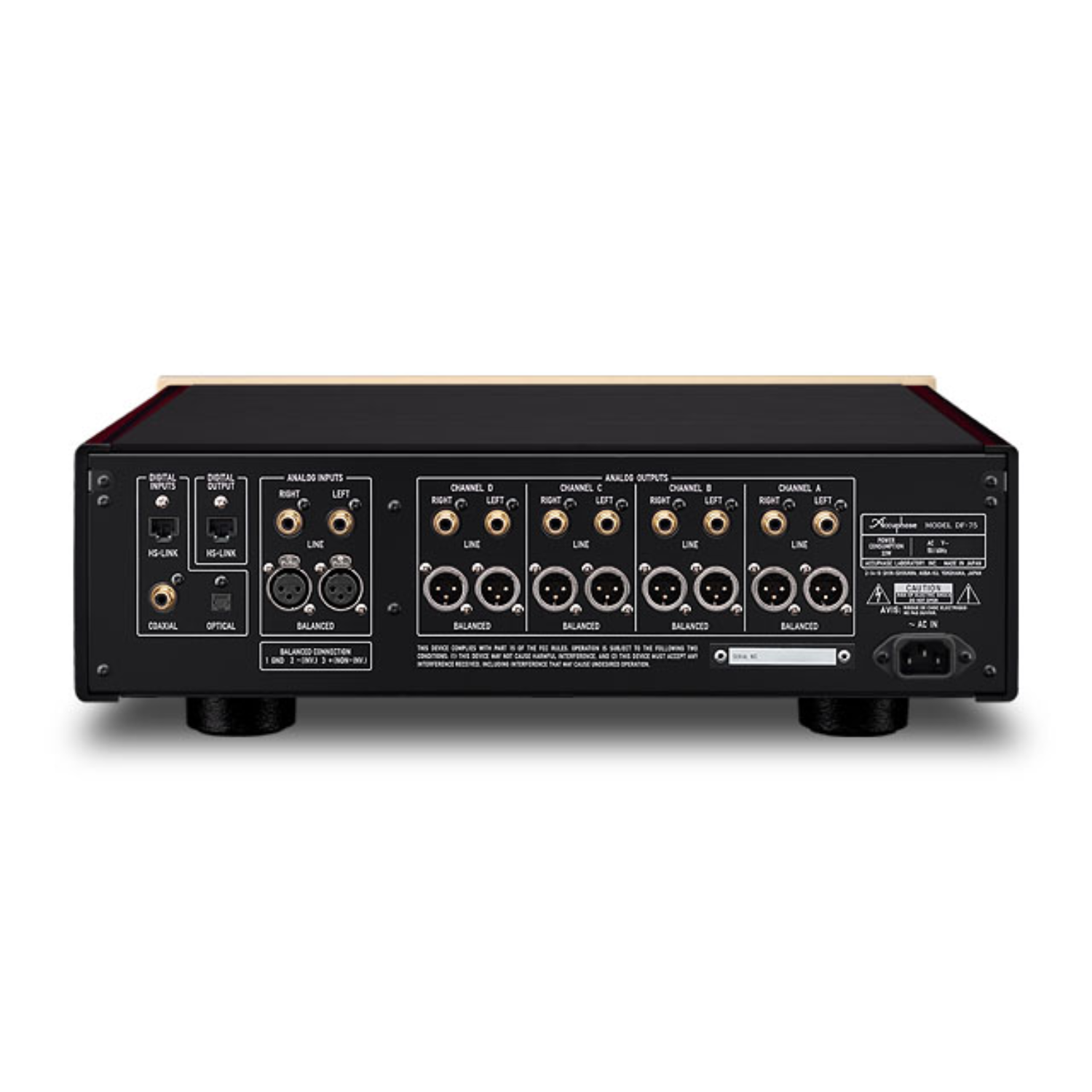

• Balanced XLR and Unbalanced RCA I/O: Full balanced and unbalanced analog connectivity for integration with any preamplifier and power amplifier configuration.
• Digital I/O: HS-LINK and S/PDIF digital connectivity for integration within Accuphase system configurations.

Technical Specifications

Frequently Asked Questions

What is the Accuphase DF-75?

The Accuphase DF-75 is a reference digital frequency dividing network (active crossover) from Accuphase of Japan, available at Vinyl Sound Buffalo. It divides the audio spectrum into up to four bands for multi-amplified loudspeaker systems using a 64-bit floating-point DSP with 3,101 selectable cutoff frequency points, slopes from 6 to 96 dB/octave, time alignment in 0.5cm steps, automatic delay compensation, monophonic output mode per divider unit, and 4-parallel ANCC MDS+ D/A and A/D conversion using four ESS ES9028PRO DAC chips per channel.

How does the DF-75 differ from the DF-65?

The Accuphase DF-75 advances over the DF-65 as a full model change with three primary improvements. First, the DSP upgrades to 64-bit floating-point processing for reduced calculation errors in steep multi-stage filter implementations. Second, cutoff frequency points expand from 59 to 3,101 — more than 50 times the resolution — for surgical precision in driver integration. Third, the D/A conversion advances to MDS+ with 4-parallel ES9028PRO chips and ANCC at the I-V conversion stage, matching the DAC architecture of the DC-500 and DP-570S for reference-level conversion quality at the crossover outputs. The A/D input stage similarly upgrades to 4-parallel ANCC conversion.

What is a digital frequency dividing network and why use one?

A digital frequency dividing network is a component that takes a full-range audio signal and divides it into separate frequency bands — bass, midbass, midrange, and treble in a 4-way configuration — which are then amplified independently by dedicated power amplifiers and connected directly to the corresponding speaker drivers, bypassing the passive crossover network inside the loudspeaker cabinet. This multi-amplified active crossover approach provides several advantages over passive crossovers: each amplifier operates only within its assigned frequency band without dissipating power in the passive crossover components, driver damping is determined by the amplifier's output impedance rather than by crossover component impedance, and crossover frequency, slope, time alignment, and level can be adjusted precisely in the digital domain. The DF-75's 96 dB/octave digital slopes and 0.5cm time alignment steps enable a level of acoustic integration between drivers that passive crossovers physically cannot achieve.

What power amplifiers are needed to use the DF-75?

A 4-way system using the DF-75 requires four stereo power amplifiers — one assigned to each frequency band — or eight monoblock amplifiers. For a 2-way configuration, two stereo amplifiers are sufficient. Accuphase A-series and P-series power amplifiers pair naturally with the DF-75 through balanced XLR connections, with Accuphase A-48S, P-7500, or A-300 amplifiers representing typical choices for dedicated woofer, midrange, and tweeter amplification in a reference multi-amplified system. The DF-75's monophonic output mode allows a single pair of Accuphase amplifiers to be used in dual-mono configuration for a single high-performance driver band with improved specifications. Vinyl Sound Buffalo can advise on power amplifier selection and system configuration for multi-amplified systems.

Can the DF-75 be used with any loudspeaker or only with specific systems?

The Accuphase DF-75 can be used with any loudspeaker system whose drivers are accessible for direct amplifier connection, including loudspeakers with separate woofer, midrange, and tweeter terminals designed for bi-wiring or bi-amping, custom-built multi-way speaker systems using professional drivers, and high-efficiency horn-loaded systems where multi-amplification provides the greatest performance advantage. For passive loudspeakers with a single set of terminals, the DF-75 is not applicable. The DF-75 is most commonly used in large-scale horn systems, studio monitor installations, and reference listening rooms where the complexity of multi-amplified operation is justified by the sonic advantages it provides.

Where can I buy the Accuphase DF-75 in Buffalo, NY?

The Accuphase DF-75 Digital Frequency Dividing Network is available at Vinyl Sound USA Inc. in Buffalo, NY, your authorised Accuphase dealer serving Western New York and the United States. Vinyl Sound carries the complete Accuphase electronics lineup. Visit vinylsound.com or contact the Buffalo store for current availability and expert system configuration guidance for multi-amplified loudspeaker systems using the DF-75.
