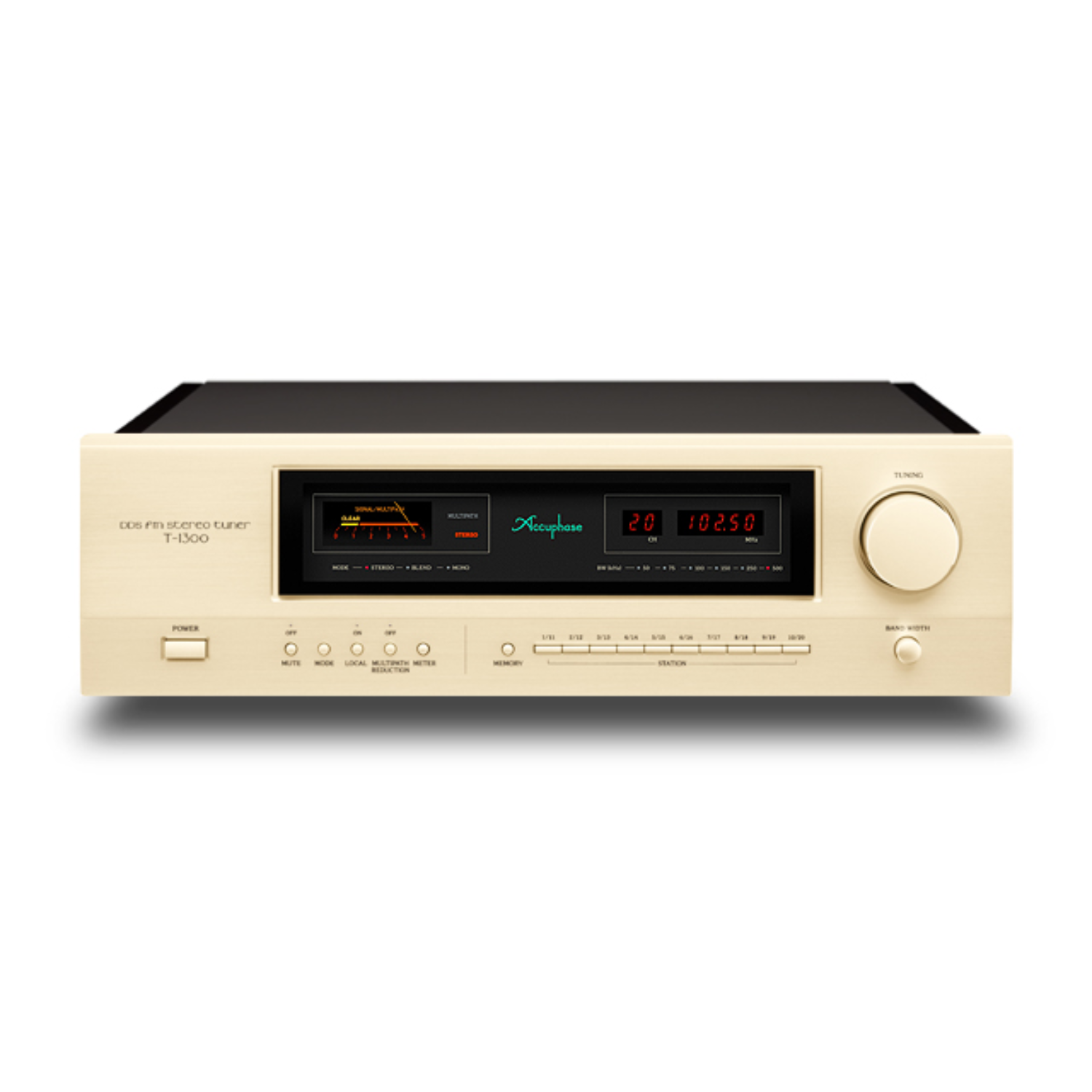

Accuphase T-1300 DDS FM Stereo Tuner at Vinyl Sound Buffalo, NY USA

The Accuphase T-1300 is a reference DDS FM stereo tuner from Accuphase (Yokohama, Japan), available at Vinyl Sound in Buffalo, NY USA. The successor to the T-1200 and the culmination of Accuphase's more than 50-year tradition of FM tuner engineering, the T-1300 combines a high-precision DDS (Direct Digital Synthesis) local oscillator for mathematically pure, phase-noise-free frequency generation with sophisticated DSP technology implementing a variable bandwidth IF filter across six selectable bandwidths, multipath reduction, digital FM demodulator, and DS-DC (Direct Synthesis Double Cancellation) stereo demodulation — all applied after the intermediate frequency stage for unprecedented FM reception characteristics. An MDS (Multiple Delta-Sigma) D/A converter, balanced XLR and unbalanced RCA analog outputs, a 48kHz/24-bit coaxial digital output, 20 station memory presets with comprehensive parameter storage, and the large precision pulse tuning knob for manual station selection complete a reference FM tuner that remains without a credible current-production competitor in high-end FM reception at Vinyl Sound Buffalo, NY USA.

DDS Local Oscillator and Double-Tuned Front End

The T-1300's RF performance begins with a double-tuned front end that handles high-level interference signals from adjacent stations and strong local transmitters without the cross-modulation and intermodulation products that single-tuned front ends produce. The critical advance over conventional FM tuner design is the DDS (Direct Digital Synthesis) local oscillator, which generates the local oscillator frequency used in the first mixing stage through direct digital computation rather than a traditional LC oscillator or PLL. A conventional analog oscillator inevitably produces phase noise — random frequency jitter around the nominal carrier — and spurious harmonic products that degrade the signal-to-noise ratio and stereo separation of the received audio. DDS synthesizes the local oscillator waveform mathematically from a stable crystal reference, producing a spectrally pure output with phase noise and spurious products far below what any analog oscillator achieves. The result is a cleaner intermediate frequency signal entering the DSP processing stage, establishing the noise floor advantage that the T-1300's measured 94dB mono and 78dB stereo signal-to-noise ratios reflect.

DSP Variable IF Filter, Digital FM Demodulator, and DS-DC Stereo Demodulation

After the intermediate frequency stage, the T-1300's DSP applies four independent processing functions that define its performance in real-world FM reception. The variable bandwidth IF filter provides six selectable bandwidths from 50kHz to 500kHz, allowing the filter to be narrowed for congested urban FM environments where adjacent channel interference is severe, or widened for isolated stations with clean spectrum to maximize audio bandwidth and stereo separation. The digital FM demodulator avoids the group delay and linearity limitations of analog discriminator designs, achieving 0.04% THD in stereo — exceptionally low for FM reception — and maintaining consistent performance across the full audio bandwidth. DS-DC (Direct Synthesis Double Cancellation) is Accuphase's proprietary stereo demodulation technology that directly synthesizes the 19kHz pilot signal mathematically rather than using a conventional PLL extraction — which degrades with weak signals — and then applies dual crosstalk cancellation to achieve 65dB stereo separation at 1kHz and stable stereo demodulation even in challenging weak-signal conditions where conventional tuners lose separation or revert to mono. The multipath reduction function applies DSP analysis to detect and minimize the reflection-induced signal degradation caused by FM signals arriving at the antenna from multiple paths due to building and terrain reflections, a particularly significant problem in urban environments including Buffalo, NY.

Key Features

• High-Precision DDS Local Oscillator: Direct Digital Synthesis frequency generation produces a mathematically pure local oscillator with minimal phase noise and no spurious products for the cleanest possible intermediate frequency signal.
• Double-Tuned Front End: Handles high-level interference from adjacent stations and strong local transmitters without cross-modulation or intermodulation products.
• Variable Bandwidth IF Filter (6 positions, 50kHz to 500kHz): Selectable DSP IF filter adapts reception to the RF environment, from maximum selectivity in congested markets to maximum bandwidth for isolated clean-spectrum stations.
• Digital FM Demodulator: DSP-based FM demodulation achieves 0.04% THD in stereo and consistent linearity across the full audio bandwidth beyond what analog discriminator designs achieve.
• DS-DC Stereo Demodulation: Direct Synthesis Double Cancellation synthesizes the pilot signal mathematically and applies dual crosstalk cancellation for 65dB stereo separation and stable stereo performance under weak signal conditions.
• Multipath Reduction: DSP multipath detection and correction minimizes signal degradation from reflected FM signals in urban and suburban reception environments.
• MDS D/A Converter: Multiple Delta-Sigma parallel DAC conversion for the final analog output with the noise averaging benefits of Accuphase's parallel DAC philosophy.
• Balanced XLR Analog Outputs: Fully balanced output stage for connection to balanced preamplifiers and integrated amplifiers.
• 48kHz/24-bit Coaxial Digital Output: Digital output for connection to external DACs for high-quality FM reception processed through a reference external D/A converter.
• 20 Station Memory with Parameter Storage: Stores station frequency plus full operating parameters (mute status, stereo/blend/mono mode, local attenuation, multipath reduction, IF bandwidth) per preset for instant recall of optimized settings per station.
• Precision Pulse Tuning Knob: Large tuning knob generates optical pulses for precise digital frequency control with the tactile feel of traditional manual tuning.
• 94dB Mono / 78dB Stereo SNR: Reference-class signal-to-noise performance representing the highest FM tuner SNR available in current production.

Technical Specifications

Frequently Asked Questions

What is the Accuphase T-1300?

The Accuphase T-1300 is a reference DDS FM stereo tuner from Accuphase of Japan, available at Vinyl Sound Buffalo. It uses a high-precision DDS local oscillator, double-tuned front end, variable bandwidth DSP IF filter across six positions from 50kHz to 500kHz, digital FM demodulator, DS-DC stereo demodulation, multipath reduction, MDS D/A conversion, and provides balanced XLR, RCA, and 24-bit coaxial digital outputs with 20 station memory presets. It succeeds the T-1200 with improvements in SNR and is the only current-production reference-grade FM tuner from a major high-end manufacturer.

How does the T-1300 compare to the T-1200 and vintage FM tuners?

The Accuphase T-1300 advances over the T-1200 with a 2dB improvement in signal-to-noise ratio in both mono and stereo operation, refined DSP processing, and updated circuit topologies. Compared to vintage reference FM tuners such as the Tandberg 3001A, Sansui TU-X1, and Sequerra Model 1, the T-1300 offers capabilities that were physically impossible in analog designs: variable digital IF filtering that adapts to the RF environment, DSP multipath reduction, digital FM demodulation with 0.04% THD, and a coaxial digital output that allows FM audio to bypass the tuner's analog output stage and be processed through an external reference DAC. The T-1300 outperforms all current-production alternatives in stereo SNR, making it the highest-performing FM receiver available in new production.

What is DDS and why does it improve FM reception?

DDS (Direct Digital Synthesis) is a method of generating the local oscillator frequency in the T-1300's FM receiving circuit by synthesizing the waveform mathematically from a stable digital crystal reference, rather than using a traditional LC oscillator or phase-locked loop that inevitably produces phase noise — random frequency jitter around the nominal carrier. Phase noise on the local oscillator transfers directly to the intermediate frequency signal and raises the noise floor of the received audio, reducing signal-to-noise ratio and stereo separation. By eliminating analog oscillator phase noise through mathematical synthesis, the T-1300's DDS oscillator establishes a cleaner IF signal before the DSP processing stage, contributing to the T-1300's 94dB mono SNR.

What is DS-DC stereo demodulation and how does it work?

DS-DC (Direct Synthesis Double Cancellation) is Accuphase's proprietary stereo demodulation technology that addresses two limitations of conventional PLL-based FM stereo demodulation. First, instead of using a PLL to lock onto and extract the 19kHz pilot tone — which degrades in accuracy and degrades stereo separation when pilot signal level drops on weak stations — DS-DC identifies the pilot waveform directly within the digitized IF signal and regenerates it mathematically, maintaining accurate stereo demodulation regardless of pilot signal strength. Second, DS-DC applies a double crosstalk cancellation algorithm after initial left-right channel separation, removing the residual inter-channel crosstalk that limits stereo separation in conventional demodulators. The combined result is the T-1300's 65dB stereo separation at 1kHz and stable stereo performance under weak-signal conditions where conventional tuners degrade to blend or mono.

Can the T-1300's digital output be used with an external DAC?

Yes, the Accuphase T-1300 provides a 48kHz/24-bit coaxial S/PDIF digital output that carries the digitized FM audio signal for connection to any external DAC via coaxial RCA. Using the digital output allows the FM audio to be processed through a reference external DAC such as the Accuphase DC-500 rather than the T-1300's internal MDS converter, potentially achieving a higher level of D/A conversion quality for listeners whose external DAC outperforms the T-1300's internal output stage. This digital output also allows the FM signal to be processed through an Accuphase DG-78 voicing equalizer in the digital domain before conversion to analog.

Where can I buy the Accuphase T-1300 in Buffalo, NY?

The Accuphase T-1300 DDS FM Stereo Tuner is available at Vinyl Sound USA Inc. in Buffalo, NY, your authorised Accuphase dealer serving Western New York and the United States. Vinyl Sound carries the complete Accuphase electronics lineup. Visit vinylsound.com or contact the Buffalo store for current availability and expert guidance on antenna setup and system integration for FM tuner listening in the Buffalo, NY area.
