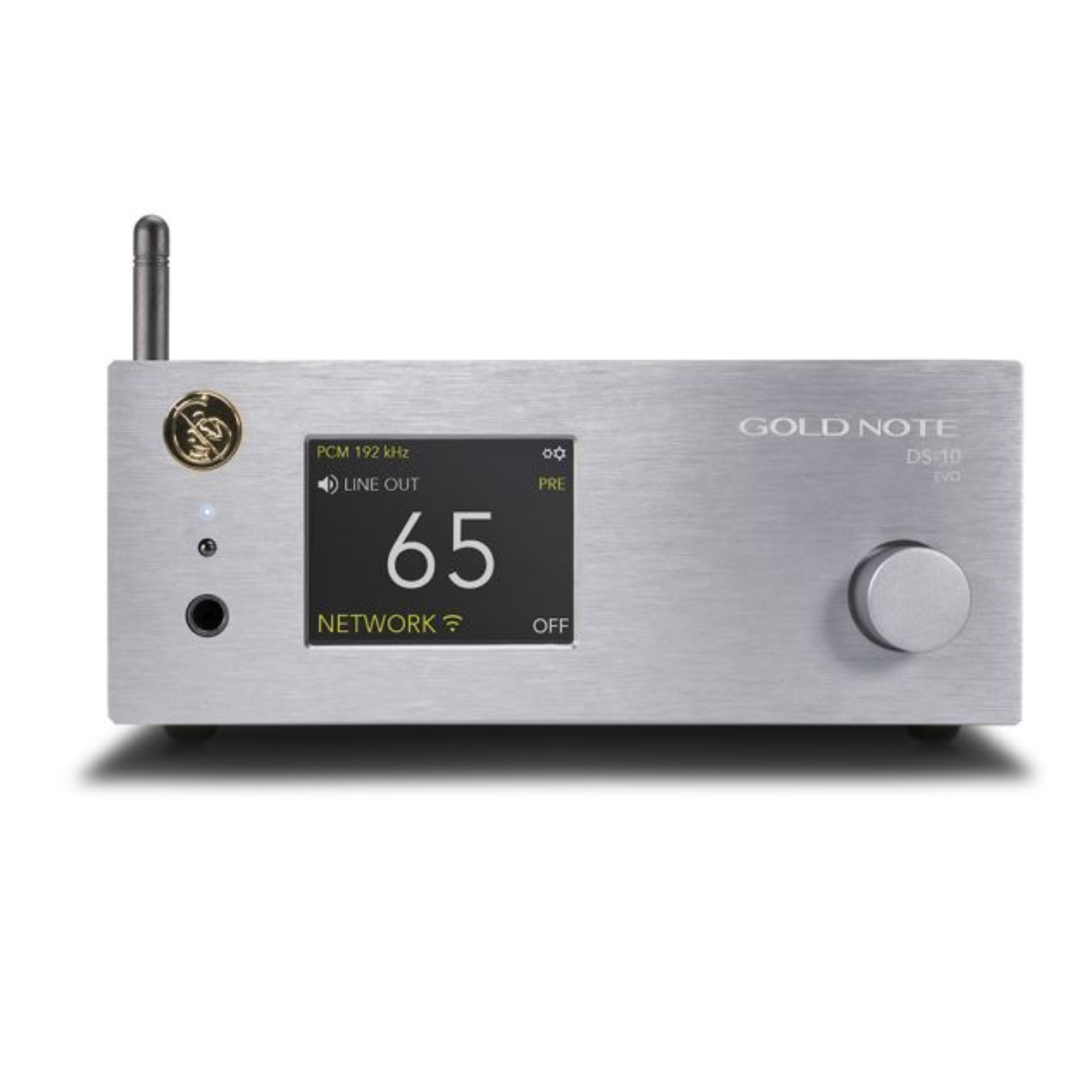

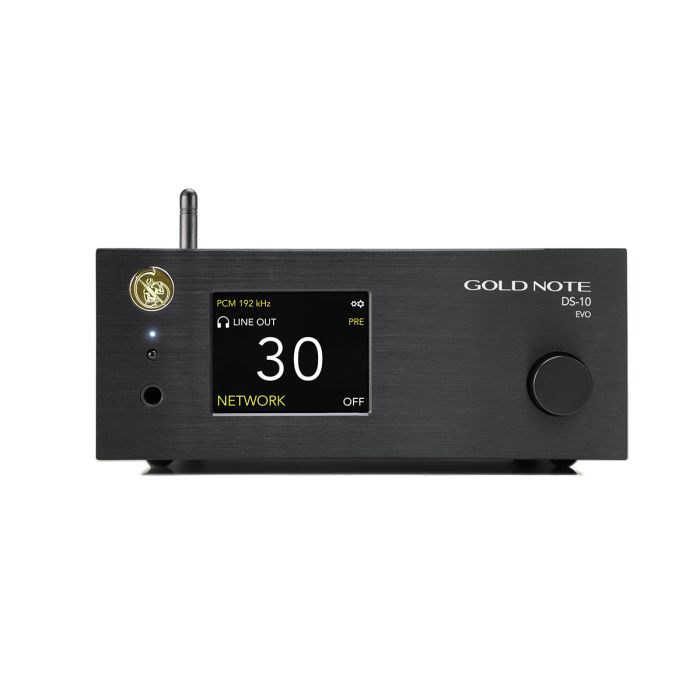

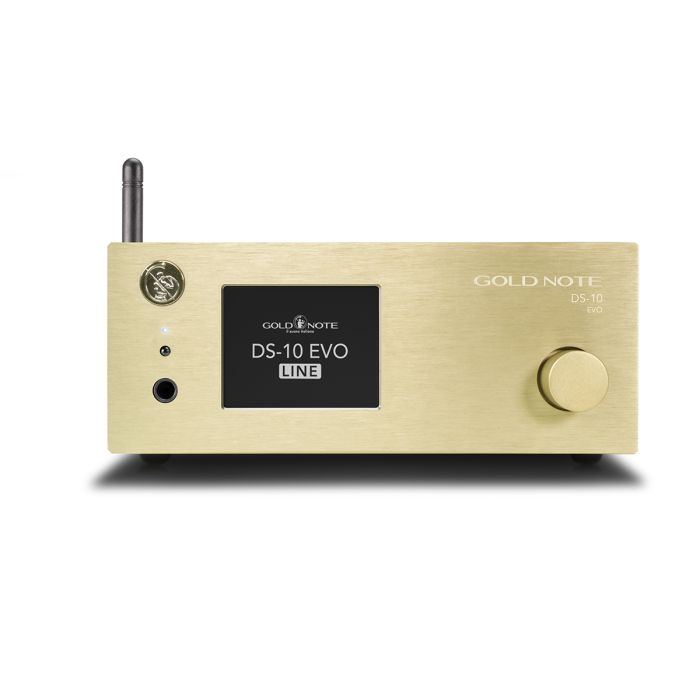

DS-10 EVO Digital Streamer

New frontiers of digital music streaming

The Gold Note DS-10 EVO combines state-of-the-art streaming DAC, Class A line preamplifier, and professional headphone amplifier in compact 200×80×260mm chassis. Supports MQA, DSD512, PCM 32/768kHz with unique 3-profile DAC optimization.

AK4493 DAC with 3 selectable profiles

AKM AK4493 converter with real-time adjustable profiles (deemphasis, low-pass filters, DSD filter) adapts to music characteristics without signal degradation. 20Hz-20kHz ±0.1dB, 0.001% THD, 125dB S/N ratio, 120dB dynamic range.

Complete streaming ecosystem

Roon Ready, Tidal Connect, Spotify Connect, Qobuz, AirPlay 2.0, Deezer, vTuner. WiFi Dual Band 802.11ac (10/433Mbps), Bluetooth HD 5.0, UPnP/DLNA. GN Control app (iOS/Android) displays track info and resolution.

Professional headphone amplification

6.3mm headphone output with High/Low sensitivity settings. LINE model adds analog input (3.5mm mini-jack) for PH-10/PA-10 integration. Switchable Class A preamp stage with remote/SKC/app volume control.

Comprehensive connectivity matrix

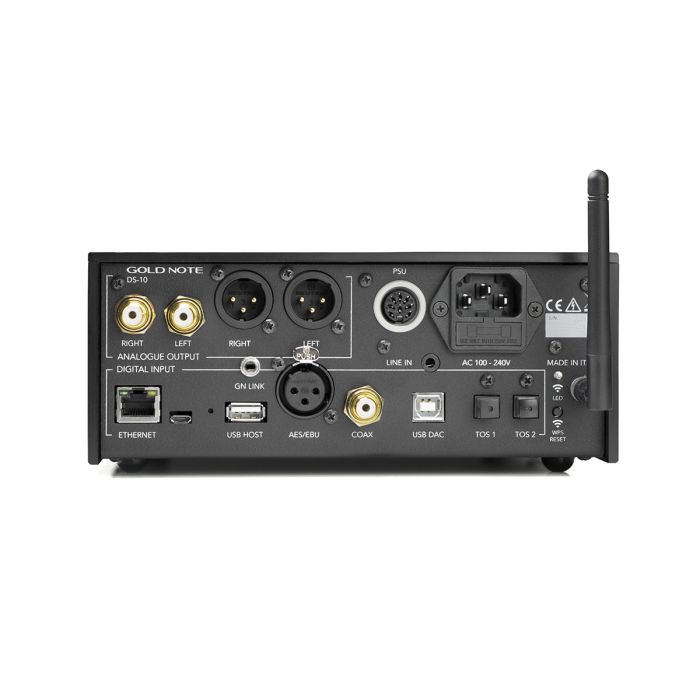

Digital inputs: Ethernet, USB-B async (DSD512), USB-A, AES/EBU, Coax, 2× TOS-Link (24/192). Outputs: RCA/XLR DAC (2Vrms), RCA/XLR preamp, headphone. 2.8″ TFT display + SKC knob + OTA firmware updates.

Perfect 10 Series digital hub

Matches PH-10 phono stages, CD-10 players, and our complete vinyl ecosystem. Available exclusively at Vinyl Sound Buffalo, NY.

Technical Specifications

Ultimate digital source integration

Complete hybrid systems with PA-10 amplifiers and speakers. Contact Vinyl Sound Buffalo for streaming/vinyl source optimization.
