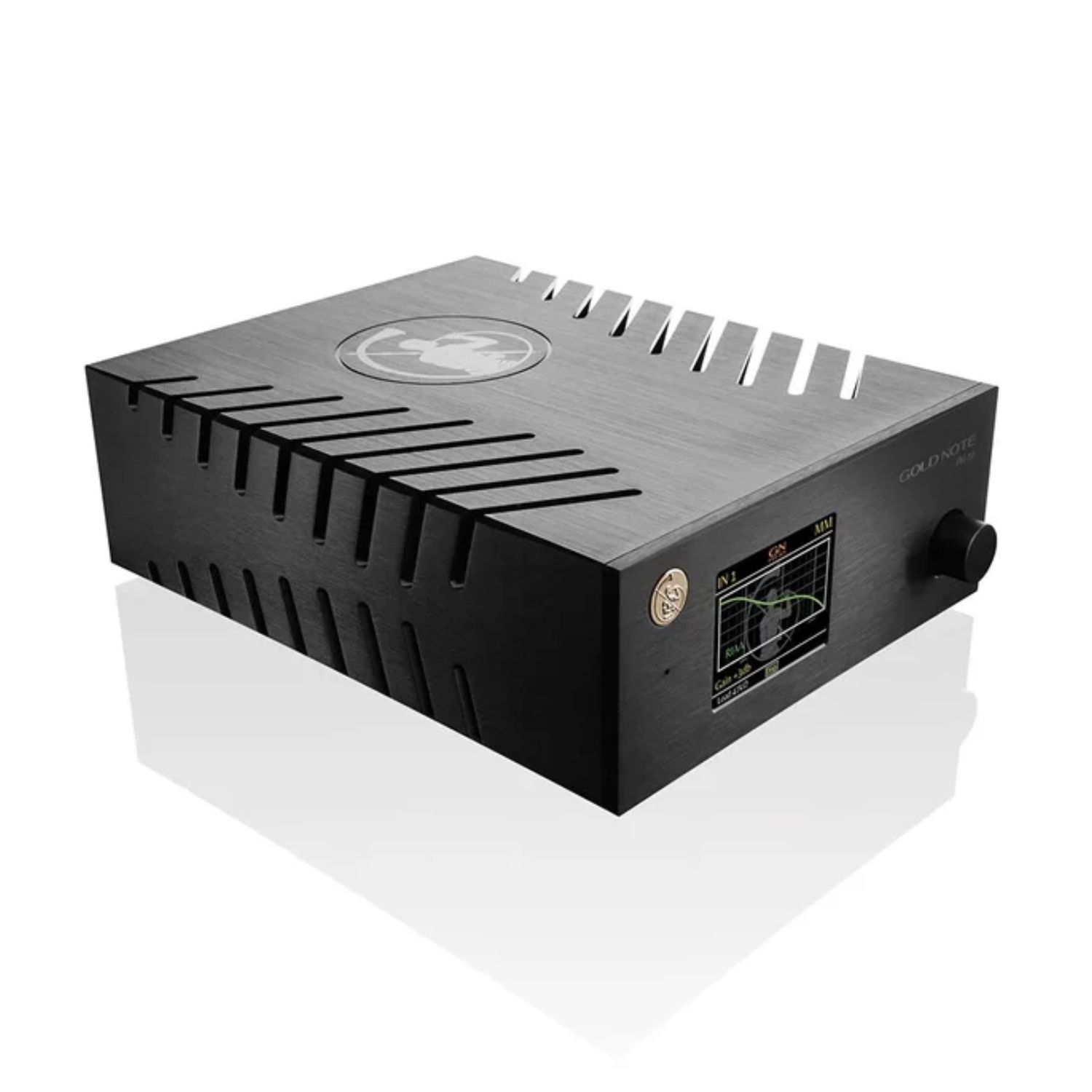

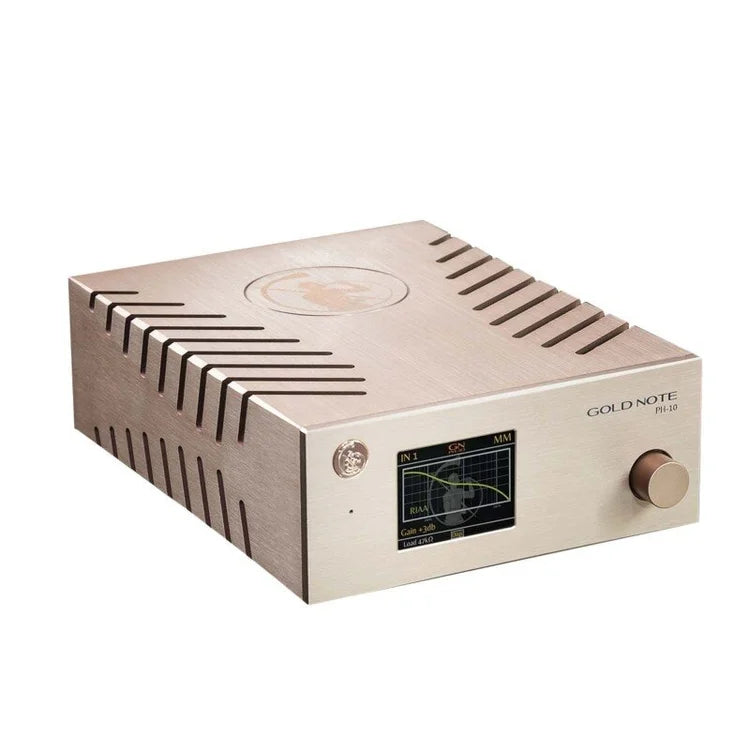

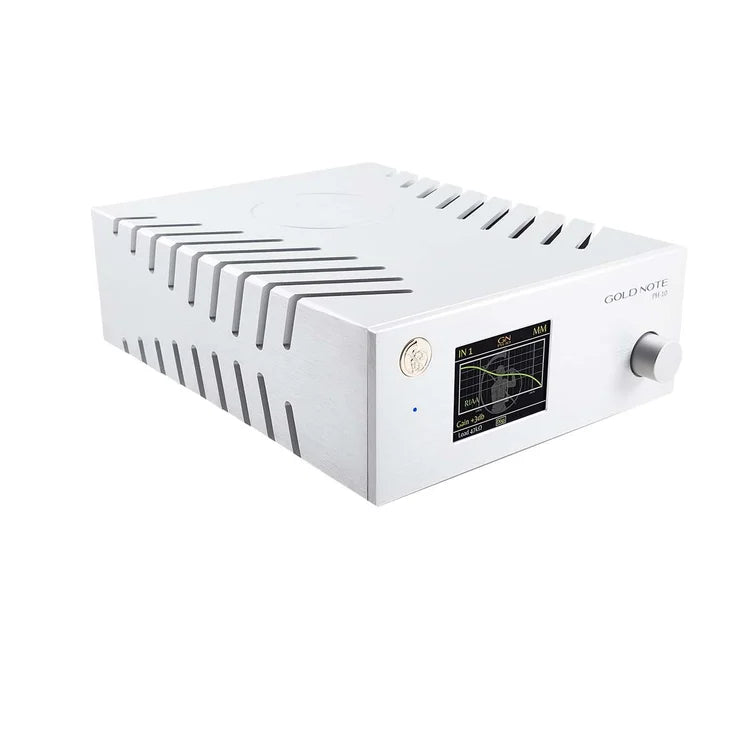

Gold Note Phono Stage PH-10
$2,395.00
Product Details
Ultra-compact High-End phono stage
The Gold Note PH-10 delivers extraordinary MM/MC performance in a space-saving 200×80×260mm chassis. Dual RCA inputs support 2 independent tonearms with individual EQ/load/gain settings, perfect for our Gold Note cartridges.
6 selectable EQ curves with Enhanced mode
RIAA, Decca London, American Columbia curves with proprietary Enhanced function (±0.3dB accuracy). Real-time adjustment via intuitive SKC knob + color TFT display without interrupting playback. 10Hz/36dB subsonic filter included.
Complete cartridge matching
9 impedance loads [10Ω-47kΩ], 4 gain levels [-3dB, 0dB, +3dB, +6dB]. MM capacitance fixed at 220pF. Perfect synergy with ES-78 MM, Vasari series, and low-output MC cartridges from our collection.
Dual tonearm capability

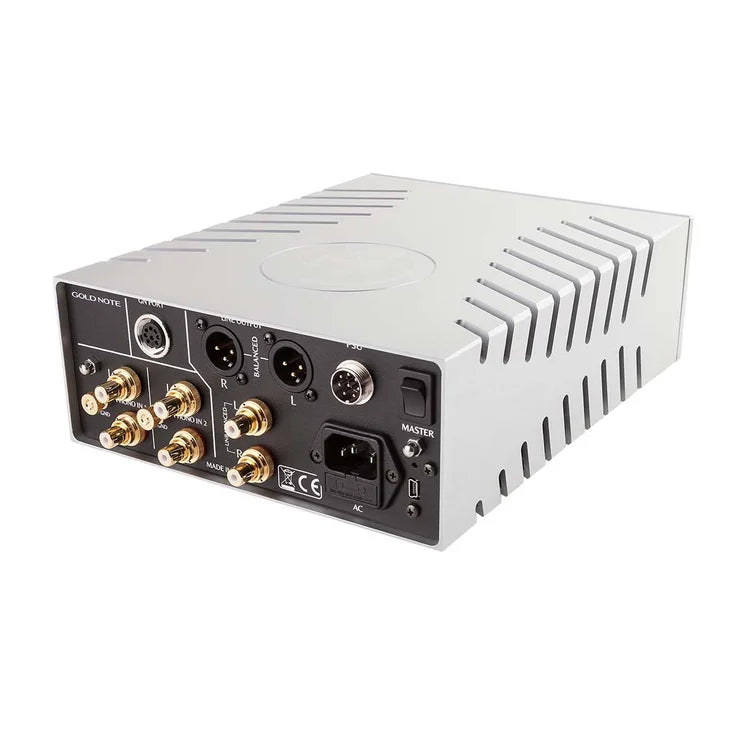

Two independent RCA inputs with memory settings for different cartridges/tonearms. RCA (2V) + XLR balanced (4V) outputs ensure compatibility with any amplifier. Compact design fits any audio rack seamlessly.
Optional PSU-10 upgrade path
Super inductive external power supply dramatically enhances dynamics, soundstage, and micro-detail. THD <0.05%, SNR 89dB, dynamic range 105dB. Frequency response: 20Hz-20kHz standard, Enhanced 20Hz-50kHz.
Perfect Gold Note system match
Designed for T-5/Valore turntables with B-5.1 tonearms and Vasari/ES-78 cartridges. Available exclusively at Vinyl Sound Buffalo, NY.
Technical Specifications
| Parameter | Value |
|---|---|
| Phono Inputs | 2× independent Stereo RCA |
| Load Impedance | 9 options: 10/22/47/100/220/470/1000/22K/47KΩ |
| Gain | 4 levels: -3/0/+3/+6dB |
| EQ Curves | 6 curves (RIAA, Decca, Columbia) + Enhanced |
| MM Capacitance | 220pF fixed |
| Frequency Response | 20Hz-20kHz (±0.3dB) |
| Enhanced Response | 20Hz-50kHz (±0.3dB) |
| THD | <0.05% max |
| SNR | 89dB |
| Dynamic Range | 105dB |
| Outputs | RCA (2V), XLR balanced (4V) |
| Subsonic Filter | 10Hz/36dB octave |
| Dimensions (WxHxD) | 200×80×260mm |
| Power Supply | Optional PSU-10 upgrade |
Complete your vinyl reference system
Pair with Gold Note amplifiers and speakers. Contact Vinyl Sound Buffalo for expert cartridge/loading optimization.
