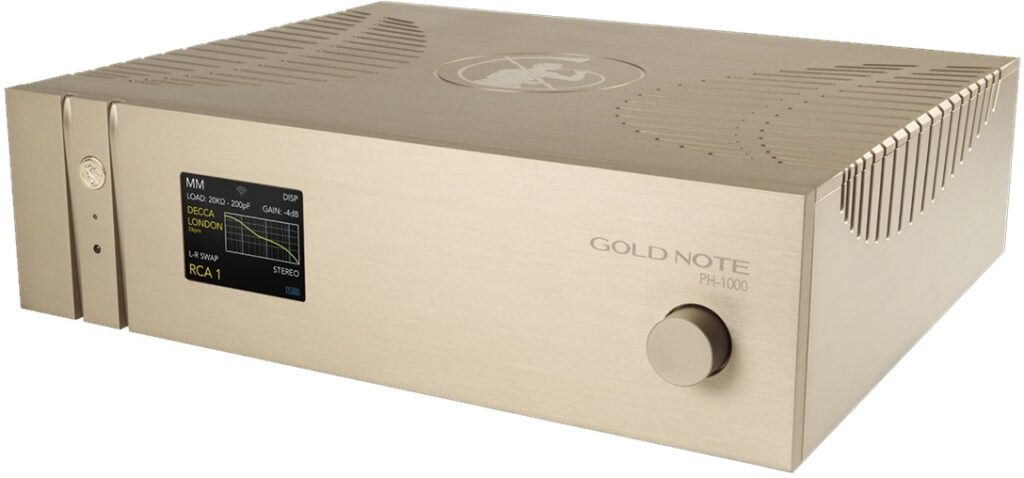

Gold Note Phono Stage PH-1000

Ultimate phono stage for High-End vinyl systems

The Gold Note PH-1000 is the reference phono preamplifier supporting up to 3 simultaneous MM/MC cartridges. Features 24+ EQ curves, extensive gain/loading/capacitance adjustments, built-in headphone amp, and line preamplifier stage for direct power amp connection.

Complete cartridge matching capability

40-65dB gain (6 steps MM/MC), 12 impedance settings (10Ω-100kΩ), 6 capacitance options (100pF-1000pF). Three phono inputs (2×RCA + 1×XLR) handle ES-78 MM through Tuscany Gold MC perfectly with external load plug support.

24+ EQ curves with real-time control

24 selectable EQ curves + Enhanced Gold Note curves (±0.3dB accuracy). Real-time adjustment during playback via remote control or front panel SKG rotary knob. 3.5″ color TFT display shows all settings instantly.

Pure analog Dual-Mono architecture

Discrete components design with High-End analog switches preserves signal purity. Built-in headphone amplifier, line preamplifier stage, Mono/Stereo selection, L/R channel swapping, 10Hz/36dB Subsonic Rumble Filter.

Reference connectivity + upgrade path

Outputs: RCA (1V), XLR balanced (4V), optional TUBE-1006/1012 valve stage. LAN/WiFi connectivity, serial port, microSD firmware updates. Optional PSU-1250/1000 external power supply. Dimensions: 430×135×375mm, 12kg net.

Core of Gold Note analog ecosystem

Engineered for our complete vinyl chain: Bellagio/Mediterraneo turntables, B-7 Ceramic tonearms, Tuscany/Giotto cartridges. Exclusive at Vinyl Sound Buffalo, NY.

Technical Specifications

Build your ultimate vinyl reference

Pair with PA-1175 MkII/PA-10 amplifiers and speakers. Contact Vinyl Sound Buffalo for complete system design and optimization.
