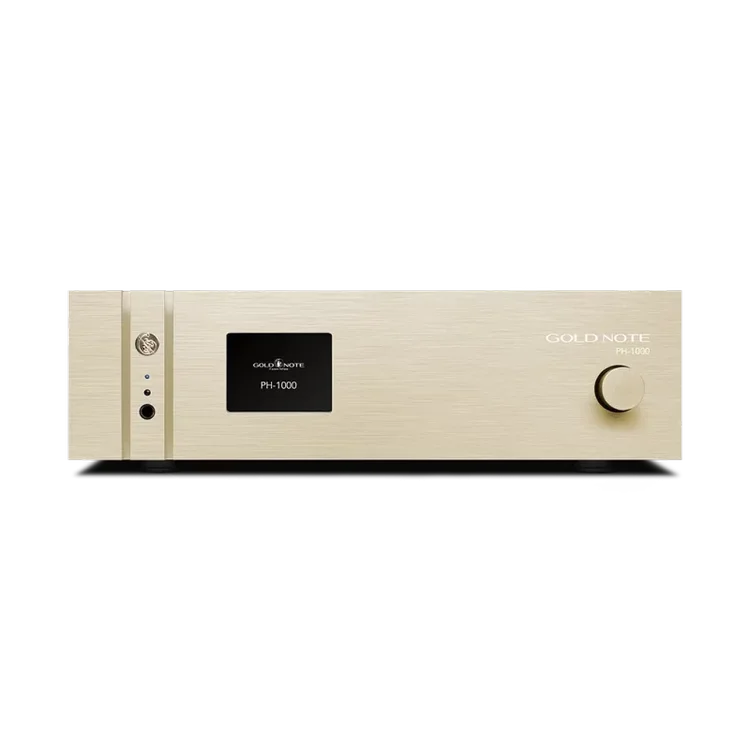

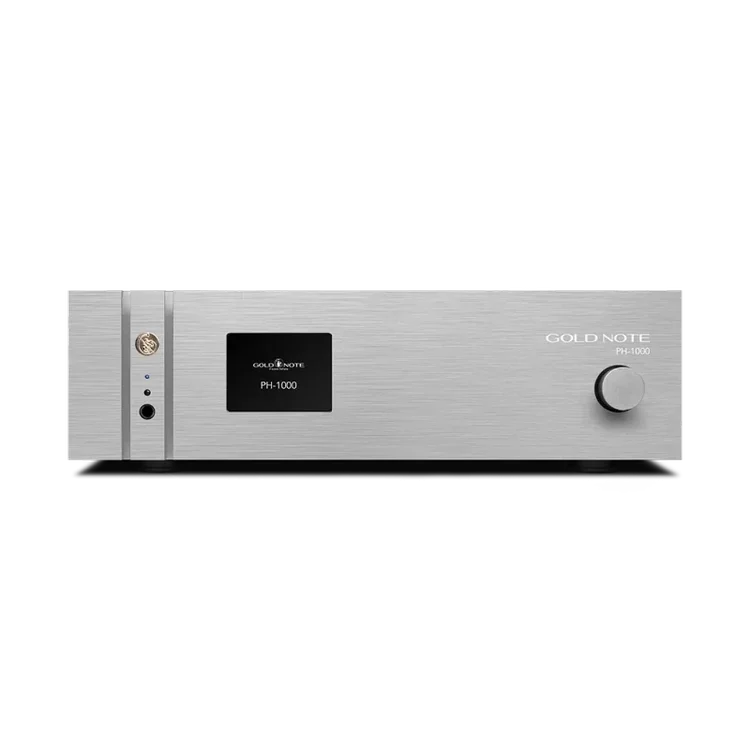

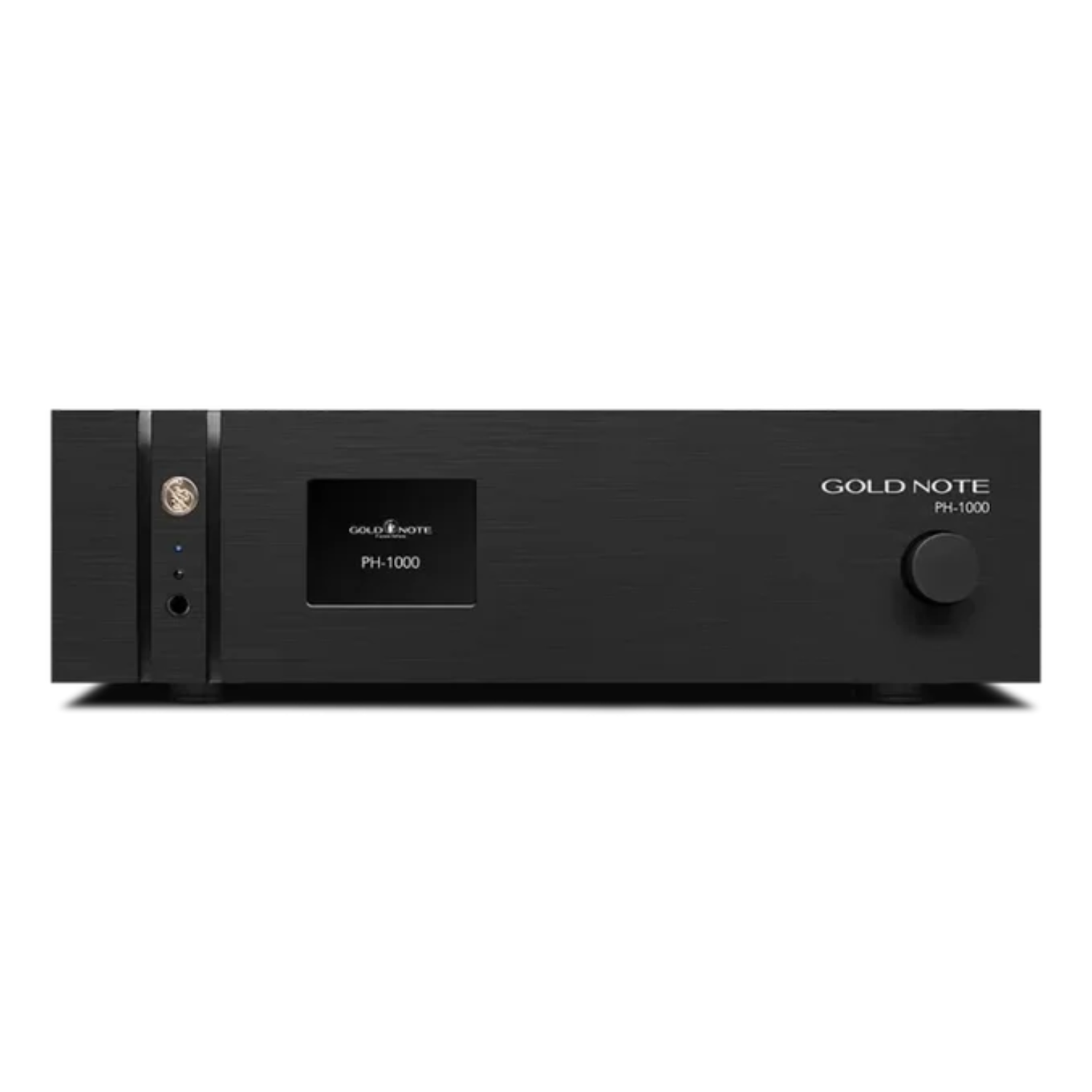

Gold Note Phono Stage PH-1000 LINE

$18,995.00

Color
Gold
Black
Silver
Quantity

Product Details

The limitless phono stage reference

The Gold Note PH-1000 LINE represents the ultimate phono preamplifier with infinite modifiable EQ curves, ultra-fine loading/gain/capacitance adjustments, and built-in line preamplifier. Perfectly matches MM/MC cartridges from our Gold Note lineup.

Infinite EQ curves + real-time adjustment

Unlimited Equalization Curves including custom presets. All parameters adjustable in real-time during playback via remote control or Single Knob Control (SKG). 3.5″ color TFT display shows all settings instantly.

Ultimate cartridge loading flexibility

40-65dB gain (7 steps), 12 RCA + 8 XLR load options, 7 capacitance settings (100pF-1000pF). Three phono inputs (2 RCA, 1 XLR) + external load capability for perfect matching of any cartridge from ES-78 MM to Tuscany Gold MC.

Complete analog signal path

Fully analog Dual-Mono discrete components design with High-End audio-grade switches. Built-in headphone amplifier, line preamplifier stage, Mono/Stereo mode, channel swapping, Subsonic Rumble Filter (10Hz).

Reference connectivity

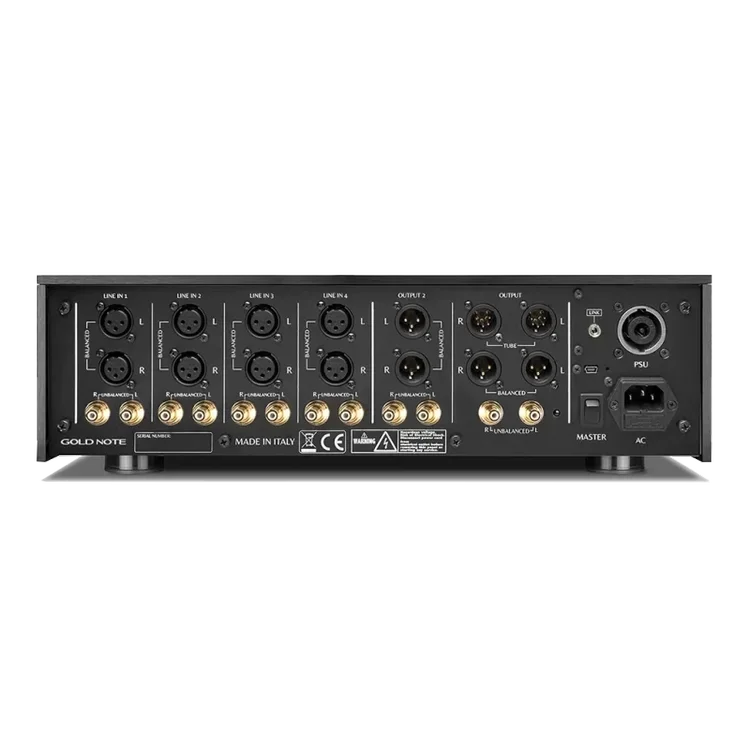

Outputs: Tube stage, RCA, XLR balanced + headphone. Serial port, LAN/WiFi connectivity, firmware updates via micro SD card. Optional PSU-1250/1000 external power supply and TUBE-1012/1006 valve output stage.

Perfect Gold Note system hub

Designed for our complete turntable ecosystem (Bellagio, Mediterraneo X, Giglio) with B-7 Ceramic tonearms and Tuscany/Giotto cartridges. Available at Vinyl Sound Buffalo, NY.

Technical Specifications

Parameter Value
EQ Curves Infinite + Custom (PH-1000 LINE)
Gain 40dB MM to 65dB MC (7 options)
Load 12 RCA options + 8 XLR options
Capacitance OFF, 100/150/220/330/470/1000pF
Inputs 2× RCA, 1× XLR phono
Outputs Tube, RCA, XLR + Headphone
External Load PH-1000 LINE only
Line Preamp Built-in (PH-1000 LINE)
Control Remote + SKG knob + 3.5″ color TFT
Connectivity LAN/WiFi, Serial port, microSD firmware

Complete your reference vinyl chain

Pair with our amplifiers (PA-1175 MkII, PA-10) and speakers. Contact Vinyl Sound Buffalo for system optimization.
