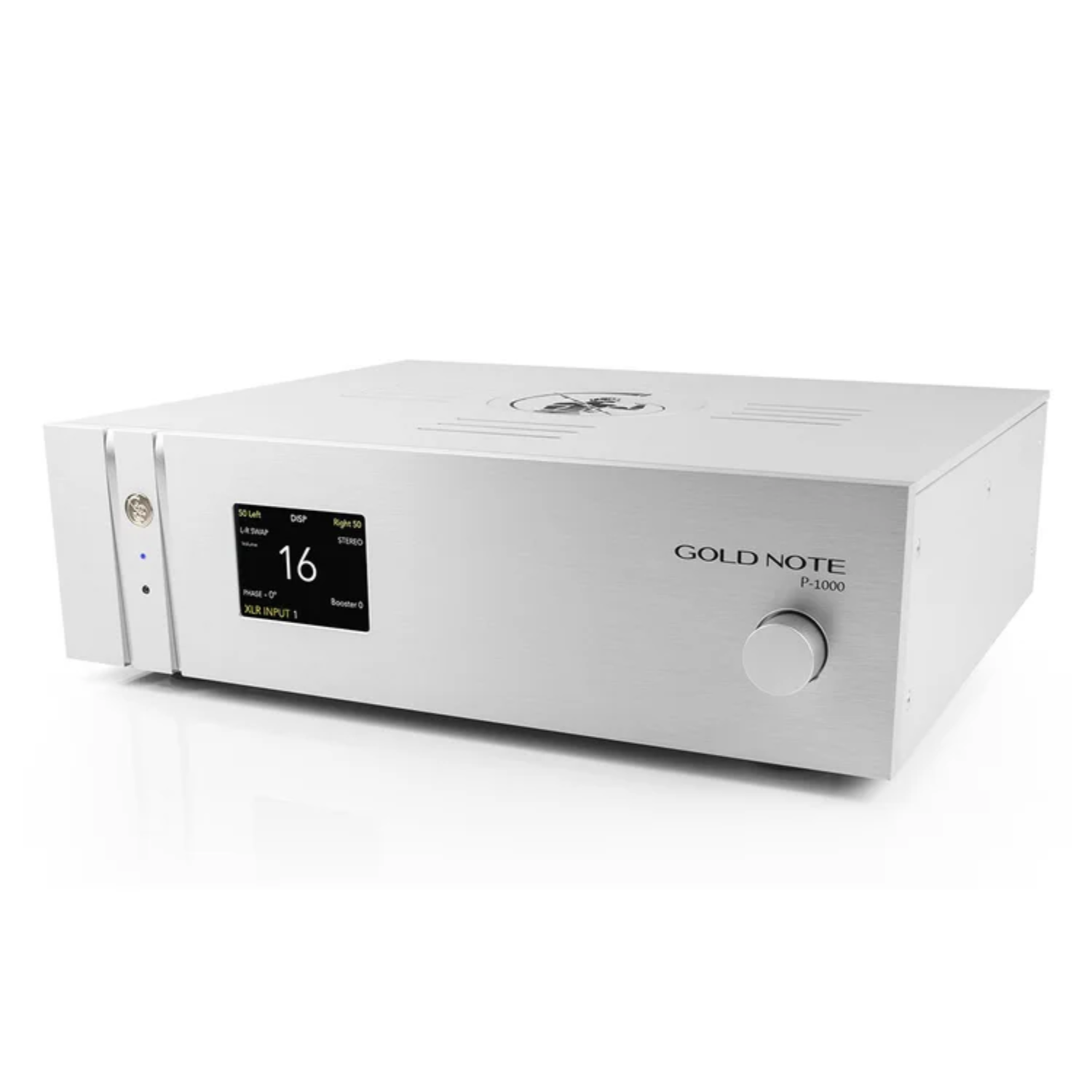

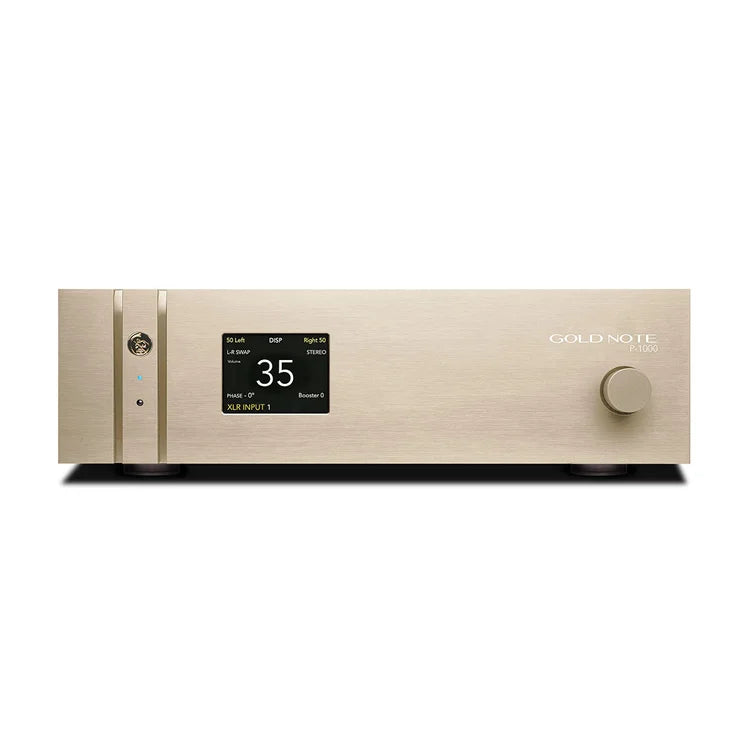

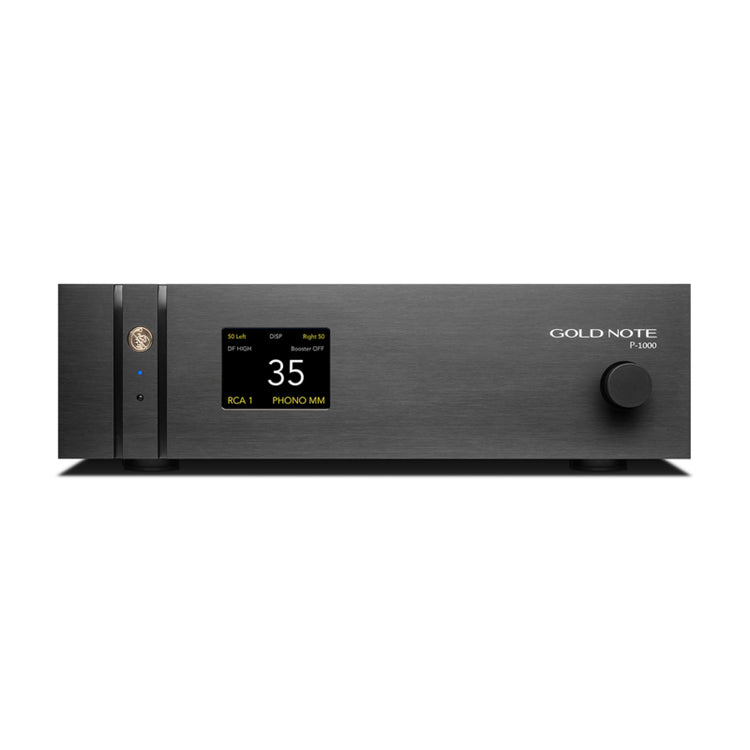

Gold Note Preamplifier P-1000 MKII Deluxe
$9,295.00
Product Details
Ultra-balanced Class-A preamplifier
The Gold Note P-1000 MKII Deluxe features proprietary Six Gain Stage ultra-balanced design with military-grade noise-canceling components. 8 independent stereo inputs (4× RCA, 4× XLR balanced), resistor relay volume control, and 3-level Booster bass enhancement.
Six Gain Stage architecture
Ultra-linear bandwidth with <0.001% THD @1kHz, -120dB SNR, >118dB channel separation. 2Hz-200kHz ±3dB frequency response ensures complete musical spectrum preservation. Triple Linear Transformer power supplies eliminate crosstalk.

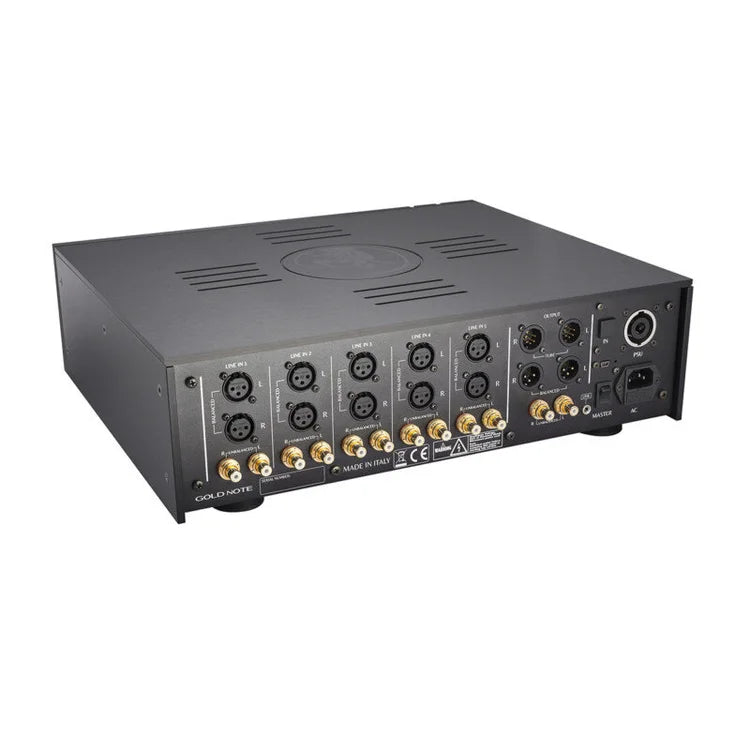

Comprehensive analog connectivity
4× RCA unbalanced (up to 5Vrms), 4× XLR balanced (up to 10Vrms) inputs. 2× RCA + 2× XLR outputs (up to 20Vrms XLR/10Vrms RCA). 100-step optical ALPS encoder volume control. <10Ω/50Ω output impedance maintains drive capability.
Advanced processing features
Mono/Stereo selection, L/R channel swap, 0°/180° absolute phase inversion. Adjustable Booster technology enhances 50Hz bass (3 levels, fully bypassable). Fine Balance tuning for precise imaging. Full-color SKC display with remote control.
1000 Series modular excellence
430×135×375mm chassis (11kg net). Expandable with PSU-1250/1000 external power supplies and TUBE-1012/1006 Class-A valve output stages. Brushed aluminum finishes: Black, Silver, Gold. Perfect match for PA-1175 MkII power amplifiers.
Core of Gold Note analog systems
Ideal command center for Bellagio turntables, B-7 Ceramic tonearms, Tuscany cartridges, and our complete High-End ecosystem. Available exclusively at Vinyl Sound Buffalo, NY.
Technical Specifications
| Parameter | Value |
|---|---|
| Design | Class-A Six Gain Stage Ultra-Balanced |
| Frequency Response | 2Hz-200kHz ±3dB |
| THD | <0.001% @1kHz |
| SNR | -120dB |
| Channel Separation | >118dB |
| Gain | +19dB/+20dB |
| Analog Inputs | 4× RCA (5Vrms max), 4× XLR balanced (10Vrms max) |
| Input Impedance | 100kΩ (RCA/XLR) |
| Outputs | 2× RCA (10Vrms max), 2× XLR (20Vrms max) |
| Output Impedance | <10Ω RCA, <50Ω XLR |
| Volume Control | 100 steps resistor relay + ALPS optical encoder |
| Processing | Mono/Stereo, L/R swap, Phase 0°/180°, 3-level Booster |
| Power Supply | Triple Linear Transformer |
| Dimensions (WxHxD) | 430 × 135 × 375mm |
| Weight | 11kg net / 16kg boxed |
Ultimate analog preamplifier foundation
Modular upgrade path with tube stages and external PSUs. Perfect command center for complete Gold Note systems. Contact Vinyl Sound Buffalo for Booster optimization and system integration.
