Gold Note PSU-1250/1000 Power Supply

Super inductive 1000 Series power supplies

The Gold Note PSU-1250 (7-transformer design) and PSU-1000 (5-transformer design) deliver ultra-clean power to 1000 Series electronics including PH-1000, DS-1000, CD-1000, P-1000. Double inductor design with inductive analog filtering eliminates EMI/RFI interference.

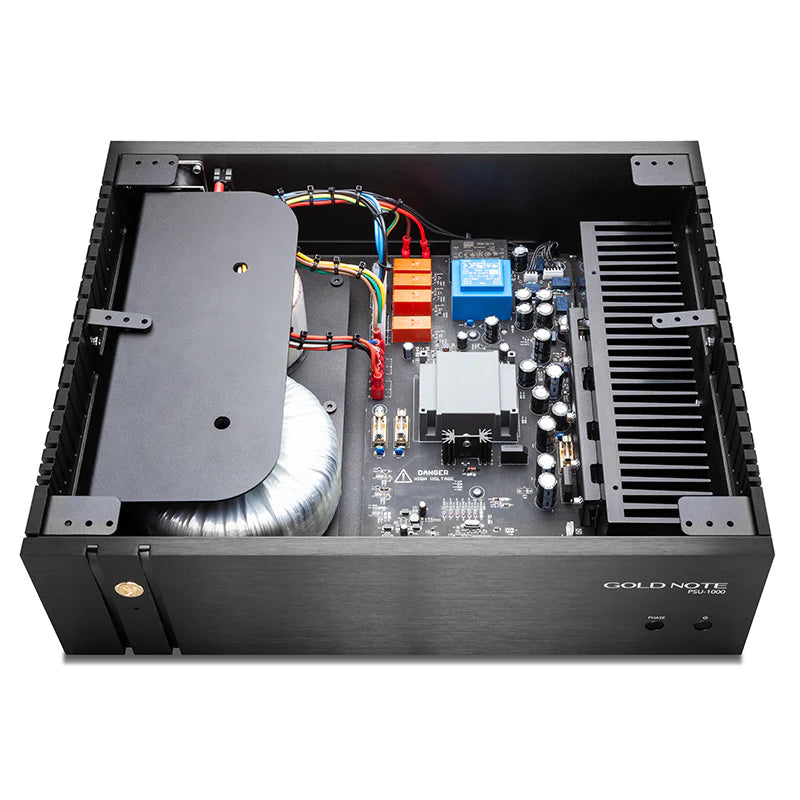

Advanced transformer architecture

PSU-1250: 4 transformers for power supply + 1 galvanic isolation + 3 Dual Choke Inductive Filters. PSU-1000: 4 transformers + 1 Dual Choke filter. 7/5 low-noise voltage regulators provide +12V/+8V/+5V logic, ±12V/±28V analog rails.

Exceptional noise rejection

>80dB line noise rejection, >80dB common mode rejection. 0.05% maximum output voltage variation. <2.5µsec full power response time. Selectable absolute phase control via front panel optimizes system performance.

High dynamic power reserve

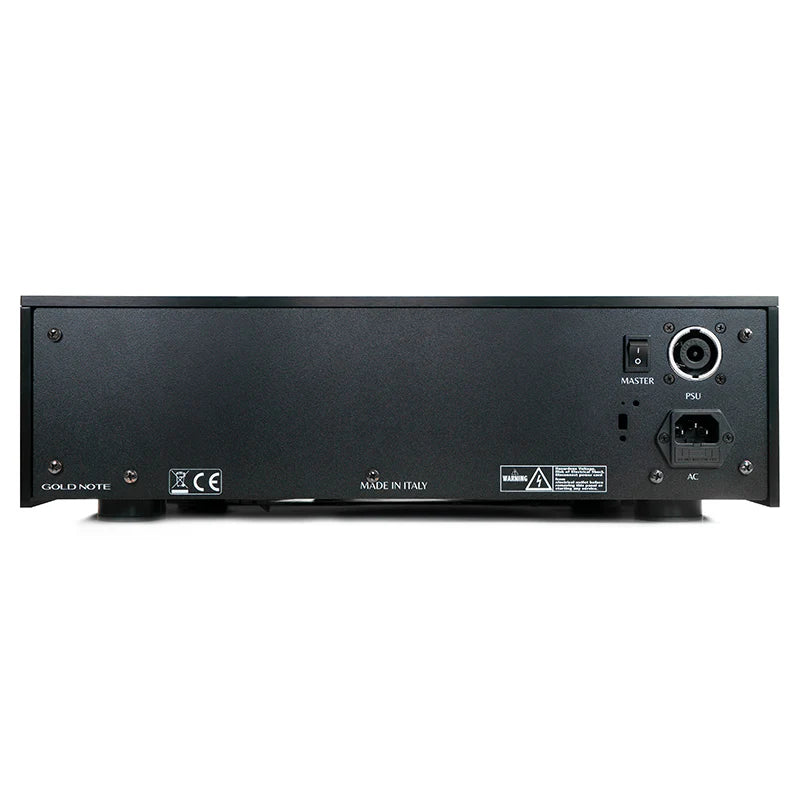

PSU-1250: >300W dynamic power, PSU-1000: >200W dynamic power. 100W continuous power consumption, <1W standby. Universal 100-120V/220-240V auto-sensing power supply with 3.15A F fuse protection.

1000 Series perfect companion

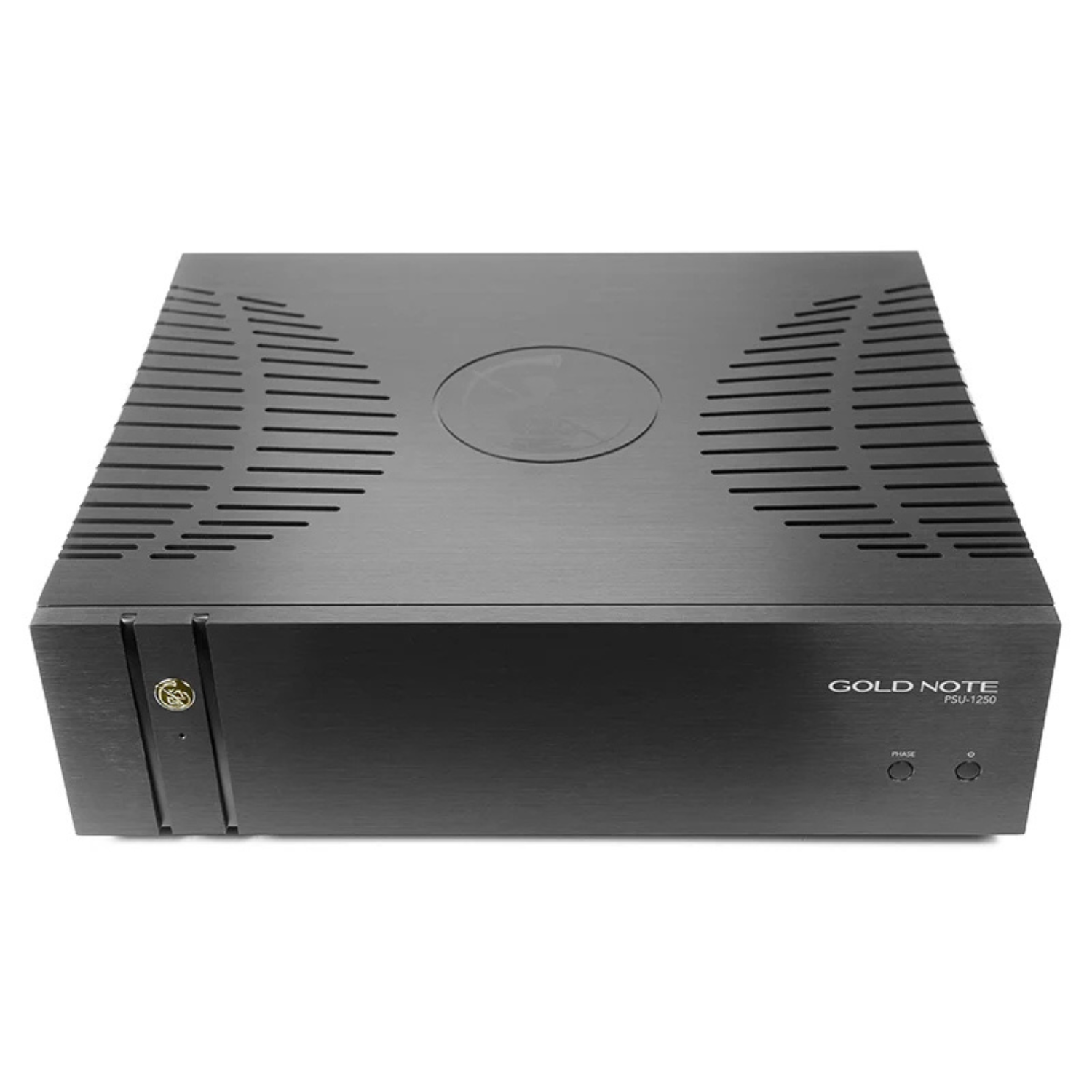

425×135×360mm machined aluminum chassis. PSU-1250: 21kg net/27kg boxed, PSU-1000: 20kg net/25kg boxed. Brushed Black/Silver/Gold finishes. Includes 1m dedicated PSU connection cable.

Ultimate performance upgrade

Transforms PH-1000 phono stage, DS-1000 DAC with greater dynamics, resolution, finer details. Available exclusively at Vinyl Sound Buffalo, NY.

Technical Specifications

Complete 1000 Series power solution

STATUS LED changes BLUE→GREEN when connected (RED=inverted phase). Contact Vinyl Sound Buffalo for 1000 Series system optimization and phase matching.
