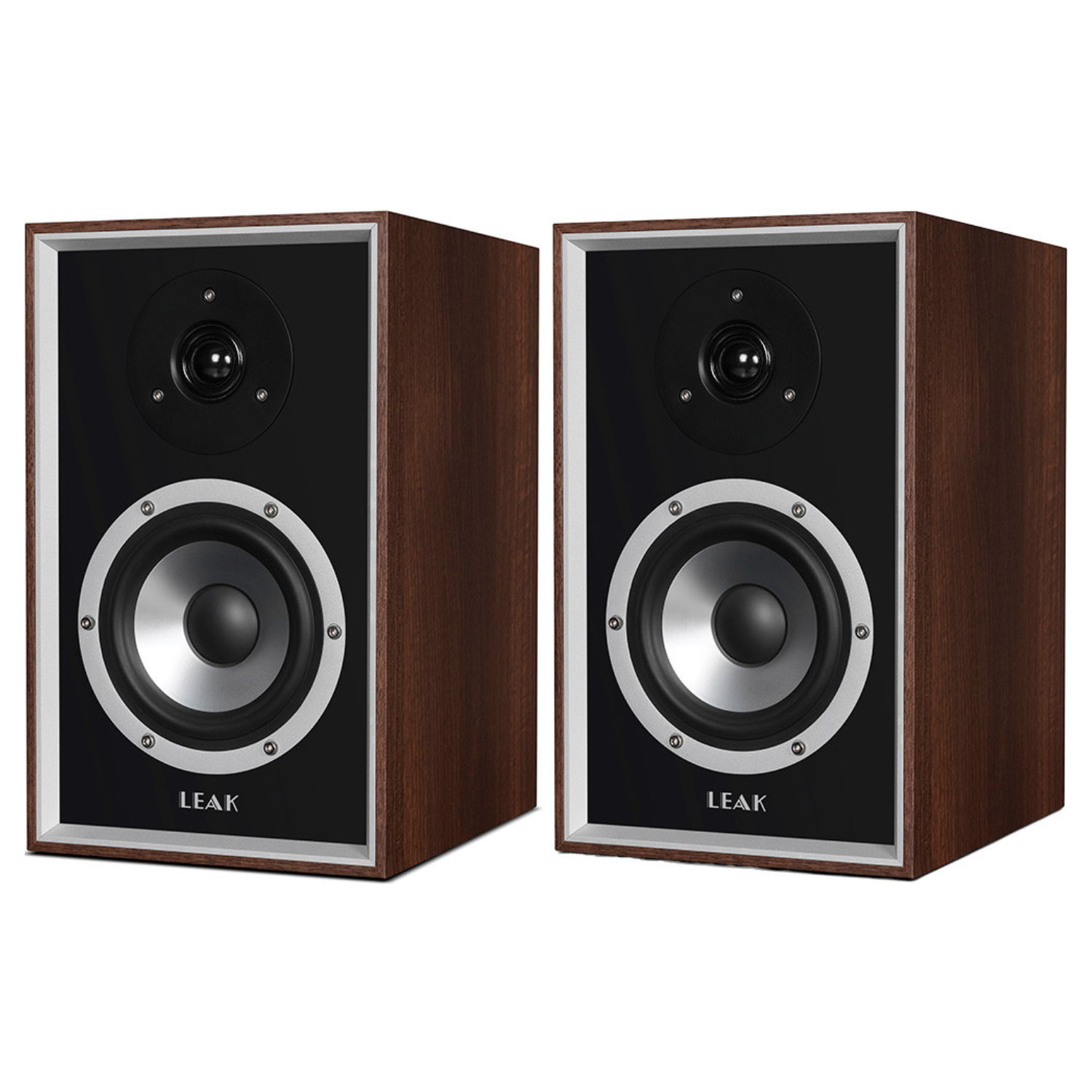

Leak Sandwich 100 Loudspeaker

The LEAK Sandwich 100 Speakers (Pair) represent the latest evolution of one of Britain’s most iconic loudspeaker designs. Following the successful reintroduction of the Sandwich 150 and Sandwich 250, this more compact model brings the same innovative engineering to smaller listening environments.

Designed for modern living spaces where size and placement flexibility are important, the Sandwich 100 delivers the same distinctive technology and sonic character in a more accessible form. With a competitive price point and compact footprint, it opens the door for more listeners to experience the heritage and performance associated with the LEAK name.

Combining classic British hi-fi design principles with contemporary materials and manufacturing techniques, the Sandwich 100 offers a thoughtful balance of tradition, performance, and practicality.

The Legacy of the Original Sandwich Design

The story of the Sandwich 100 begins with the original LEAK Sandwich loudspeaker introduced in 1961, a design that revolutionised driver technology. At the time, traditional speaker cone materials often lacked the stiffness required for accurate sound reproduction, resulting in unwanted distortion and reduced clarity.

LEAK addressed this challenge by developing a unique “sandwich” cone construction using expanded polystyrene foam between two aluminium layers. This innovative approach created a cone that was both lightweight and exceptionally rigid, allowing for more accurate pistonic movement and improved sonic precision.

This design became a landmark achievement in loudspeaker engineering and influenced future speaker development. The new Sandwich 100 continues this tradition by applying modern materials and techniques to refine the original concept for contemporary audio performance.

Advanced Driver Technology for Accurate Sound

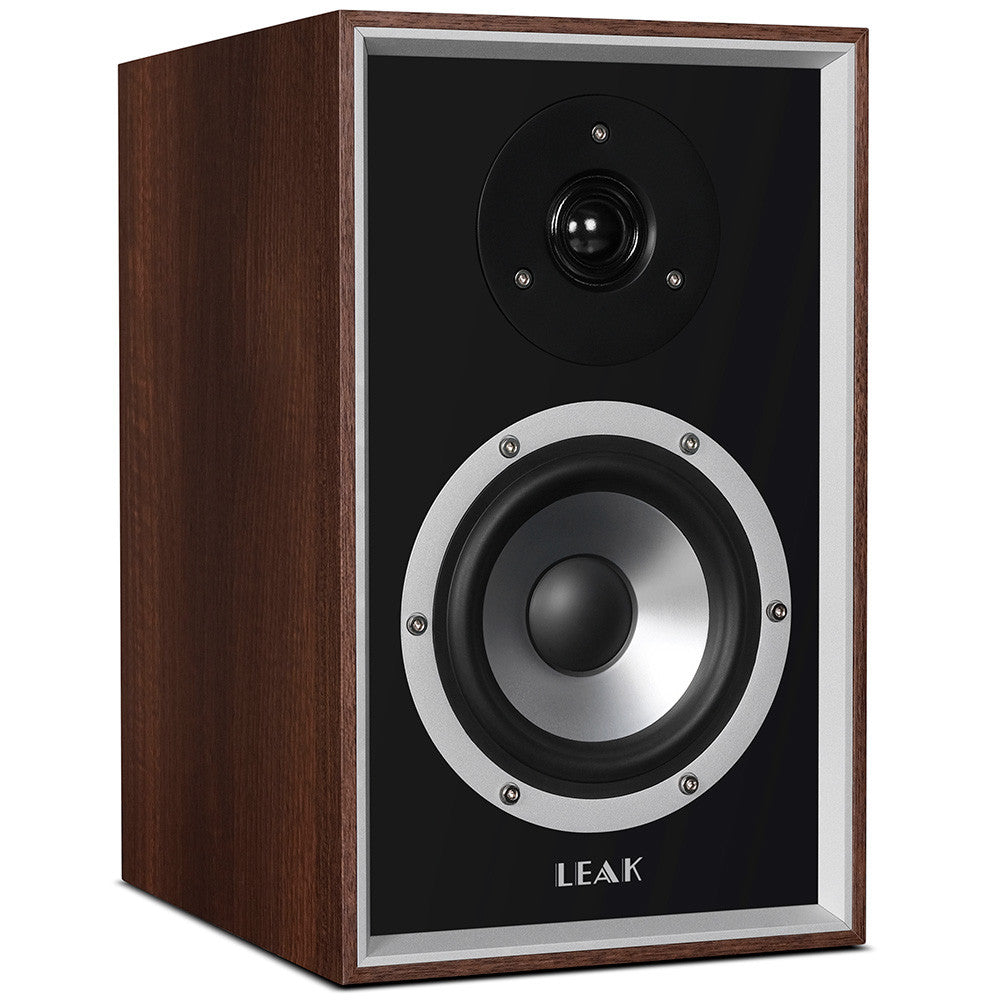

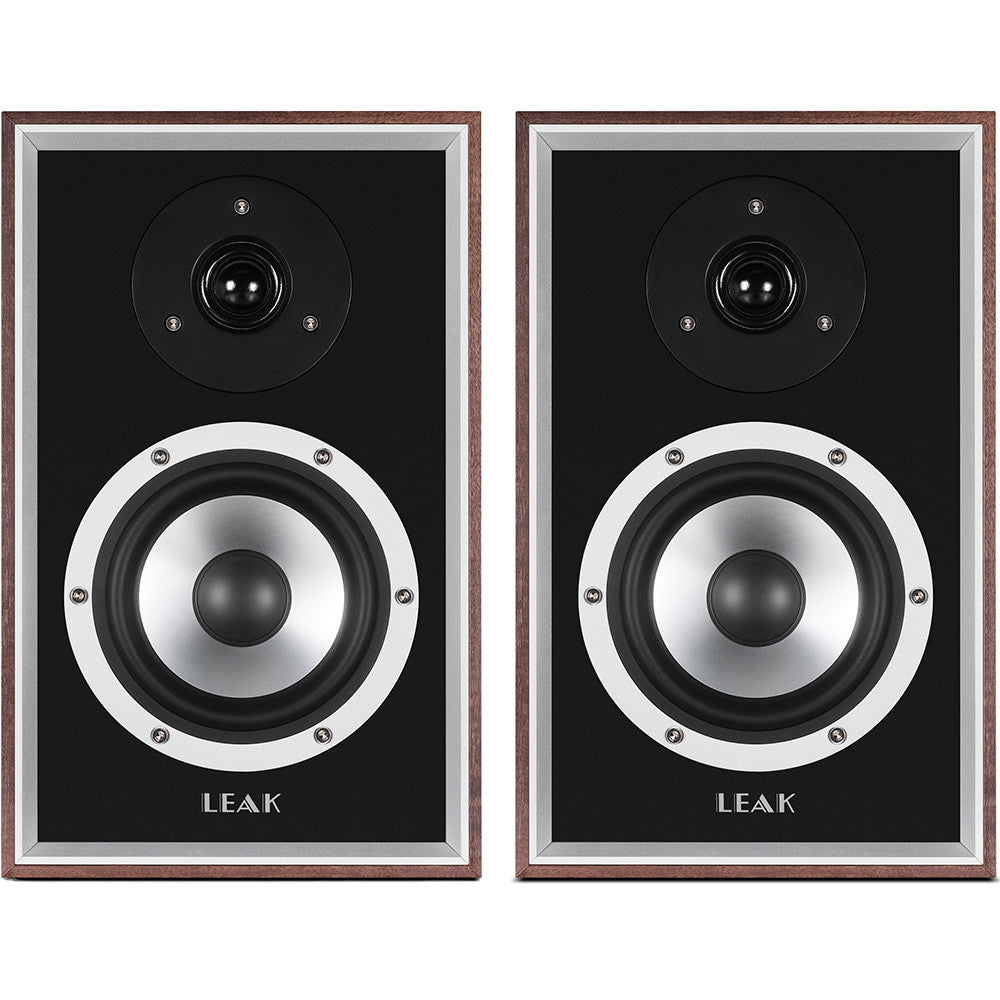

The LEAK Sandwich 100 features a newly developed 150mm mid/bass driver based on the latest evolution of the Sandwich cone concept. This updated design uses Rohacell aircraft-grade structural foam bonded between aluminium skins, creating an extremely strong yet lightweight diaphragm.

This construction reduces unwanted cone breakup, improves transient response, and minimises distortion for cleaner, more accurate sound reproduction. The driver is supported by a long-throw motor system with a high-gauss magnet and low-loss suspension, ensuring consistent performance even at higher listening levels.

Complementing the mid/bass unit is a specially developed 30mm coated textile dome tweeter. This larger-than-average tweeter allows for improved power handling and lower crossover points, resulting in smooth, detailed high frequencies and a seamless transition between bass and treble.

Sophisticated Cabinet Design for Pure Performance

The enclosure of the Sandwich 100 plays a vital role in achieving its refined sound performance. The cabinet uses a layered construction combining MDF and high-density particle board, with specialised bonding materials that help reduce resonance and vibration.

This “sandwich” cabinet approach mirrors the philosophy behind the driver design, ensuring structural rigidity while controlling unwanted colouration. Additional internal bracing and carefully positioned acoustic damping materials further reduce cabinet resonance and improve clarity.

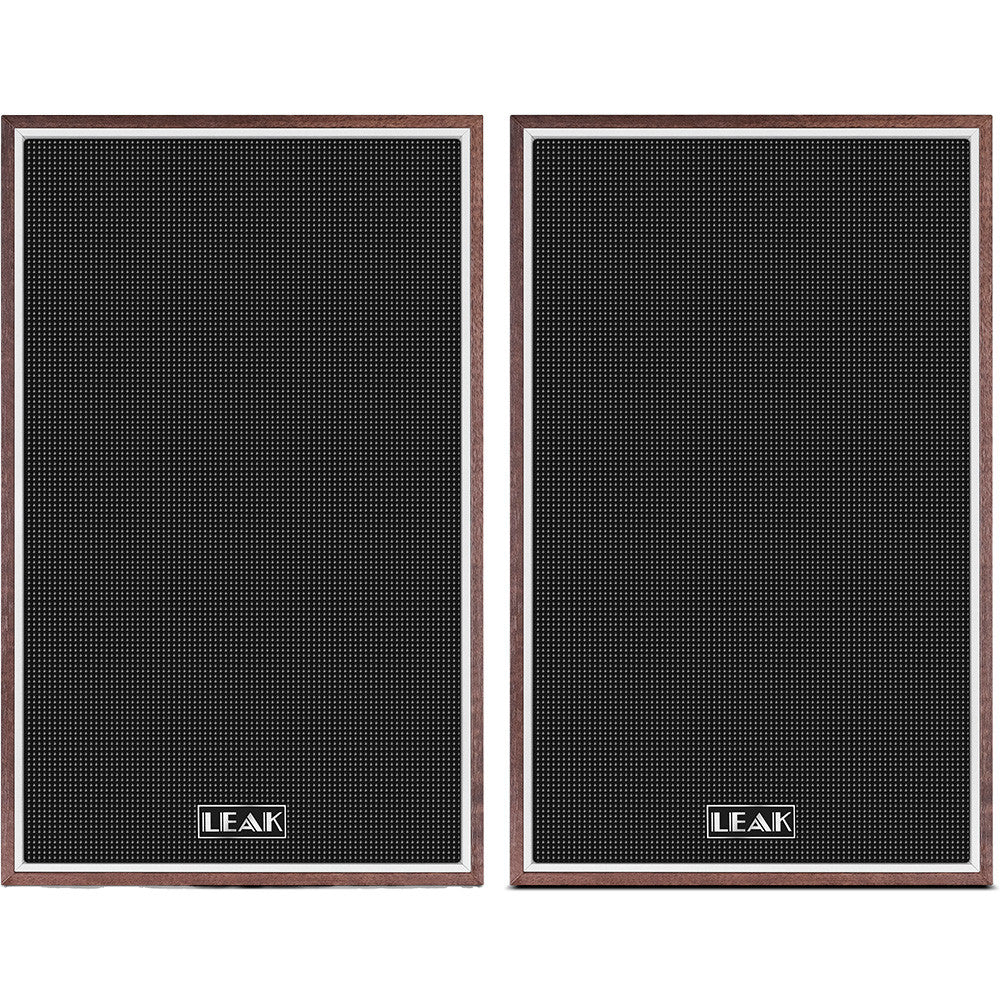

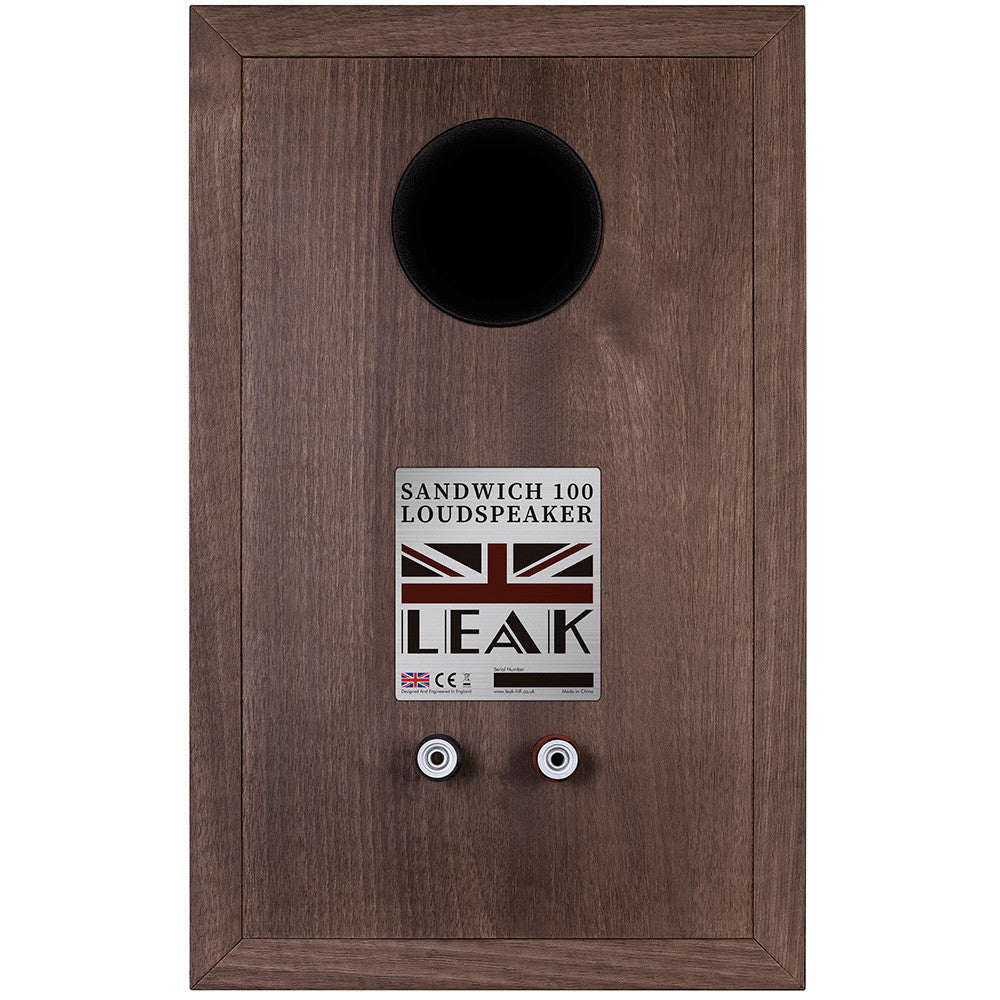

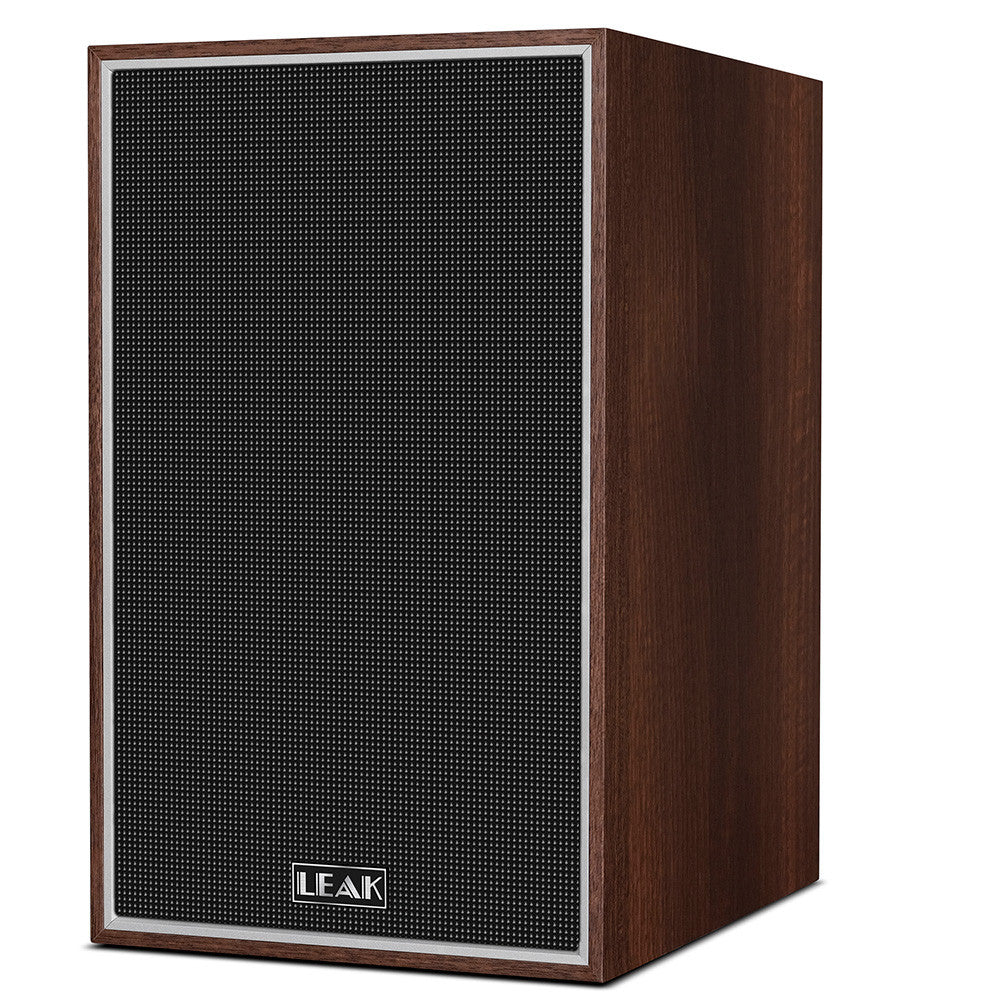

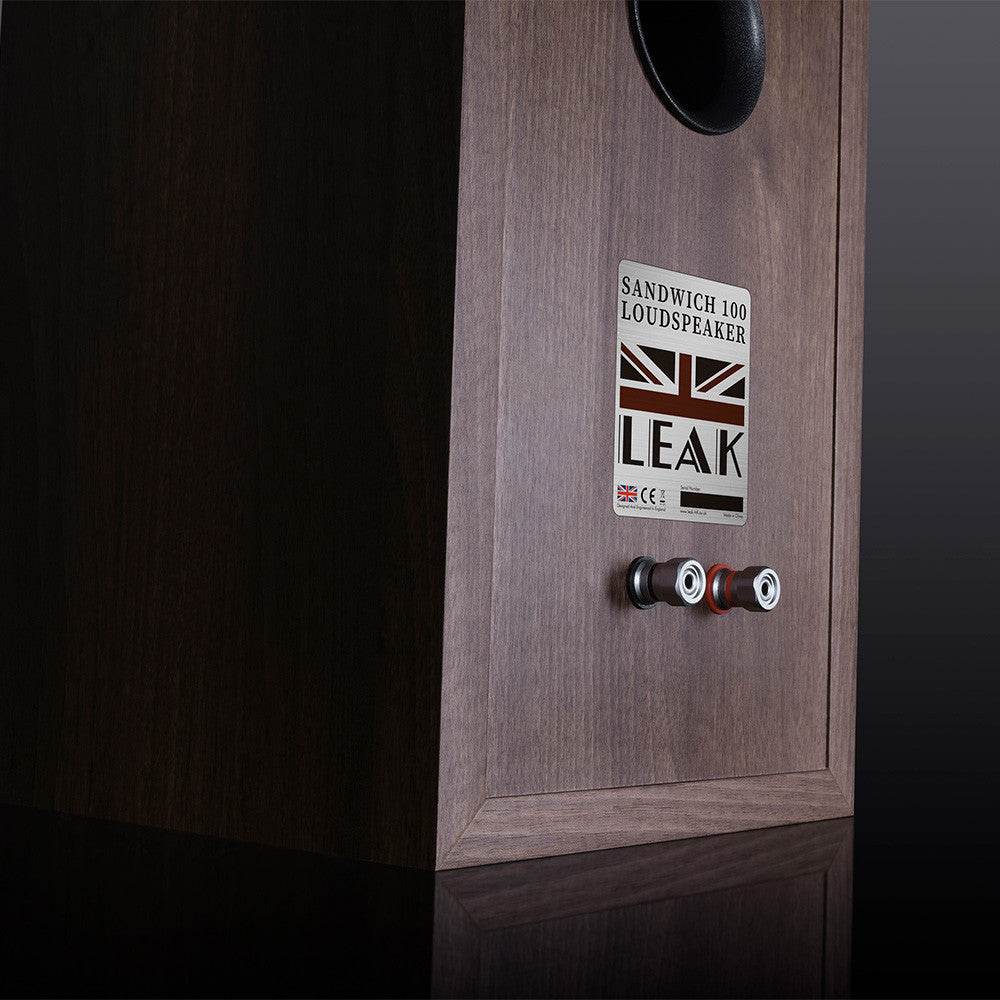

A rear bass reflex port enhances low-frequency extension while maintaining control and balance. Visually, the cabinet features a premium walnut veneer finish complemented by aluminium trim details and a soft-touch black front baffle. This combination delivers a timeless aesthetic that honours the original Sandwich speakers while meeting modern expectations for build quality.

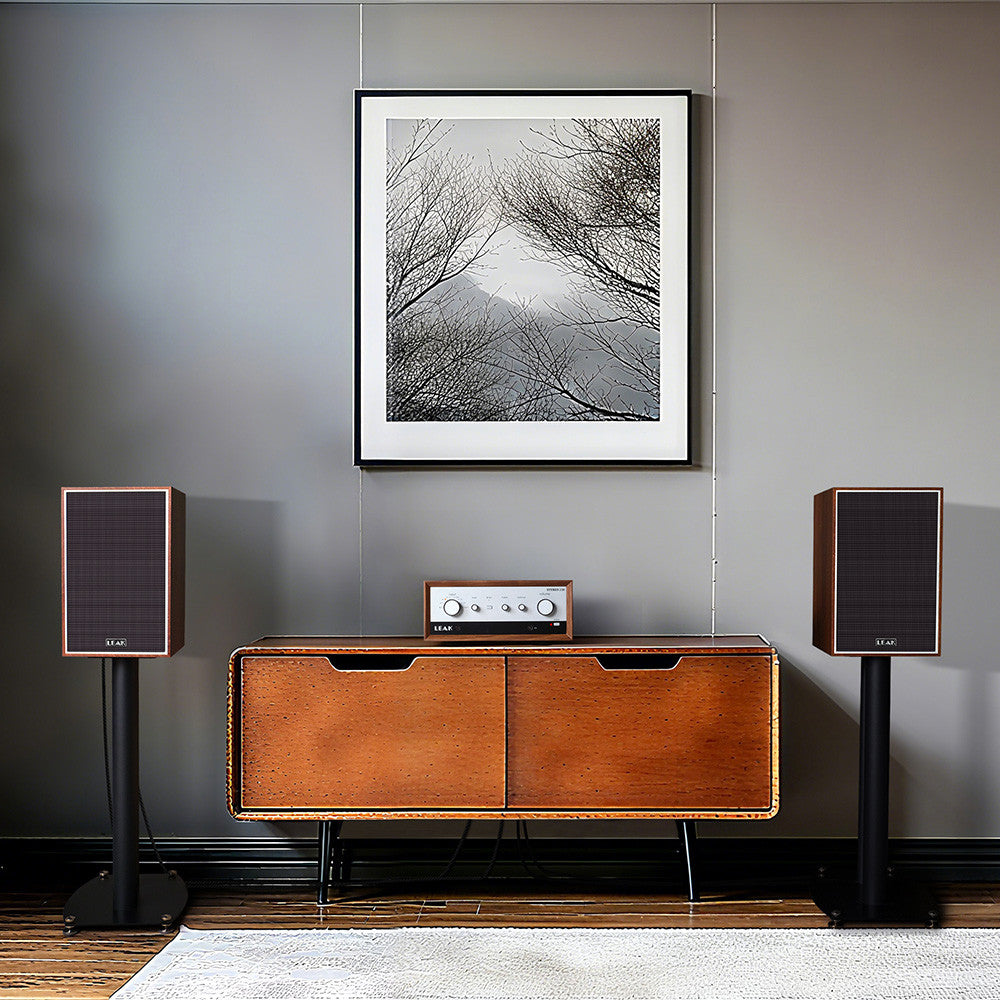

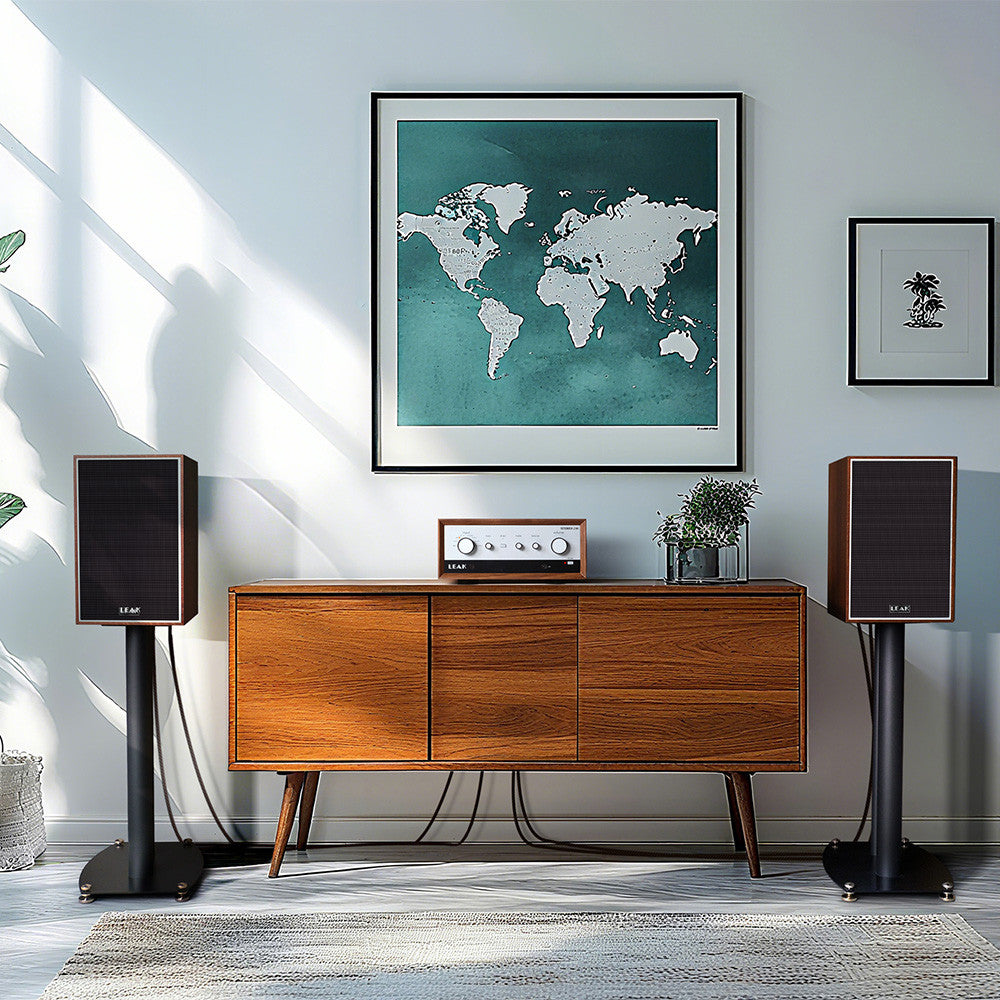

Designed for Real-World Listening Environments

The LEAK Sandwich 100 Speakers are designed to perform consistently across a wide range of listening environments. Thanks to careful crossover design using audiophile-grade components such as polypropylene capacitors and air-core inductors, the speakers maintain excellent phase alignment and stereo imaging.

This ensures a stable and well-defined soundstage, whether listening from the central sweet spot or elsewhere in the room. With a sensitivity of 86dB, a nominal impedance of 6 ohms, and recommended amplifier power between 25 and 100 watts, the Sandwich 100 is easy to partner with a wide variety of amplifiers.

Compact in size yet capable of impressive musical expression, these speakers deliver detailed, balanced sound across genres, making them a versatile addition to both traditional hi-fi systems and modern audio setups.
