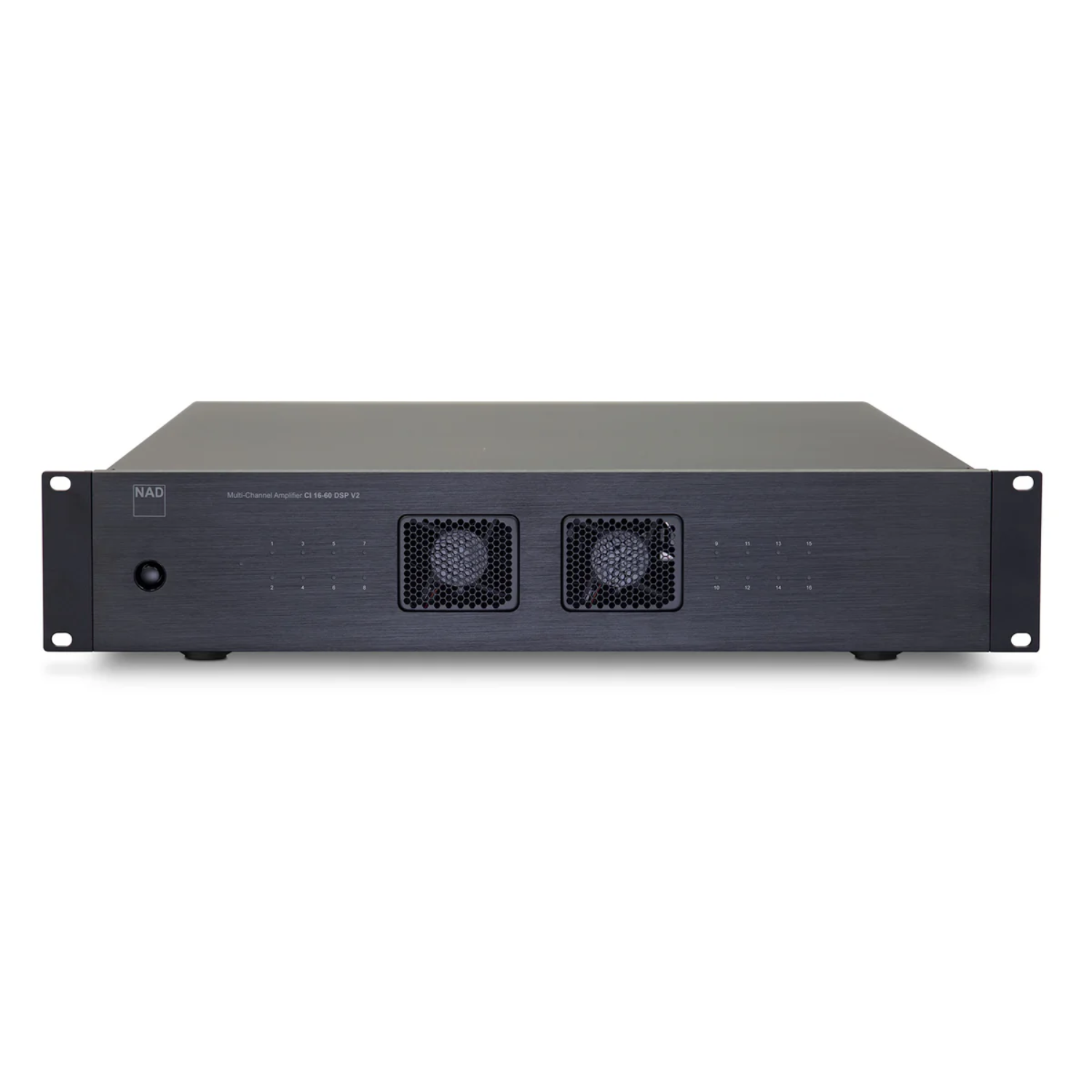

NAD CI 16-60 DSP V2 16 Channel Amplifier

The NAD CI 16-60 V2 Multi-Channel Amplifier builds on the proven performance of its predecessor with refinements designed pecifically for modern custom installation systems. Delivering sixteen channels of clean, efficient power, the CI 16-60 V2 is engineered for large, distributed audio and multi-zone environments where reliability and consistency are critical. NAD’s HybridDigital™ amplification ensures stable performance with reduced heat and energy consumption, making it well suited for continuous operation. With installer-focused design, flexible channel configuration, and dependable sound quality, the CI 16-60 V2 provides a robust amplification platform for scalable whole-home and commercial audio systems.

KEY FEATURES

• 16 channels of amplification for distributed audio systems
• 60 watts per channel into 8 ohms
• NAD HybridDigital amplification for efficient, low distortion performance
• Bridgeable channel pairs for high-power output when requir
• Rack-mount chassis for space-efficient installations

• Optimized for continuous, long-term operation
• Line-level inputs for flexible system compatibility
• Automation-friendly trigger and control options
• Desi

High-Density Amplification for Multi-Zone Systems

The CI 16-60 V2 delivers sixteen channels of amplification from a single rack-mount chassis, allowing installers to power multiple rooms or zones efficiently. This high channel density reduces the need for additional amplifiers, helping simplify rack layouts and system wiring. Whether deployed in residential whole-home audio or light commercial installations, the CI 16-60 V2 provides a clean, centralized solution for multi-zone amplification.

Refined HybridDigital Performance

At the core of the CI 16-60 V2 is NAD’s HybridDigital amplification, chosen for its balance of efficiency, stability, and sound quality. By minimizing heat generation and maintaining low noise and distortion, the amplifier delivers consistent performance across all channels. This refined approach supports reliable operation during extended listening sessions while preserving clarity and control throughout the system.

Flexible Channel Configuration

Bridgeable channel pairs allow the CI 16-60 V2 to adapt to varying power requirements within the same installation. Installers can allocate additional output to zones that need more headroom while maintaining standard power delivery elsewhere. This flexibility makes it possible to address diverse room sizes and listening needs using a single amplifier platform, streamlining both system design and inventory.

Specifications:

GENERAL
Continuous output power into 8 ohms	60 W (all channels driven, 1kHz 0.05% THD
into 4 ohms	65 W (all channels driven, 1kHz 0.05% THD
Continuous output power into 8 ohms at Bridged mode	140 W (all channels driven, 1kHz 0.05% THD
THD (1 W to 50 W, 8 ohms and 4 ohms)	0.05 % (20 Hz – 3 kHz)
Signal-to-Noise Ratio	80 dB (A-weighted, 500 mV input, ref. 1 W out in 8 ohms)
Clipping power (all channels driven)	60 W (1 kHz 8 ohms 1 % THD)
Clipping power into 8 ohms at Bridged mode	150 W (1 kHz 1 % THD - all channels driven)
IHF Dynamic Power (all channels driven)	8 ohms: 65 W
IHF Dynamic Power (two channels driven)	8 ohms: 70 W
IHF dynamic power (Bridged mode, all channels driven)	8 ohms: 270 W
IHF Dynamic Power (two channels driven)	8 ohms: 280 W
Peak output current	15 A (1 ohm, 1 ms)
Damping factor	110 (20 Hz to 1 kHz 8 ohms)
Frequency response	±1dB (20 Hz - 20 kHz)
Channel separation	60 dB (1 kHz)
Maximum undistorted input level	2900 mV
Input sensitivity (for 50 W in 8 ohms, maximum volume)	760 mV
Input impedance	20 kohms//220pF
Analog input audio sense threshold (one channel with signal)	3 ± 0.5 mVrms (ref. 100 Hz - 10 kHz)
Trigger IN level	3 - 30 Vdc
Standby power	0.5W
DIMENSION AND WEIGHT
Gross dimensions (W x H x D)*	483x100x435mm
Net Weight	10.3 kg (22.7 lbs)
Shipping Weight	12.8 kg (28.2 lbs)
*Specifications subject to change without notice.
