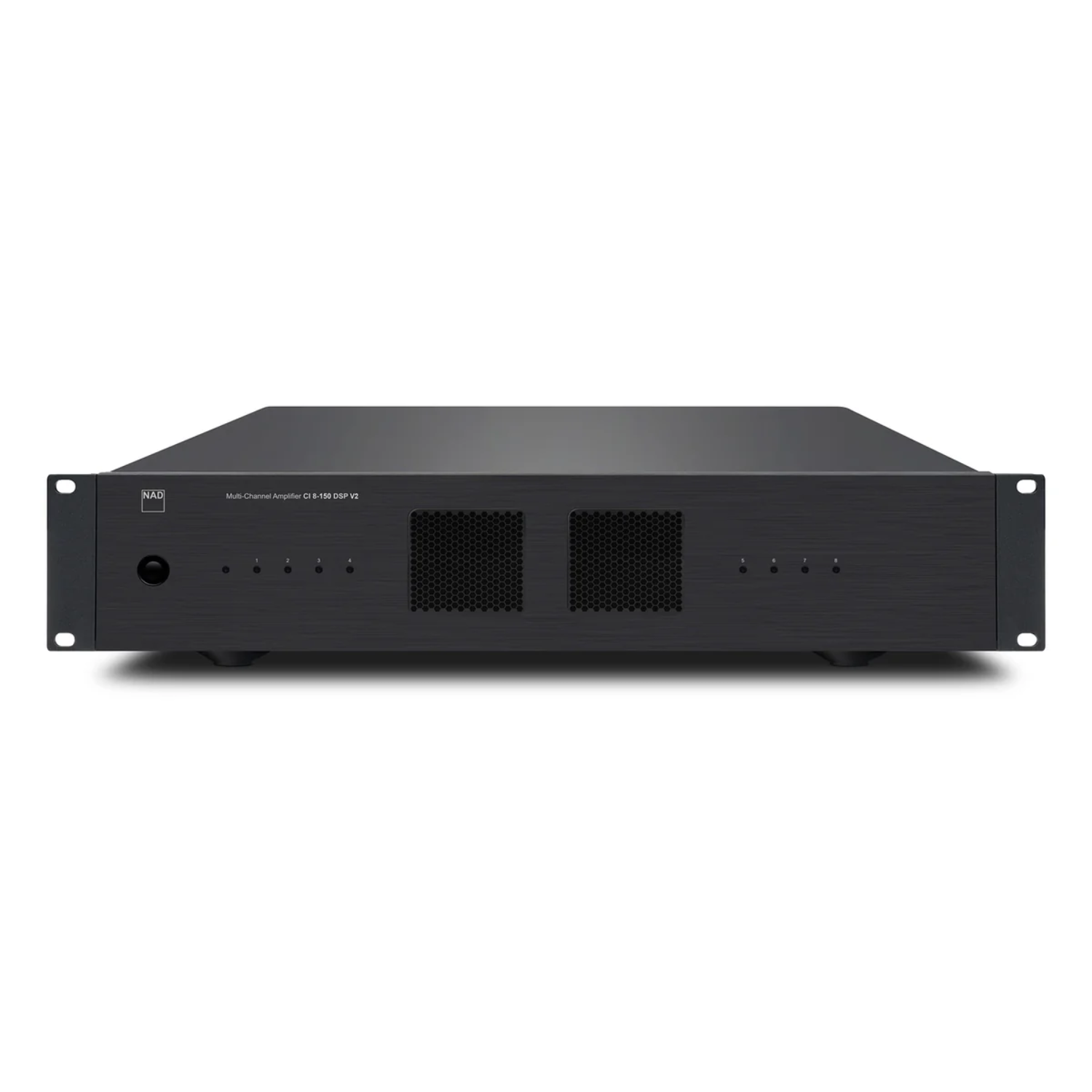

NAD CI 8-150 DSP V2 Multi-Channel Network Power Amplifier

The NAD CI 8-150 DSP V2 Multi-Channel Amplifier is designed to deliver powerful, controlled sound with the precision and flexibility required in modern custom installation systems. With eight channels of high-performance amplification and onboard digital signal processing, it provides installers with the tools to optimise audio for each zone and loudspeaker. Built on NAD’s HybridDigital™ amplification platform, the CI 8-150 DSP V2 delivers clean, efficient power while maintaining stability during continuous operation. Refined for professional environments, it combines amplification and DSP in a single, rack-ready solution for scalable residential and commercial audio systems.

KEY FEATURES

• 8 channels of amplification for distributed audio systems
• 150 watts per channel into 8 ohms
• NAD HybridDigital amplification for efficient, low distortion performance
• Integrated digital signal processing for system optimisation
• Bridgeable channel pairs for high-power configurations

• Rack-mount chassis for professional installations
• Line-level inputs for flexible system integration
• Automation and trigger support for system control
• Engineered for reliable, long-term operation

Power Where It Matters Most

With 150 watts available per channel, the CI 8-150 DSP V2 is designed for zones that demand greater output and control. It is well suited for larger rooms, architectural loudspeakers, or systems where multiple speakers are driven from a single zone. By concentrating higher power into an eight-channel platform, installers can meet performance requirements without adding additional amplification, keeping systems efficient and manageable.

Integrated DSP for System Accuracy

The CI 8-150 DSP V2 incorporates onboard digital signal processing to help installers fine-tune performance to the loudspeakers and environment. DSP allows precise adjustment to achieve balanced output, consistent tonal response, and reliable system behaviour across zones. Integrating DSP directly into the amplifier reduces the need for external processors and simplifies system architecture while supporting predictable, repeatable results.

HybridDigital Amplification Architecture

NAD’s HybridDigital amplification provides the foundation for the CI 8-150 DSP V2’s performance and efficiency. This design minimises heat and power consumption while maintaining control and clarity across all channels. The result is stable operation during extended use and consistent sound quality at both moderate and higher listening levels, making it well suited for demanding multi-zone installations.

Specifications:

GENERAL
Continuous output power into 8 ohms	150 W (ref. 20 Hz-20 kHz at rated THD - all channels driven)
Continuous output power into 4 ohms	180 W (ref. 20 Hz-20 kHz at rated THD - all channels driven)
Continuous output power into 8 ohms at Bridged mode	280 W (ref. 20 Hz-20 kHz 0.02% THD - all channels driven)
THD (20 Hz – 20 kHz)	0.02% (1 W to 120 W, 8 ohms and 4 ohms)
Signal-to-Noise Ratio	90 dB (A-weighted, 500 mV input, ref. 1 W out in 8 ohms)
Clipping power (All channels driven)	160W(1kHz8ohms 0.1%THD)
Clipping power into 8 ohms at Bridged mode	300 W (1 kHz 0.1 % THD - all channels driven)
IHF Dynamic Power (all channels driven) - 8 Ohms	180W
IHF Dynamic Power (all channels driven) - 4 Ohms	280W
IHF Dynamic Power (two channels driven) - 8 Ohms	200W
IHF Dynamic Power (two channels driven) - 4 Ohms	360W
IHF Dynamic Power (Bridged mode, All channels driven) - 8 Ohms	520W
IHF Dynamic Power (Bridged mode, All channels driven) - 4 Ohms	670W
IHF Dynamic Power (Bridged mode, Two channels driven) - 8 Ohms	600W
IHF Dynamic Power (Bridged mode, Two channels driven) - 4 Ohms	800W
Peak output current	26A(1ohm,1ms)
Damping Factor	150 (ref. 8 ohms, 20 Hz to 6.5 kHz)
Frequency Response	±0.5dB(20Hz-20kHz)
Channel Seperation	75 dB (1 kHz)
Maximum undistorted input level	3300 mV
Input sensitivity (for 150 W in 8 ohms, maximum volume)	1450 mV
Analog Input audio sense threshold (one channel with signal)	3 ± 0.5 mVrms (ref. 100 Hz - 10 kHz)
Trigger IN level	3-30Vdc
Standby power	0.5 W
DIMENSION AND WEIGHT
Gross dimensions (W x H x D)*	483x90x435mm
Shipping Weight	17.6 kg (38.8 lbs)
