NuPrime ANA-Core DB25 to RCA Analog Breakout Cable at Vinyl Sound Buffalo, NY USA

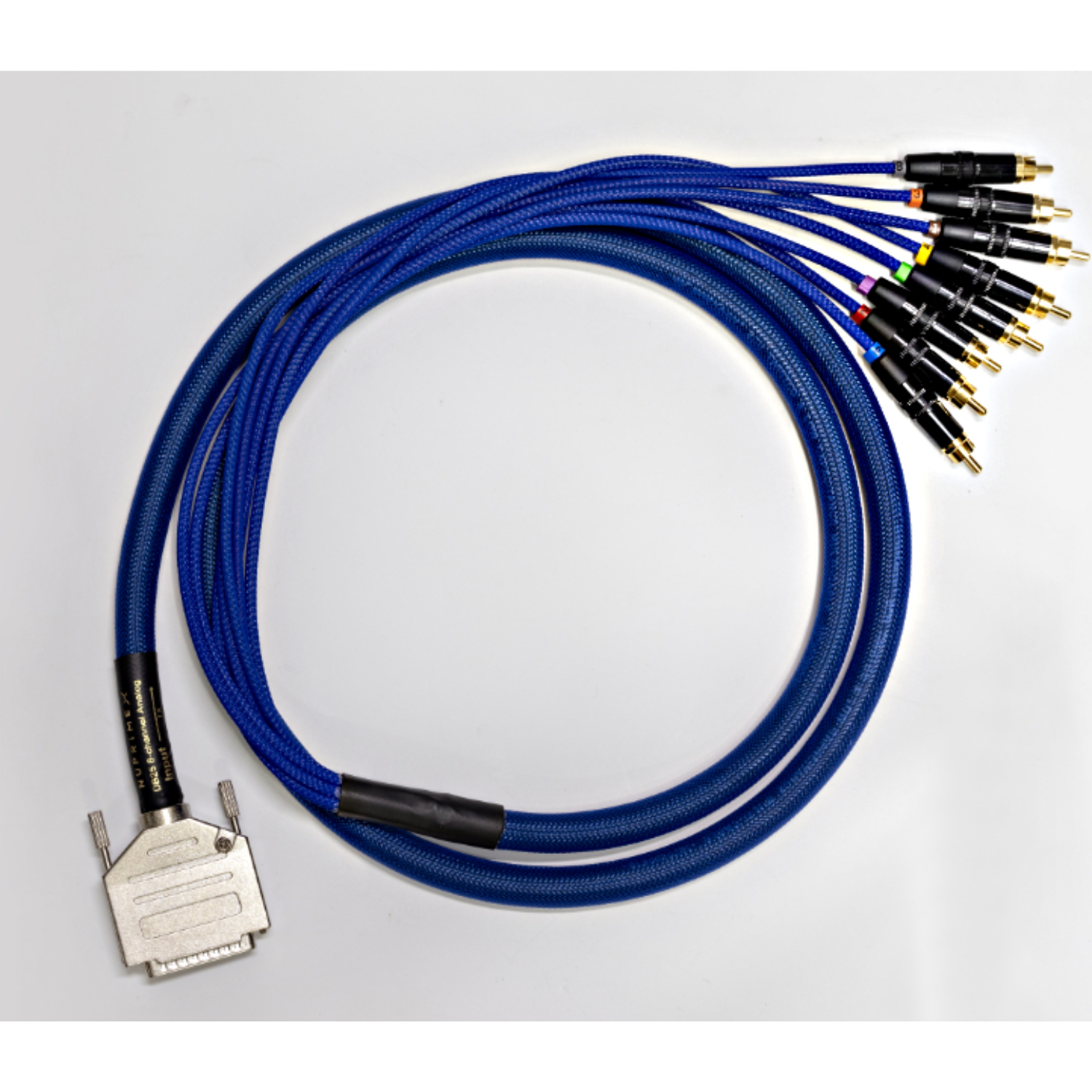

The ANA-Core DB25–RCA is a professional-grade multichannel analog audio breakout cable from NuPrime Audio (San Jose, California, USA), available at Vinyl Sound in Buffalo, NY, USA. Built to the TASCAM analog DB25 standard (AES59), the ANA-Core DB25–RCA routes 8 channels of line-level analog audio from a single DB25 male connector to eight individual gold-plated RCA male outputs, bridging DB25-equipped professional multichannel systems and devices with RCA inputs including consumer DACs, multichannel amplifiers, AV processors, and outboard gear. Individually shielded twisted pairs per channel, 110-ohm characteristic impedance, high-purity copper conductors, and a combined braided plus aluminum foil overall shield ensure clean, low-noise signal transmission with very low crosstalk across all eight channels. With a screw-lock DB25 connector, flexible PVC outer jacket, and durable construction, the ANA-Core DB25–RCA is suited for both permanent rack installations and mobile professional environments, available at Vinyl Sound's Buffalo, NY location.

TASCAM DB25 Analog Standard and AES59 Compliance

The ANA-Core DB25–RCA follows the TASCAM analog DB25 pinout, formally specified within the AES59 standard, which defines the wiring configuration for both balanced analog multichannel audio and AES3 digital audio over 25-pin D-sub connectors. The ANA-Core DB25–RCA implements the analog variant, routing eight channels of line-level audio from the DB25 source end to eight RCA male outputs. The DB25 source side of the cable interfaces with balanced analog outputs on professional equipment from any manufacturer following the TASCAM DB25 pinout, including NuPrime-X Fusion-X components such as the H16-AVP and Fusion 8D. The RCA output side connects to unbalanced RCA inputs on consumer and prosumer devices, making this cable the practical bridge between professional multichannel systems and RCA-equipped components in hybrid studio, home theater, and audiophile installations.

Cable Construction and Shielding Architecture

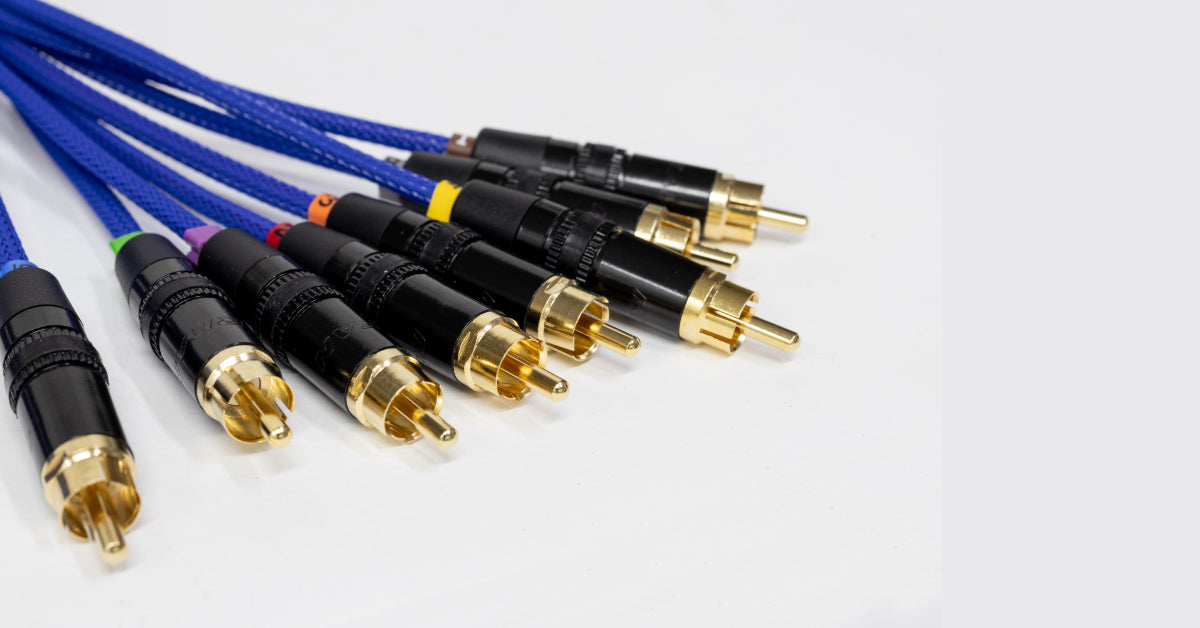

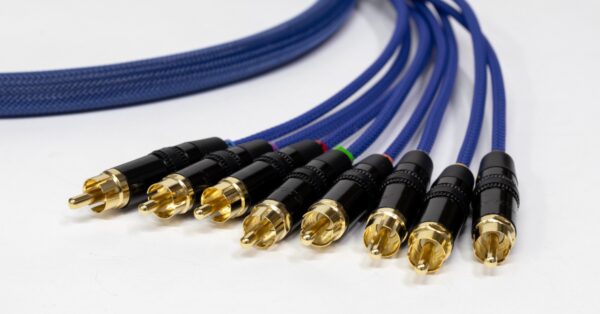

Each of the eight channels in the ANA-Core DB25–RCA is carried by its own individually shielded twisted pair, providing per-channel isolation that keeps crosstalk between adjacent signals extremely low across the full audio bandwidth. The 110-ohm characteristic impedance and high-purity copper conductors ensure consistent, low-attenuation signal transfer from the DB25 connector to each RCA output. An overall braided shield combined with aluminum foil shielding wraps the entire cable assembly, providing excellent suppression of electromagnetic interference (EMI) and radio-frequency interference (RFI) along the full 2-metre cable run. Gold-plated contacts on both the DB25 and all eight RCA male connectors resist corrosion and maintain reliable low-resistance connections over time. The screw-lock DB25 connector at the source end prevents accidental disconnection under the weight and tension of the eight RCA output legs. A flexible, wear-resistant PVC outer jacket protects the cable in studio racks and mobile environments alike.

Key Features

• TASCAM Analog DB25 Standard (AES59 Compliant): Wired to the industry-standard TASCAM analog DB25 pinout for universal compatibility with professional audio equipment from any manufacturer listing TASCAM DB25 or AES59 analog connectivity, including NuPrime-X Fusion-X components.
• 8-Channel Analog Breakout to RCA: Routes up to 8 channels of line-level analog audio from a single DB25 male connector to eight individual RCA male outputs, bridging professional DB25-equipped multichannel systems and RCA-input consumer or prosumer devices.
• Individually Shielded Twisted Pairs: Each of the eight channels has its own dedicated shielded twisted pair, providing channel-level isolation and very low crosstalk across the full audio frequency band.
• 110-Ohm Characteristic Impedance: Controlled impedance construction ensures consistent signal transmission characteristics from the balanced DB25 source to each RCA output along the full 2-metre cable length.
• Dual-Layer Overall Shield: Combined braided and aluminum foil outer shielding delivers excellent EMI and RFI immunity across the entire cable assembly, suitable for use in professional environments with high cable density.
• Gold-Plated Connectors: Precision-terminated gold-plated contacts on the DB25 and all eight RCA male connectors provide reliable, corrosion-resistant, low-resistance connections for long-term use.
• Screw-Lock DB25 Connector: The source-end DB25 connector features a screw-lock design that mechanically secures the connection to the source device, preventing disconnection from cable tension or vibration.
• High-Purity Copper Conductors: Optimized for analog signal transmission, delivering wide frequency response with low noise and minimal signal degradation across all eight channels.
• Flexible PVC Outer Jacket: A durable, flexible, wear-resistant PVC jacket protects the cable assembly in permanent rack installations and mobile professional environments.

Technical Specifications

Frequently Asked Questions

What is the NuPrime ANA-Core DB25–RCA cable?

The NuPrime ANA-Core DB25–RCA is a professional-grade 8-channel analog audio breakout cable built to the TASCAM analog DB25 standard (AES59). It connects a single gold-plated screw-lock DB25 male connector to eight individual gold-plated RCA male outputs, using individually shielded twisted pairs per channel, 110-ohm characteristic impedance, high-purity copper conductors, and a combined braided plus aluminum foil overall shield. It is designed to bridge DB25-equipped professional multichannel sources and RCA-input consumer or prosumer devices in studio, home theater, and hybrid audio installations.

Are the RCA outputs on the ANA-Core DB25–RCA balanced or unbalanced?

The RCA outputs on the NuPrime ANA-Core DB25–RCA are unbalanced, as the RCA connector format is inherently a single-ended, unbalanced connection. The DB25 source end of the cable interfaces with balanced analog outputs on the professional equipment, and the signal transitions to unbalanced at each of the eight RCA male connectors. This makes the ANA-Core DB25–RCA the appropriate choice when the destination device, such as a consumer multichannel amplifier, AV receiver, or RCA-input DAC, has unbalanced RCA inputs rather than balanced XLR inputs. For connections to balanced XLR-input devices, the NuPrime ANA-Core DB25–XLR is the correct cable.

What is the difference between the ANA-Core DB25–RCA and the ANA-Core DB25–XLR?

The NuPrime ANA-Core DB25–RCA terminates the eight output channels in RCA male connectors, making it suitable for connecting a professional DB25 source to consumer or prosumer devices with unbalanced RCA inputs. The NuPrime ANA-Core DB25–XLR terminates the eight output channels in XLR male connectors for connection to professional devices with balanced XLR inputs. Both cables carry 8 channels of line-level analog audio from the DB25 source and follow the same TASCAM analog DB25 pinout; the choice depends on the connector type available on the destination device.

What NuPrime-X components use the ANA-Core DB25–RCA?

The NuPrime ANA-Core DB25–RCA is suitable for use with any NuPrime-X Fusion-X component that provides DB25 analog outputs, including the H16-AVP HDMI audio decoder and the Fusion 8D multichannel DAC. It allows the analog output channels of these components to connect to downstream devices with RCA inputs, such as consumer multichannel power amplifiers, AV processors, or outboard gear in hybrid professional and home theater systems. For connections to XLR-input amplifiers or professional converters, the ANA-Core DB25–XLR is the recommended alternative.

How many ANA-Core DB25–RCA cables are needed for a 16-channel system?

Two ANA-Core DB25–RCA cables are required to carry a full 16-channel analog output. Each cable routes 8 channels from one DB25 port to eight RCA outputs, so two cables running in parallel from the dual DB25 analog output ports of a source device such as the NuPrime H16-AVP deliver all 16 channels to the destination as individual RCA connections.

Is the ANA-Core DB25–RCA suitable for home theater and audiophile installations?

Yes, the NuPrime ANA-Core DB25–RCA is well suited to home theater and audiophile installations where a professional multichannel source with DB25 analog outputs needs to connect to an AV receiver, multichannel integrated amplifier, or other RCA-input component. The individually shielded twisted pairs, dual-layer overall shield, and gold-plated connectors ensure clean, low-noise signal transmission across all eight channels in both dedicated listening rooms and hybrid studio environments.

Where can I buy the NuPrime ANA-Core DB25–RCA cable in Buffalo, NY or the USA?

The NuPrime ANA-Core DB25–RCA is available at Vinyl Sound, an authorized NuPrime-X dealer located in Buffalo, NY, USA. Vinyl Sound carries the full NuPrime-X Fusion-X accessories lineup and can advise on cable selection for multichannel system builds using the H16-AVP, Fusion 8D, and MCX-800AD. Customers across the USA can contact Vinyl Sound Buffalo directly for purchasing and availability information.
