NuPrime DAC-9X

$1,199.00

Product Details

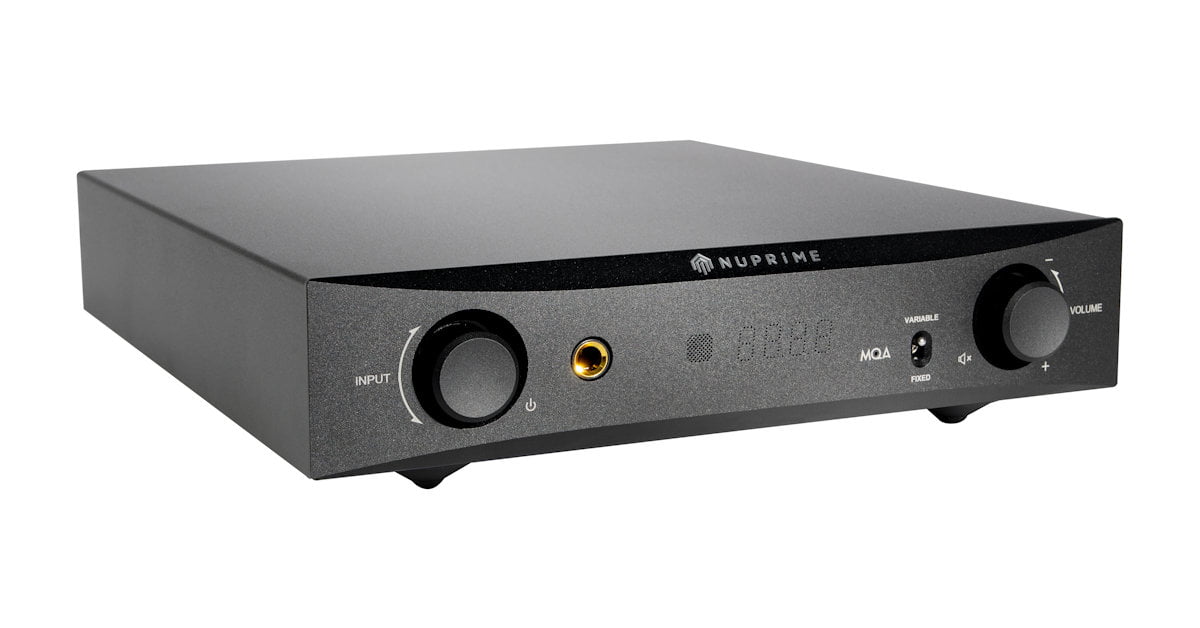

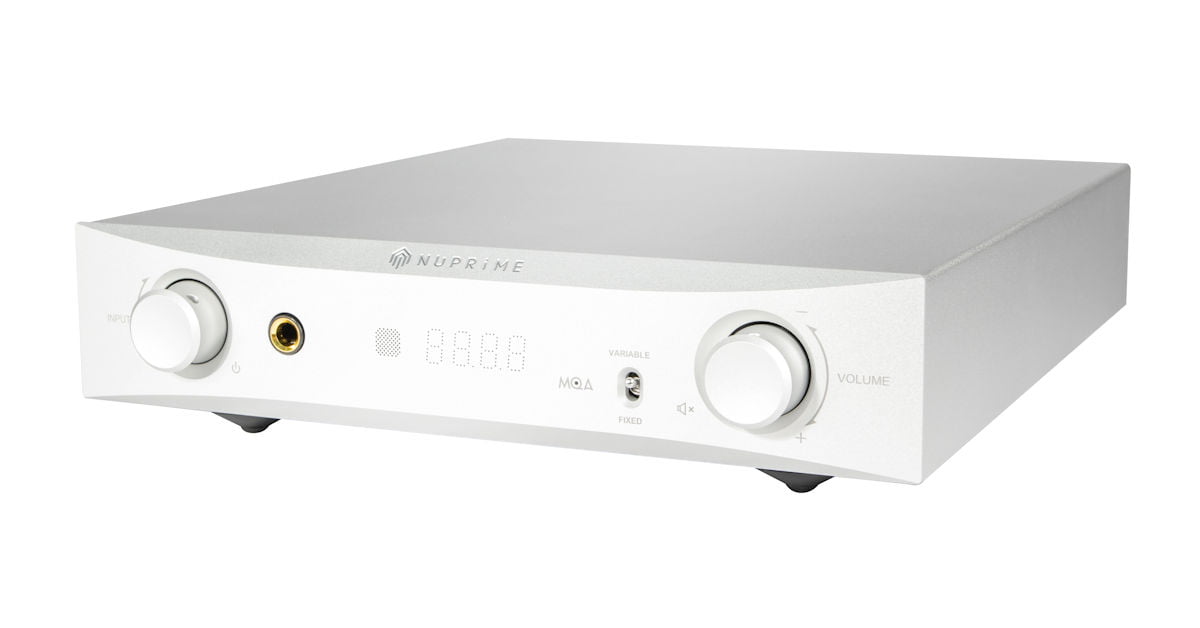

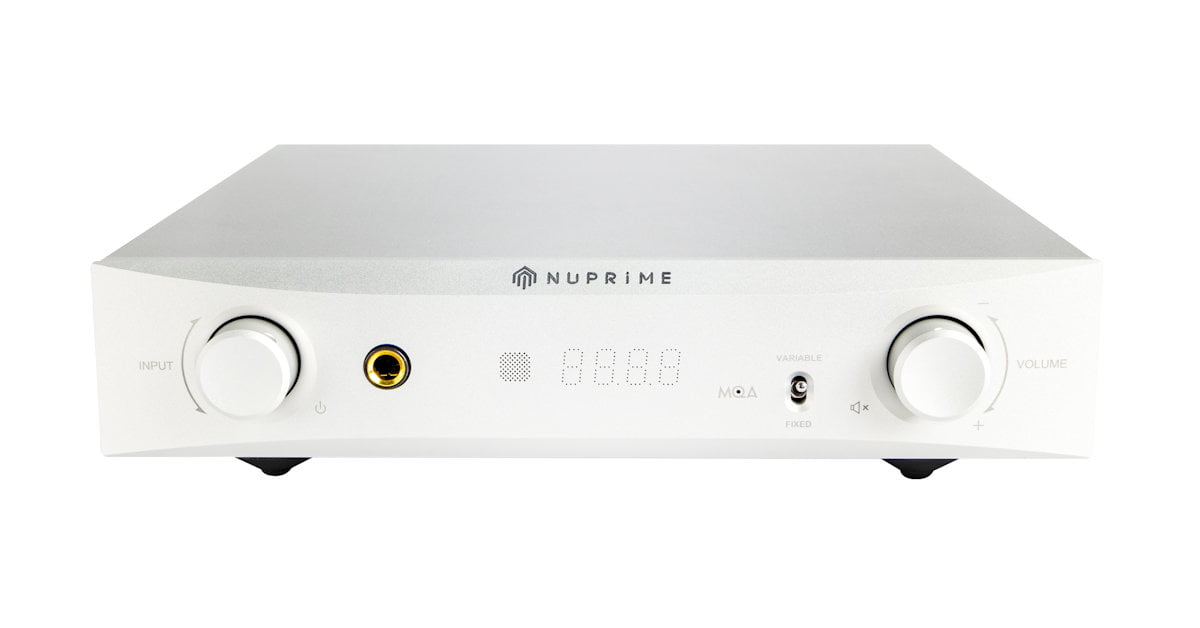

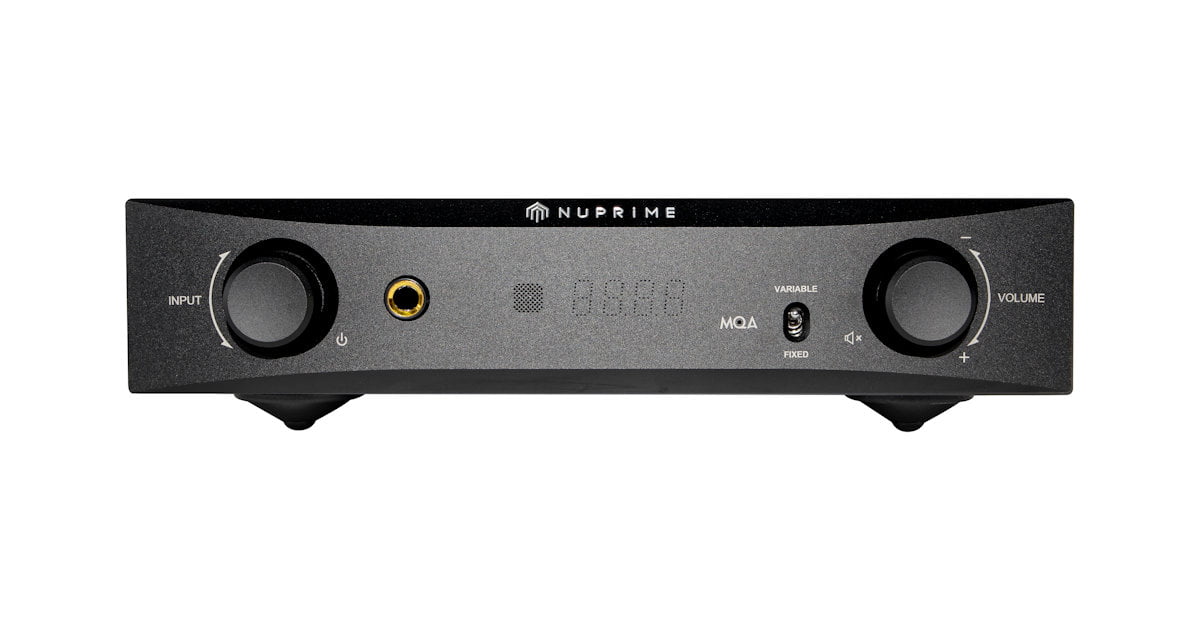

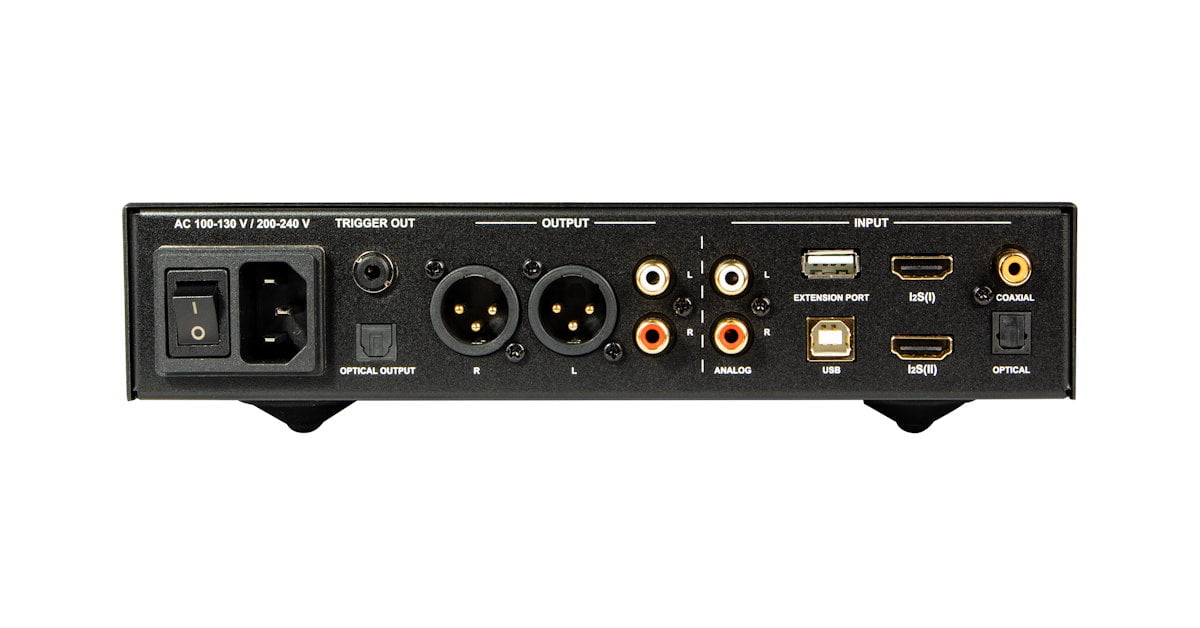

With six digital (including 2 x IIS/DSD) and one analog stereo inputs, RCA stereo and XLR balanced outputs, and decoding capability of PCM 384K, DSD256 & MQA, the NuPrime DAC-9X is a reference-class DAC designed for studio professionals and high-end audiophiles. DAC-9X also provides a 6.3mm standard stereo headphone output.

Preamp

To meet the requirement of customers who want to eliminate extra components in their system, a preamp capable of driving the power amplifier is an essential part of the design.
The DAC-9X high-end preamp features include:

Digital controlled dual-mono analog shunt to ground volume control achieves zero added noise or distortion.
Individually adjustable volume on each input for precise source level matching.

The integrated preamp eliminates the need for more analog signal cables and connectors’ signal breakpoints.

The Heart

As the heart of an audio system, the DAC-9X supports an extensive number of inputs and formats. Dual ESS Technology 32-bit audio DAC ESS9028Q2M independently decode left and right channels improve channel separation and reducing overall noise. The Vishay professional film MELF resistors provide excellent sound quality.

Power Circuit

The AC hum is kept to a minimum by using a low noise power supply with anti-vibration treatment. The rest of the onboard power circuit is designed to minimise noise as well.

Native MQA Decoding

The DAC-9X includes MQA technology, which enables you to playback MQA audio files and streams, delivering the sound of the original master recording. The front panel LED glows green or blue to indicate that the unit is decoding and playing an MQA stream or file, and denotes provenance to ensure that the sound is identical to that of the source material. It glows blue to indicate it is playing an MQA Studio file, which has either been approved in the studio by the artist/producer or has been verified by the copyright owner. The DAC-9X LED glows magenta to indicate that the unit is rendering an MQA stream or file. This delivers the final unfold of the MQA file.

Other notable features:

Extension port for Bluetooth receiver and WiFi audio streamer (optional).
Full microprocessor control with memory retention.
Supports DSD native playback by ASIO2.1 and DoP method.
Ultra- low-noise JFETs in the input stage for the lowest possible noise floor.
Individually adjustable volume on each input for precise level matching of sources.
Asynchronous transfer mode.
Very low power consumption on Standby Mode.

Using Bluetooth and WiFi Audio Receivers and Dongles

NuPrime defined an USB Type-A port to carry S/PDIF data and 5V power for connecting to external wireless audio receiver using just one standard USB cable.The NuPrime Omnia WR-1, WR-2, BTR-HD, Stream Mini, and Stream Mini DAC wireless receivers have a micro USB port that is compatible this specification. This allow a standard off-the-shelf USB-A to micro USB cable to be used for power for the receiver as well as wireless audio data transfer in S/PDIF format.
