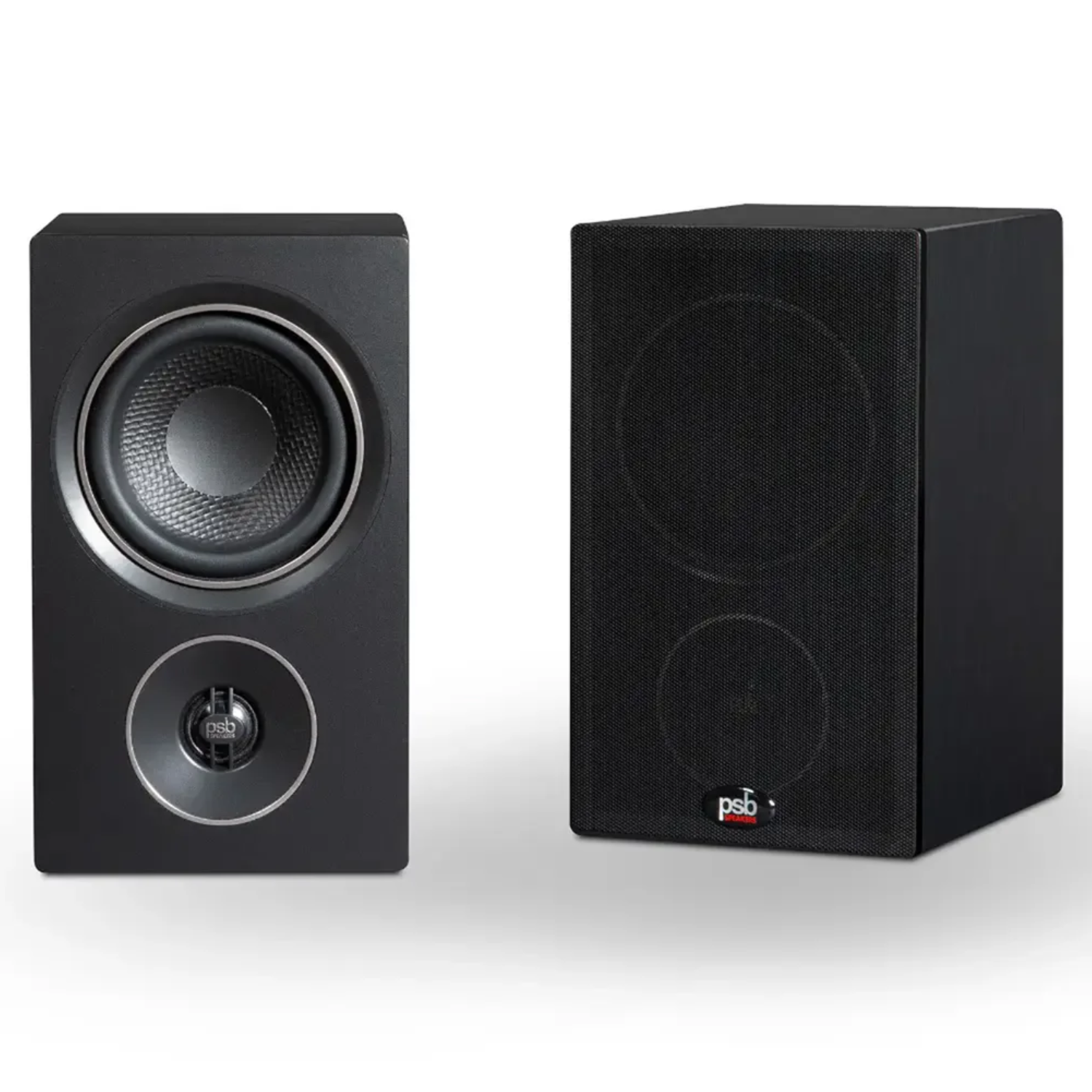

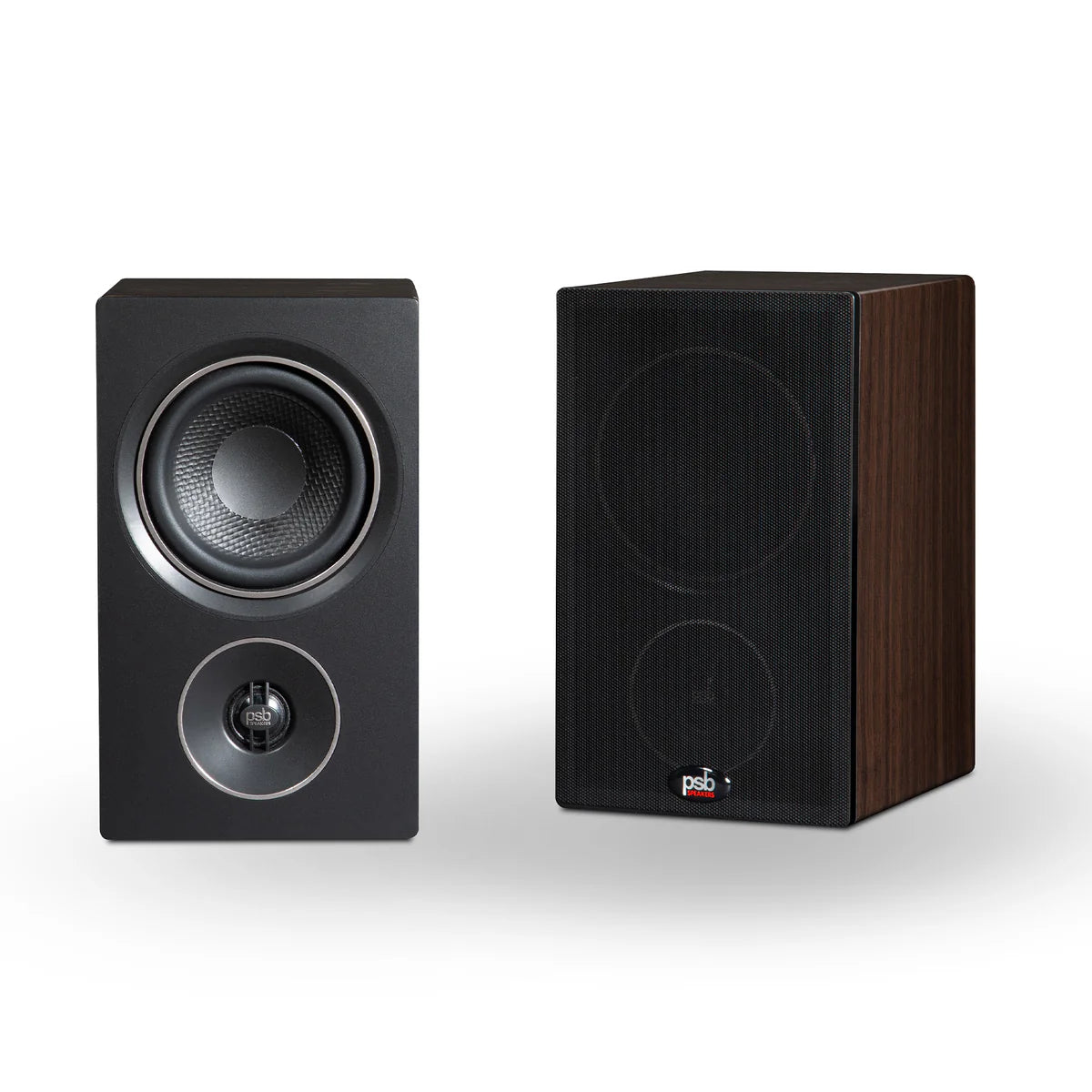

PSB Alpha P3 Compact Bookshelf Speakers

PSB Alpha P3 Compact Bookshelf Speakers at Vinyl Sound Buffalo NY

The PSB Alpha P3 is PSB's most compact passive bookshelf loudspeaker, delivering room-filling sound from a cabinet measuring just 5⅛" wide and 8⅝" tall — small enough to fit on virtually any bookshelf or desktop while maintaining the acoustic standards PSB has developed through nearly 50 years of research at the Canadian National Research Council. Available at Vinyl Sound in Buffalo, New York, the P3 is a two-way bass reflex design incorporating a ¾" black anodized aluminum dome tweeter with ferrofluid and neodymium magnet and a front waveguide, and a 4" textured polypropylene cone woofer with rubber surround, crossed over at 3,000Hz via a Linkwitz-Riley 4th-order network. A 1⅜" rear-firing port extends bass to 43Hz at −10dB from the 0.11 cubic foot enclosure. Frequency response measures 57Hz to 21,000Hz (±3dB), sensitivity is 85dB anechoic (87dB in-room), and nominal impedance is 8 ohms. Available in Black Ash and Walnut finishes, the Alpha P3 is part of Vinyl Sound Buffalo's full speaker collection, which includes bookshelf, floorstanding, and powered speakers from leading audiophile brands.

Driver Configuration and Crossover Design

The PSB Alpha P3 uses a two-way driver configuration with a crossover point at 3,000Hz — higher than the Alpha P5's 2,500Hz — optimized for the P3's smaller 4" woofer and compact internal volume of 0.11 cubic feet. The ¾" black anodized aluminum dome tweeter features a front-mounted waveguide to control dispersion and extend high-frequency detail, with ferrofluid cooling and neodymium magnet for consistent performance. The 4" textured polypropylene cone woofer features a rubber surround and is tuned alongside the 1⅜" rear-firing port for the P3's compact cabinet volume, achieving a bass extension that PSB describes as defying the P3's physical size. The Linkwitz-Riley 4th-order crossover network uses internal damping material drawn from PSB's higher-tier product lines to minimize cabinet coloration.

Cabinet Design and Placement

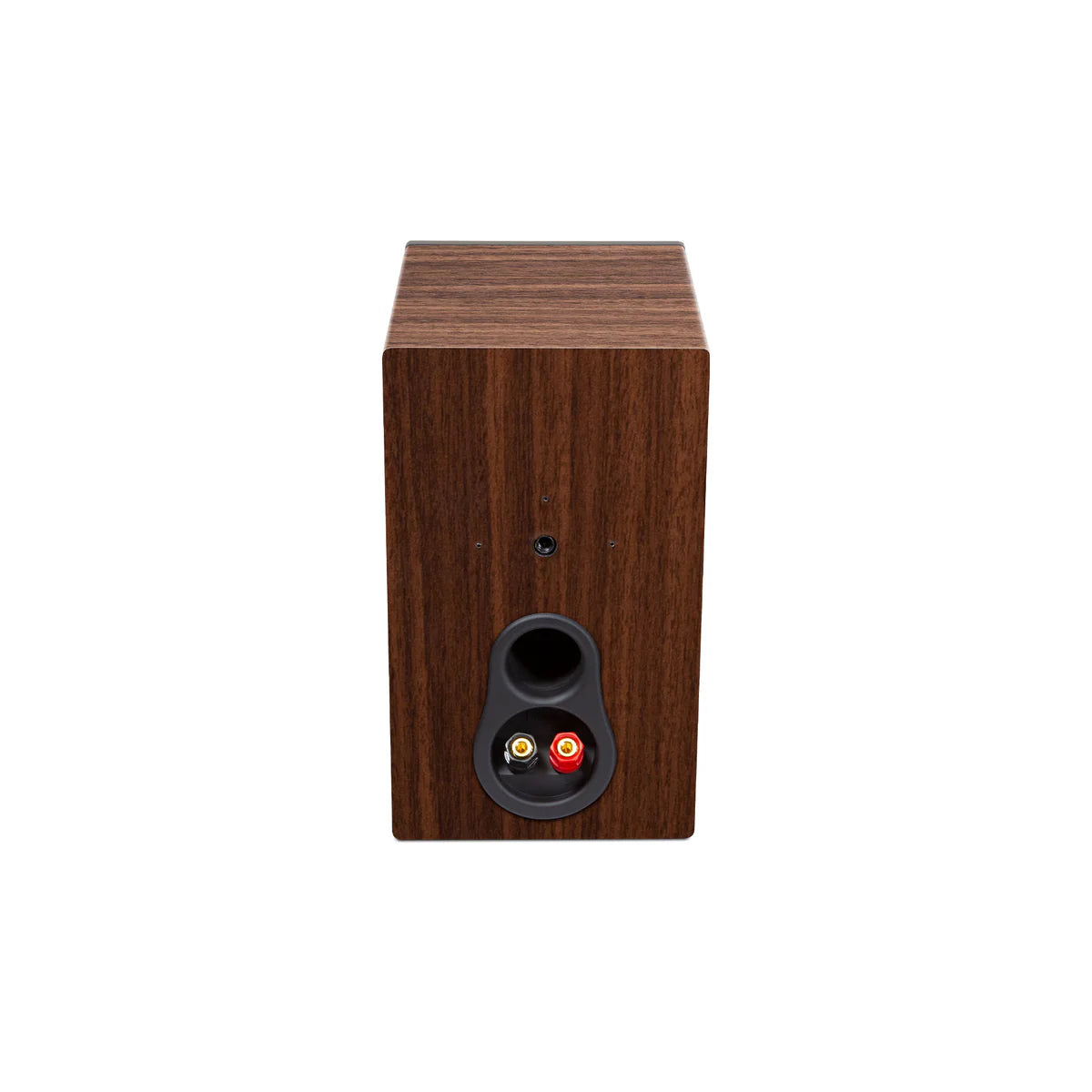

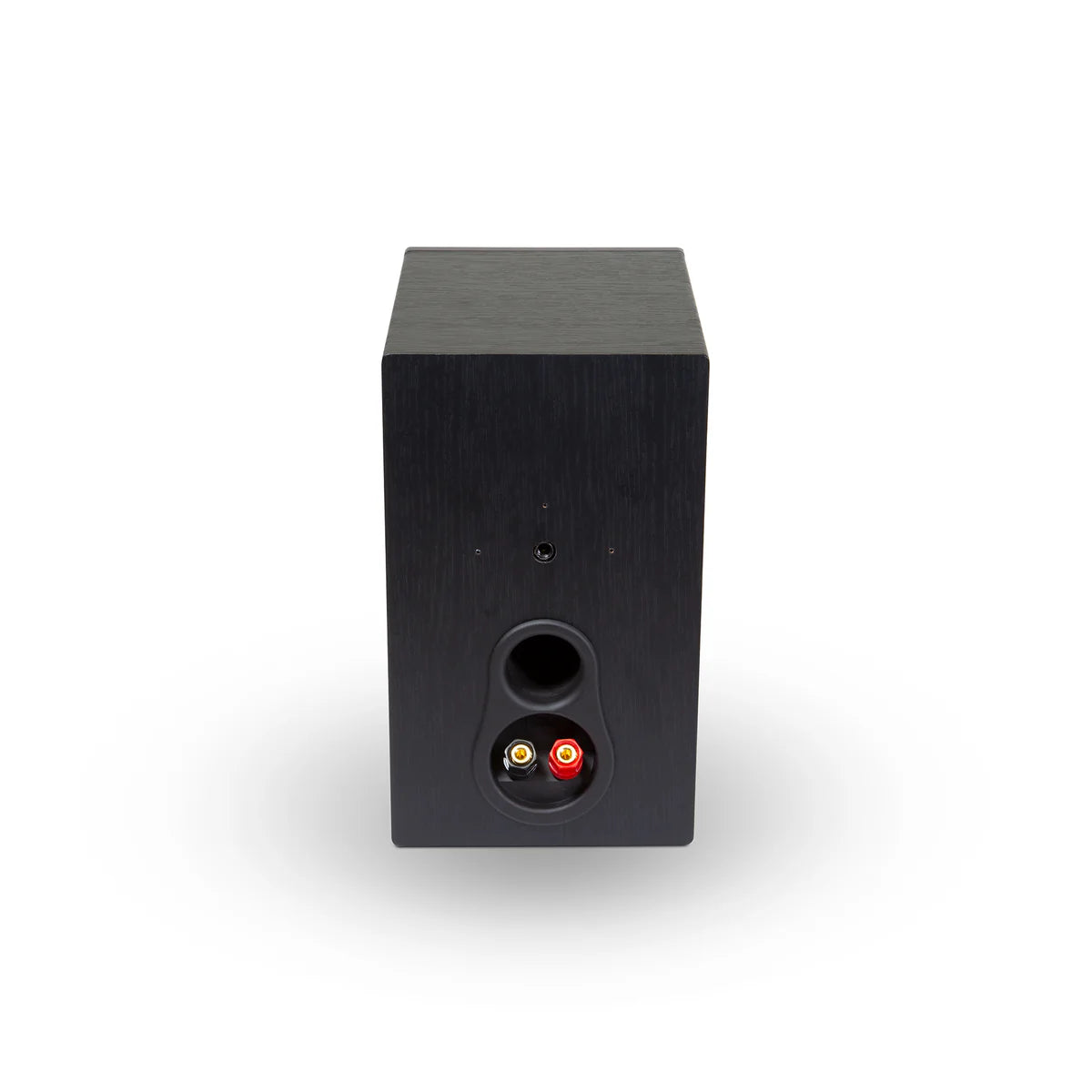

The Alpha P3 cabinet measures 5⅛" × 8⅝" × 6⅞" — one of the smallest passive bookshelf speakers in PSB's lineup at 4.9 lbs each — with a chrome front baffle, woodgrain vinyl finish, and magnetically attached grilles. The cabinet combines tuned wall thickness and strategic internal bracing to control resonances at the P3's compact scale. The rear-firing 1⅜" port requires a small amount of clearance behind the speaker; PSB recommends experimenting with distance from the rear wall to optimize bass response in smaller spaces. The P3 is available in Black Ash and Walnut finishes and suits bookshelf, desktop, and small stand mounting.

Specifications

Frequently Asked Questions

What is the difference between the PSB Alpha P3 and Alpha P5?

The PSB Alpha P3 and P5 are both two-way bookshelf speakers from the Alpha Series but the P3 is smaller and more compact. The P3 uses a 4" woofer in a 0.11 cubic foot enclosure with a 1⅜" rear port and crossover at 3,000Hz, while the P5 uses a larger 5¼" woofer in a 0.29 cubic foot enclosure with a 2" rear port and crossover at 2,500Hz. The P5 extends bass to 55Hz at ±3dB versus the P3's 57Hz, and handles a wider midrange spectrum. The P3 is the preferred choice for desktop use and very small rooms, while the P5 suits bookshelf and small to medium room listening.

What amplifier does the PSB Alpha P3 require?

PSB recommends 10 to 80 watts per channel for the Alpha P3. The nominal impedance is 8 ohms with a minimum of 4 ohms, making the P3 compatible with virtually any integrated amplifier or AV receiver. The minimum recommended power of just 10 watts also makes the P3 a practical match for low-powered tube amplifiers and compact Class D amplifiers. The 85dB anechoic sensitivity is modest, so amplifiers of at least 20 to 30 watts per channel are recommended for comfortable dynamic headroom.

Does the PSB Alpha P3 need a subwoofer?

The Alpha P3 extends to 57Hz at ±3dB and 43Hz at −10dB, providing reasonable bass performance for its cabinet size without a subwoofer in small rooms and desktop setups. For home theatre use, larger rooms, or listeners who prefer extended deep bass, pairing the P3 with a dedicated subwoofer is recommended. Vinyl Sound Buffalo carries compatible subwoofers and can advise on system integration with the P3.

Is the PSB Alpha P3 good for desktop use?

Yes. At 5⅛" wide and 8⅝" tall and just 4.9 lbs each, the Alpha P3 is one of the most compact and lightweight passive bookshelf speakers in PSB's lineup, specifically suited to desktop and small shelf placement. Its 8-ohm impedance and low minimum power requirement of 10 watts make it compatible with compact desktop amplifiers and DAC/amp units. The front waveguide on the tweeter also helps optimize dispersion for nearfield listening distances typical of desktop setups.

Can the PSB Alpha P3 be used as surround speakers?

Yes. The Alpha P3's compact size and light weight make it a practical choice for surround and rear channel use in a home theatre system, particularly in rooms where space for larger surround speakers is limited. PSB's Alpha Series includes matching tower, centre channel, and subwoofer models for a complete Alpha Series multi-channel configuration.

Can I audition the PSB Alpha P3 in Buffalo NY?

Yes. The PSB Alpha P3 is available for in-store demonstration at Vinyl Sound in Buffalo, New York. Vinyl Sound is an authorized PSB Speakers dealer serving Buffalo, NY and the Western New York region. Contact Vinyl Sound to arrange a listening session.

Where to buy PSB Alpha P3 compact bookshelf speakers in Buffalo NY?

The PSB Alpha P3 is available from Vinyl Sound, an authorized PSB Speakers dealer in Buffalo, New York. Vinyl Sound offers in-store demonstration, expert system matching, and shipping across the continental United States. Contact Vinyl Sound Buffalo by phone or email to purchase or arrange a listening appointment.
