PSB Alpha P5 Bookshelf Speakers

PSB Alpha P5 Bookshelf Speakers at Vinyl Sound Buffalo NY

The PSB Alpha P5 is a two-way bookshelf loudspeaker from PSB's Alpha Series, offering a significant step up in bass output and midrange coverage from the Alpha P3 through its larger 5¼" woofer and deeper bass reflex enclosure. Available at Vinyl Sound in Buffalo, New York, the P5 incorporates a ¾" black anodized aluminum dome tweeter with ferrofluid cooling and neodymium magnet, and a 5¼" textured polypropylene cone woofer with rubber surround and dual-layer voice coil, crossed over at 2,500Hz via a Linkwitz-Riley 4th-order network. The P5 delivers a frequency response of 55Hz to 21,000Hz (±3dB) with an LF cutoff of 37Hz (−10dB) via a 2" rear-firing port, a sensitivity of 87dB anechoic (89dB in-room), and a nominal impedance of 8 ohms. Internal damping material sourced from PSB's flagship lines is used in the P5's 0.29 cubic foot enclosure. Available in Black Ash and Walnut finishes, the Alpha P5 is part of Vinyl Sound Buffalo's full speaker collection, which includes bookshelf, floorstanding, and powered speakers from leading audiophile brands.

Driver Configuration and Crossover Design

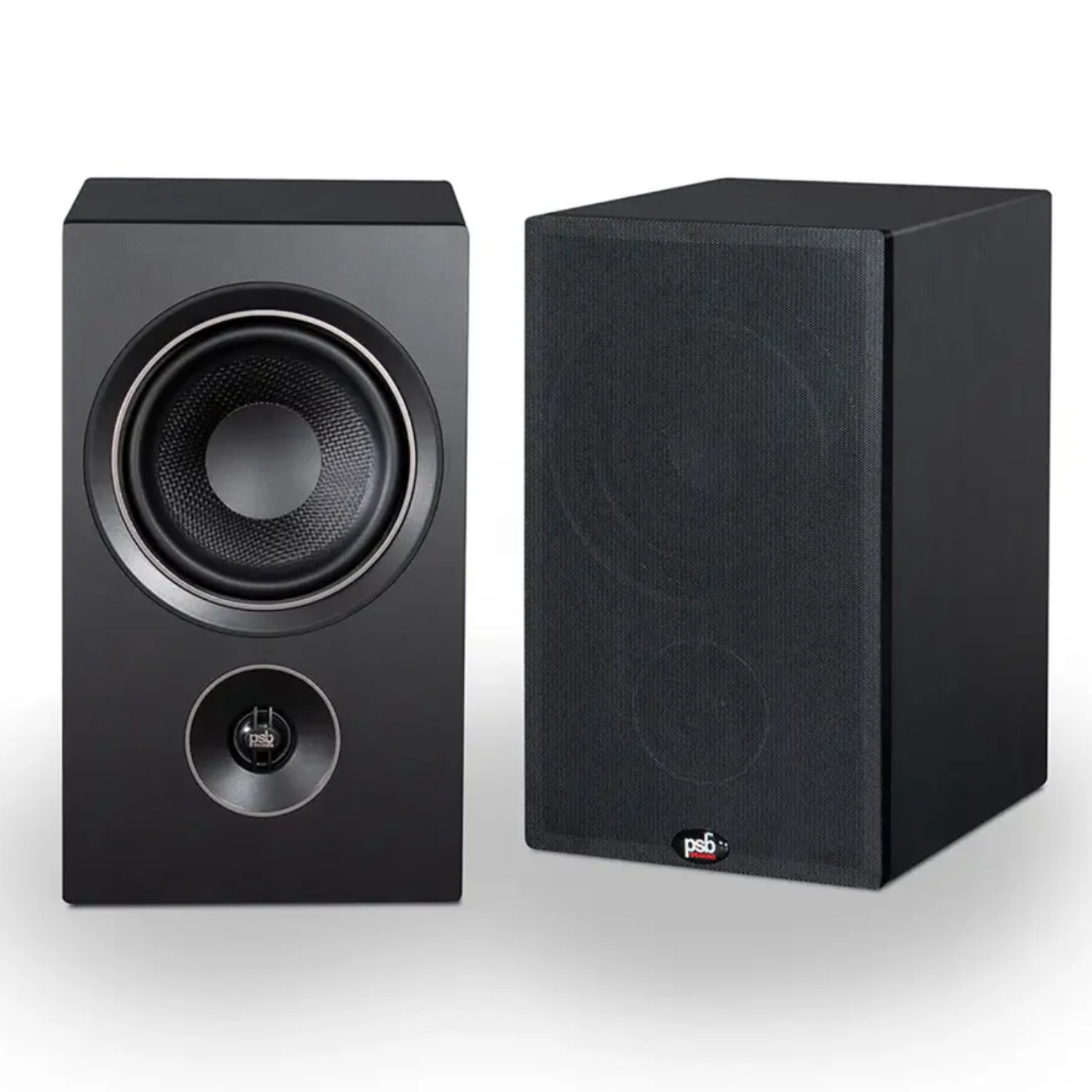

The PSB Alpha P5 uses the same ¾" black anodized aluminum dome tweeter with ferrofluid and neodymium magnet as the Alpha T20 tower speaker, providing consistent high-frequency character across the Alpha Series lineup. The 5¼" textured polypropylene cone woofer features a dual-layer voice coil for improved efficiency and reduced distortion at higher power levels, and a rubber surround for long-term reliability. The Linkwitz-Riley 4th-order crossover at 2,500Hz provides precise driver integration, and PSB notes that the P5 covers a wider midrange spectrum than the Alpha P3, improving tweeter-to-woofer coherence across the crossover region. The 2" rear-firing port extends bass output to 37Hz at −10dB from the compact 0.29 cubic foot enclosure. Cabinet construction uses precisely tuned wall thickness and strategic bracing, with internal damping material drawn from PSB's higher-tier product lines.

Cabinet Design and Placement

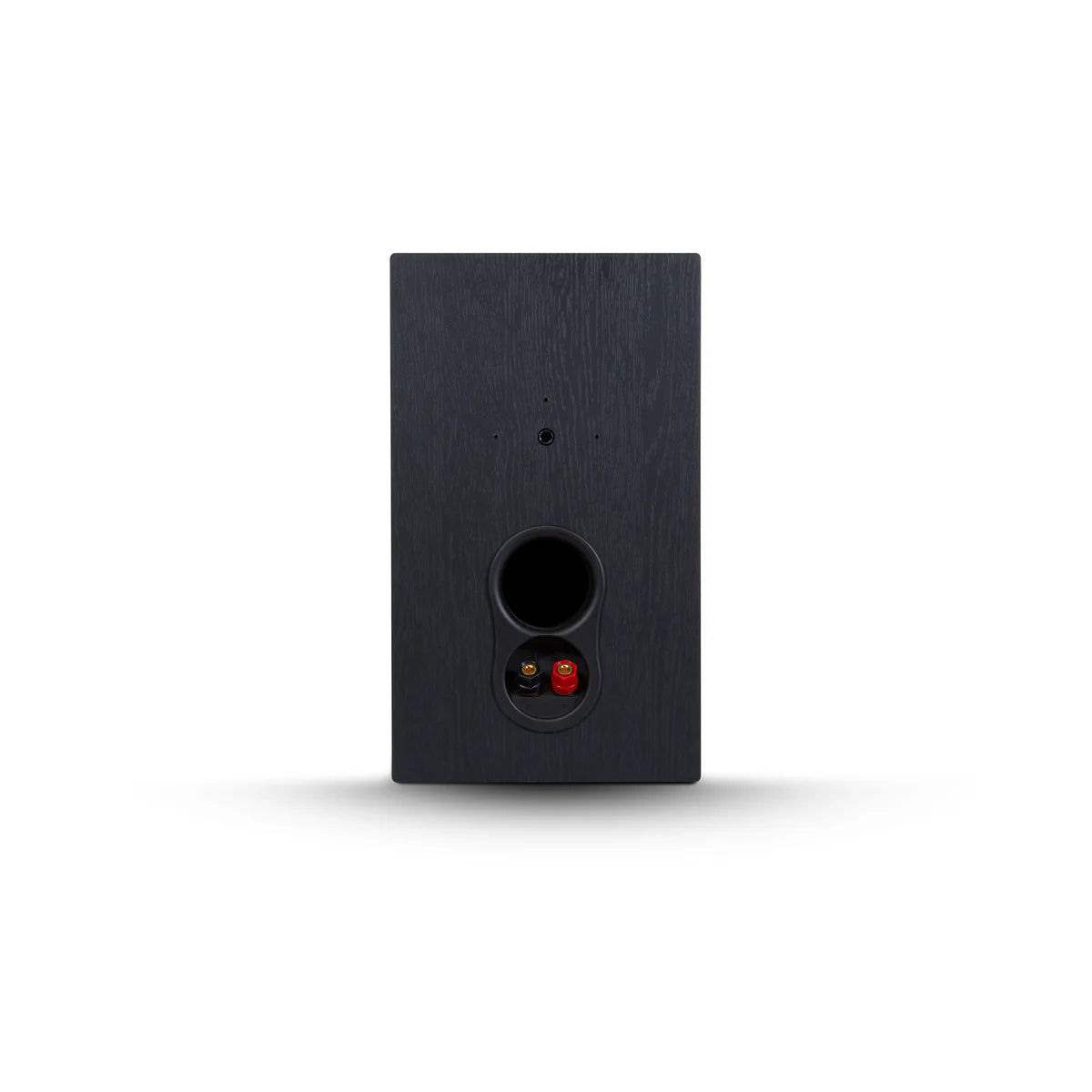

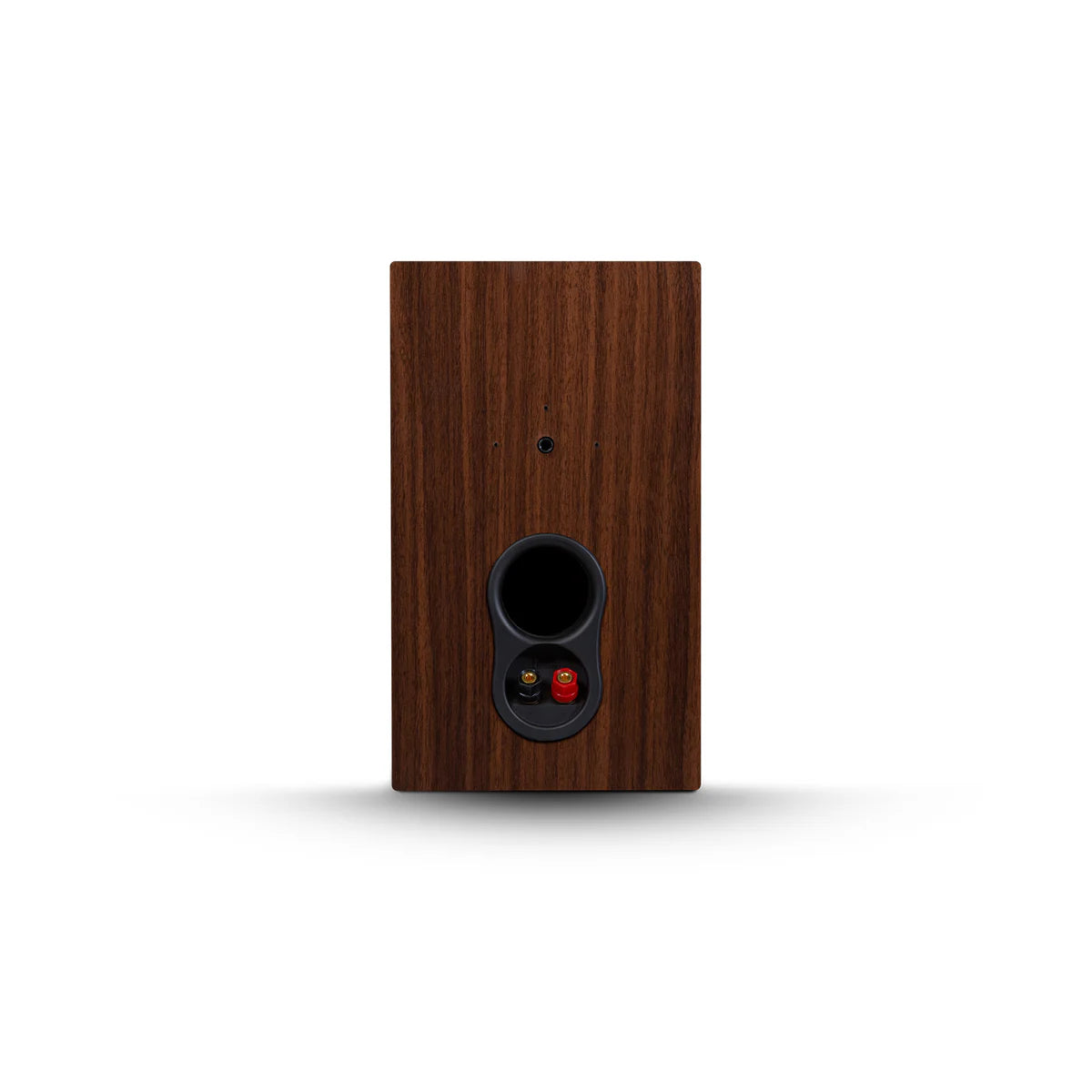

The Alpha P5 cabinet measures 6¾" wide × 11⅜" tall × 9½" deep — a compact footprint suited to bookshelf, stand, and desktop placement. Woodgrain vinyl finishes in Black Ash and Walnut integrate naturally with furniture and shelving, and magnetically attached grilles provide a clean, uncluttered appearance when installed. The P5's rear-firing port requires a few inches of clearance behind the speaker for optimal bass performance; placement too close to a rear wall may reinforce low-frequency output and can be managed by experimenting with speaker positioning.

Specifications

Frequently Asked Questions

What is the difference between the PSB Alpha P5 and Alpha P3?

The PSB Alpha P5 and P3 are both two-way bookshelf speakers from the Alpha Series but differ in woofer size and bass output. The P5 uses a 5¼" woofer in a larger enclosure vented by a 2" rear port, extending bass to 55Hz at ±3dB and 37Hz at −10dB, while the P3 uses a smaller woofer in a more compact cabinet. PSB also notes that the P5 covers a wider midrange frequency range than the P3, providing improved tweeter-to-woofer integration. The P5 is better suited to medium-sized rooms and listeners who prioritize bass impact, while the P3 is the choice for smaller spaces and desktop use.

What amplifier does the PSB Alpha P5 require?

PSB recommends 10 to 90 watts per channel for the Alpha P5. The nominal impedance is 8 ohms with a minimum of 4 ohms, making the P5 compatible with most integrated amplifiers and AV receivers. The 87dB anechoic sensitivity (89dB in-room) is well suited to amplifiers from 20 watts upward for typical listening levels in small to medium rooms. The P5's low minimum recommended power of 10 watts also makes it a practical choice for low-powered tube amplifiers.

Does the PSB Alpha P5 need a subwoofer?

The Alpha P5 extends to 55Hz at ±3dB and 37Hz at −10dB, which is sufficient for most music listening without a subwoofer in small to medium rooms. For home theatre use requiring low-frequency effects below 40Hz, or in larger rooms where more bass output is needed, pairing the P5 with a dedicated subwoofer is recommended. Vinyl Sound Buffalo carries compatible subwoofers and can advise on system integration.

Can the PSB Alpha P5 be used for home theatre surround sound?

Yes. The Alpha P5's compact size, 8-ohm impedance, and wide dynamic range make it suitable for use as surround or rear channel speakers in a home theatre configuration. PSB's Alpha Series includes matching tower, centre channel, and subwoofer models for a complete Alpha Series multi-channel system.

What finishes are available for the PSB Alpha P5?

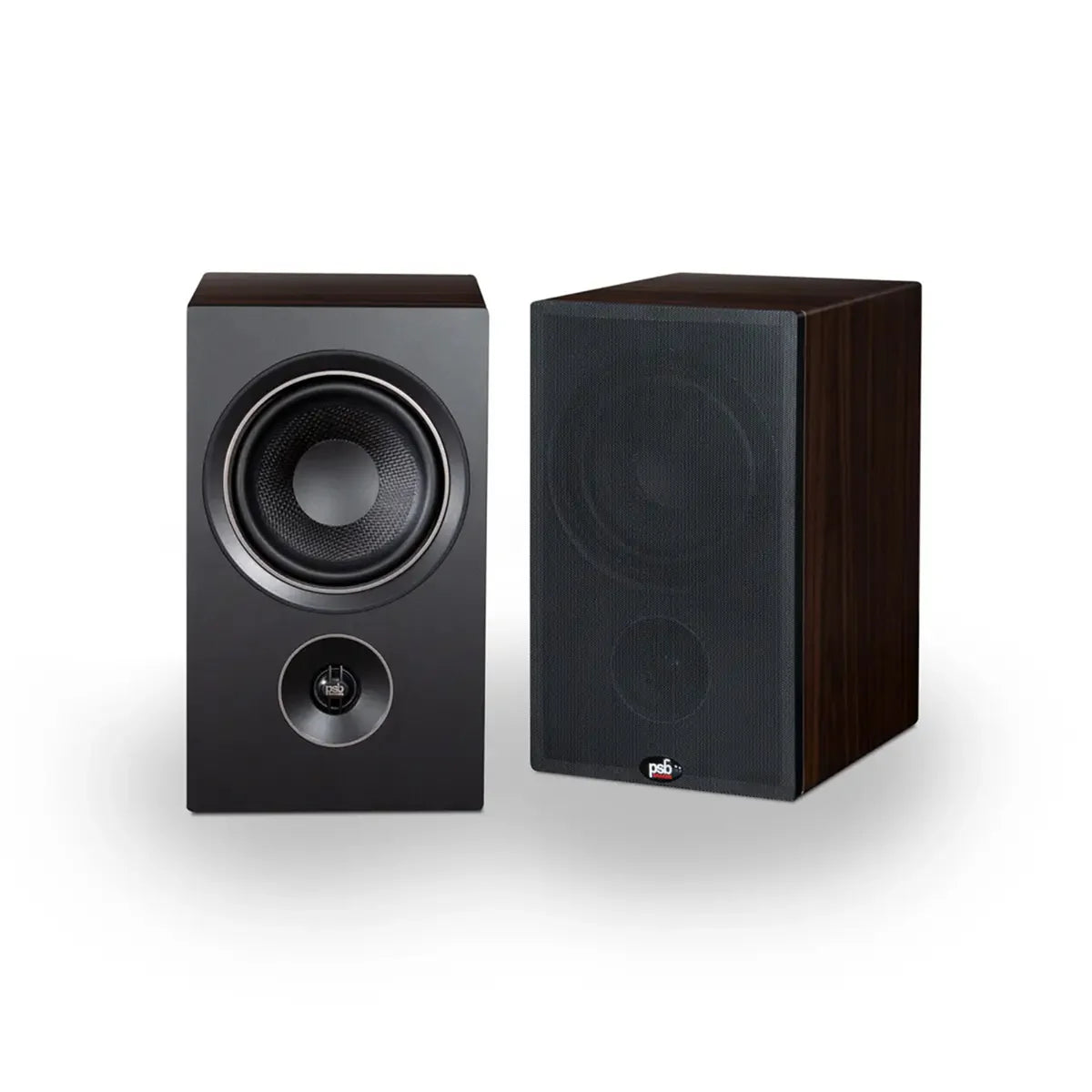

The PSB Alpha P5 is available in Black Ash and Walnut woodgrain vinyl finishes. Both finishes are available through Vinyl Sound Buffalo. Contact Vinyl Sound to confirm current inventory for each finish option.

Can I audition the PSB Alpha P5 in Buffalo NY?

Yes. The PSB Alpha P5 is available for in-store demonstration at Vinyl Sound in Buffalo, New York. Vinyl Sound is an authorized PSB Speakers dealer serving Buffalo, NY and the Western New York region. Contact Vinyl Sound to arrange a listening session.

Where to buy PSB Alpha P5 bookshelf speakers in Buffalo NY?

The PSB Alpha P5 is available from Vinyl Sound, an authorized PSB Speakers dealer in Buffalo, New York. Vinyl Sound offers in-store demonstration, expert system matching, and shipping across the continental United States. Contact Vinyl Sound Buffalo by phone or email to purchase or arrange a listening appointment.
