PSB CS1000 Indoor Outdoor Speakers

PSB CS1000 Universal In-Outdoor Speakers at Vinyl Sound Buffalo NY

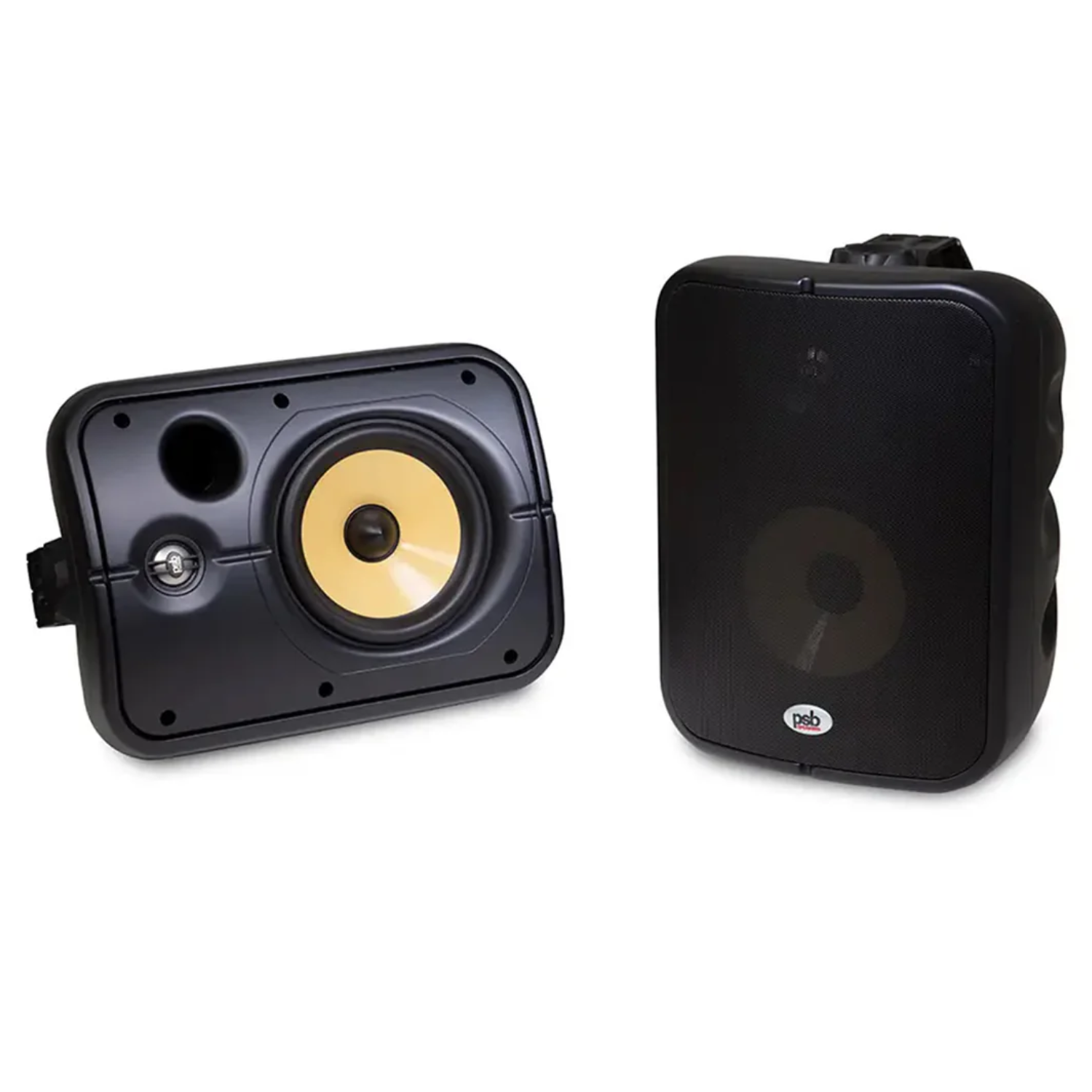

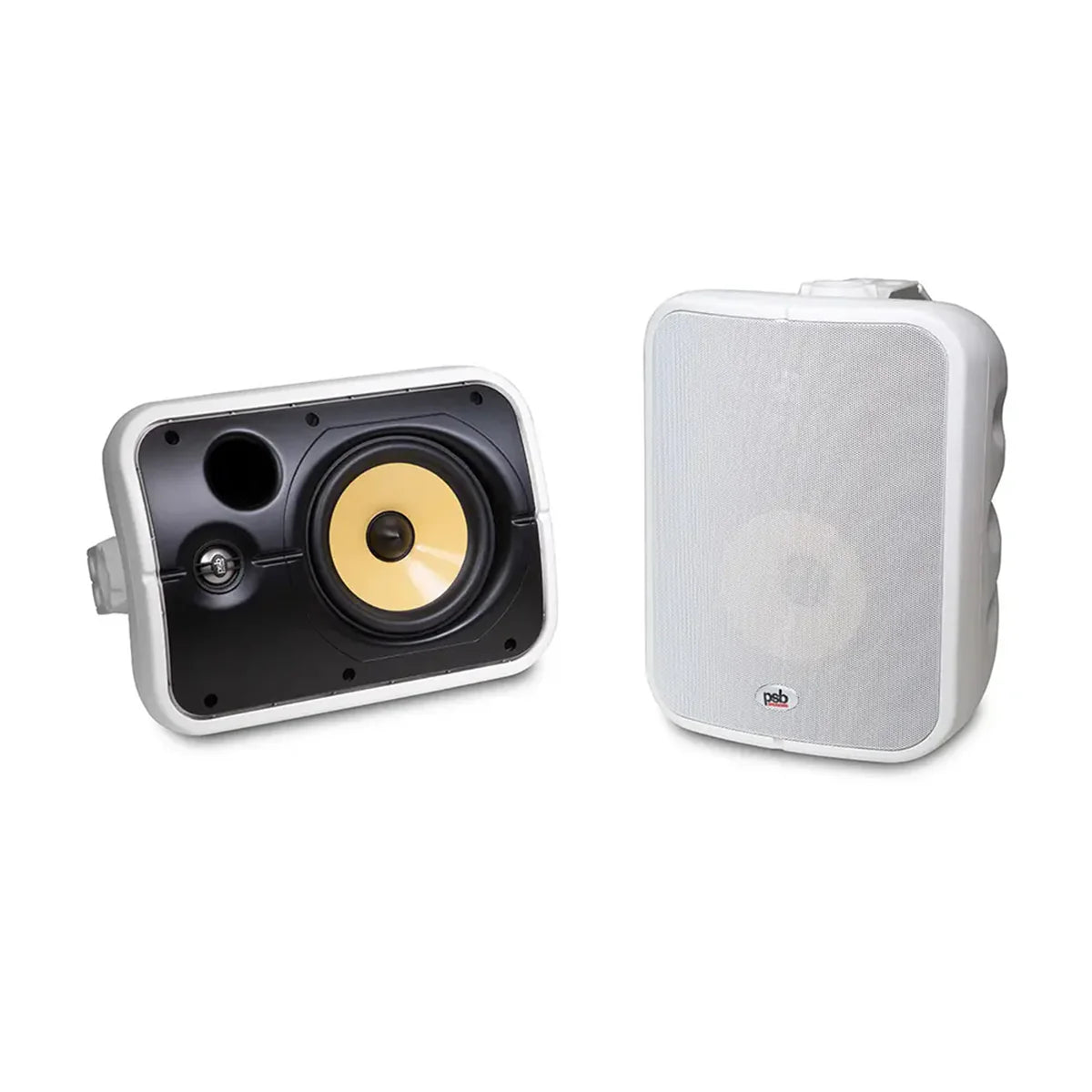

The PSB CS1000 are two-way bass reflex speakers engineered for permanent indoor and outdoor installation, combining a 1-inch titanium dome tweeter, a 6½-inch clay and ceramic reinforced polypropylene woofer, and a Linkwitz-Riley 4th-order (LR4) crossover at 2,200Hz in a UV-resistant polypropylene enclosure with a two-axis rotation bracket for horizontal and vertical aiming. Available at Vinyl Sound in Buffalo, New York, the CS1000 delivers a frequency response of 45Hz to 23,000Hz (±3dB) with an LF cutoff of 40Hz at −10dB from a compact 9¼" × 12¼" × 11¾" cabinet — performance comparable to PSB's indoor bookshelf speaker lineup, built to withstand weather exposure, UV radiation, and the acoustic challenges of outdoor spaces. Rustproof speaker terminals and a rubber connector cover protect the electrical connections from moisture and particulate ingress. Recommended amplifier power is 20–150 watts into a nominal 8-ohm load, making the CS1000 compatible with standard residential amplifiers, AV receivers, and commercial multi-zone amplifier systems. Available in Black and White. The CS1000 is part of Vinyl Sound Buffalo's full speaker collection, which covers outdoor, indoor, bookshelf, powered, and floorstanding speakers from leading audio brands.

Driver Design and Acoustic Performance

The CS1000's 1-inch titanium dome tweeter uses a ferrofluid-cooled voice coil and neodymium magnet — the same driver architecture found in PSB's Synchrony and Imagine series indoor speakers. Ferrofluid cooling suspends magnetically active fluid in the tweeter's voice coil gap, increasing the coil's thermal capacity and allowing sustained high-frequency output without compression at higher playback levels. The 6½-inch woofer uses a clay and ceramic particle-reinforced polypropylene cone, which increases cone stiffness and internal damping compared to standard polypropylene while resisting UV degradation, temperature cycling, and moisture exposure over extended outdoor installation periods. The LR4 crossover at 2,200Hz provides a 24dB per octave rolloff on both the tweeter and woofer, producing a flat, coherent combined response at the crossover frequency without the phase anomalies associated with shallower Butterworth crossover designs. The bass reflex enclosure extends low-frequency output to 40Hz at −10dB from a 0.3 cubic foot (8.5L) cabinet.

Installation, Weatherproofing, and Commercial Applications

The CS1000's two-axis rotation bracket allows the speaker to pivot both horizontally and vertically after mounting, enabling coverage pattern adjustment without repositioning the mounting hardware. This makes the CS1000 suitable for angled ceiling soffits, patio overhangs, and commercial wall installations where the mounting surface angle does not align with the target listening area. The UV-resistant polypropylene enclosure resists surface degradation and color fade from extended direct sunlight exposure — a common failure mode for outdoor speakers using conventional ABS or painted MDF enclosures. Commercial applications documented for the CS1000 include retail stores, restaurants, hotel outdoor areas, fitness centers, and bars where a compact, weather-resistant speaker with audiophile-grade driver components is preferred over commercial-grade bulk PA or background music speakers.

Specifications

Frequently Asked Questions

What is the PSB CS1000 designed for — indoor, outdoor, or both?

The CS1000 is designed for both indoor and outdoor permanent installation. Outdoors, the UV-resistant polypropylene enclosure, rustproof terminals, and rubber connector cover protect against rain, direct sunlight, temperature cycling, and particulate exposure common in patio, garden, poolside, and commercial outdoor installations. Indoors, the same enclosure provides a compact cabinet with audiophile-grade driver components suitable for high-ceiling commercial spaces, retail environments, and architectural installations where an aesthetically unobtrusive speaker with weather-resistant construction is preferred. The CS1000 is not designed for submersion in water, but is suitable for covered outdoor areas exposed to rain splash and moisture.

What weatherproofing does the PSB CS1000 have?

The CS1000's weatherproofing addresses three main outdoor failure modes. First, the polypropylene enclosure is UV-stabilized to resist surface chalking, cracking, and color fade from prolonged sun exposure — a common failure in conventional painted MDF or standard ABS outdoor speaker cabinets. Second, the speaker terminals are constructed from rustproof materials and fitted with a rubber cover that seals the connector area against moisture and particulate ingress. Third, the 6½-inch woofer uses a clay and ceramic reinforced polypropylene cone that is itself moisture and UV resistant, unlike paper cone drivers that swell and degrade in humid or wet outdoor conditions. PSB does not publish a formal IP rating for the CS1000, so it should be installed in a sheltered or covered location rather than fully exposed to direct rain contact on the driver face.

How do I aim the PSB CS1000 for the best coverage?

The CS1000 ships with a two-axis rotation bracket that allows the speaker to pivot both horizontally and vertically after the bracket is fixed to the mounting surface. This means the optimal speaker aim is adjustable independently from the mounting angle — useful when the installation surface (ceiling, wall, soffit, overhang) is not parallel to the target listening area. For coverage of a large outdoor dining area or patio from a single mounting point, aim the speaker slightly downward and angled toward the center of the space. For commercial multi-speaker arrays, use the off-axis specification (±1.5dB to 10,000Hz at 30°) to calculate overlap coverage between adjacent speakers at the installation height.

What amplifier power does the PSB CS1000 require?

The CS1000's recommended power range is 20–150 watts into its nominal 8-ohm load. The 20-watt minimum represents a practical lower threshold for adequate playback level in outdoor listening conditions where ambient noise competes with the speaker output. The 86dB anechoic sensitivity (88dB in-room equivalent) means a 100-watt amplifier will produce approximately 106dB at one meter under sustained conditions — more than sufficient for patio or commercial background music use. Any AV receiver, stereo amplifier, or commercial multi-zone amplifier rated within this power range and capable of driving an 8-ohm load is compatible. For multi-zone commercial installations, a 70V or 100V distributed audio amplifier can drive multiple CS1000 units on a single amplifier output with appropriate transformers.

Is the PSB CS1000 suitable for commercial restaurant or retail installations?

Yes. The CS1000 is specifically designed for commercial background music applications including restaurants, bars, retail stores, hotels, and fitness centers. The two-axis rotation bracket enables flexible ceiling or wall mounting in commercial spaces with varied ceiling heights and sightlines. The 150-watt program power handling is robust enough for commercial amplifier systems that operate at higher continuous levels than residential amplifiers. The polypropylene enclosure is resistant to the grease, humidity, and temperature variation found in commercial kitchen-adjacent and outdoor hospitality environments. The compact 9¼" × 12¼" × 11¾" footprint is small enough for soffit and ceiling mounting in standard commercial ceiling heights without requiring custom architectural accommodation.

How does the titanium dome tweeter benefit outdoor listening?

Outdoor listening environments present two specific challenges for high-frequency reproduction that the CS1000's titanium dome tweeter addresses. First, outdoor spaces lack the room reflections that reinforce treble perception in indoor listening — a titanium dome tweeter's smooth, extended frequency response to 23,000Hz compensates by maintaining consistent high-frequency output in a free-field environment without the rolloff associated with soft dome or fabric tweeters that rely on room support for perceived treble presence. Second, titanium dome tweeters are physically more durable than silk or fabric soft dome tweeters, which can absorb moisture or degrade from UV exposure in outdoor installations. The ferrofluid cooling and neodymium magnet in the CS1000's tweeter allow sustained output levels appropriate for commercial background music playback without thermal compression.

Where to buy PSB CS1000 outdoor speakers in Buffalo NY?

The PSB CS1000 is available from Vinyl Sound, an authorized PSB Speakers dealer in Buffalo, New York. Vinyl Sound can advise on amplifier pairing, multi-zone setup, and mounting for both residential outdoor and commercial installation projects. Free shipping is available across the continental United States. Contact Vinyl Sound Buffalo by phone or email to purchase or request a system consultation for your installation.
