PSB CS500 Indoor Outdoor Speakers

PSB CS500 Universal In-Outdoor Speakers at Vinyl Sound Buffalo NY

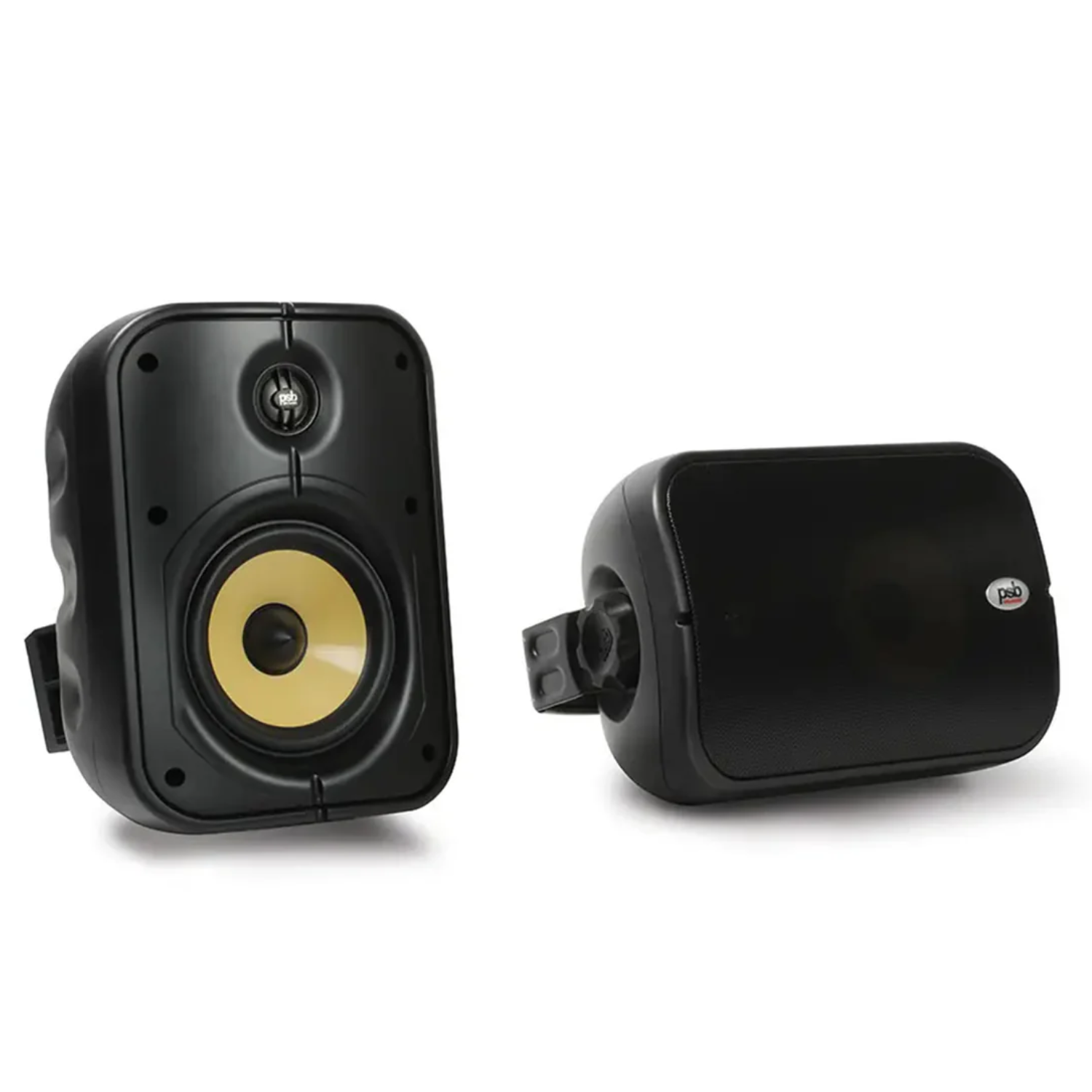

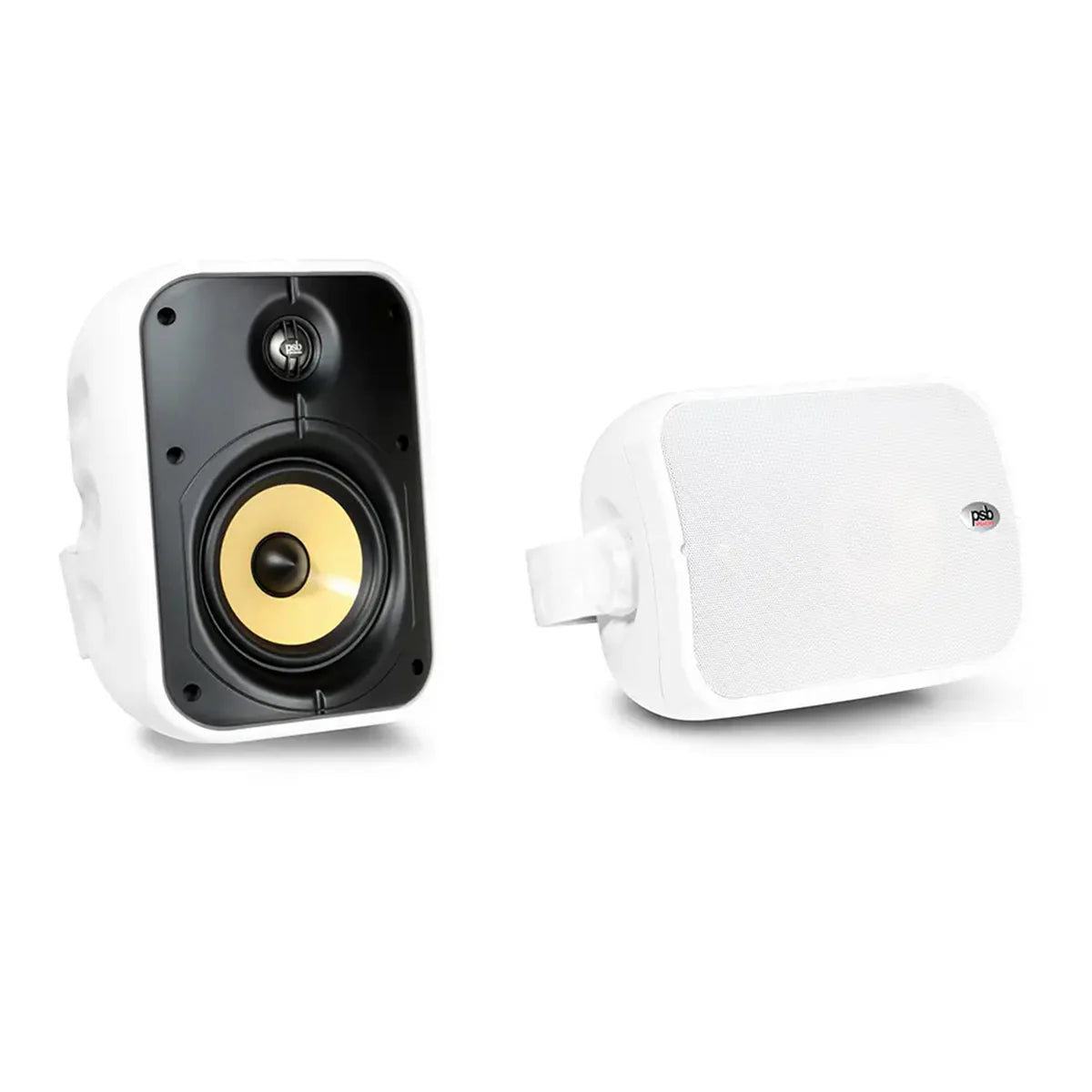

The PSB CS500 are two-way sealed cabinet speakers designed for permanent indoor and outdoor installation, combining a 1-inch titanium dome tweeter, a 5¼-inch clay and ceramic reinforced polypropylene woofer, and a Linkwitz-Riley 4th-order (LR4) crossover at 1,800Hz in a UV-resistant polypropylene enclosure with an aluminum grille, rustproof terminals, and a two-axis rotation bracket. Available at Vinyl Sound in Buffalo, New York, the CS500 delivers a frequency response of 63Hz to 23,000Hz (±3dB) with an LF cutoff of 50Hz at −10dB from a compact 7⅞" × 10⅝" × 9⅞" sealed cabinet — a smaller, lighter alternative to the CS1000 for installations where reduced footprint is a priority without sacrificing PSB's titanium tweeter and clay-reinforced driver technology. The sealed cabinet design eliminates port noise and extends installation flexibility to orientations where a bass reflex port's output direction would be obstructed. Recommended amplifier power is 20–120 watts into a nominal 8-ohm load. Available in Black and White. The CS500 is part of Vinyl Sound Buffalo's full speaker collection, which includes outdoor, bookshelf, powered, and floorstanding speakers from leading audio brands.

Driver Design, Sealed Cabinet, and Acoustic Performance

The CS500's 1-inch titanium dome tweeter shares the same ferrofluid-cooled voice coil and neodymium magnet construction as the CS1000 and PSB's Synchrony and Imagine series indoor speakers — a driver type chosen for its extended high-frequency response to 23,000Hz, resistance to moisture and UV degradation, and consistent off-axis dispersion in open outdoor environments without the room reinforcement that supports treble perception indoors. The 5¼-inch woofer uses a clay and ceramic particle-reinforced polypropylene cone that resists moisture absorption and UV surface degradation across temperature cycling conditions typical of outdoor installations. The sealed cabinet at 0.2 cubic feet (5L) produces bass down to 50Hz at −10dB with controlled rolloff characteristics — sealed enclosures roll off at 12dB per octave below their tuning frequency, which is gentler and more musicaly natural than the 24dB per octave rolloff of ported designs below their port tuning point. The LR4 crossover at 1,800Hz provides 24dB per octave driver rolloff, minimizing harmonic overlap between the tweeter and woofer at the crossover frequency and producing a flat, coherent combined response.

Weatherproofing, Aluminum Grille, and Mounting

The CS500's weatherproofing uses three complementary protective features. The UV-resistant polypropylene enclosure resists surface degradation, chalking, and color fade from extended direct sunlight exposure. The rustproof speaker terminals with rubber protective covers seal the connection area against moisture and particulate ingress at the cable entry point. The aluminum grille protects the drivers from physical impact — including hail, debris, and incidental contact in high-traffic commercial environments — while passing sound with minimal coloration. The two-axis rotation bracket allows the speaker to pivot both horizontally and vertically after the mounting hardware is fixed, enabling coverage angle adjustment independently from the mounting surface orientation. The 7 lb (3.2 kg) net weight per speaker simplifies single-person installation on wall brackets and ceiling soffits at standard commercial mounting heights.

Specifications

Frequently Asked Questions

How does the PSB CS500 compare to the CS1000?

Both the CS500 and CS1000 use the same 1-inch titanium dome tweeter with ferrofluid cooling, clay and ceramic reinforced polypropylene woofer, LR4 crossover, UV-resistant polypropylene enclosure, rustproof terminals, and two-axis rotation bracket. The CS500 uses a 5¼-inch woofer in a smaller sealed cabinet (7⅞" × 10⅝" × 9⅞", 7 lb each) with a 1,800Hz crossover, 85dB sensitivity, and 120W program handling. The CS1000 uses a larger 6½-inch woofer in a bass reflex cabinet (9¼" × 12¼" × 11¾", 10 lb each) with a 2,200Hz crossover, 86dB sensitivity, and 150W program handling, extending bass 10Hz lower to 40Hz at −10dB. The CS500 is the compact-installation choice for tight soffits, small patios, and commercial spaces with mounting constraints. The CS1000 is preferred for larger outdoor areas or applications that benefit from its additional bass extension and output capacity.

Why does the CS500 use a sealed cabinet instead of bass reflex?

The CS500's sealed cabinet trades the deeper bass extension of a ported design for several installation and acoustic advantages. A sealed cabinet has no port opening that can introduce port chuffing noise at high playback levels, which becomes audible in outdoor settings where ambient noise masks it less effectively than indoors. A sealed cabinet also rolls off below its tuning frequency at a gentler 12dB per octave slope rather than the sharper 24dB per octave rolloff below the port tuning frequency of a bass reflex design — resulting in more natural-sounding deep bass rather than an abrupt cutoff. Additionally, a sealed cabinet produces usable bass output in any mounting orientation without concern for port placement, which matters in commercial installations where speakers may be mounted at varied angles.

What weatherproofing does the PSB CS500 have?

The CS500 uses three weatherproofing elements. The polypropylene enclosure is UV-stabilized to resist surface chalking, cracking, and color fade from direct sunlight — a common failure mode in conventional painted enclosures. The speaker terminals are constructed from rustproof materials and fitted with rubber covers that seal the connection area from moisture and particulate ingress. The aluminum grille protects the tweeter dome and woofer cone from physical impact and debris while being corrosion-resistant in humid outdoor environments. PSB does not publish a formal IP rating for the CS500, so it should be installed in a sheltered or covered location rather than exposed to direct rainfall on the driver face. Both woofer and tweeter driver materials are selected for resistance to moisture and temperature variation in outdoor conditions.

What is the aluminum grille on the CS500 and why does it matter outdoors?

The CS500's aluminum grille serves a different function from the fabric or plastic grilles used on indoor speakers. Outdoor installations expose speakers to physical contact hazards — incidental impact from maintenance equipment, hail, debris, and high-traffic commercial environments — that fabric grilles do not protect against. An aluminum grille provides rigid physical protection for the tweeter dome and woofer cone without contributing additional corrosion risk, as aluminum naturally forms a protective oxide layer that resists rust and surface degradation from moisture exposure. The grille is perforated to allow sound to pass through with minimal diffraction or frequency response coloration from the grille structure itself.

How do I mount the PSB CS500 for outdoor use?

The CS500 ships with a two-axis rotation bracket that attaches to a wall or ceiling surface and allows horizontal and vertical speaker aiming after the bracket is installed. This enables fine-tuning of the speaker's coverage angle to suit the listening area geometry without changing the mounting position. The 7 lb (3.2 kg) per speaker weight makes bracket installation manageable with standard drywall or masonry anchors at typical mounting heights. For outdoor residential installations, weather-rated exterior mounting hardware appropriate to the wall or soffit material is recommended in addition to the included bracket. For commercial installations in restaurants, retail stores, or hotel outdoor areas, a licensed electrician or AV integrator should confirm mounting hardware and cable protection conduit requirements for the specific installation environment.

Is the PSB CS500 suitable for commercial restaurant or retail use?

Yes. The CS500's weatherproof enclosure, aluminum grille, and compact footprint are suited to commercial indoor and outdoor background music installations in restaurants, retail stores, hotel lobbies and courtyards, fitness centers, and bars. The 120-watt program power handling is compatible with commercial multi-zone amplifier systems. The two-axis rotation bracket allows ceiling and wall mounting with coverage angle adjustment to address the varied room geometries common in commercial renovation installations. For multi-speaker commercial arrays, the 85dB anechoic sensitivity and 8-ohm nominal impedance are compatible with standard commercial amplifier multi-zone output configurations.

Where to buy PSB CS500 outdoor speakers in Buffalo NY?

The PSB CS500 is available from Vinyl Sound, an authorized PSB Speakers dealer in Buffalo, New York. Vinyl Sound also carries the CS1000 for applications requiring a larger cabinet and greater bass extension. Free shipping is available across the continental United States. Contact Vinyl Sound Buffalo by phone or email to purchase, compare the CS500 and CS1000, or discuss amplifier and multi-zone installation requirements for your project.
