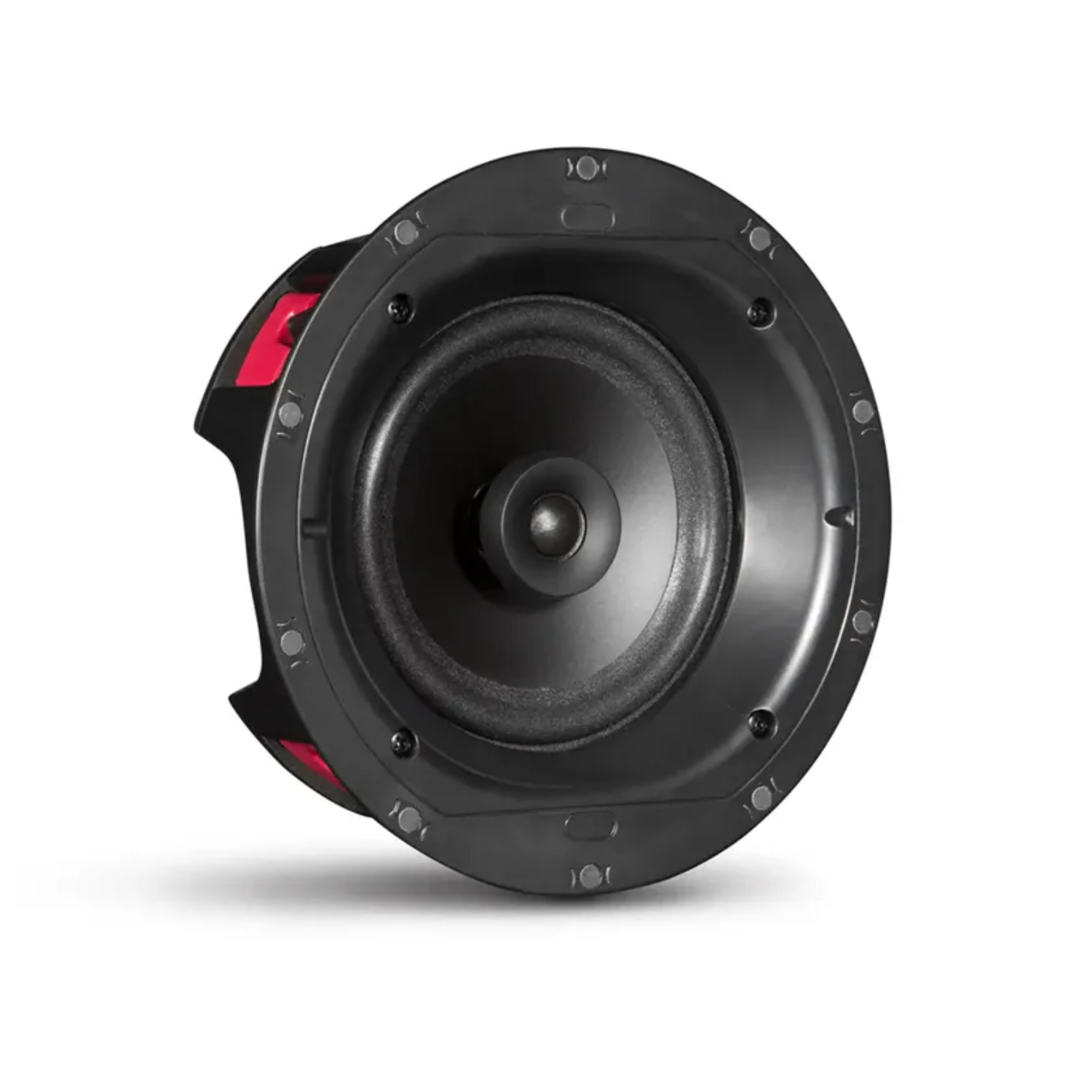

PSB CS605 6-Inch In-Ceiling Speaker

PSB CS605 6-Inch In-Ceiling Speaker at Vinyl Sound Buffalo NY

The PSB CS605 is a 6½-inch in-ceiling speaker built around a black polypropylene cone woofer with foam surround and a ¾-inch treated textile dome tweeter with ferrofluid cooling. Available at Vinyl Sound in Buffalo, New York, the CS605 is designed for wide-dispersion background audio coverage in residential multi-room audio systems, home theaters, and commercial spaces where consistent room-filling sound across a broad listening area matters more than pinpoint stereo imaging. A first-order high-pass crossover routes signal to the textile dome tweeter, which produces the wide off-axis dispersion pattern characteristic of soft dome designs. The frequency response spans 50Hz to 20,000Hz (±3dB) at 85dB anechoic sensitivity into a nominal 8-ohm load. The open-back design uses the ceiling plenum as the acoustic volume. Heavy-duty doglegs secure the CS605 to ceiling drywall from the front after insertion through the 8⅜-inch (212mm) cutout, and a cutting template is included for layout. A round magnetic frameless grille is included. Pre-construction brackets and backcans are available separately for new construction installation. At 4.6 lb (2.1 kg), single-person installation is straightforward. The CS605 is part of Vinyl Sound Buffalo's full speaker collection, which includes in-ceiling, in-wall, outdoor, powered, and floorstanding speakers from leading audio brands.

Treated Textile Dome Tweeter, Ferrofluid Cooling, and Wide Dispersion

The CS605's ¾-inch treated textile dome tweeter uses a soft dome diaphragm rather than the rigid aluminum dome used in PSB's CS610, CS650, and CS630 in-ceiling speakers. Treated textile domes are typically formed from woven fabric coated with a stiffening damping compound. The soft dome material disperses high-frequency energy across a wide angle more gradually than a hard dome, producing a broader and more consistent coverage pattern at high frequencies — a characteristic that makes the CS605 well-suited to rooms where listeners occupy multiple positions across a wide area rather than a single focused sweet spot. Ferrofluid fills the voice coil gap and conducts heat away from the voice coil and into the magnet structure, reducing thermal compression at sustained power levels and extending reliable tweeter life at higher continuous output. The 6½-inch woofer uses a black polypropylene cone with a stamped steel basket and foam surround, suited to background music output levels in living rooms, corridors, and commercial listening environments.

First-Order Crossover, Open-Back Design, and Installation

The CS605 uses a first-order high-pass crossover for the tweeter — a single capacitor that rolls off the tweeter's signal below the crossover frequency at approximately 6dB per octave. This is a simpler crossover topology compared to the 4th-order Linkwitz-Riley crossovers used in PSB's CS650 and CS610 models. The first-order filter produces a gentler rolloff slope and a broader transition band between the woofer and tweeter operating ranges, which complements the textile dome's wide dispersion by blending the two drivers across a larger frequency window. The woofer operates without a dedicated low-pass crossover filter, handling the full signal below the tweeter's high-pass rolloff. The dogleg mounting system clamps to ceiling drywall from the front after insertion through the 8⅜-inch (212mm) cutout. A cutting template is included for marking the ceiling cutout. The magnetic round frameless grille installs without visible hardware. Pre-construction brackets and backcans are available for new construction installations before drywall is applied.

Specifications

Frequently Asked Questions

What is a treated textile dome tweeter and how does it differ from an aluminum dome?

A treated textile dome tweeter uses a woven fabric diaphragm coated with a polymer or resin compound that stiffens the fabric and controls its resonant behavior. The textile dome is a soft dome — it flexes when it reaches its mechanical limits rather than ringing like a rigid material would. Aluminum dome tweeters, used in PSB's CS610 and CS650, are hard domes — stiffer and lighter per unit area, with a higher breakup frequency that keeps the dome behaving as a rigid piston to higher frequencies before the dome begins to flex unevenly. Aluminum domes tend to produce a brighter high-frequency presentation and more precise imaging at the cost of a narrower dispersion angle at high frequencies. Textile domes produce a warmer high-frequency character and a wider off-axis dispersion pattern that distributes high-frequency energy more evenly across the room. The CS605's textile dome is suited to whole-home audio zones and commercial background music applications where broad, even coverage is the design goal. The CS610 and CS650 aluminum domes are better suited to home theater or dedicated listening room installations where focused imaging is preferred.

What is a first-order high-pass crossover and how does it affect the CS605?

A first-order high-pass crossover is a single-capacitor filter placed in series with the tweeter that attenuates signals below the crossover frequency at a rolloff rate of 6dB per octave. For every halving of frequency below the crossover point, the tweeter's signal is reduced by 6dB. This is the simplest crossover topology — one component, the lowest parts cost, and the least insertion loss. The CS605's woofer operates without a dedicated low-pass crossover filter, so it runs full-range from the amplifier output with the tweeter's high-pass filter providing a gradual reduction of overlap between the two drivers. The 6dB-per-octave slope produces a wider, more gradual transition band between where the woofer and tweeter are each contributing, which in practice means both drivers are active simultaneously across a broad frequency range around the crossover point. For background music reproduction at moderate listening levels, this broad transition produces a smooth, continuous tonal response across the room. Higher-order crossovers like the 4th-order Linkwitz-Riley (LR4) in the CS610 and CS650 provide steeper rolloff and better driver protection at high power levels, but add cost and complexity appropriate to more demanding listening applications.

Why does the CS605 use a foam surround instead of rubber?

Foam surrounds are less expensive to manufacture than rubber surrounds and provide a compliant woofer suspension well-suited to normal residential listening levels and typical indoor environments. The trade-off is longevity in extreme conditions: foam surrounds can degrade, dry out, and crack over time when exposed to ultraviolet light, very high humidity, or wide temperature cycling — all conditions more common in outdoor or semi-outdoor installations than in a conditioned indoor ceiling. PSB's CS650, CS630, CS610, and outdoor CS500/CS1000 models use rubber surrounds for longer service life across a wider range of environmental conditions. The CS605's foam surround is appropriate for standard conditioned interior ceiling installation in homes and commercial spaces where temperature and humidity are controlled. For any installation in an unheated garage, sunroom, or covered patio with significant temperature variation, PSB's rubber-surround in-ceiling models are a better long-term choice.

What wide-dispersion applications is the CS605 best suited for?

The CS605 is designed for listening environments where multiple people are distributed across the room rather than seated at a focused sweet spot, and where background music reproduction — rather than critical stereo imaging — is the primary goal. Common applications include: whole-home audio zones in living rooms, kitchens, dining rooms, and hallways; retail and restaurant background audio where one or two speakers per zone must cover a wide floor area; office or waiting room audio; and residential multi-room distributed audio systems driven by a whole-home audio matrix or streaming amplifier. The textile dome tweeter's wider dispersion minimizes the high-frequency drop-off that occurs when a listener is not directly on-axis below the speaker, producing a more consistent tonal balance across the room. For dedicated home theater use, critical stereo listening, or installations requiring high output levels and precise imaging, PSB's CS610 or CS650 with their aluminum dome tweeters and higher-order crossovers are more appropriate choices.

How does the CS605 compare to the CS610?

The CS605 and CS610 share the same 8⅜-inch cutout and 4½-inch mounting depth, making them interchangeable in an existing ceiling cutout. Key differences: the CS610 uses a carbon-filled polypropylene cone with rubber surround and a ¾-inch aluminum dome tweeter with ferrofluid, Wave Guide, ball-joint pivot mount, and a tweeter level switch; the CS605 uses a standard black polypropylene cone with foam surround and a ¾-inch textile dome tweeter with ferrofluid and a first-order high-pass crossover. The CS610 has a more sophisticated crossover and adjustable tweeter aiming; the CS605 is simpler, lighter (4.6 lb vs no published weight for the CS610), and focused on wide-dispersion coverage. For background music zones where even coverage across the room is the priority, the CS605's textile dome and first-order crossover serve well. For home theater, critical listening rooms, or installations where the tweeter needs to be aimed at an off-axis listening position, the CS610's ball-joint pivot, Wave Guide, and aluminum dome make it the stronger choice.

Does the CS605 include a square grille option?

No. The CS605 includes a round magnetic frameless white grille only. PSB's specifications for the CS605 list the round grille diameter at 9⁷⁄₁₆ inches (240mm) and do not include a square grille option. If a square ceiling grille appearance is required for aesthetic consistency with surrounding ceiling details or tile grid layouts, PSB's CS610 or CS650 models include both round and square grille options at the same 8⅜-inch cutout size. All three models are interchangeable in the same ceiling cutout, so upgrading from a CS605 to a CS610 or CS650 does not require a new cutout.
