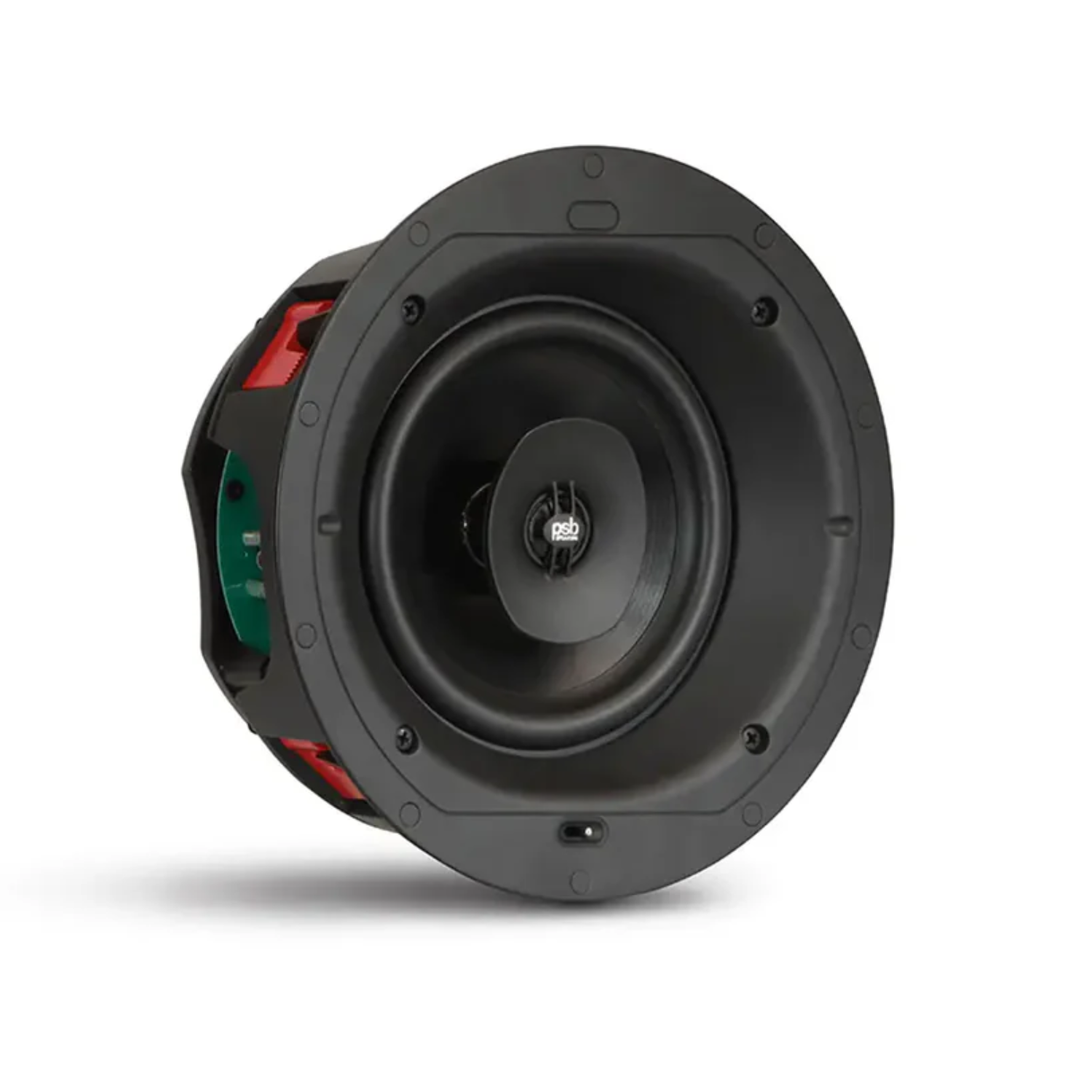

PSB CS610 6-Inch In-Ceiling Speaker

PSB CS610 6-Inch In-Ceiling Speaker at Vinyl Sound Buffalo NY

The PSB CS610 is a 6½-inch in-ceiling speaker built around a carbon-filled polypropylene cone woofer with rubber surround and a ¾-inch aluminum dome tweeter with ferrofluid cooling, Wave Guide, and a ball-joint pivot mount. Available at Vinyl Sound in Buffalo, New York, the CS610 is engineered for high-performance architectural audio in home theaters, whole-home audio zones, and large open-plan living areas where ceiling installation is preferred. The carbon-filled polypropylene cone delivers a warm and well-balanced low-frequency response, and the high-temperature voice coil provides robust power handling across the 10–100 watt recommended operating range. The ferrofluid-cooled tweeter reduces thermal compression at high output levels, while the Wave Guide focuses tweeter dispersion to produce a smoother crossover transition and broader off-axis response. A ball-joint pivot mount allows the tweeter to be aimed in any direction post-installation, directing high-frequency energy toward the primary listening position regardless of where the speaker is positioned in the ceiling. A tweeter level switch allows the installer to fine-tune the upper-frequency output to match the acoustic characteristics of the room after installation. The CS610 delivers a frequency response of 50Hz to 20,000Hz (±3dB) at 85dB anechoic sensitivity into a nominal 8-ohm load. The open-back design uses the ceiling plenum as the acoustic volume. Both round (9⁷⁄₁₆") and square (9⁷⁄₁₆" × 9⁷⁄₁₆") magnetic frameless grilles are included. The CS610 is part of Vinyl Sound Buffalo's full speaker collection, which includes in-ceiling, in-wall, outdoor, powered, and floorstanding speakers from leading audio brands.

Carbon-Filled Polypropylene Woofer and Ferrofluid Tweeter with Wave Guide

The CS610's 6½-inch woofer uses a carbon-filled polypropylene cone — a composite material in which carbon particles are dispersed throughout the polypropylene matrix during the injection moulding process. The carbon fill increases the cone's stiffness-to-mass ratio compared to unfilled polypropylene, shifting cone breakup resonances higher in frequency and reducing coloration in the upper woofer operating range. The rubber surround provides a long-service, UV-stable suspension that maintains consistent mechanical compliance over time in the ceiling environment. The high-temperature voice coil is wound to handle sustained power without adhesive softening or former deformation at elevated temperatures, supporting the full 100-watt upper power handling limit. The ¾-inch aluminum dome tweeter is loaded with ferrofluid — a magnetically suspended colloidal liquid that fills the gap between the voice coil and the pole piece. Ferrofluid improves heat transfer away from the voice coil by conducting thermal energy into the magnet structure, reducing the power compression that occurs when a tweeter's voice coil heats up under sustained high-frequency output. The Wave Guide is a shaped acoustic lens surrounding the tweeter dome that controls the dispersion pattern and extends the tweeter's useful output bandwidth, smoothing the transition into the crossover frequency range for a more seamless woofer-to-tweeter blend.

Ball-Joint Pivot Tweeter, Tweeter Level Switch, and Installation

The CS610's ball-joint pivot mount is a swivel assembly that allows the tweeter to be tilted in any direction independently of the woofer and speaker baffle. Unlike a simple rotating baffle that repositions the tweeter by rotating the entire speaker assembly, the ball-joint permits true angular offset — the tweeter can be aimed toward a seating position that is to the side of, or angled away from, the ceiling cutout center axis, without changing the orientation of the woofer or speaker body. This is particularly useful in room configurations where the speaker must be placed near a wall due to joist spacing, but the listening position is across the room from that wall rather than directly below the ceiling cutout. The tweeter level switch provides a post-installation EQ trim for the upper-frequency output, allowing the installer to adjust the high-frequency balance to compensate for rooms with hard reflective surfaces (lower tweeter output setting) or heavily damped rooms with thick carpet and soft furnishings (higher tweeter output setting). The dogleg mounting system clamps to ceiling drywall from the front after insertion through the 8⅜-inch (212mm) cutout at a mounting depth of 4½ inches. Pre-construction brackets and acoustic backcans are available separately for new construction installation before drywall is applied.

Specifications

Frequently Asked Questions

What is the ball-joint pivot tweeter on the CS610 and why does it matter?

The ball-joint pivot mount is a swivel assembly that allows the CS610's tweeter to be physically tilted in any direction independently of the woofer and the speaker baffle. Standard in-ceiling speakers with rotating baffles allow the entire speaker body — tweeter and woofer together — to be rotated around the cutout axis, which only changes the tweeter's position relative to room features in one rotational plane. The CS610's ball-joint allows true angular offset in any direction: the tweeter dome can be aimed toward a sofa that is across the room from the ceiling cutout, toward a kitchen island off-axis from the speaker's center, or angled to cover a wide listening zone in an open-plan area. This flexibility is most useful when joist spacing or ceiling layout forces the speaker into a position that is not directly above the primary listening area — the ball-joint corrects the off-axis alignment at the tweeter level without relocating the speaker.

What does the Wave Guide on the CS610 tweeter do?

The Wave Guide is a shaped acoustic lens or horn structure surrounding the CS610's ¾-inch tweeter dome. It serves two primary functions. First, it controls the dispersion angle of the tweeter — the Wave Guide shapes the high-frequency radiation pattern to maintain a wider coverage area as frequency increases, reducing the "beaming" effect where an unguided dome tweeter's output narrows to a tight cone at very high frequencies. Second, the Wave Guide acoustically couples the tweeter dome to the woofer's radiation at the crossover frequency, extending the tweeter's useful low-frequency output lower and smoothing the amplitude and phase transition between the woofer and tweeter. The result is a more seamless blend through the crossover region, reducing audible coloration at the handoff between the two drivers.

What does the tweeter level switch do?

The tweeter level switch is a physical selector switch on the CS610 that adjusts the high-frequency output level of the tweeter relative to the woofer. Rooms vary significantly in their acoustic treatment — a room with hard tile floors, plaster walls, and glass surfaces reflects high-frequency energy back into the listening area and can make a speaker sound bright or sharp. A room with thick carpet, upholstered furniture, and acoustic panels absorbs high-frequency energy and can make the same speaker sound muffled. The tweeter level switch allows the installer to lower tweeter output in a bright room or raise it in a damped room, compensating for these room-specific acoustic differences after the speaker is installed and the listening environment is evaluated. This adjustment is made without any electronic equalizer or amplifier EQ — it is a passive level adjustment within the speaker's crossover network.

What is the difference between carbon-filled and fiber-filled polypropylene cones?

Both carbon-filled and fiber-filled polypropylene are composite cone materials created by adding reinforcing particles or fibers to the polypropylene matrix during injection moulding. Fiber-filled polypropylene — used in PSB's CS650 and CS630 — incorporates glass or synthetic fibers that increase stiffness and damp internal cone resonances. Carbon-filled polypropylene — used in the CS610 — incorporates carbon particles that similarly increase stiffness but with a different density, damping profile, and surface texture. Carbon-filled cones tend to offer a higher stiffness-to-mass ratio at equivalent fill percentages, pushing the first cone breakup resonance higher in frequency. In practice, both materials produce durable, temperature-stable cones suitable for ceiling installation environments. The specific sonic character difference between the two in the CS610 versus CS650 application is subtle and speaker-system-dependent — the crossover tuning, enclosure, and tweeter selection contribute more to the overall tonal balance than the cone fill material alone.

How does the CS610 compare to the CS650?

The CS610 and CS650 share the same 8⅜-inch cutout diameter and 4½-inch mounting depth, making them interchangeable in an existing ceiling cutout. Both use a 6½-inch polypropylene cone with rubber surround and an open-back design. Key differences: the CS650 uses a 1-inch titanium dome tweeter without a Wave Guide or ball-joint, and its sensitivity is 86dB anechoic; the CS610 uses a ¾-inch aluminum dome tweeter with ferrofluid cooling, a Wave Guide, and a ball-joint pivot mount at 85dB anechoic sensitivity. The CS610 adds a post-installation tweeter level switch that the CS650 does not have, and the CS610 uses carbon-filled polypropylene while the CS650 uses fiber-filled. Choose the CS650 if titanium dome construction and a larger tweeter dome diameter are priorities; choose the CS610 if a steerable ball-joint tweeter, Wave Guide dispersion control, ferrofluid cooling, and post-installation tweeter level trim are the deciding features.

Can the CS610 use a backcan or pre-construction bracket?

Yes. PSB offers pre-construction brackets and acoustic backcans compatible with the CS610 series for new construction installations where the ceiling framing is accessible before drywall is applied. Pre-construction brackets are mounted to joists before drywall, positioning the speaker cutout location precisely and providing a secure mounting point without relying on drywall clamping. Acoustic backcans are enclosures installed behind the speaker that isolate the ceiling plenum from the speaker's rear acoustic output, which can reduce sound transmission between adjacent rooms sharing a ceiling and improve bass definition by controlling the effective acoustic volume behind the woofer. Contact Vinyl Sound Buffalo for current availability and compatibility of backcans and pre-construction brackets for the CS610.

Where to buy PSB CS610 in-ceiling speakers in Buffalo NY?

The PSB CS610 is available from Vinyl Sound, an authorized PSB Speakers dealer in Buffalo, New York. Vinyl Sound also carries the CS650, CS630, CS850, CS810, and CS805 for customers comparing PSB in-ceiling speaker options across different room sizes and budget ranges. Free shipping is available across the continental United States. Contact Vinyl Sound Buffalo by phone or email to purchase the CS610 or discuss which PSB in-ceiling model fits your installation.
