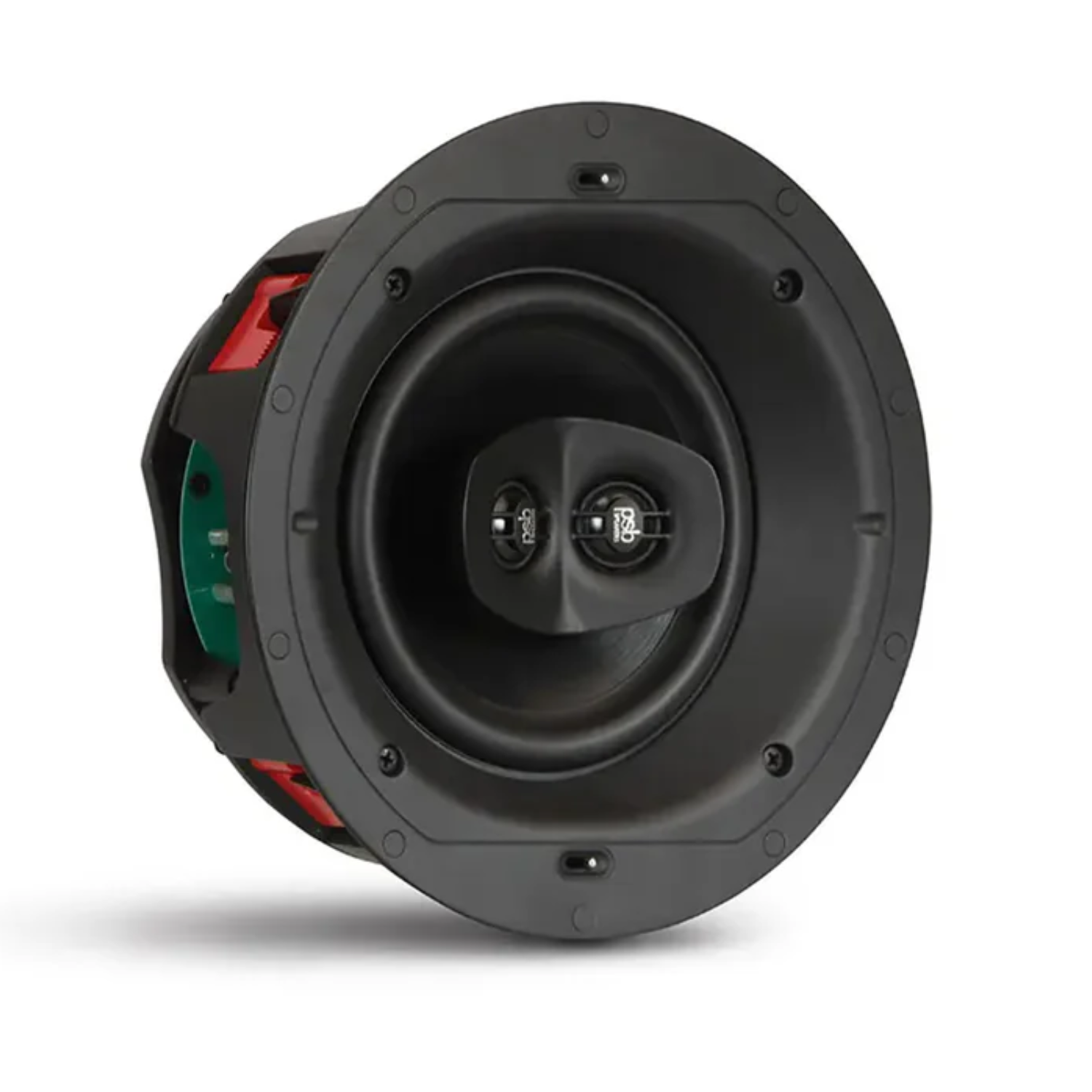

PSB CS630 Stereo In-Ceiling Speaker

PSB CS630 Stereo In-Ceiling Speaker at Vinyl Sound Buffalo NY

The PSB CS630 is a stereo in-ceiling speaker that delivers both left and right audio channels from a single ceiling cutout, using a dual voice coil 6½-inch fiber-filled polypropylene cone woofer and two separate ¾-inch black anodized aluminum dome tweeters — one per stereo channel. Available at Vinyl Sound in Buffalo, New York, the CS630 is designed for hallways, bathrooms, kitchens, and other compact spaces where placing two separate single-channel in-ceiling speakers is impractical but stereo playback is desired. A 2,100Hz Linkwitz-Riley 4th-order (LR4) crossover manages the woofer-to-tweeter transition at 24dB per octave rolloff. The entire tweeter array and woofer assembly can be rotated post-installation to aim each tweeter toward a different listening position within the room, adjusting the stereo image without changing the mounting point. The frequency response spans 50Hz to 20,000Hz (±3dB) at 85dB anechoic sensitivity into a nominal 8-ohm load per stereo channel. The open-back design uses the ceiling plenum as the acoustic chamber. The 8⅜-inch (212mm) round cutout is the same diameter as the CS650, with both round and square magnetic frameless grilles included. The CS630 is part of Vinyl Sound Buffalo's full speaker collection, which includes in-ceiling, in-wall, outdoor, powered, and floorstanding speakers from leading audio brands.

Dual Voice Coil Woofer and Two-Tweeter Stereo Design

The CS630's stereo architecture places both left and right channels into one speaker body. The 6½-inch woofer contains a dual voice coil — two separate voice coils wound on the same former, each connected to one stereo amplifier channel. Each voice coil drives the same physical cone simultaneously, meaning both stereo channels share a single woofer cone for low-frequency reproduction. This is acoustically appropriate because bass frequencies below approximately 150–200Hz are non-directional — human hearing cannot localize the source of low-frequency sound — so sharing one woofer cone between left and right channels produces no perceptible loss of stereo bass imaging. Above the 2,100Hz crossover, each stereo channel drives its own dedicated ¾-inch aluminum dome tweeter for the high-frequency range where human hearing is directionally sensitive. The two black anodized aluminum dome tweeters are mounted within the speaker's rotating assembly, allowing them to be aimed at different parts of the room after installation for the widest possible stereo spread from a single ceiling position.

Rotating Tweeter Array, LR4 Crossover, and Installation

The CS630's tweeter array and woofer assembly rotate within the ceiling cutout frame after installation, allowing the installer to aim each tweeter in a direction suited to the room geometry and intended listening positions. Because the two tweeters are separated within the speaker body and can be rotated together or aimed at angles diverging from the ceiling centerline, the stereo image width can be adjusted to match the width of the room or the distance between listening positions. The fiber-filled injection-moulded polypropylene cone with rubber surround provides a durable, consistent woofer suspension that matches the CS650's woofer specification — the rubber surround resists UV degradation and humidity cycling longer than foam surrounds used in PSB's 8-inch CS series models. The dogleg mounting system secures the CS630 to drywall from the front face after insertion through the 8⅜-inch (212mm) cutout. Both round (9⁷⁄₁₆" diameter) and square (9½") magnetic frameless grilles are included.

Specifications

Frequently Asked Questions

What is a stereo in-ceiling speaker and how does the CS630 work?

A conventional in-ceiling speaker is a single-channel (mono) speaker — one unit reproduces either the left or the right stereo channel, and two units are needed for stereo playback. A stereo in-ceiling speaker like the CS630 reproduces both left and right channels from a single ceiling cutout. The CS630 achieves this with a dual voice coil woofer that connects each stereo channel to its own voice coil on the same woofer cone, and two separate aluminum dome tweeters — one per stereo channel — that can be aimed in different directions within the room. The result is a stereo speaker pair within a single ceiling cutout, connected to left and right amplifier outputs exactly as two separate speakers would be.

What is a dual voice coil woofer?

A dual voice coil woofer contains two separate voice coils wound on the same former, both driving the same physical cone. In a stereo in-ceiling application like the CS630, each voice coil receives one stereo channel's signal from the amplifier. Both voice coils drive the same cone simultaneously, so the woofer reproduces the combined bass content of both channels from a single driver. This works without perceptible loss of stereo imaging because bass frequencies below approximately 150–200Hz are non-directional — the human auditory system cannot determine the location of a low-frequency sound source at close range, so sharing one woofer cone between left and right channels produces no audible change in stereo bass perception. Above 2,100Hz, each channel drives its own dedicated tweeter for directional high-frequency reproduction.

How does the CS630 compare to the CS650?

The CS630 and CS650 share the same 8⅜-inch cutout, 4½-inch mounting depth, and 6½-inch fiber-filled polypropylene cone with rubber surround. The CS630 is a stereo speaker with a dual voice coil woofer and two aluminum dome tweeters; the CS650 is a single-channel speaker with one titanium dome tweeter and a single voice coil woofer. The CS650 has 1dB higher sensitivity (86dB vs 85dB) and a lower crossover at 1,800Hz (vs CS630's 2,100Hz). The CS630's crossover is higher because sharing a woofer between two channels at higher frequencies produces more coloration, so the crossover to the dedicated per-channel tweeters occurs sooner. Choose the CS630 for hallways, bathrooms, and spaces where a single cutout must serve both stereo channels; choose the CS650 for any installation where two separate cutouts are practical and higher sensitivity or a more natural crossover point is preferred.

In what rooms is a stereo in-ceiling speaker most useful?

The CS630 is most practical in rooms where the ceiling geometry, joist spacing, or room width makes it impractical to place two separate speakers on either side of the listening area for a conventional stereo pair. Common applications include narrow hallways where the ceiling is too narrow to position speakers at useful left-right separation, bathrooms where a single ceiling position is all that is available, kitchens where a single central speaker location above an island or counter is preferred, and small utility rooms or closets connected to a whole-home audio system. In any room where a single speaker position must serve as the sole audio source and stereo playback is desired, the CS630 provides two-channel stereo from a single 8⅜-inch hole.

Can I rotate the tweeters on the CS630 after installation?

Yes. The CS630's entire internal assembly — including both aluminum dome tweeters and the woofer — rotates within the ceiling cutout frame after the speaker is installed and the doglegs are secured. Rotating the assembly changes the orientation of the two tweeters relative to the room, allowing the installer to aim the left tweeter toward one side of the room and the right tweeter toward the other for the widest possible stereo spread from the single ceiling position. This adjustment is made after drywall installation from below, without removing the speaker or accessing the ceiling cavity. The grille is removed, the assembly is rotated to the desired orientation, and the grille is reattached.

What impedance does the CS630 present to the amplifier?

The CS630 presents 8 ohms nominal per stereo channel to the amplifier — the left amplifier channel drives the left voice coil and left tweeter at 8 ohms, and the right amplifier channel drives the right voice coil and right tweeter at the same 8 ohms independently. Each amplifier channel is wired to its own dedicated voice coil and tweeter, so the CS630 connects to a stereo amplifier exactly as two separate 8-ohm speakers would — left output to left CS630 terminals, right output to right CS630 terminals. No special wiring or bridging is required. If multiple CS630 speakers are installed in the same zone, standard series or parallel multi-speaker wiring rules apply per channel.

Where to buy PSB CS630 stereo in-ceiling speakers in Buffalo NY?

The PSB CS630 is available from Vinyl Sound, an authorized PSB Speakers dealer in Buffalo, New York. Vinyl Sound also carries the CS650 single-channel in-ceiling speaker for installations where two separate cutouts are practical. Free shipping is available across the continental United States. Contact Vinyl Sound Buffalo by phone or email to purchase the CS630 or compare it with other PSB in-ceiling speaker models for your installation.
