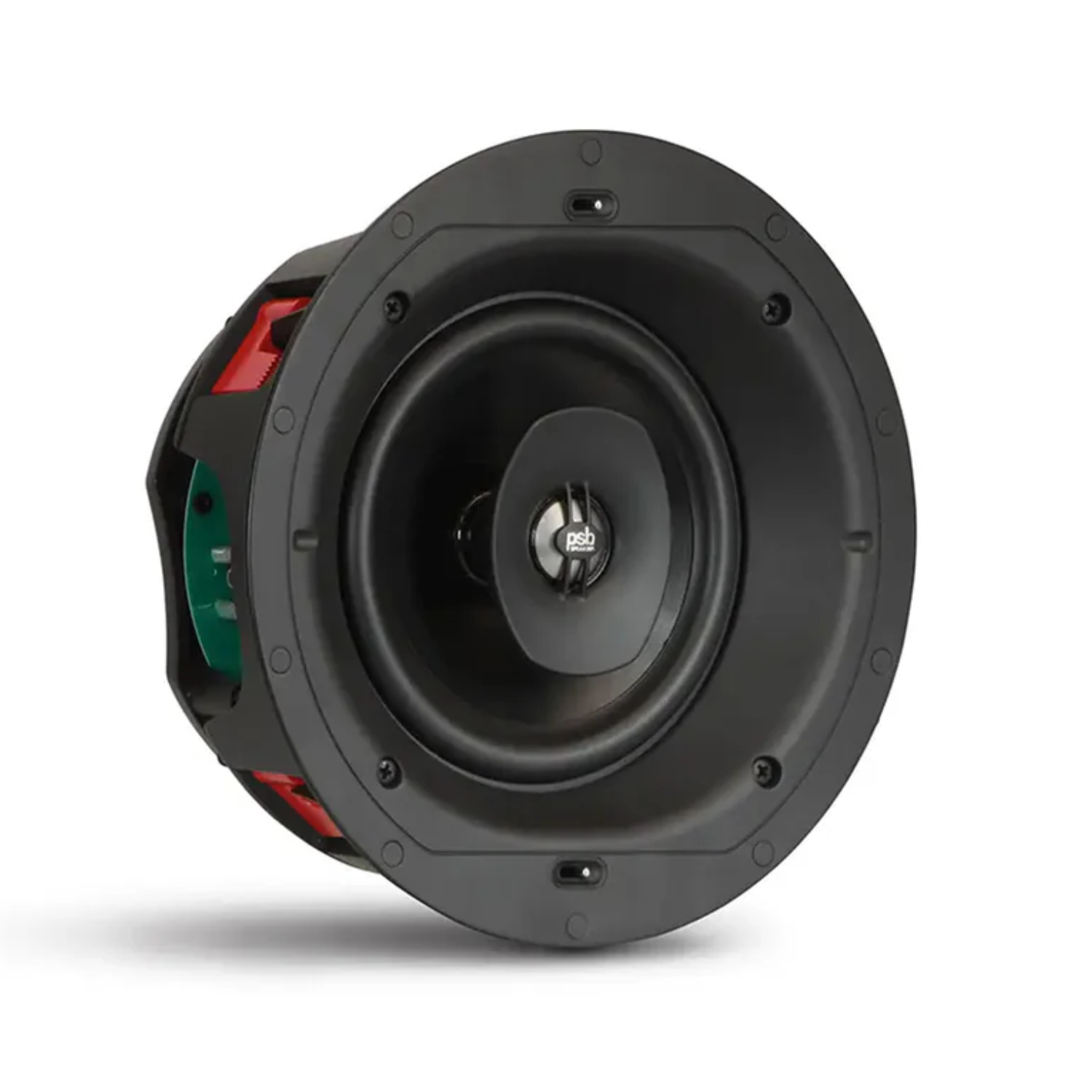

PSB CS650 6" In-Ceiling Speaker

PSB CS650 6" In-Ceiling Speaker at Vinyl Sound Buffalo NY

The PSB CS650 is the flagship model of the CS600 in-ceiling speaker series, built around a 6½-inch fiber-filled injection-moulded polypropylene cone woofer with a rubber surround and a 1-inch ferrofluid-cooled titanium dome tweeter with an indexed wave guide, all integrated with a 1,800Hz Linkwitz-Riley 4th-order (LR4) crossover. Available at Vinyl Sound in Buffalo, New York, the CS650 delivers a frequency response of 48Hz to 20,000Hz (±3dB) at 86dB anechoic sensitivity into a nominal 8-ohm load, accepting 10–100 watts of recommended amplifier power. The 1,800Hz crossover is lower than the 3,100Hz crossover used in PSB's 8-inch in-ceiling models, allowing the 6½-inch woofer to handle the midrange frequency range — where vocal and instrument clarity is most critical — with its smaller, more controlled cone rather than passing those frequencies to the tweeter at a higher crossover point. The wave guide tweeter rotates on an indexed axis for listener-directed high-frequency aiming. Pre-construction brackets and backcans are available as accessories for new-construction and fire-rated ceiling installation requirements. Cutting templates are included. Both round (9⁷⁄₁₆") and square (9½") magnetic frameless grilles are included. The CS650 is part of Vinyl Sound Buffalo's full speaker collection, which includes in-ceiling, in-wall, outdoor, powered, and floorstanding speakers from leading audio brands.

6.5" Fiber-Filled Woofer, Rubber Surround, and 1,800Hz LR4 Crossover

The CS650's 6½-inch woofer uses a fiber-filled polypropylene cone on an injection-moulded basket with a rubber surround. The fiber filling reinforces the polypropylene cone matrix, increasing stiffness and internal damping compared to standard polypropylene — the same design principle applied in PSB's Imagine T3 floorstanding speaker, from which the CS650's woofer technology is derived. The rubber surround provides a more durable, UV-stable cone suspension than the foam surrounds used in the CS805, CS810, and CS850, maintaining consistent compliance characteristics over a longer service life in environments with temperature cycling and humidity variation common in residential ceiling spaces. The 1,800Hz LR4 crossover transitions from woofer to tweeter at 6dB per octave lower than in the 8-inch models, keeping the critical 1–3kHz range — where sibilance, consonant intelligibility, and instrument attack transients are most audible — within the woofer's operating band rather than splitting it across the crossover frequency. This produces more coherent midrange reproduction than a higher crossover point on a 6.5-inch driver.

Indexed Wave Guide Tweeter, Accessories, and Installation

The CS650's 1-inch titanium dome tweeter mounts in a wave guide that rotates on an indexed pivot, allowing the installer to aim the tweeter's high-frequency axis at the primary listening position after the speaker is installed through the ceiling cutout. The indexed adjustment locks the tweeter into discrete calibrated positions, providing tactile confirmation that the aim angle is set and secured. The wave guide itself controls high-frequency dispersion, narrowing the radiation pattern at high frequencies for more focused delivery to the listening position and reduced ceiling reflection energy. Pre-construction brackets are available to mount the CS650's rough-in frame before drywall is applied in new-construction projects, eliminating the need to locate ceiling joists and cut through finished drywall after construction is complete. Optional backcans — rear acoustic enclosures — are available for fire-rated ceiling assemblies and attic-adjacent installations where consistent acoustic loading independent of the ceiling cavity is required. The 8⅜-inch (212mm) cutout is smaller than the 9¾-inch cutout shared by PSB's 8-inch in-ceiling models, fitting between standard 16-inch on-center stud spacing with less cavity depth requirement at 4½ inches (114mm).

Specifications

Frequently Asked Questions

What makes the CS650 the flagship of the CS600 series?

The CS650 is the top model in PSB's CS600 6.5-inch in-ceiling speaker range, distinguishing itself from the other CS600 models with a fiber-filled injection-moulded polypropylene cone woofer derived from the Imagine T3 floorstanding speaker's driver technology, a rubber surround (more durable than foam), and an indexed wave guide tweeter that allows precise high-frequency aiming. It delivers 86dB sensitivity, 1dB higher than the entry CS600 model, and a 1,800Hz LR4 crossover that keeps more of the midrange band within the woofer's operating range for better imaging and clarity than higher crossover points used in lower-tier in-ceiling designs. The combination of premium driver materials, Imagine T3 technology derivation, and indexed tweeter adjustment places the CS650 at the top of the 6.5-inch PSB ceiling speaker lineup.

How does the CS650 compare to the 8" CS850?

The CS650 uses a 6½-inch woofer in a smaller 8⅜-inch cutout, while the CS850 uses an 8-inch woofer in a larger 9¾-inch cutout. Both deliver 48–86dB sensitivity and extend to 20,000Hz at the top, and both use a titanium dome tweeter and LR4 crossover. The CS850's 8-inch woofer provides more low-frequency output and reaches 45Hz (±3dB) vs the CS650's 48Hz, and its 3,100Hz crossover differs from the CS650's lower 1,800Hz. The CS650's lower crossover frequency keeps more of the vocal midrange within the 6.5-inch woofer's operating range, which can provide better midrange imaging in that frequency zone. The CS650's rubber surround is more durable than the CS850's foam surround. Choose the CS850 for maximum bass output from a larger driver; choose the CS650 where ceiling cavity size or cutout diameter limits the installation to a 6.5-inch speaker, or where better midrange imaging from the lower crossover frequency is a priority.

Why does the CS650 have a lower crossover frequency than the 8" PSB models?

The CS650's 1,800Hz LR4 crossover is set lower than the 3,100Hz used in the CS810 and CS850 because a 6.5-inch woofer maintains better pistonic behavior to higher frequencies than an 8-inch woofer. As a woofer cone increases in diameter, the upper frequency at which it begins to flex and produce cone breakup distortion decreases. A smaller 6.5-inch cone can reproduce 1,800–3,000Hz with better linearity than an 8-inch cone, allowing the crossover to the tweeter to occur lower in the frequency band. Placing the crossover at 1,800Hz rather than 3,100Hz means the woofer handles more of the critical midrange range — including fundamental vocal frequencies and instrument attack transients between 1,000Hz and 1,800Hz — where the smaller cone's better upper-range behavior produces cleaner, more accurate sound than if those frequencies were near the crossover transition point.

What is the benefit of a rubber surround compared to a foam surround?

A woofer surround connects the outer edge of the cone to the basket frame and provides the primary restoring force that returns the cone to its rest position after excursion. Rubber surrounds are physically more durable than foam surrounds — rubber resists UV degradation, humidity cycling, and oxidation over extended periods, maintaining its compliance and geometry for 20 or more years in normal environmental conditions. Foam surrounds are lighter and can provide slightly lower fundamental resonance (Fs) in some driver designs, but degrade more rapidly in UV-exposed or humid environments and typically require replacement after 10–15 years. In a ceiling installation where the speaker is accessible only by cutting through drywall, the CS650's rubber surround's longer service life before deterioration is a practical advantage over the foam surrounds used in the CS805, CS810, and CS850.

Are pre-construction brackets and backcans available for the CS650?

Yes. PSB offers optional pre-construction brackets for the CS650 that mount to ceiling joists before drywall installation, establishing the precise cutout location and depth reference without requiring template marking on finished drywall. This is standard practice in custom home installation where speakers are specified before construction completes. Optional acoustic backcans provide a sealed rear enclosure behind the CS650 when the open-back design cannot be used — required for fire-rated ceiling assemblies where plenary penetrations must be sealed, and recommended for attic-adjacent installations where temperature extremes would affect an open ceiling cavity. Contact Vinyl Sound Buffalo for availability and pricing on the pre-construction bracket and backcan accessories.

Does the CS650 use the same mounting hole as other PSB in-ceiling speakers?

No. The CS650 uses an 8⅜-inch (212mm) round cutout, which is smaller than the 9¾-inch (245mm) cutout shared by the CS805, CS810, CS850, and CS AIC 860. This means the CS650 cannot be swapped into existing 9¾-inch rough-in openings without enlarging the hole. The smaller cutout is an advantage in retrofit installations where ceiling joist spacing or existing conduit runs limit the available opening size, and in rooms with lower ceiling cavities where a 6.5-inch speaker's shallower driver stack fits where an 8-inch model would not. The CS650 requires 4½ inches (114mm) of mounting depth — slightly shallower than the CS810's 5 inches and deeper than the CS850's 4⅜ inches.

Where to buy PSB CS650 in-ceiling speakers in Buffalo NY?

The PSB CS650 is available from Vinyl Sound, an authorized PSB Speakers dealer in Buffalo, New York. Vinyl Sound also carries the CS850, CS810, and CS AIC 860 for customers comparing 6.5-inch and 8-inch in-ceiling options. Accessories including pre-construction brackets and backcans can be discussed at time of purchase. Free shipping is available across the continental United States. Contact Vinyl Sound Buffalo by phone or email to purchase or discuss ceiling installation requirements for your project.
