PSB Imagine T54 Tower Speakers

PSB Imagine T54 Tower Loudspeakers at Vinyl Sound Buffalo NY

The PSB Imagine T54 is a compact three-way tower loudspeaker from PSB's Imagine Series, offering full-range performance in one of the slimmest cabinet profiles available in its category at just 6¾" wide. Available at Vinyl Sound in Buffalo, New York, the T54 shares the dual bass reflex architecture and rear slot port design of the flagship Imagine T65, scaled into a lighter and narrower cabinet suited to smaller rooms, apartment living rooms, and home theatre systems where floorspace is limited. The T54 incorporates a 1" titanium dome tweeter with ferrofluid and neodymium magnet, a 4" woven carbon fibre midrange driver, and two 5¼" woven carbon fibre woofers in individual chambers with two rear-firing slot ports. Frequency response measures 35Hz to 23,000Hz (±3dB) with an LF cutoff of 28Hz (−10dB), sensitivity is 87dB anechoic (89dB in-room), and nominal impedance is 8 ohms. The Imagine T54 is part of Vinyl Sound Buffalo's full loudspeaker collection, which includes bookshelf, floorstanding, and centre channel speakers from leading audiophile brands.

Driver Configuration and Crossover Design

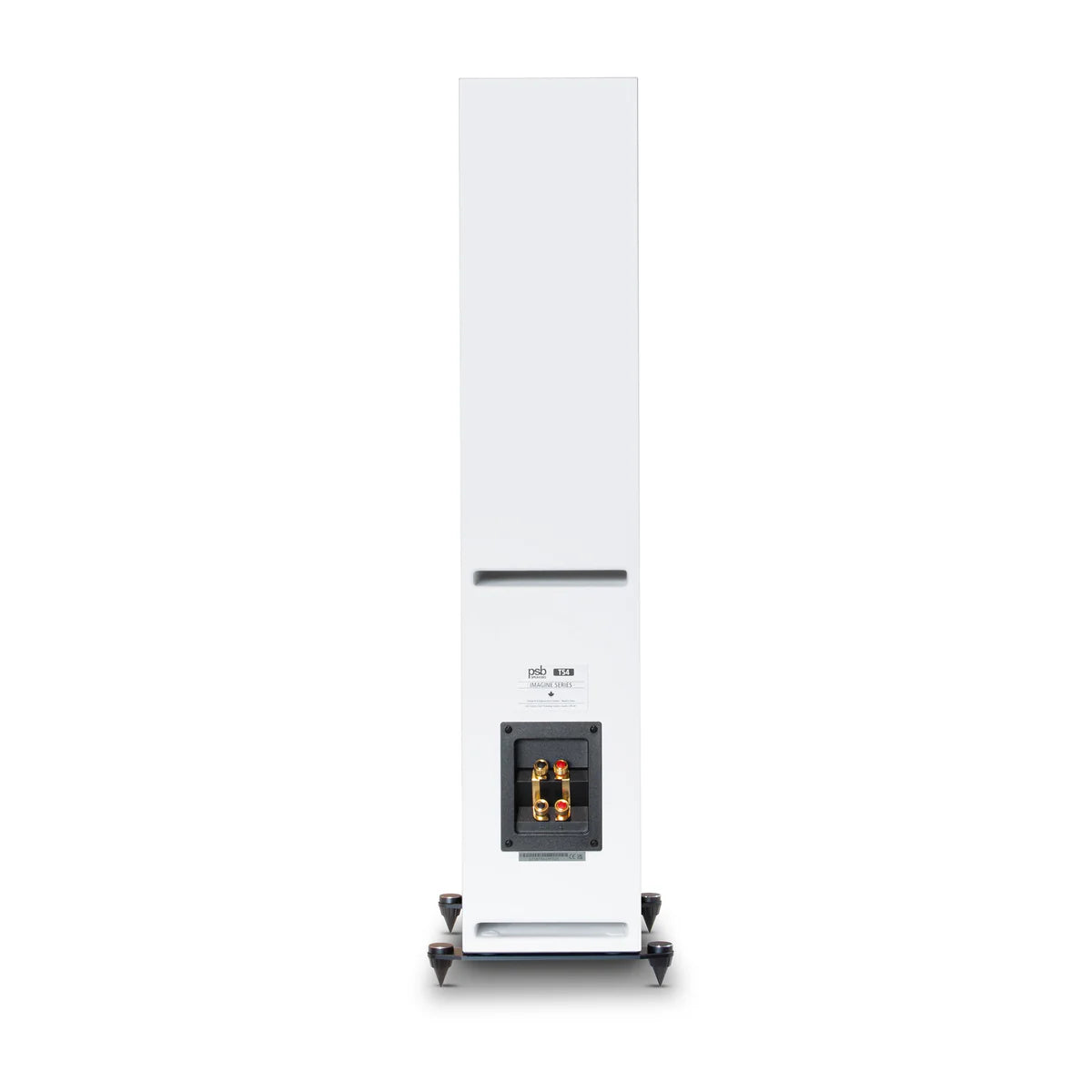

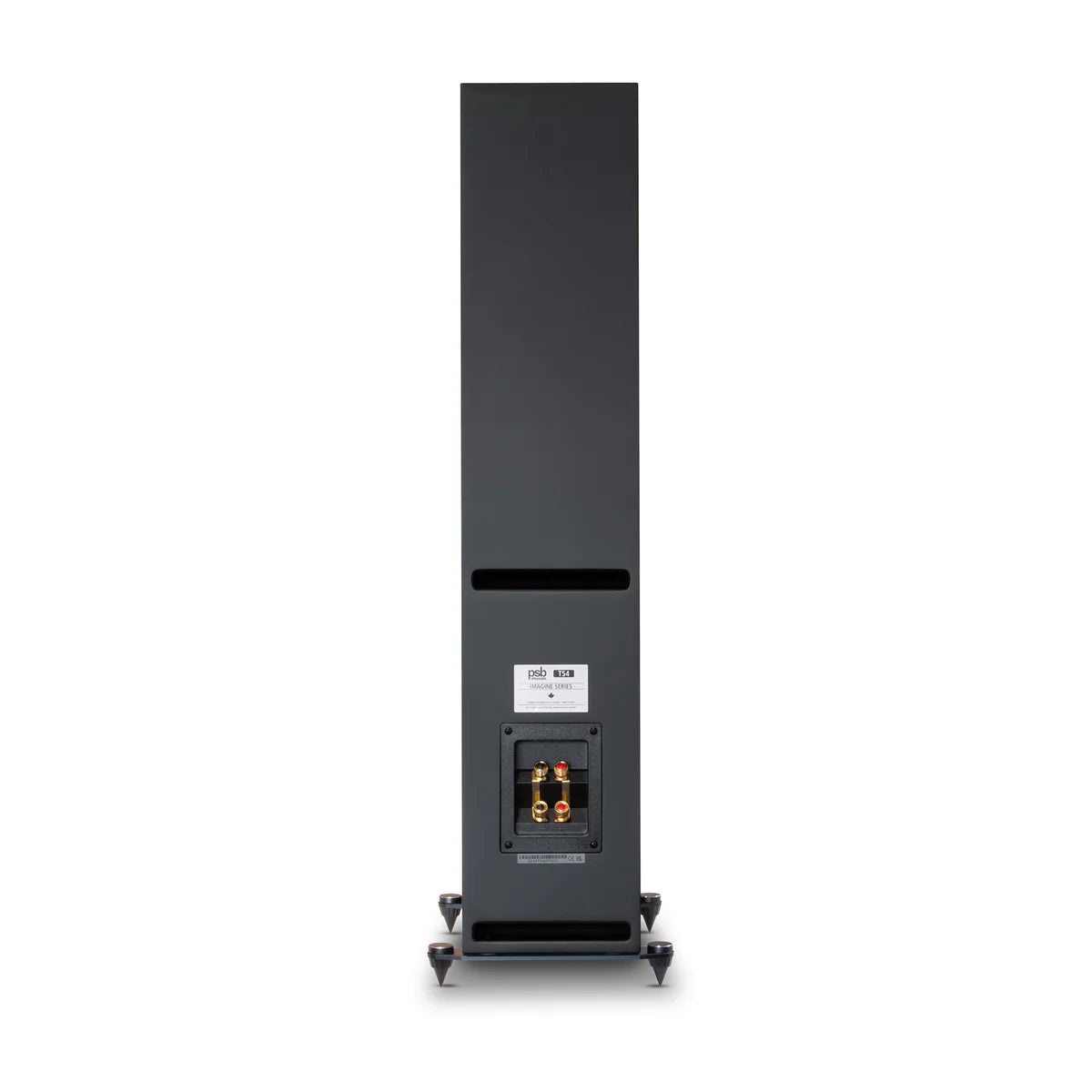

The PSB Imagine T54 uses a three-way driver configuration with crossover points at 500Hz (Butterworth 3rd-order) and 2,500Hz (Linkwitz-Riley 4th-order), optimized for the T54's driver sizes and cabinet volume. The 1" titanium dome tweeter with ferrofluid cooling and neodymium magnet handles reproduction above 2,500Hz. The 4" woven carbon fibre cone midrange driver with rubber surround covers the 500Hz to 2,500Hz vocal and instrument range. Two 5¼" woven carbon fibre cone woofers with rubber surrounds, each in a discrete individual internal chamber, extend bass output to 28Hz at −10dB via two rear-firing slot ports derived from PSB's PWM Series. Dual five-way gold-plated binding posts with included gold-plated jumpers support bi-wiring and bi-amplification. Aluminum outrigger bars with floor spikes are included for stability and floor decoupling.

Cabinet Design and Placement Flexibility

At 6¾" wide and 32 11/16" tall, the Imagine T54 is one of the slimmest three-way tower loudspeakers in its price category, making it well suited to rooms where the Imagine T65's wider cabinet would be difficult to accommodate. Despite its narrow profile, the T54's dual bass reflex design with two individual woofer chambers and twin rear slot ports delivers bass extension to 28Hz (−10dB), sufficient for full-range music listening without a subwoofer in most small to medium rooms. PSB describes the T54's placement adaptability as a core design goal, with driver and crossover tuning aimed at consistent frequency response across a range of room positions. The T54 is available in Satin Black and Satin White finishes with aluminum trim and chamfered edges, designed to complement PSB's PWM Series furniture.

Specifications

Frequently Asked Questions

What is the difference between the PSB Imagine T54 and Imagine T65?

The PSB Imagine T54 and T65 share the same dual bass reflex architecture and rear slot port design, but differ in driver size, cabinet dimensions, and bass extension. The T65 uses a 5¼" midrange and two 6½" woofers in a wider 8⅜" cabinet extending to 28Hz at ±3dB, while the T54 uses a 4" midrange and two 5¼" woofers in a slimmer 6¾" cabinet extending to 35Hz at ±3dB. The T65 is better suited to larger rooms requiring higher output and deeper bass, while the T54 is the preferred choice for smaller rooms and installations where a narrow cabinet profile is important.

What amplifier does the PSB Imagine T54 require?

PSB recommends 20 to 150 watts per channel for the Imagine T54. The nominal impedance is 8 ohms with a minimum of 4 ohms, making the T54 compatible with virtually all integrated amplifiers and AV receivers. The 87dB anechoic sensitivity (89dB in-room) is suitable for amplifiers from 30 watts upward in small to medium listening rooms.

Does the PSB Imagine T54 need a subwoofer?

The Imagine T54 extends to 35Hz at ±3dB and 28Hz at −10dB, providing deep bass for most music listening without a subwoofer in small to medium rooms. For home theatre applications requiring low-frequency effects below 30Hz, or for listeners in larger rooms who prefer maximum bass impact, adding a subwoofer is recommended. Vinyl Sound Buffalo carries compatible subwoofers and can advise on system integration.

Can the PSB Imagine T54 be used in a home theatre system?

Yes. The Imagine T54 is suited to both stereo and home theatre configurations. Its slim 6¾" width makes it practical for placement beside a television or in a constrained entertainment centre layout. PSB's Imagine Series includes matching centre channel and surround speakers for a complete multi-channel home theatre system. The T54's 8-ohm impedance is compatible with most AV receivers without requiring high-current amplification.

Can the PSB Imagine T54 be bi-wired?

Yes. The Imagine T54 includes dual five-way gold-plated binding posts and gold-plated jumpers, supporting bi-wiring and bi-amplification. Removing the jumpers and connecting separate cable runs or amplifier channels to the high-frequency and low-frequency binding post pairs allows independent signal routing to the tweeter and midrange/woofer sections of the crossover.

Can I audition the PSB Imagine T54 in Buffalo NY?

Yes. The PSB Imagine T54 is available for in-store demonstration at Vinyl Sound in Buffalo, New York. Vinyl Sound is an authorized PSB Speakers dealer serving Buffalo, NY and the Western New York region. Contact Vinyl Sound to arrange a listening session and system matching consultation.

Where to buy PSB Imagine T54 tower speakers in Buffalo NY?

The PSB Imagine T54 is available from Vinyl Sound, an authorized PSB Speakers dealer in Buffalo, New York. Vinyl Sound offers in-store demonstration, expert system matching, and shipping across the continental United States. Contact Vinyl Sound Buffalo by phone or email to purchase or arrange a listening appointment.
