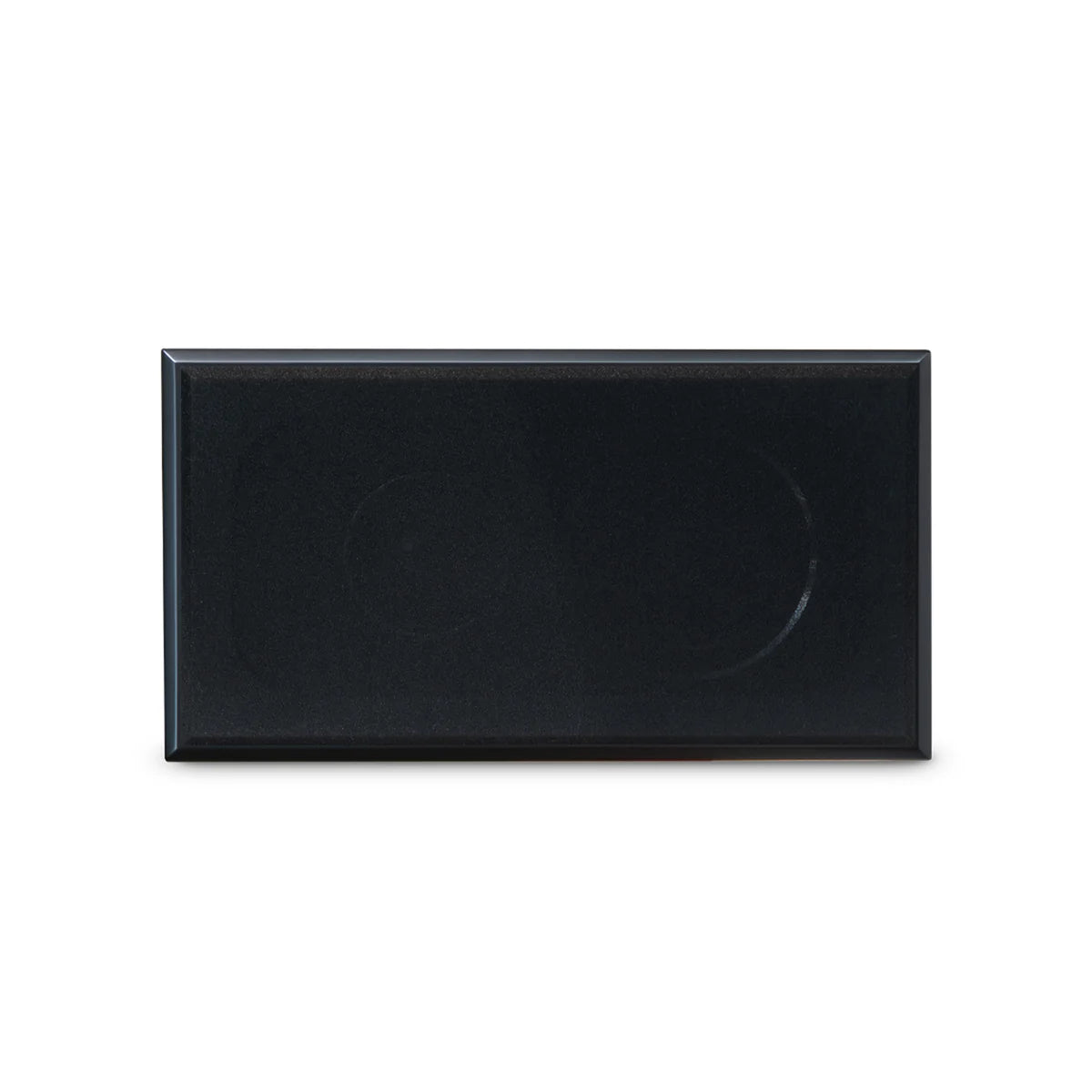

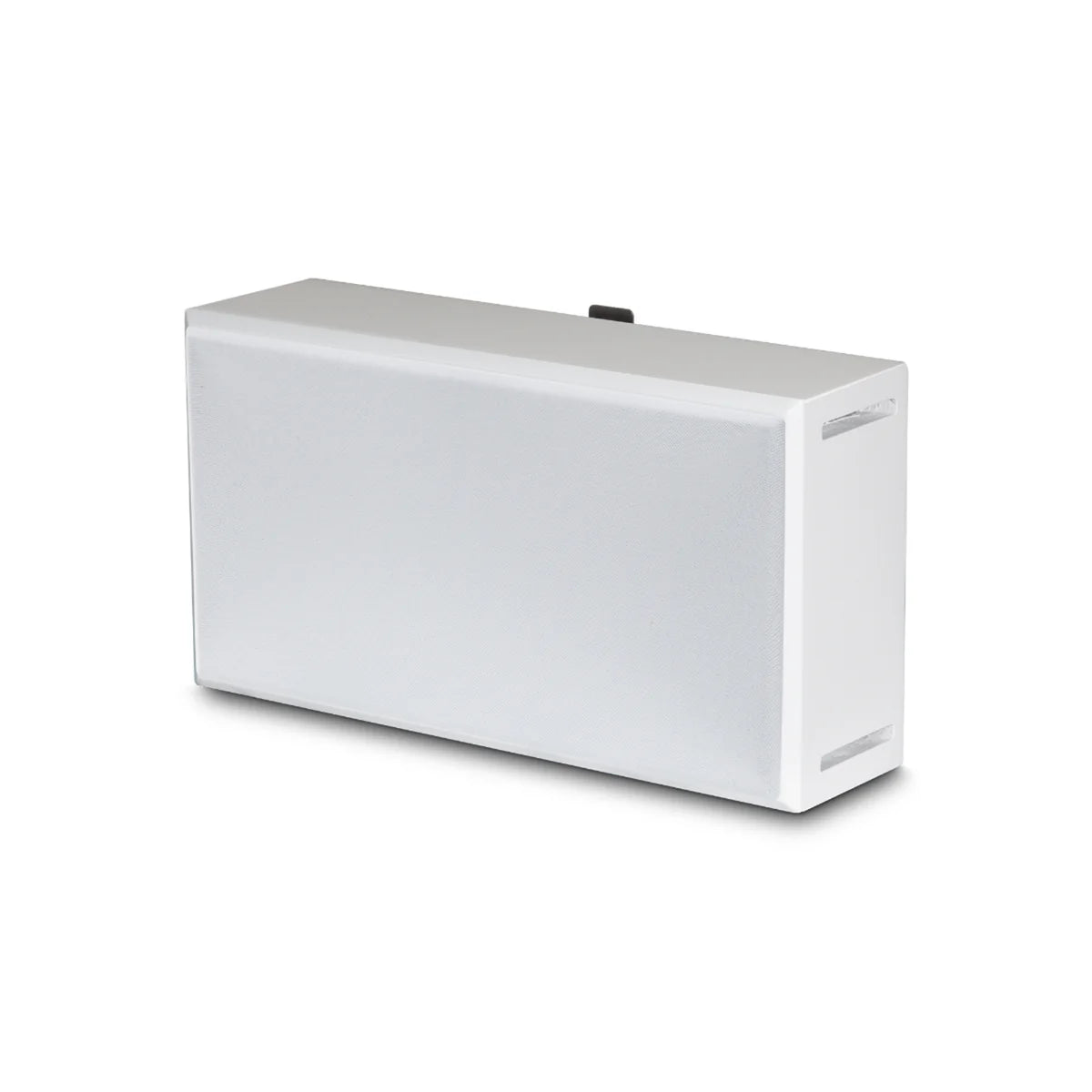

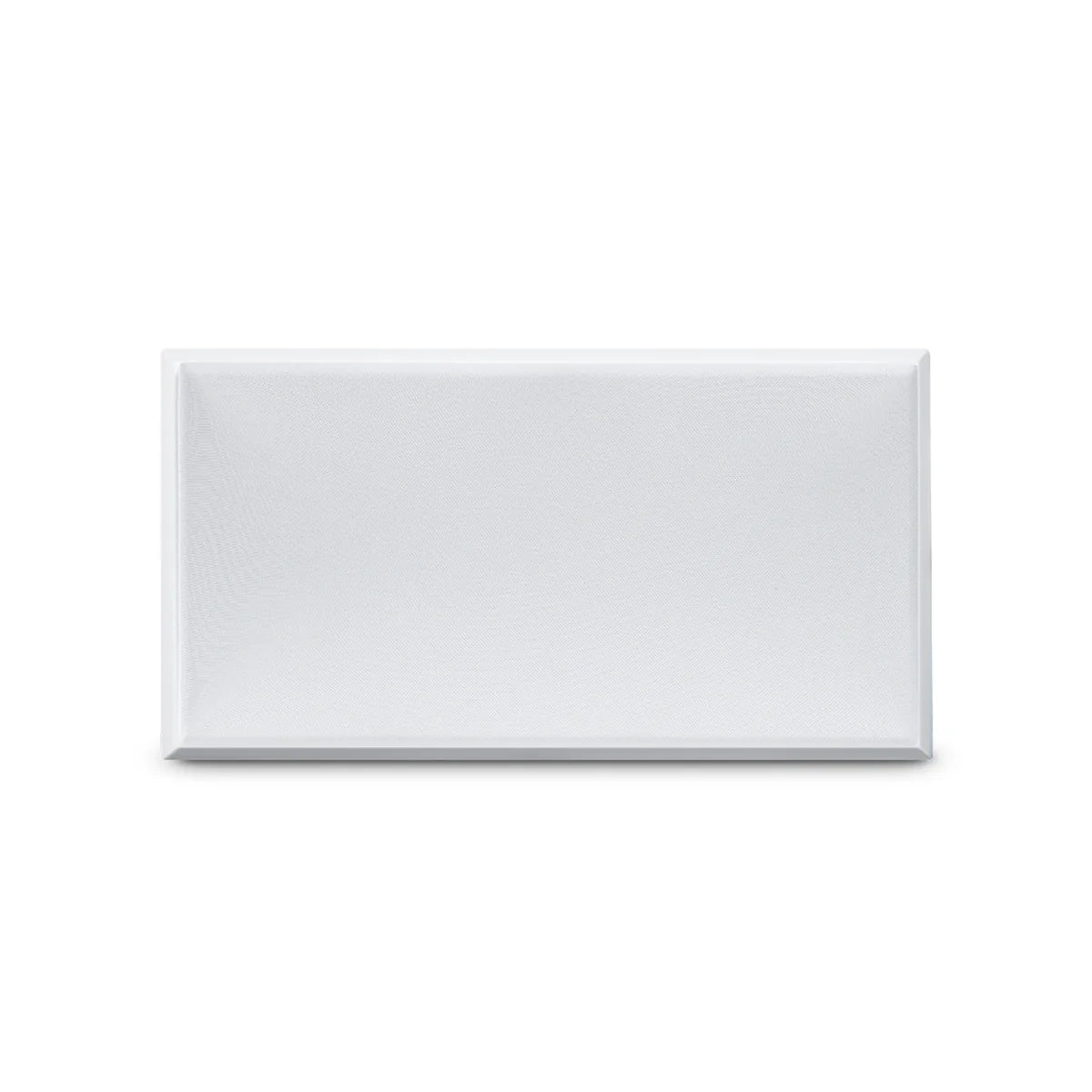

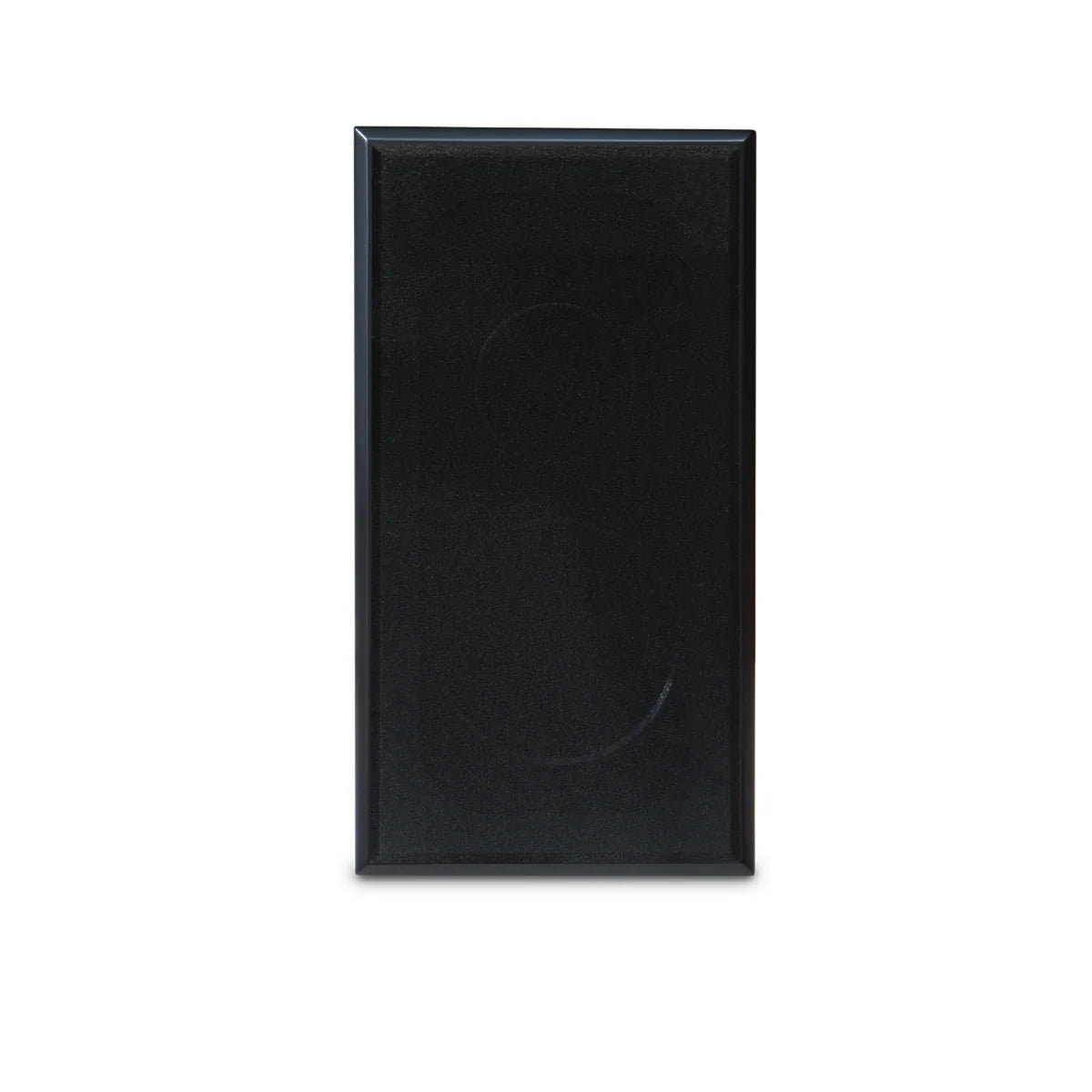

PSB PWM Sat Compact On-Wall Speaker

PSB PWM Sat On-Wall Speaker at Vinyl Sound Buffalo NY

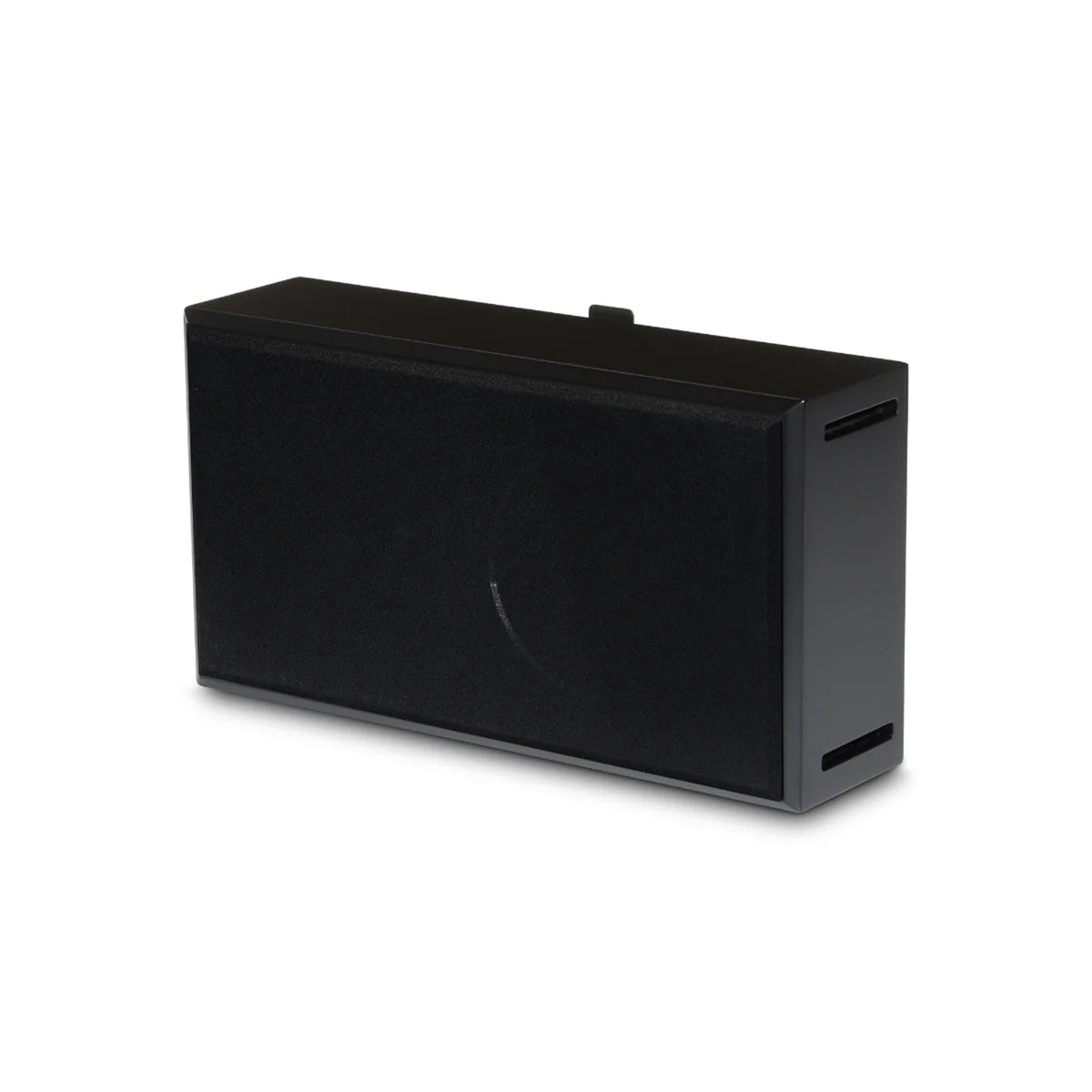

The PSB PWM Sat is a two-driver 2-way on-wall speaker built on PSB's Synchrony driver platform, pairing a 1-inch titanium dome tweeter with ferrofluid with a single 4-inch woven carbon fibre woofer with rubber surround and cast basket, all in a bass reflex MDF cabinet measuring 12 inches wide by 6.5 inches tall by 3.38 inches deep. Available at Vinyl Sound in Buffalo, New York, the PWM Sat is the smallest and most compact model in PSB's PWM on-wall speaker series — 16 inches shorter than the PWM1 and compatible in depth and height with all PWM series siblings. The bass reflex design extends low-frequency output to 90Hz (±3dB) with a -10dB point at 62Hz, suited to pairing with a subwoofer in a home theater bass management configuration or 2-channel system. The titanium tweeter covers the upper frequency range to 23,000Hz. The PWM Sat delivers 83dB anechoic sensitivity into a nominal 8-ohm load. The two-piece locking bracket supports horizontal or vertical wall installation. The bracket can be inverted for near-ceiling placement — mounting the speaker high on a wall with the drivers angled downward into the room — making the PWM Sat suitable as a front height channel in Dolby Atmos or DTS:X surround configurations. The bracket is not rated for direct ceiling surface mounting. Satin Black and Satin White finishes match residential and commercial wall surfaces without modification. The PWM Sat is voiced to integrate tonally with PSB's in-room, in-wall, in-ceiling, and other on-wall speakers for consistent sonic character across mixed-model installations. The PWM Sat is part of Vinyl Sound Buffalo's full speaker collection, which includes on-wall, in-wall, in-ceiling, outdoor, powered, and floorstanding speakers from leading audio brands.

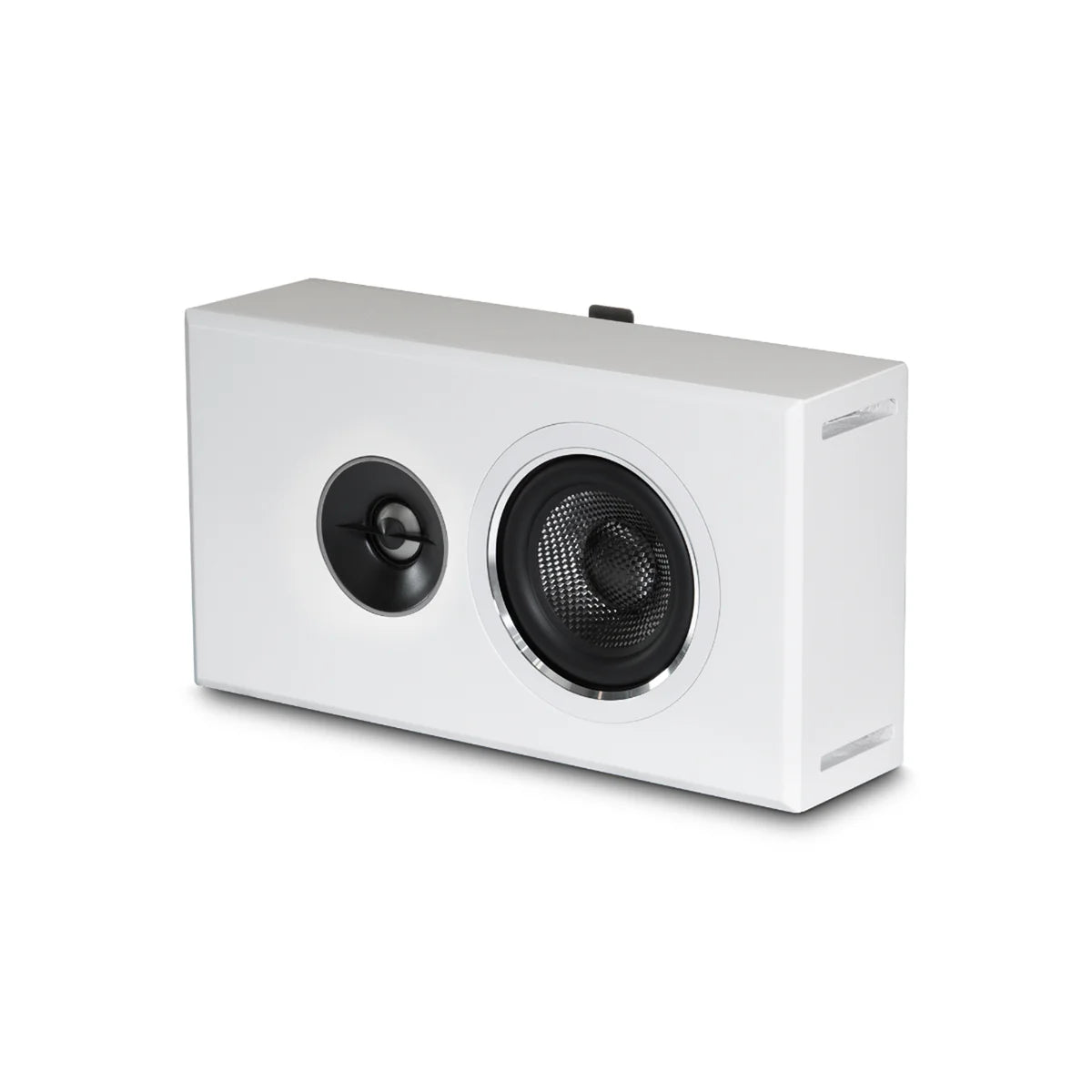

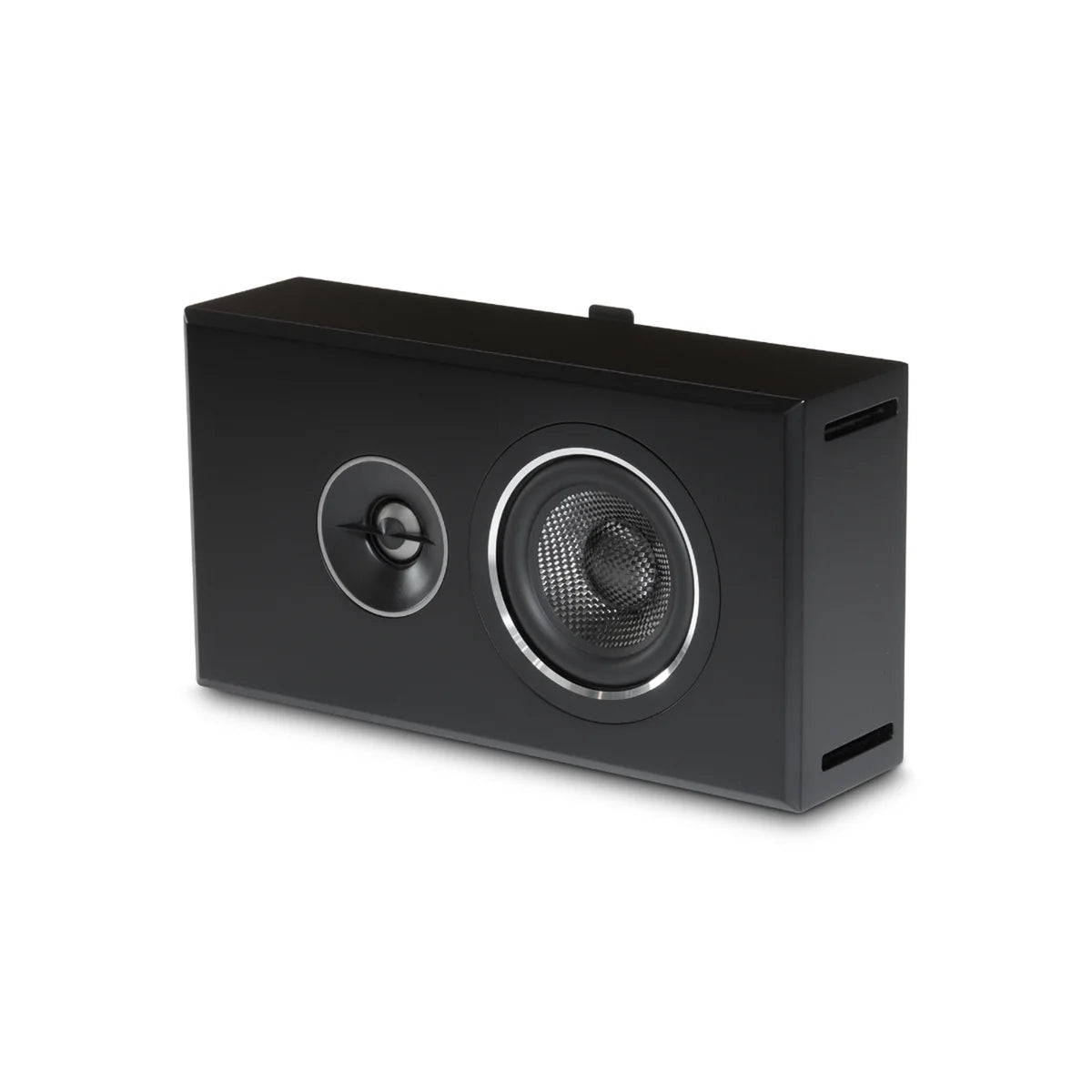

Synchrony-Platform Titanium Dome Tweeter and Woven Carbon Fibre Woofer

The PWM Sat's drivers are based on PSB's Synchrony driver platform — the same design foundation used in PSB's flagship Synchrony loudspeaker series. Synchrony-platform drivers are developed through PSB's psychoacoustic research process, which uses National Research Council of Canada anechoic chamber measurement protocols and listener evaluation to optimize frequency response, dispersion, and distortion characteristics. The 1-inch titanium dome tweeter uses ferrofluid cooling to manage thermal compression at elevated output levels. The titanium dome's high stiffness-to-mass ratio extends the tweeter's controlled pistonic range to 23,000Hz. The single 4-inch woven carbon fibre woofer uses a woven composite cone rather than an injection-moulded carbon-filled polymer. Woven carbon fibre cones are fabricated by weaving carbon fibre strands into a cloth and forming them into a cone shape, creating a directional fiber structure that provides very high stiffness and low mass. The rubber surround provides long-service suspension in wall-mounted environments. The cast basket maintains dimensional accuracy for the voice coil gap alignment across the woofer's operating range. The Synchrony driver platform is the distinguishing feature separating the PWM Sat from the rest of the PWM series — it brings PSB's reference driver technology into the compact 12-inch on-wall format.

Two-Piece Locking Bracket, Near-Ceiling Placement, and System Integration

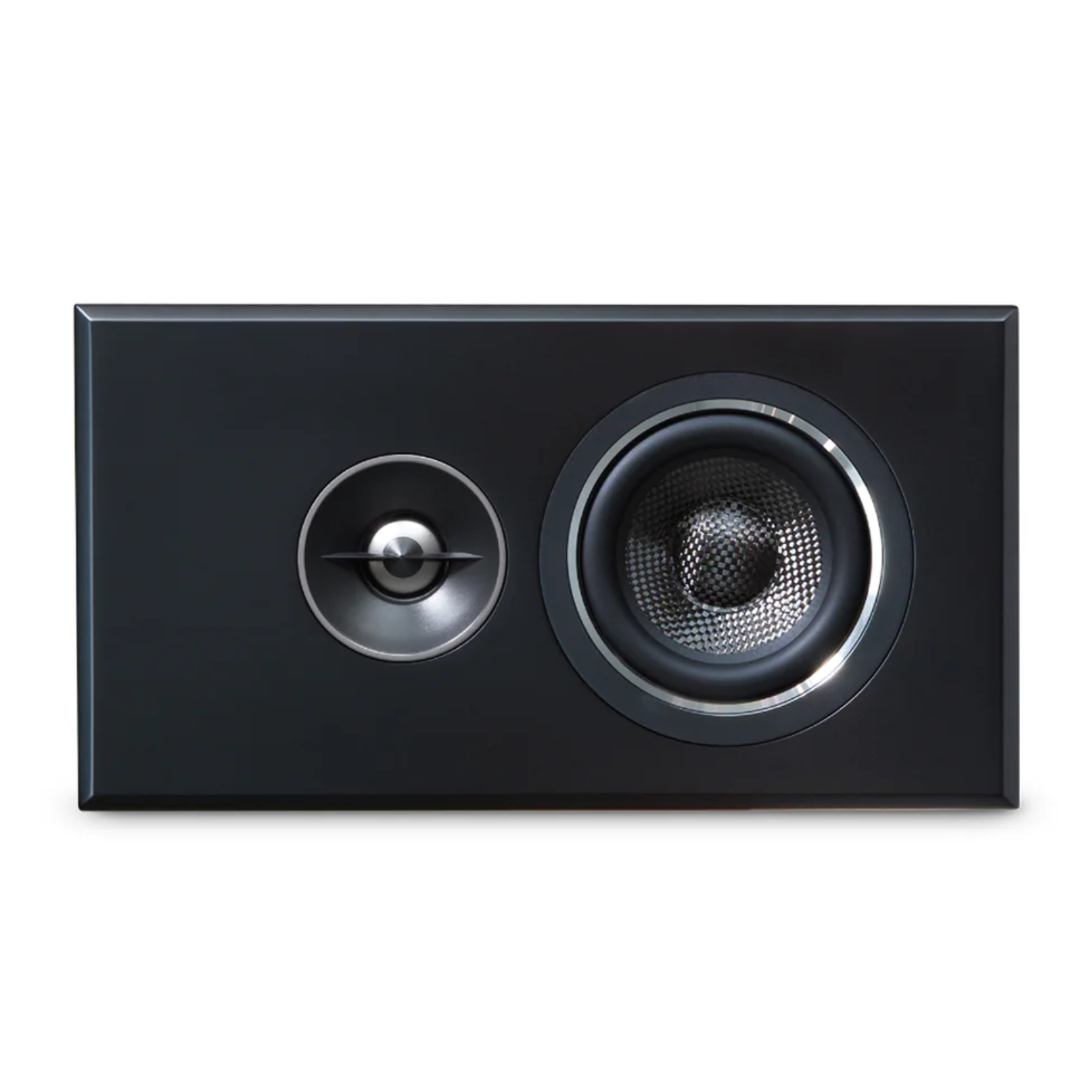

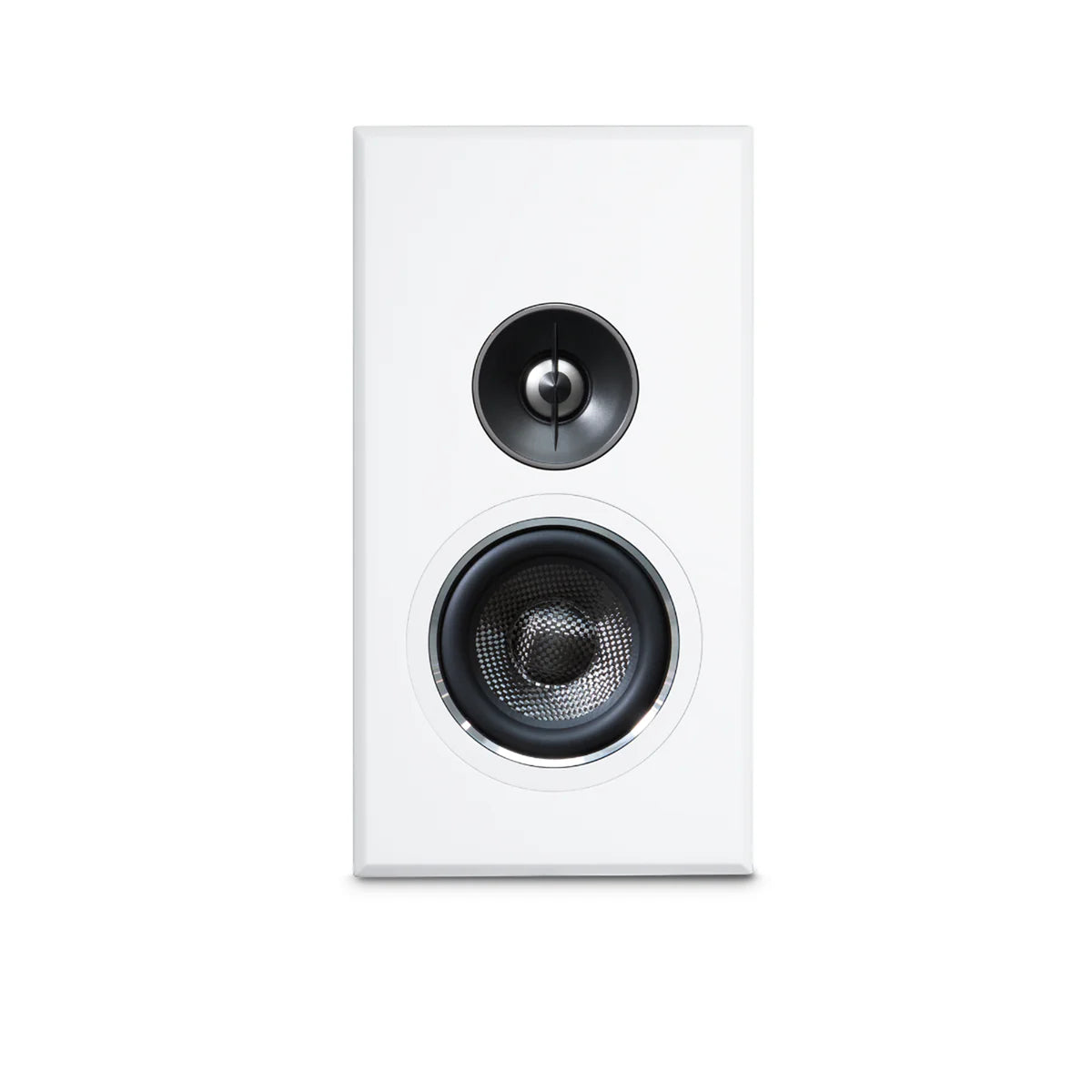

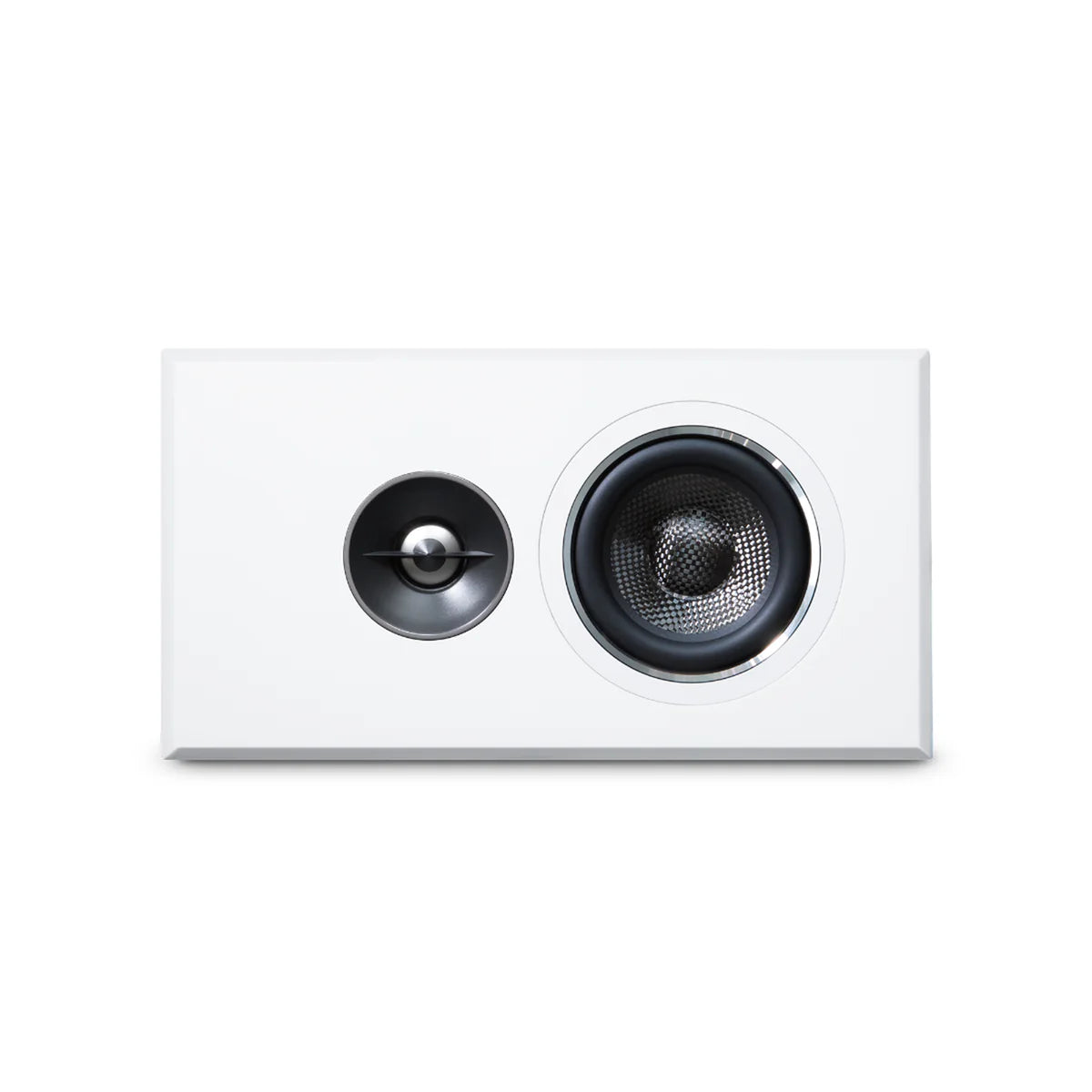

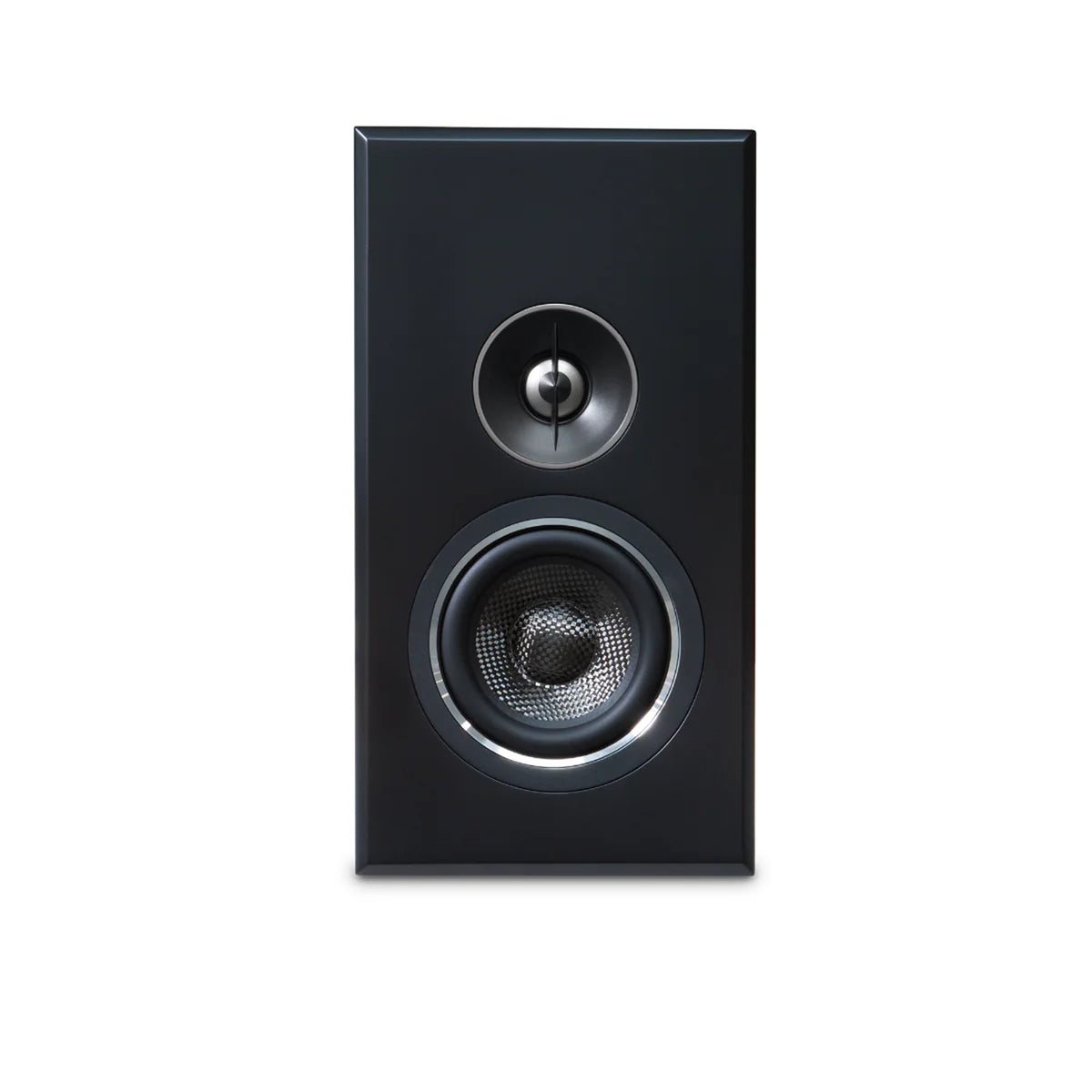

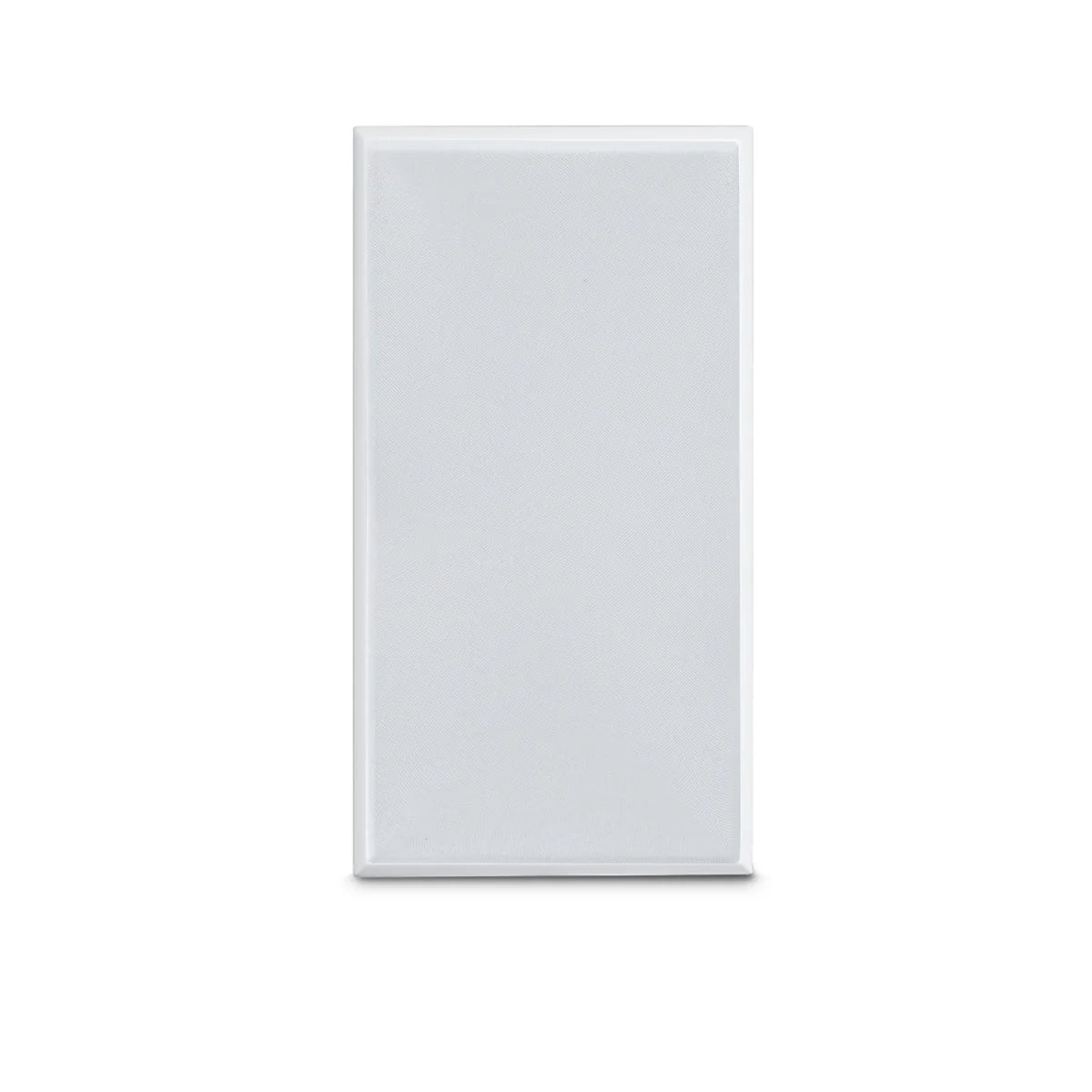

The PWM Sat's two-piece locking bracket is a more versatile mounting system than the standard bracket on the PWM1, PWM2, and PWM3. The two-piece design separates the wall plate from the speaker cradle, allowing the speaker body to be positioned in multiple orientations relative to the wall plate. Horizontal installation positions the 12-inch width along the wall with the drivers facing into the room — suited to front left, center, or right channel placement beside or below a display. Vertical installation positions the 6.5-inch face as a narrow column 12 inches tall. The bracket can also be inverted — the speaker mounts with the drivers angled downward toward the listening area — enabling near-ceiling placement for front height channels in Dolby Atmos or DTS:X object-based surround configurations where the speaker is positioned high on the wall rather than on the ceiling surface. The bracket is not rated for direct ceiling surface mounting. The PWM Sat's voiced tonal match to PSB's broader speaker family — including the Alpha, Imagine, and Synchrony series — simplifies system design in installations that mix PSB product lines across front channels, surrounds, and height positions without the crossover coloration that occurs when mismatched brands are combined in the same system.

Specifications

Frequently Asked Questions

What is the Synchrony driver platform and why does it matter in the PWM Sat?

PSB's Synchrony series is the company's flagship loudspeaker line, developed using the anechoic measurement facilities at Canada's National Research Council and PSB's own psychoacoustic research program established by founder Paul Barton. The Synchrony driver platform refers to the specific driver engineering — cone materials, motor geometries, surround profiles, and basket designs — developed for the Synchrony series and subsequently applied across PSB products to spread flagship-level driver technology into more accessible form factors. In the PWM Sat, the Synchrony-based titanium dome tweeter and woven carbon fibre woofer bring the same core driver design philosophy used in PSB's most expensive freestanding speakers into a 12-inch on-wall cabinet. This matters practically because it means the PWM Sat's drivers are designed to the same psychoacoustic benchmarks as PSB's reference speakers — measured and optimized for low distortion, smooth off-axis response, and tonal accuracy — rather than being a budget component chosen to meet a price target in the compact on-wall category.

Can the PWM Sat be used as a Dolby Atmos or DTS:X height channel speaker?

Yes. The PWM Sat's two-piece locking bracket supports inverted near-ceiling mounting — the speaker is positioned high on the side or front wall with the drivers angled downward toward the listening area. This mounting position matches the placement requirement for Dolby Atmos front height and rear height channels, which call for speakers mounted at roughly 45 degrees above the listening position on the front or rear walls. DTS:X height channel placement specifications use similar positioning. The PWM Sat's 12-inch compact profile and 3.38-inch depth make it practical for wall mounting near the ceiling without significant visual intrusion into the room. Because the PWM Sat is tonally voiced to match other PSB speakers, it can serve as the height layer in a system where PSB PWM1, PWM2, or PWM3 units handle the front and surround bed channels, maintaining a consistent tonal character across the full three-dimensional sound field. Note that the bracket is not rated for direct ceiling surface mounting — the inverted near-ceiling placement is achieved by mounting the bracket on the wall near the ceiling, not on the ceiling itself.

How does the PWM Sat's bracket differ from the other PWM series brackets?

The PWM Sat uses a two-piece locking bracket — a wall plate that mounts to the wall surface and a speaker cradle that attaches to and locks onto the wall plate. The two-piece system allows the speaker cradle to be positioned in multiple orientations relative to the wall plate: horizontal, vertical, and inverted for near-ceiling downward-angled placement. The PWM1, PWM2, and PWM3 use a single-piece wall bracket that supports horizontal and vertical installation. The two-piece locking system in the PWM Sat provides the additional orientation flexibility needed for height channel and near-ceiling surround placements where the speaker must be angled toward the listening area rather than pointing directly into the room perpendicular to the wall. This bracket design also allows the PWM Sat to be positioned in narrow wall spaces and corners where a fixed-orientation bracket could not achieve adequate driver aiming toward the listening position.

How does the PWM Sat compare to the PWM1?

The PWM Sat and PWM1 share the same cabinet height (6.5 inches) and depth (3.38 inches), and both use a 1-inch titanium dome tweeter with ferrofluid and carbon fibre woofer with rubber surround and cast basket in a bass reflex MDF cabinet. Key differences: the PWM1 is 28 inches wide with two 4-inch woofers, 85dB anechoic sensitivity, and bass extending to 70Hz (±3dB) / 50Hz (-10dB); the PWM Sat is 12 inches wide with a single 4-inch woofer, 83dB anechoic sensitivity, and bass extending to 90Hz (±3dB) / 62Hz (-10dB). The PWM Sat uses the Synchrony driver platform, which is not specified for the PWM1. The PWM Sat's two-piece locking bracket adds inverted near-ceiling placement capability that the PWM1's bracket does not provide. The PWM1 is the better choice for a primary listening position channel that needs higher output and deeper bass; the PWM Sat is the better choice for height channels, rear surrounds, or compact 2-channel systems paired with a subwoofer where the smallest possible footprint and Synchrony-platform driver quality take priority.

Can the PWM Sat be used as a standalone stereo pair with a subwoofer?

Yes. The product description describes the PWM Sat as capable of serving as "a compact 2-channel solution with a subwoofer" — a stereo pair of PWM Sat speakers handling midrange and high-frequency reproduction while a subwoofer covers bass below the bass management crossover point. In this configuration, an AV receiver or integrated amplifier with bass management sends frequencies above 80Hz to 100Hz to the PWM Sat pair and routes the low-frequency content to the subwoofer. The PWM Sat's 62Hz (-10dB) bass extension overlaps with a subwoofer crossover set at 80Hz, providing smooth bass transition at the crossover frequency. This is a practical configuration for small rooms, secondary listening spaces, offices, or mixed-use living areas where the 12-inch PWM Sat footprint fits the available wall space and a subwoofer provides the bass foundation the compact satellite cabinet cannot deliver alone.

Does the PWM Sat match tonally with other PSB speaker families?

PSB specifically voices the PWM Sat to match its on-wall, in-room, and architectural speaker families — including the Alpha, Imagine, and Synchrony series. This tonal matching means the frequency response, sensitivity, and off-axis character of the PWM Sat are intentionally tuned to sound consistent with other PSB models rather than being a category-isolated product tuned independently. In practice, tonal matching matters most in home theater installations where the same sounds pan continuously from the front left and right channels through the center channel and into the surround and height positions. A tonally matched system — even one using different PSB models in different positions — produces smooth panning transitions without the coloration and timbre shifts that occur when speakers from different manufacturers or with different tonal voicings are combined in the same surround sound system.

Where to buy PSB PWM Sat on-wall speakers in Buffalo NY?

The PSB PWM Sat is available from Vinyl Sound, an authorized PSB Speakers dealer in Buffalo, New York. Vinyl Sound also carries the PWM1, PWM2, and PWM3 for customers building matched home theater systems across multiple PWM series models. Free shipping is available across the continental United States. Contact Vinyl Sound Buffalo by phone or email to purchase the PWM Sat individually or discuss a complete PSB PWM series speaker configuration for your home theater or surround sound installation.
