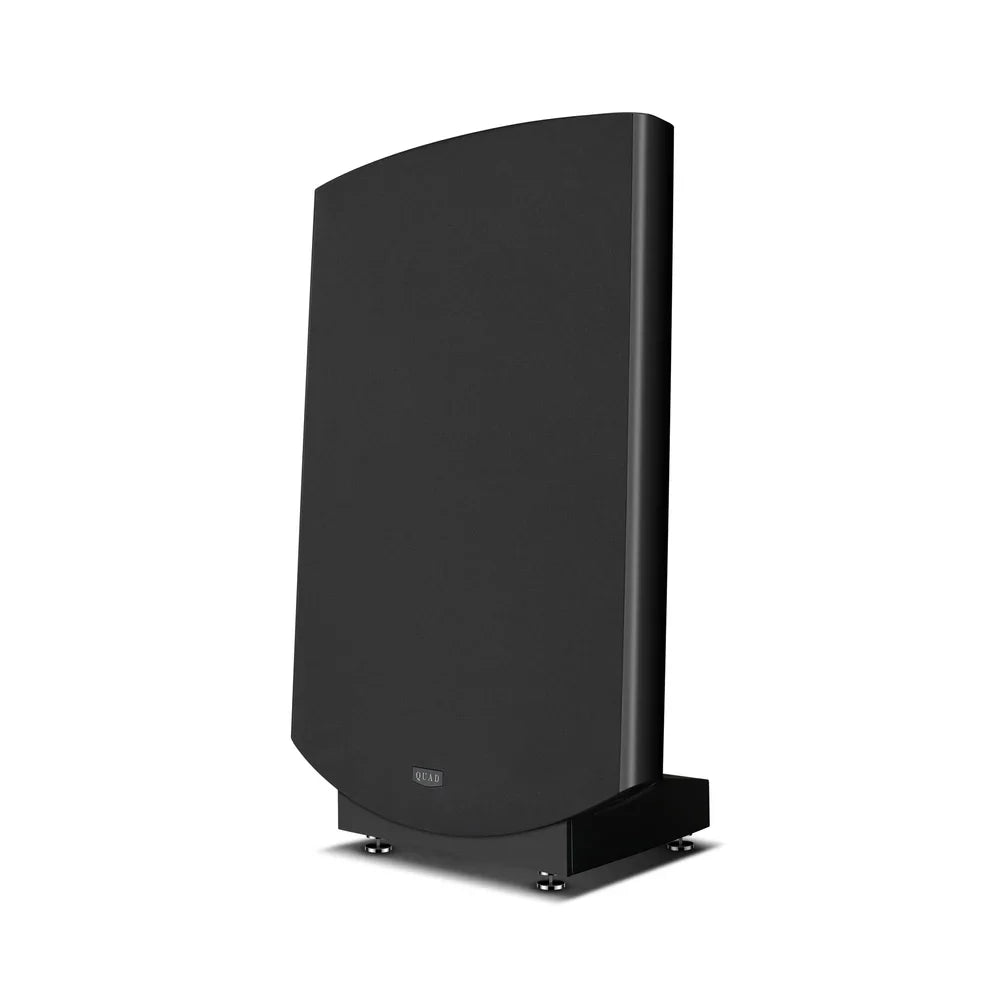

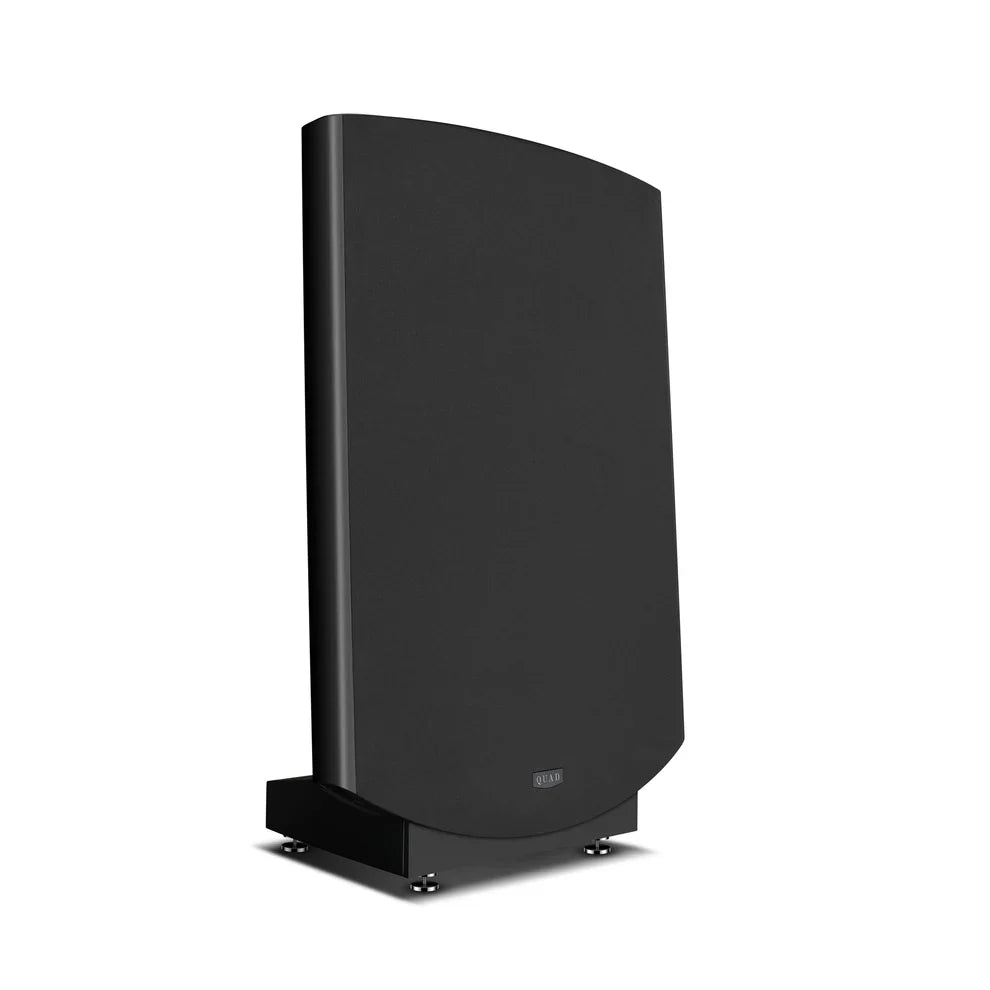

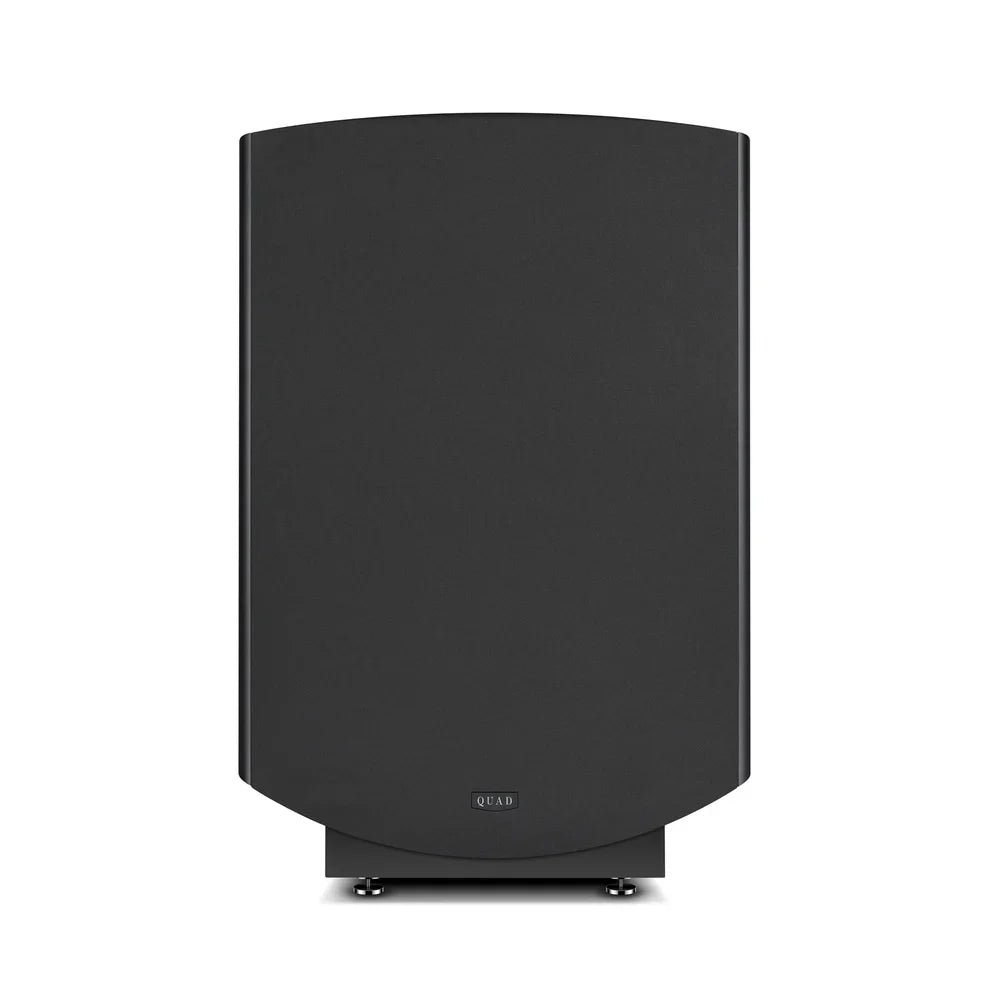

Quad ESL 2812X Speakers

Quad ESL 2812X Electrostatic Floorstanding Speakers at Vinyl Sound Buffalo NY

The ESL 2812X is a full-range electrostatic floorstanding loudspeaker from Quad (Huntingdon, England, UK), available at Vinyl Sound in Buffalo, NY. Part of the sixth-generation ESL X Series launched in 2025, the ESL 2812X is built around four electrostatic panel elements, a concentric ring Point Source delay-line array, and an all-new three-module PCB architecture operating at 5,250 volts DC. With a frequency response extending from 33 Hz to 23 kHz (useable) and distortion below 0.15% above 1 kHz, the ESL 2812X delivers the ultra-pure, box-free transparency that has defined the Quad ESL name since Peter Walker introduced the world's first full-range electrostatic loudspeaker in 1957. Six years of precision manufacturing refinement under ESL authority Paul McConville, including advanced laser-precision metrology and bespoke UK-manufactured audio transformers, now brings this heritage design to its most resolved expression yet.

Electrostatic Panel Technology and Point Source Design

At the heart of the ESL 2812X are four electrostatic panels, each built around an ultra-thin Mylar diaphragm ten times thinner than a human hair. The Mylar film is coated with a high-resistance conductive material and suspended between two perforated metal stators. When the diaphragm is charged to a constant 5,250 volts DC and an audio signal is applied across the stators, the entire diaphragm surface accelerates uniformly in response to every musical transient. Because the diaphragm carries virtually no mass compared to a moving-coil cone, the ESL 2812X reproduces leading edges with a speed and accuracy that conventional dynamic drivers cannot match. Intermodulation distortion is exceptionally low across the entire operating range, a direct consequence of this uniform, massless drive principle. Operating as a full-range dipole with no enclosure, no moving-coil bass driver, and no crossover, the ESL 2812X produces a seamless, uncoloured sound field in which the boundaries of the speaker and the room dissolve.

Quad's concentric ring electrode design, first developed for the ESL-63, ensures that sound appears to radiate from a single point in space rather than from a distributed panel surface. An internal delay line feeds each successive outer ring of the stator with a progressively delayed version of the audio signal, creating a spherical wavefront that mimics a true acoustic point source. The result is a stereo image of extraordinary precision, placing instruments and voices with holographic stability within the listening space. This Point Source system differentiates the Quad ESL from competitors such as MartinLogan, Magneplanar, and SoundLab designs that do not employ time-delay electrode structures, giving the ESL 2812X a more consistent imaging performance across a wider range of listening positions.

Three-Module PCB Architecture and UK-Manufactured Transformers

The defining technical advance of the ESL X Series is the replacement of a monolithic operational PCB with three fully independent, physically segregated modules: a High-Voltage Multiplier Module generating the 5,250-volt EHT charge, a Control and Protection Module providing instant muting on fault detection with visual LED status indicators, and a Low-Voltage Audio Signal Module handling input buffering and gain staging in complete isolation from the high-energy field. By separating the 5,250-volt multiplier stage from sensitive low-level audio circuits, Quad eliminates stray high-voltage electric fields that in previous architectures introduced crosstalk and noise into the signal path. The audible result is a quieter background, greater stability at high sound pressure levels, and a clarity in micro-dynamic resolution that reveals new layers of texture within familiar recordings.

Equally significant is Quad's decision to revert to bespoke UK-manufactured audio transformers for the ESL X Series, custom-specified and quality-controlled under the supervision of Quad's long-serving service manager Rob Flain. Purpose-engineered to Peter Walker's original specification, these transformers deliver a flat frequency response extending beyond 18 kHz with exceptional linearity, eliminating the flux modulation artefacts that degrade dynamics at high sound pressure levels in earlier designs. Mid and high-frequency dynamics are sharper, transient attacks are more incisive, and the perceived depth of the soundstage broadens considerably.

Advanced laser-precision metrology was employed to audit and refine every stage of panel construction including spraying, etching, diaphragm tensioning, and final assembly. Each Mylar diaphragm is now tensioned and coated to a higher and more consistent standard, improving uniformity and transparency across all four panels.

Stealth Aesthetic and LED Halo Illumination

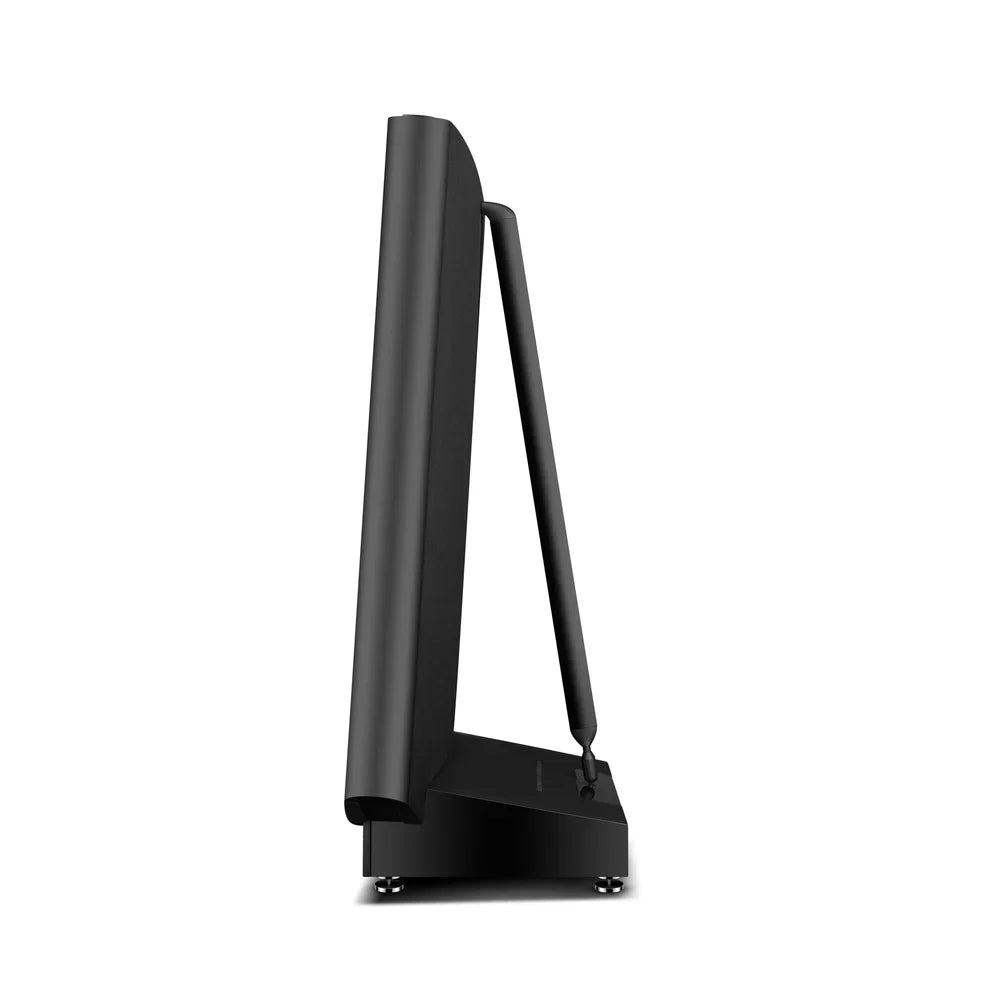

The ESL 2812X introduces a new low-reflection matt black exterior finish that aligns with Peter Walker's founding philosophy: the loudspeaker should disappear, leaving only the music. Traditional wood trims have been eliminated in favour of a uniform all-black appearance that blends into any room environment. The heavy-duty composite aluminium and steel chassis stands 1,070 mm tall with a fixed 3-degree rear tilt that optimises the listening axis without additional setup, making the ESL 2812X appreciably more compact and easier to integrate into medium-sized listening rooms than the taller ESL 2912X. An adjustable LED Halo system illuminates the speaker from beneath via a dedicated independent PCB module, controlled by a rear-panel rotary to any preferred brightness level, with the option to disable entirely for a fully stealth presentation.

Key Features

• Four-panel electrostatic array in a full-range dipole configuration, delivering the Quad ESL's characteristic box-free transparency and low-distortion performance in a chassis suited to medium and large listening rooms
• Point Source concentric ring delay-line system producing a spherical wavefront that places instruments with pinpoint holographic accuracy across the stereo image
• 5,250-volt DC EHT diaphragm charge with distortion below 0.15% above 1 kHz at 100 dB SPL at one metre
• Three-module independent PCB architecture physically separating high-voltage, control, and audio signal functions for a quieter noise floor and superior signal integrity
• UK-manufactured custom audio transformers built to Peter Walker's original specification, extending flat response beyond 18 kHz and eliminating flux modulation artefacts at high SPL
• Full-range dipole operation from 33 Hz to 23 kHz (useable) with no crossover, no moving-coil bass driver, and no enclosure colouration
• Laser-precision metrology manufacturing for panel-to-panel consistency in diaphragm tensioning, conductive coating uniformity, and stator geometry

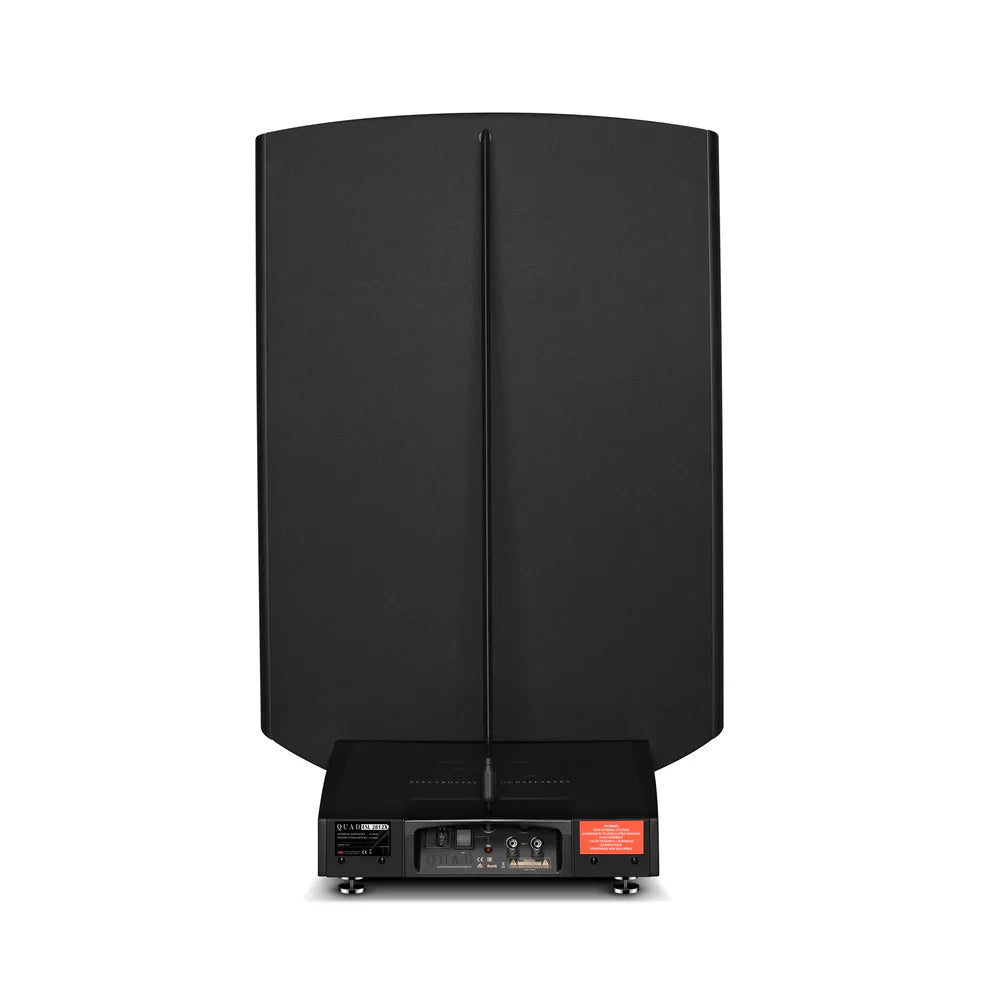

• Adjustable LED Halo illumination via independent dedicated PCB module with rear-panel rotary brightness control
• Compact ESL X footprint at 1,070 mm tall, significantly shorter than the ESL 2912X and suited to medium-sized rooms where the taller model would be visually or acoustically excessive
• Active overload protection circuit monitoring EHT voltage and muting the signal instantly on arc or overdrive detection
• Fixed 3-degree rear tilt optimising listening axis without additional setup
• Sold as a pair

Technical Specifications

Frequently Asked Questions

What is the Quad ESL 2812X?

The Quad ESL 2812X is a full-range electrostatic floorstanding loudspeaker from Quad (Huntingdon, UK), representing the sixth generation of the ESL lineage that began with Peter Walker's ground-breaking design in 1957. It uses four electrostatic panel elements, a concentric ring Point Source delay-line array, a three-module PCB architecture operating at 5,250 volts DC, and bespoke UK-manufactured audio transformers. Frequency response extends from 33 Hz to 23 kHz (useable), with distortion below 0.15% above 1 kHz at 100 dB SPL. Sold as a pair, the ESL 2812X is the more compact sibling of the six-panel ESL 2912X, available at Vinyl Sound in Buffalo, NY.

How does the Quad ESL 2812X compare to the MartinLogan ESL 9 and ESL 11A?

The Quad ESL 2812X is a pure, full-range electrostatic design with no moving-coil bass driver, which distinguishes it fundamentally from MartinLogan's hybrid ESL 9 and ESL 11A, both of which pair an electrostatic panel with a powered dynamic woofer section. The MartinLogan hybrids offer higher maximum output and a more forgiving low-frequency room interaction, but introduce a crossover point between the electrostatic panel and the dynamic woofer that the Quad ESL 2812X entirely avoids. The ESL 2812X reproduces the full frequency range from a single electrostatic membrane system, producing a phase-coherent, seamlessly integrated soundstage that hybrid designs cannot replicate. Quad's concentric ring Point Source delay-line system also gives the ESL 2812X a more precisely focused stereo image from a wider range of seating positions than the curved panel geometry used in MartinLogan designs. At Vinyl Sound in Buffalo, NY, the ESL 2812X is available for dedicated audition.

What amplifier does the Quad ESL 2812X need?

The Quad ESL 2812X is compatible with a wide range of quality amplifiers but rewards careful matching. Nominal impedance is 8 ohms with variation between 4 and 15 ohms, meaning the amplifier must be stable into reactive loads. The maximum continuous input is 10V rms, and Quad recommends amplifiers rated at up to approximately 100 watts into 8 ohms. There is no sonic benefit from higher-powered amplification. Valve amplifiers with a strong 8-ohm output tap and solid-state integrated amplifiers with good current delivery are both appropriate. The ESL 2812X is not suited to amplifiers with high output impedance or poor stability into complex impedance curves. The team at Vinyl Sound Buffalo can advise on compatible amplifier pairings.

What is the difference between the Quad ESL 2812X and the ESL 2912X?

The ESL 2812X and ESL 2912X share the same ESL X engineering platform, including the three-module PCB architecture, UK-manufactured audio transformers, laser-precision metrology manufacturing, matt black stealth finish, and adjustable LED Halo illumination. The key differences are in scale. The ESL 2912X uses six electrostatic panels versus four in the ESL 2812X, stands 1,470 mm tall versus 1,070 mm, weighs 97.0 lbs per speaker versus 77.2 lbs, and extends bass response to 28 Hz useable versus 33 Hz in the 2812X. The 2912X also has a slightly wider impedance range of 4 to 20 ohms versus 4 to 15 ohms. The 2912X is suited to larger rooms, while the 2812X is the more practical choice for medium-sized rooms where the taller model would be visually or acoustically excessive.

What is the Point Source concentric ring delay-line design?

The Point Source concentric ring system is Quad's method of making a large electrostatic panel behave acoustically as though all sound originates from a single point in space. The stators of each panel are divided into concentric ring-shaped electrodes rather than a single uniform plate. An internal delay line feeds each successive outer ring with a progressively delayed version of the audio signal, so the wavefront arriving at the listener's ears mimics the spherical expansion of sound from a single acoustic source at a distance. Without this arrangement, a large flat panel radiates sound from its entire surface simultaneously, causing the apparent source to shift position with frequency and degrading stereo imaging. The Point Source system was first developed for the Quad ESL-63 and has been refined through every generation of the design since.

How does the ESL 2812X differ from its predecessor, the ESL 2812?

The ESL 2812X succeeds the ESL 2812 after a thirteen-year production run with a series of meaningful engineering improvements. The key differences are the replacement of the monolithic PCB with three independent modules separating high-voltage, control, and audio signal functions; the adoption of bespoke UK-manufactured audio transformers built to Peter Walker's original specification; refined diaphragm tensioning and coating using advanced laser-precision metrology; a new matt black low-reflection exterior finish without wood trim; and the addition of the adjustable LED Halo illumination system. The dimensions, panel count, electrostatic operating principle, and sensitivity specification remain consistent with the ESL 2812.

Can the Quad ESL 2812X work in a smaller room?

The ESL 2812X performs best in medium to large listening rooms and is not recommended for small or heavily furnished spaces. As a dipole design, it requires clear space of at least 0.5 to 1 metre behind each speaker to allow the rear wave to develop without boundary reinforcement artefacts. In very small rooms, bass loading becomes uneven and the dipole radiation pattern cannot establish correctly. The ESL 2812X's four-panel configuration and 1,070 mm height make it considerably more adaptable to typical listening room dimensions than the ESL 2912X, but a dedicated listening space with some acoustic treatment will always yield the best results.

Where can I buy the Quad ESL 2812X in the USA?

The Quad ESL 2812X is available at Vinyl Sound, an authorized Quad dealer in Buffalo, NY. Vinyl Sound offers in-store demonstration of the ESL 2812X alongside a full range of compatible high-fidelity electronics and can advise on amplifier matching, room placement, and complete system configuration. Contact Vinyl Sound Buffalo to arrange a dedicated listening session or to enquire about current availability and lead times.
