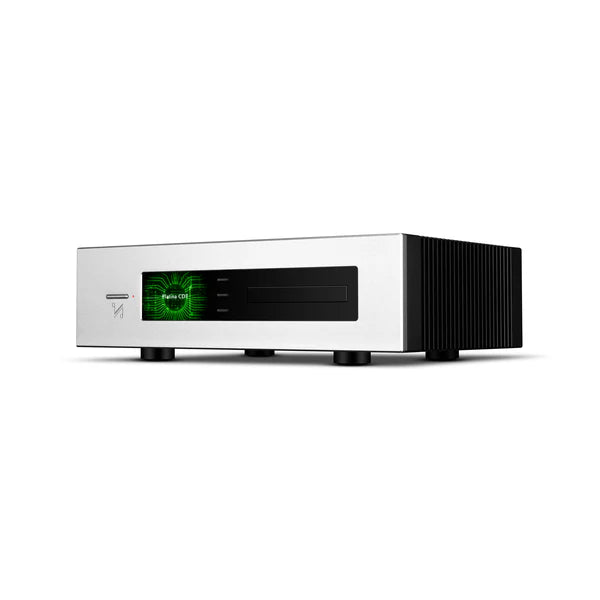

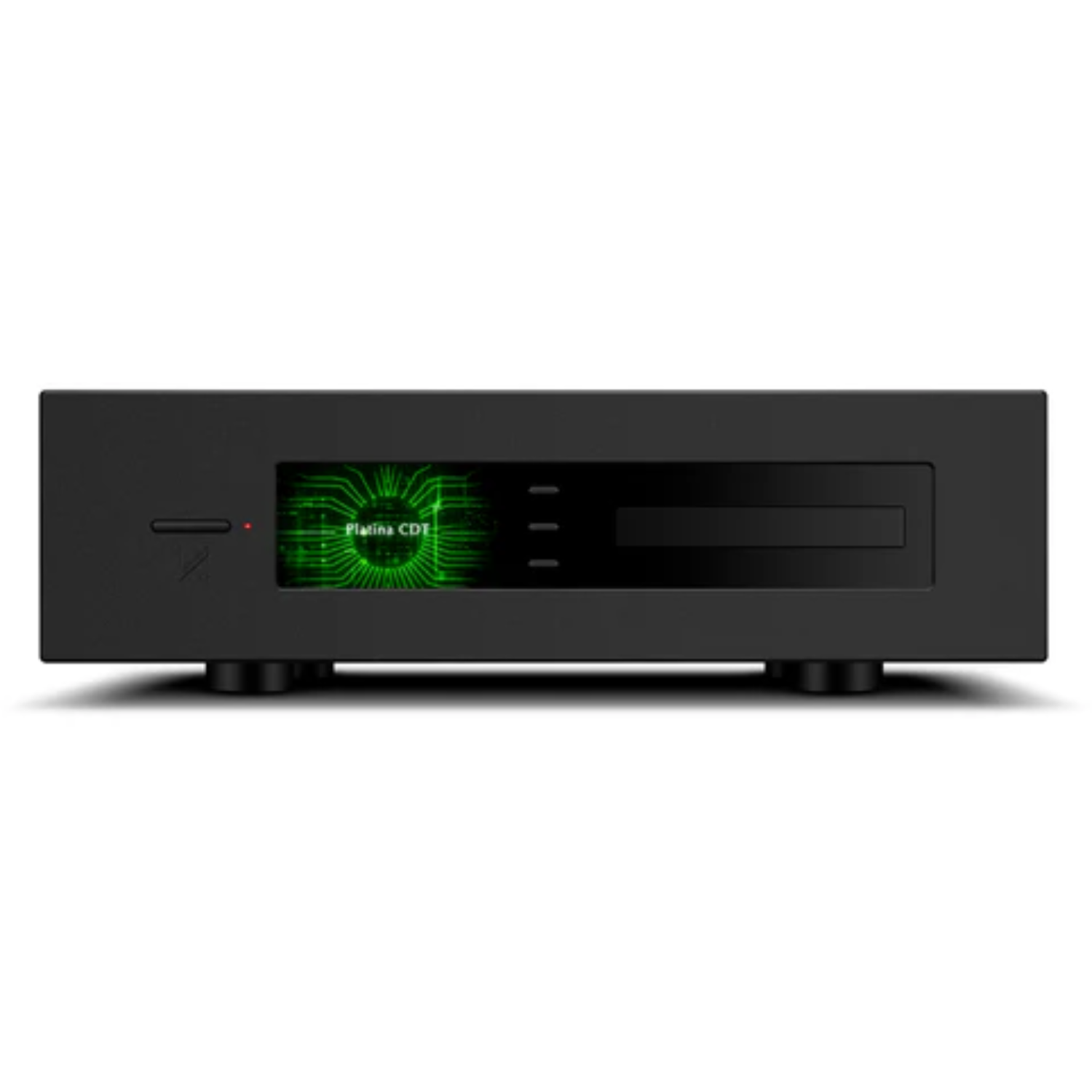

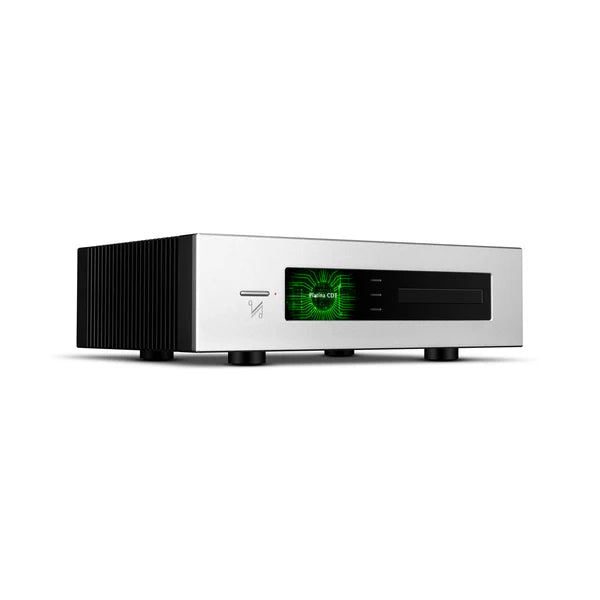

Quad Platina CDT CD Transport

Quad Platina CDT CD Transport at Vinyl Sound Buffalo NY

The Quad Platina CDT is a dedicated CD transport developed without onboard DAC circuitry, allowing it to focus entirely on the accurate retrieval and transmission of digital audio data. Governed by a temperature-compensated crystal oscillator for rock-solid clock stability, and supporting both CD media and USB HDD playback, the Platina CDT completes the Platina series alongside the Platina Integrated and Platina Stream. Compatible with CD, CD-R, and CD-RW discs as well as data CDs, it delivers precision, stability, and composure as a digital source in any high-performance system. Available at Vinyl Sound in Buffalo, NY.

TCXO Clocking and Engineering Precision

At the heart of the Platina CDT is a custom-developed transport mechanism engineered for smooth operation, stable tracking, and consistent error correction. The system clock is governed by a temperature-compensated crystal oscillator (TCXO), which actively monitors and compensates for temperature changes in real time. Unlike conventional crystal oscillators, which drift as they warm up and introduce subtle timing errors that affect the precision of the digital output, the TCXO in the Platina CDT maintains a stable, consistent digital clock regardless of operating temperature. This precision in timing underpins the CDT's performance, preserving low jitter and maintaining the integrity of the audio data as it is passed to the partnering DAC. The result is a presentation characterised by focus, control, and clarity, with improved spatial definition and natural tonal balance.

CD Playback and USB HDD Support

The Platina CDT is fully compatible with CD, CD-R, and CD-RW discs and supports data CD formats with sampling rates from 44.1kHz up to 96kHz. Gapless playback is supported natively, preserving the intended continuity of live recordings, concept albums, and seamlessly mixed releases without audible gaps between tracks. CD Text is displayed on the front-panel IPS screen where available. Beyond optical media, the Platina CDT extends its capability to USB HDD playback, supporting WAV, MP3, WMA, AAC, FLAC, and APE file formats from storage devices formatted in FAT16, FAT32, or exFAT. All sources — optical disc and digital file alike — benefit from the same disciplined clocking and power architecture.

Outputs and System Integration

The Platina CDT provides one coaxial and one optical digital output, both with a 75 ohm output impedance and a digital output amplitude of 500 ±50mVpp. With no internal DAC, the CDT passes a clean, precisely clocked digital signal directly to a partnering DAC — whether the Platina Integrated amplifier or any external high-performance DAC — preserving full control over the conversion stage within the wider system. The Platina CDT is designed as part of a complete system alongside the Platina Integrated and Platina Stream, creating a unified platform for high-fidelity playback that integrates physical media, streaming, and amplification within a consistent architectural framework.

Design and Controls

The Platina CDT follows the same design language established across the Platina series: clean geometry, refined materials, machined aluminium controls, and a minimalist fascia defined by balance, symmetry, and purposeful restraint. A centrally positioned 4.3-inch 800 × 480 IPS display provides clear visual feedback including CD Text information. The included remote control mirrors the Platina design language and operates consistently across all components in the Platina range. The disciplined rear panel maintains a clear and straightforward layout for system integration. Available in Black or Silver finish.

Key Features

• Dedicated CD transport without onboard DAC — focuses entirely on precise digital data retrieval and transmission
• Temperature-compensated crystal oscillator (TCXO) for rock-solid clock stability, low jitter, and accurate digital signal output at all operating temperatures
• Compatible with CD, CD-R, CD-RW, and data CD formats — sampling rates up to 96kHz from data disc
• Gapless playback for live recordings, concept albums, and seamlessly mixed releases
• CD Text display on the front-panel IPS screen
• USB HDD playback — WAV, MP3, WMA, AAC, FLAC, APE; FAT16 / FAT32 / exFAT file system support
• Coaxial and optical digital outputs — 75 ohm output impedance, 500 ±50mVpp digital output amplitude
• 4.3-inch 800 × 480 full-colour IPS display with real-time playback information and CD Text
• Machined aluminium controls and fully functional remote control unified across the Platina series
• Standby power consumption below 0.5W
• Available in Black or Silver finish

Technical Specifications

Frequently Asked Questions

What is the Quad Platina CDT?

The Quad Platina CDT is a dedicated CD transport designed without onboard DAC circuitry. It reads and transmits digital audio data from CD, CD-R, CD-RW, and data CD formats, as well as from USB HDD storage, via coaxial and optical digital outputs to a partnering DAC or integrated amplifier. A temperature-compensated crystal oscillator governs the system clock for low-jitter, high-precision digital output. Available at Vinyl Sound in Buffalo, NY.

Why does the Platina CDT not include a built-in DAC?

The Platina CDT is designed as a pure transport, dedicating all engineering focus to the accurate retrieval and transmission of digital audio data rather than performing digital-to-analogue conversion internally. This approach allows the user to pair the CDT with their preferred external DAC — including the Platina Integrated amplifier's ES9038Pro DAC stage — for full control over the conversion and playback chain, and ensures the CDT functions as a precision source within both current and future system configurations.

What is a TCXO and why does it matter for CD playback?

A temperature-compensated crystal oscillator (TCXO) is a precision clock that actively monitors and compensates for temperature-induced frequency drift in real time. Conventional crystal oscillators drift as they warm up, introducing subtle timing errors and jitter in the digital output that affect perceived musical precision, imaging, and tonal balance. The TCXO in the Platina CDT maintains a rock-solid, consistent digital clock regardless of operating temperature, preserving the integrity of the audio data as it is transferred to the partnering DAC.

What USB file formats and file systems does the Platina CDT support?

The Platina CDT supports WAV, MP3, WMA, AAC, FLAC, and APE audio file formats from USB HDD devices. Storage devices must be formatted in FAT16, FAT32, or exFAT file systems. Sampling rates from USB HDD playback are supported up to 96kHz, matching the data CD playback capability.

What digital outputs does the Platina CDT provide?

The Platina CDT provides one coaxial digital output and one optical digital output, both with a 75 ohm output impedance and a digital output amplitude of 500 ±50mVpp. These outputs connect directly to any DAC or integrated amplifier with matching digital inputs, including the Platina Integrated's coaxial and optical SPDIF inputs.

How does the Platina CDT integrate with the Platina Integrated and Platina Stream?

The Platina CDT is designed as the physical media source component within the complete Platina series system. Together with the Platina Integrated amplifier and Platina Stream network player, it creates a unified platform covering compact disc, streaming, and amplification within a consistent design architecture, shared remote control system, and matched sonic performance. The CDT connects to the Platina Integrated via its coaxial or optical digital inputs, with the Platina Integrated's ES9038Pro DAC handling conversion.

Where can I buy the Quad Platina CDT in the USA?

The Quad Platina CDT is available at Vinyl Sound, an authorized dealer in Buffalo, NY. Browse the full CD player collection at Vinyl Sound or contact our team for a system demonstration and listening appointment.
