Quad Platina Integrated Amplifiers

$5,495.00

Product Details

Quad Platina Integrated Amplifier at Vinyl Sound Buffalo NY

The Quad Platina Integrated is QUAD's most advanced integrated amplifier to date — a dual-mono Class AB design delivering 2 × 200W into 8 ohms, built around an ES9038Pro DAC, a dedicated MM/MC phono stage, HDMI ARC input, and a current-feedback headphone amplifier. Developed over five years by QUAD's core engineering team, the Platina Integrated combines the company's heritage of musical integrity with a fully modern digital feature set and a strikingly contemporary chassis. Available at Vinyl Sound in Buffalo, NY.

Power Amplifier Section

The Platina Integrated is built around a dual-mono Class AB power amplifier section rated at 2 × 200W into 8 ohms and 2 × 300W into 4 ohms. A custom-designed 630VA high-power toroidal transformer with 44,000µF of filter capacitance per channel and cascaded voltage regulators in both the analogue and digital sections underpin the amplifier's authority and composure. Engineered to drive demanding loudspeakers with scale, grip, and control, the power amplifier section resolves the finest musical details across the full dynamic range from the subtlest harmonic overtones to the full force of a dynamic crescendo. Bespoke capacitors developed exclusively for the Platina series in collaboration with Wurth Elektronik form an integral part of the circuit architecture.

ES9038Pro DAC and Digital Capabilities

At the heart of the Platina Integrated's digital section is an ESS ES9038Pro DAC chip, one of the most highly regarded DAC solutions in high-end audio design. Two high-precision master clocks — one for the 44.1kHz family and one for the 48kHz family — maintain astonishingly low jitter levels for improved transparency and imaging. The DAC accepts PCM up to 768kHz and DSD512 via the USB Type-C input, and up to 192kHz via the optical and coaxial inputs. Five user-selectable DAC reconstruction filter settings allow fine-tuning of the sound character to suit the source material and listener preference. Upsampling of lower-resolution PCM streams to either 352.8kHz or 384kHz is also available. The Platina Integrated is Roon Tested, with QUAD holding a direct relationship with Roon for hardware validation and support.

Analogue Inputs and MM/MC Phono Stage

Two pairs of RCA inputs and a balanced XLR pair handle line-level analogue sources. The dedicated MM/MC phono stage is QUAD's most advanced phono design to date, using a JFET circuit topology for high input impedance and exceptionally low noise — particularly important for Moving Coil cartridges producing microvolt-level signals. Three selectable gain settings (46dB, 52dB, and 60dB) and selectable input impedance for MM or MC cartridges are accessible via the full-colour TFT GUI. The phono stage achieves RIAA equalization across the full 20Hz to 20kHz band with a signal-to-noise ratio greater than 78dB for MM and greater than 70dB for MC.

Headphone Amplifier and Output Options

A dedicated current-feedback headphone amplifier delivers exceptional bandwidth, ultra-low distortion below 0.01% at 1kHz/50mW, and a fast transient response suited to headphones from 20 to 600 ohms. An output impedance of 2.35 ohms ensures reliable damping and control across the full range of headphone designs. Balanced XLR and RCA pre-outputs allow integration with external power amplifiers or subwoofers without compromising functionality. Digital outputs — one optical and one coaxial — round out the rear panel connectivity.

Design and Build

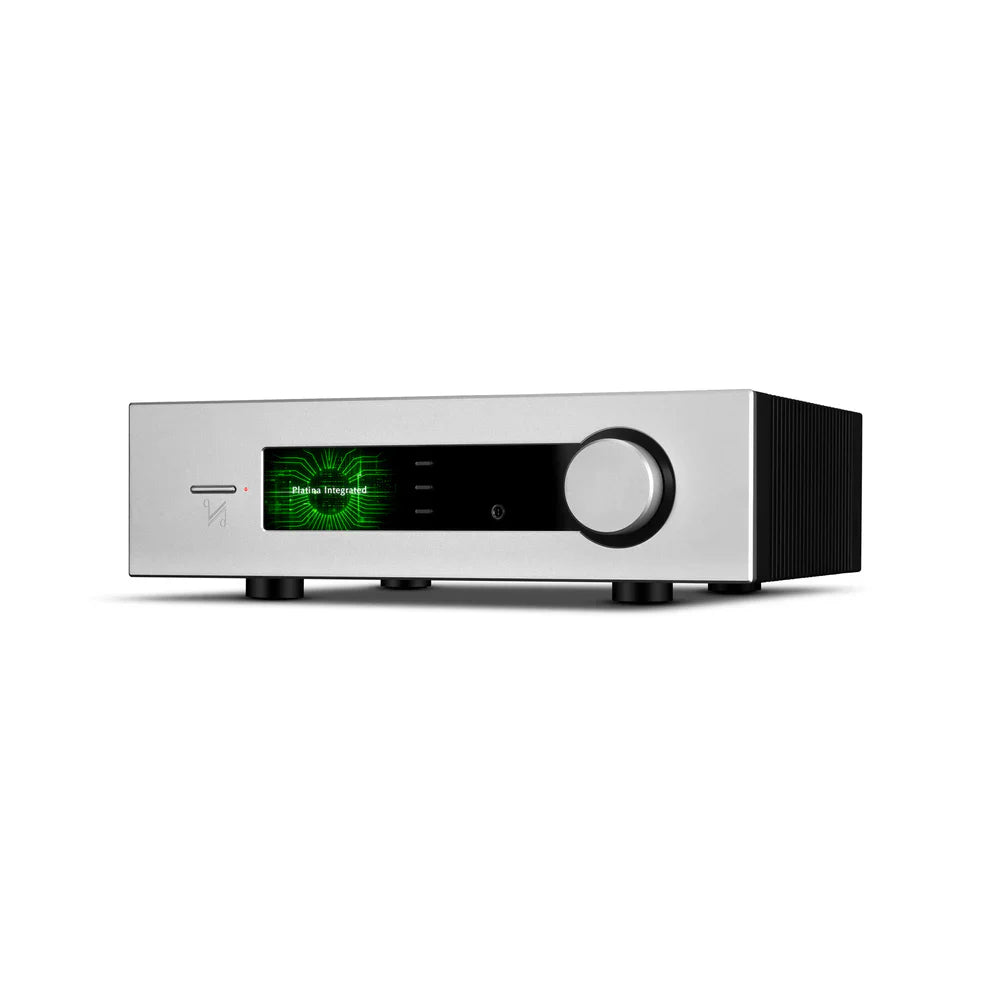

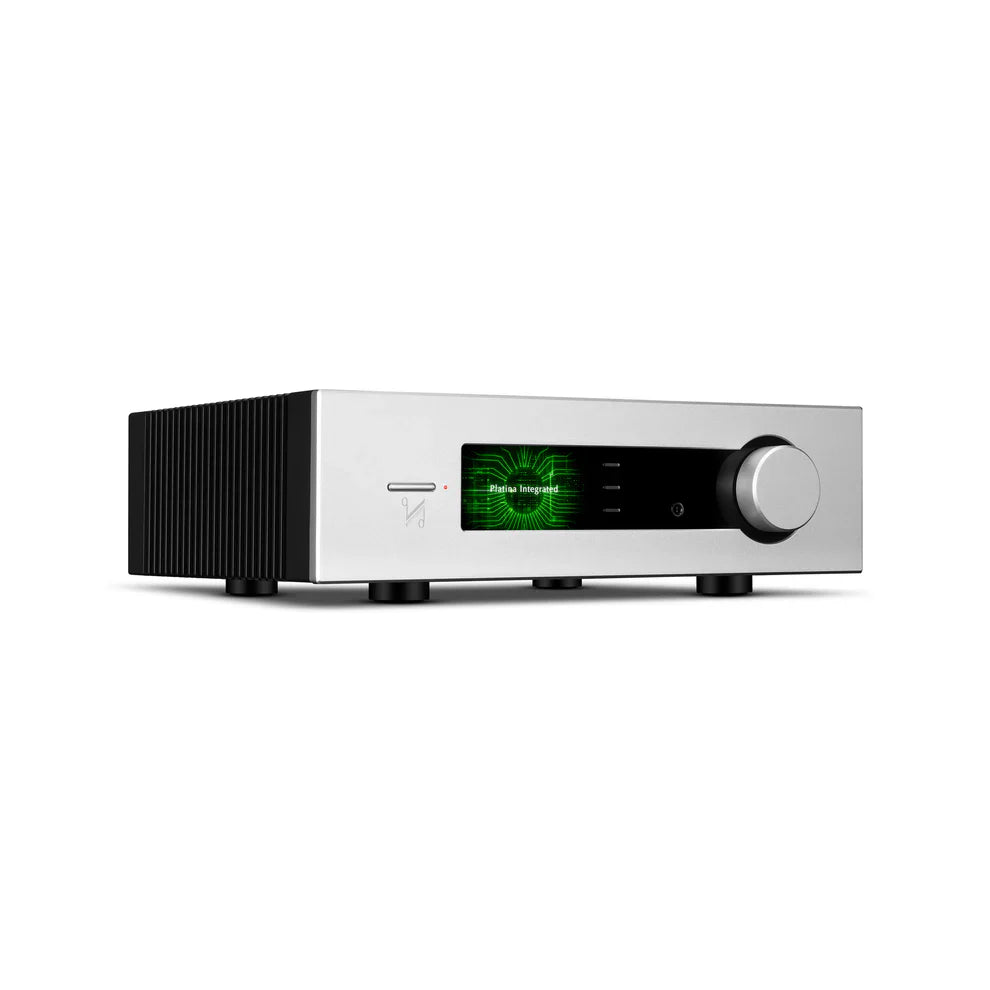

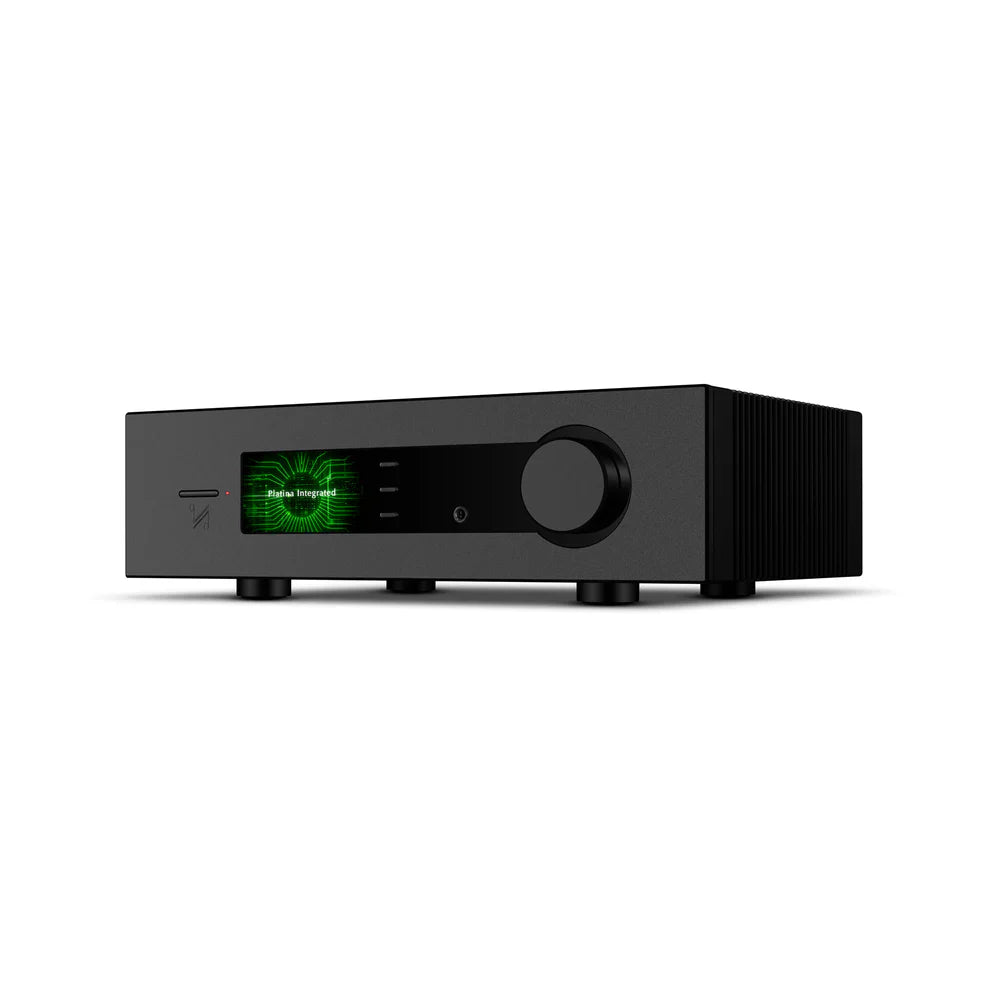

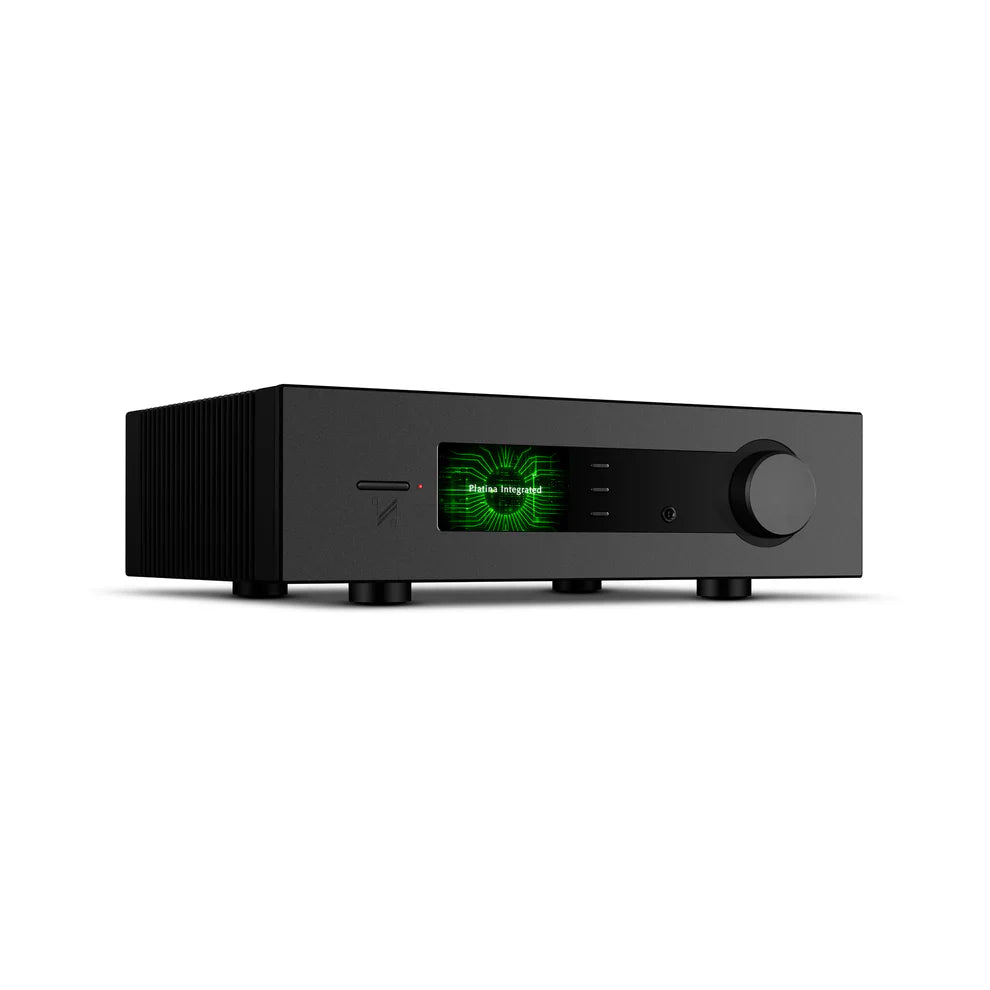

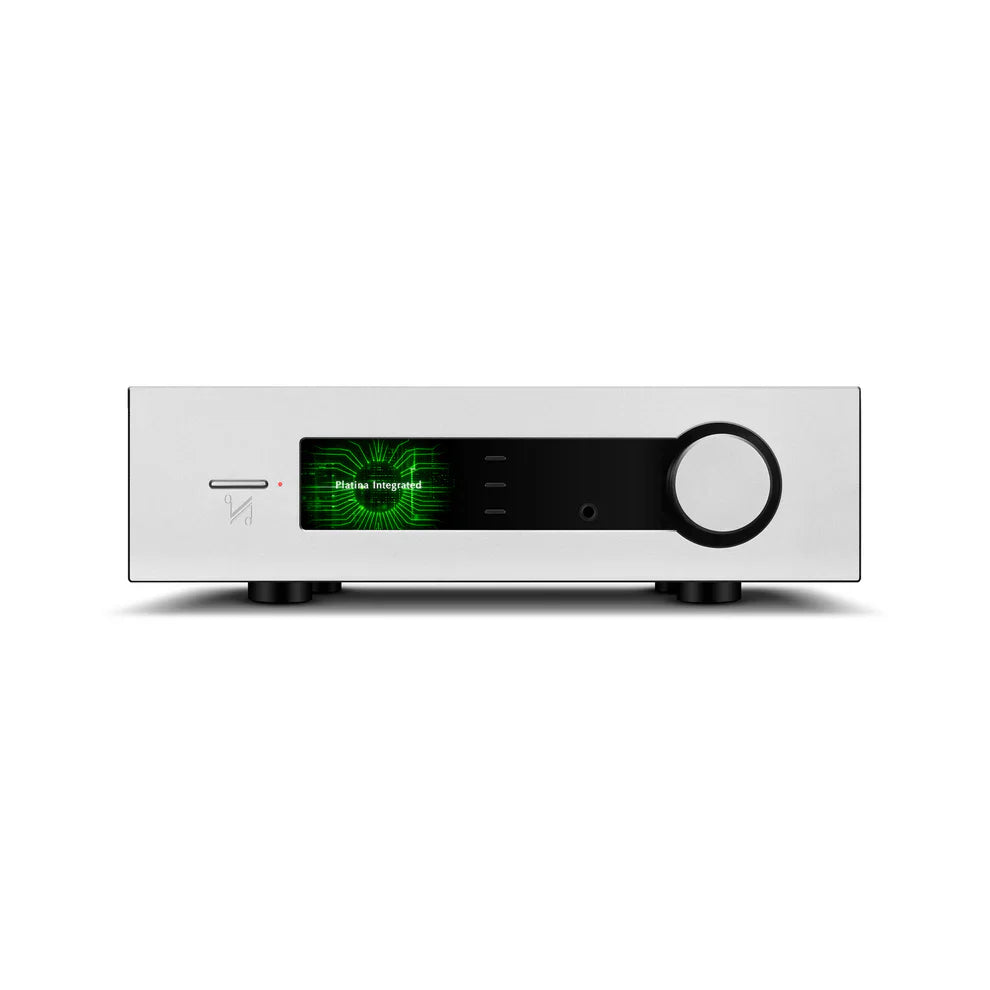

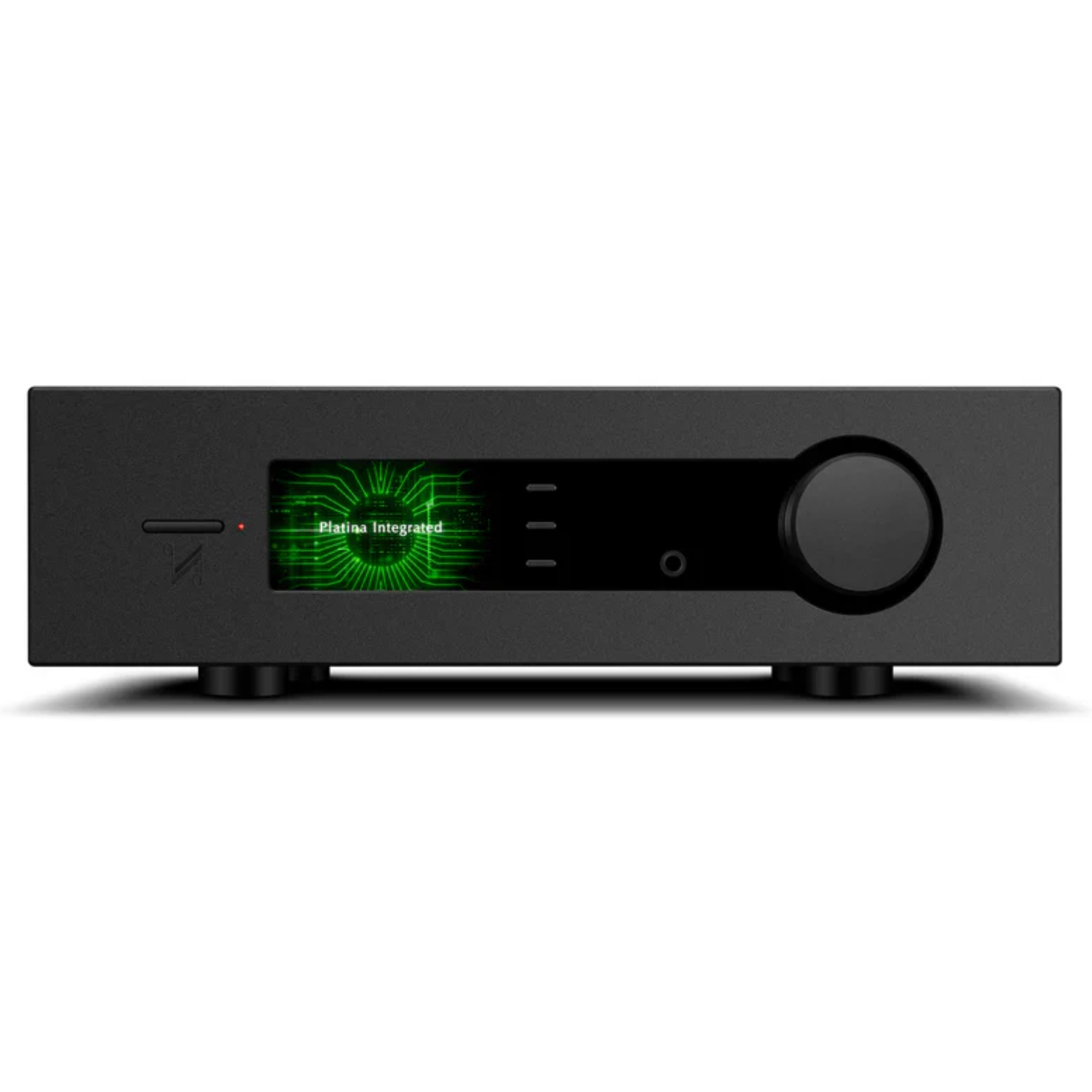

The Platina Integrated's chassis is built around heavy-gauge machined aluminium knobs and a 4.3-inch 800 × 480 full-colour IPS LCD display, providing an intuitive interface with immediate access to all inputs, settings, and system status. SMD component integration reduces parasitic inductance and resistance throughout the circuit, improving high-frequency performance, reducing electromagnetic interference, and ensuring long-term thermal and electrical stability. A disciplined rear panel layout with gold-plated connectors reflects the same standard of fit and finish applied to every aspect of the product. Available in Black or Silver finish.

Key Features

2 × 200W into 8 ohms / 2 × 300W into 4 ohms — dual-mono Class AB power amplifier section with 630VA toroidal transformer
44,000µF filter capacitance per channel with cascaded voltage regulators for musical integrity and dynamic authority
ES9038Pro 32-bit DAC — dual master clocks, PCM up to 768kHz, DSD512, five selectable reconstruction filters, upsampling to 352.8kHz or 384kHz
Roon Tested — validated by Roon with direct manufacturer support
HDMI ARC input for seamless integration with modern TVs and home entertainment systems
MM/MC phono stage — JFET design with selectable gain (46/52/60dB) and selectable impedance for MM and MC cartridges
Current-feedback headphone amplifier — THD below 0.01%, output impedance 2.35 ohms, compatible with 20 to 600 ohm headphones
Four-channel active volume control for precise, consistent, step-based volume adjustment
4.3-inch 800 × 480 full-colour IPS LCD display with comprehensive GUI for input selection, phono configuration, and system management
Balanced XLR and RCA pre-outputs for subwoofer or external amplifier integration
Bespoke Wurth Elektronik capacitors developed exclusively for the Platina series
Available in Black or Silver finish

Technical Specifications

Specification	Value
General Description	Integrated Amplifier
Power Output — 8 Ohms	2 × 200W
Power Output — 4 Ohms	2 × 300W
Amplifier Class	Class AB, Dual Mono
Gain	0dB (Line) / +46dB / +52dB / +60dB (Phono, adjustable)
Input Sensitivity	1.2Vrms (Line, Volume = 0dB) / 2.4Vrms (XLR, Volume = 0dB)
Phono Input Sensitivity	5mV (MM, Gain = 46dB) / 1mV (MC, Gain = 60dB)
Input Impedance	50KΩ (Line) / 50KΩ // 100pF (Phono MM) / 360Ω // 200pF (Phono MC)
Output Impedance	120Ω
THD (Preamplifier)	<0.0004% (1kHz @ 2V, Volume = 0dB)
Frequency Response	20Hz – 20kHz (±0.1dB)
Signal-to-Noise Ratio	>110dB (Line/XLR, A-weighted) / >78dB (Phono MM) / >70dB (Phono MC)
DAC Chip	ES9038Pro
USB Sampling Frequency	PCM up to 768kHz / DSD64, DSD128, DSD256, DSD512
Optical / Coaxial Sampling Frequency	44.1kHz – 192kHz
Headphone THD	<0.01% (1kHz, 50mW)
Headphone Output Impedance	2.35Ω
Headphone Load Impedance	20 – 600Ω

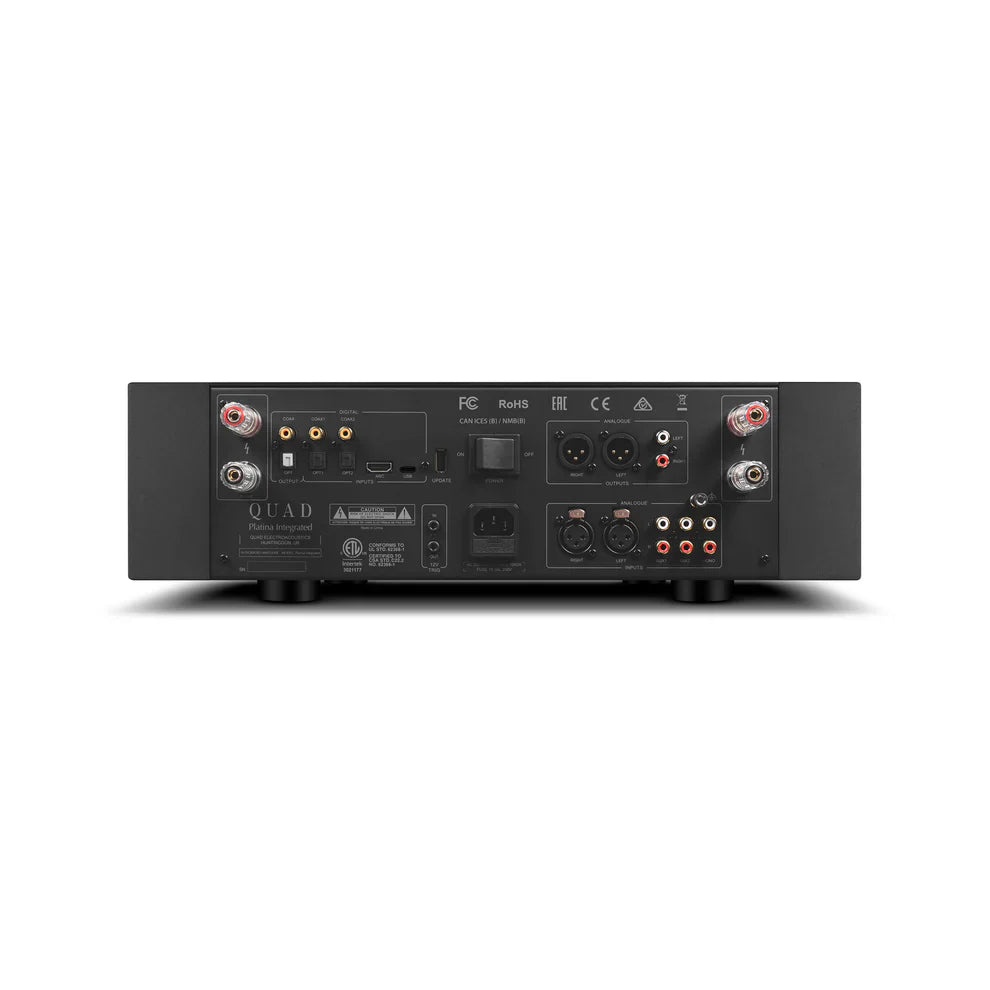

Inputs	2 × RCA (AUX1/AUX2), 1 × RCA Phono (MM/MC), 1 × Balanced XLR, 2 × Coaxial SPDIF, 2 × Optical SPDIF, 1 × HDMI ARC, 1 × USB Type-C, 1 × 12V Trigger In
Outputs	1 × RCA Pre Out, 1 × Balanced XLR Pre Out, 2 × Speaker Binding Posts, 1 × Optical SPDIF, 1 × Coaxial SPDIF, 1 × Headphone (6.3mm), 1 × 12V Trigger Out
Display	4.3" 800 × 480 Full Colour IPS LCD
Finish	Black or Silver
Dimensions (H × W × D)	10.16" × 6.50" × 3.26"
Weight	8.82 lbs

Frequently Asked Questions

What is the Quad Platina Integrated?

The Quad Platina Integrated is a dual-mono Class AB integrated amplifier delivering 2 × 200W into 8 ohms and 2 × 300W into 4 ohms, built around an ES9038Pro DAC, a dedicated MM/MC phono stage with selectable gain, HDMI ARC, USB Type-C audio input supporting PCM up to 768kHz and DSD512, and a current-feedback headphone amplifier. It is available at Vinyl Sound in Buffalo, NY.

What DAC does the Platina Integrated use and what formats does it support?

The Platina Integrated uses an ESS ES9038Pro 32-bit DAC, one of the most highly regarded DAC chips in high-end audio. It supports PCM up to 768kHz and DSD512 via USB Type-C, and up to 192kHz via optical and coaxial inputs. Five user-selectable reconstruction filter settings are available, along with upsampling of lower-resolution PCM streams to 352.8kHz or 384kHz. The Platina Integrated is also Roon Tested.

What phono cartridge types does the Platina Integrated support?

The Platina Integrated includes a dedicated JFET-based MM/MC phono stage with three selectable gain settings — 46dB, 52dB, and 60dB — and selectable input impedance for both Moving Magnet and Moving Coil cartridges. MM input impedance is 50KΩ // 100pF; MC input impedance is 360Ω // 200pF. Signal-to-noise ratio is greater than 78dB for MM and greater than 70dB for MC, all configurable through the front-panel TFT display.

What is HDMI ARC and why is it included on the Platina Integrated?

HDMI ARC (Audio Return Channel) allows a TV to send audio back to the Platina Integrated through a single HDMI cable, eliminating the need for a separate optical or coaxial cable between the television and amplifier. This makes the Platina Integrated a natural hub for modern home entertainment setups where the TV is a primary source for streaming services, Blu-ray players, and gaming consoles.

What headphones work with the Platina Integrated?

The Platina Integrated's current-feedback headphone amplifier supports headphone loads from 20 to 600 ohms, making it compatible with the full range of high-impedance audiophile headphones, standard consumer headphones, and in-ear monitors. The output impedance of 2.35 ohms ensures consistent frequency response and damping across all compatible headphone types. THD is below 0.01% at 1kHz / 50mW.

Can the Platina Integrated be used with an external power amplifier or subwoofer?

Yes. The Platina Integrated provides both balanced XLR and unbalanced RCA pre-outputs, allowing simultaneous connection to an external power amplifier, a powered subwoofer, or a secondary zone amplifier. Both pre-output pairs operate independently of the internal power amplifier section, maintaining full flexibility in system configuration.

Where can I buy the Quad Platina Integrated in the USA?

The Quad Platina Integrated is available at Vinyl Sound, an authorized dealer in Buffalo, NY. Browse the full integrated amplifier collection at Vinyl Sound or contact our team for a system demonstration and listening appointment.
