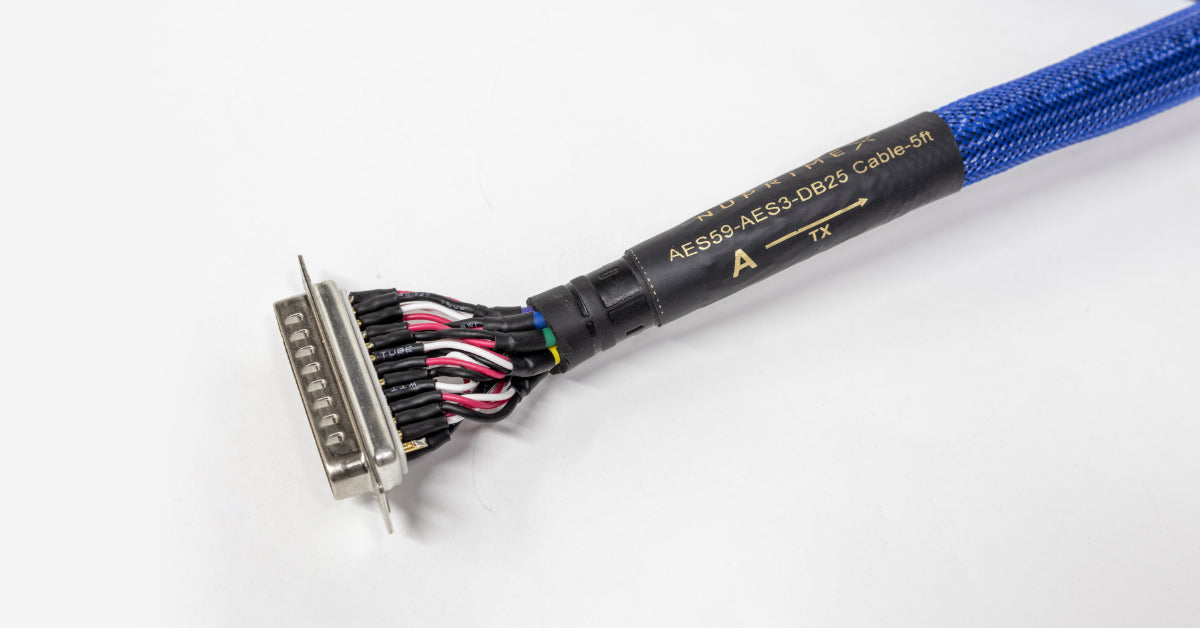

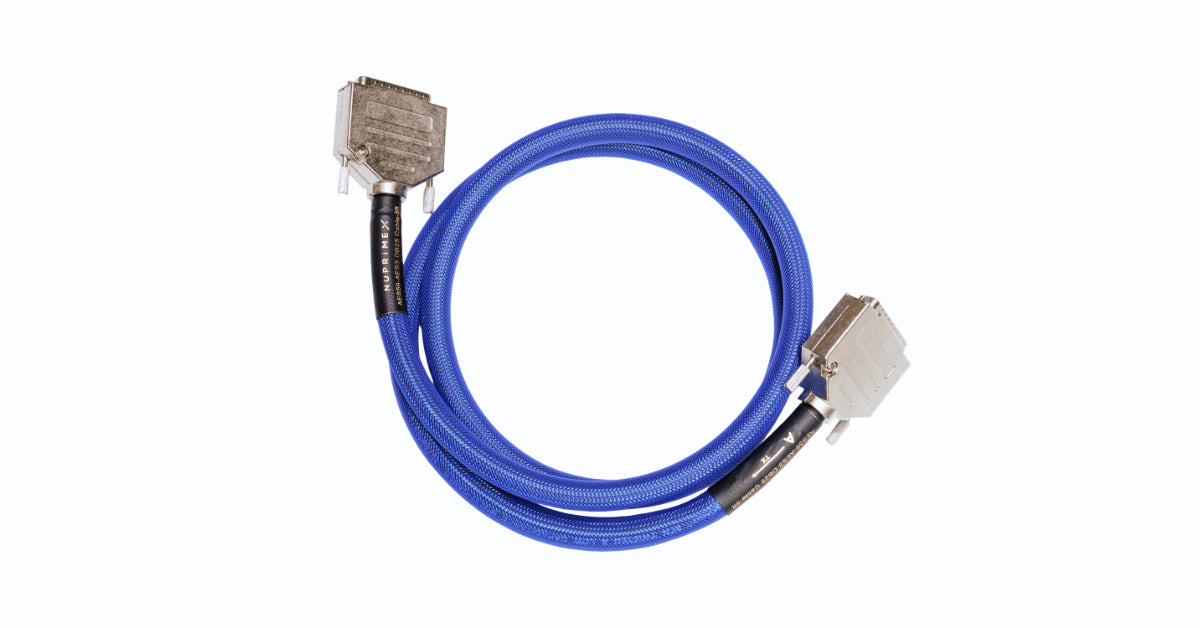

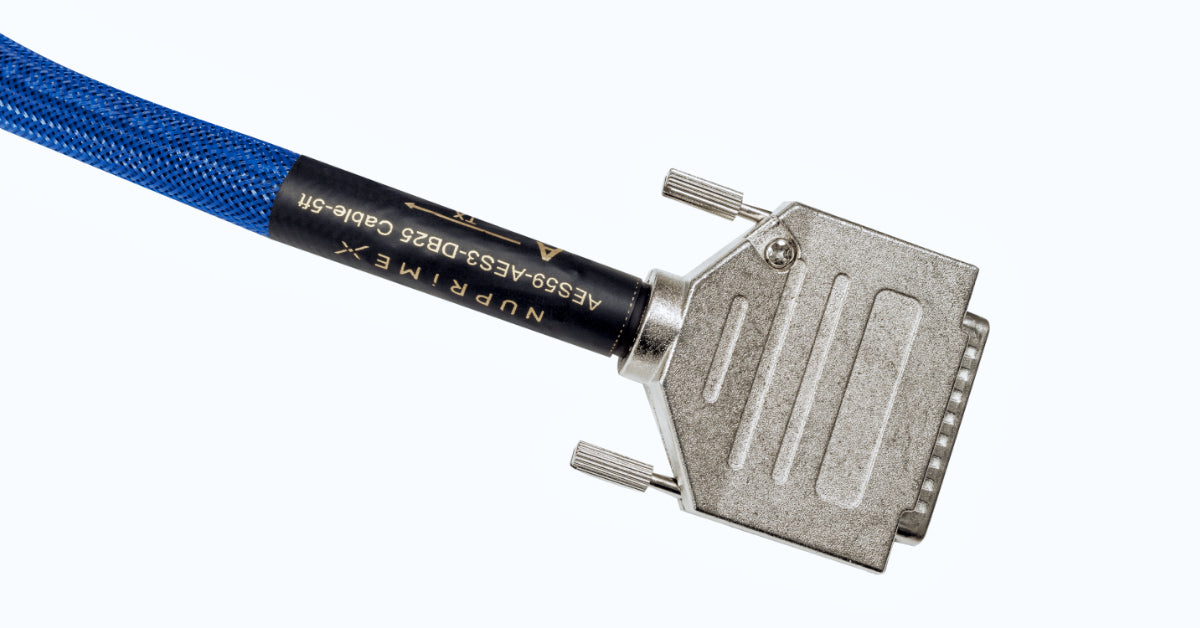

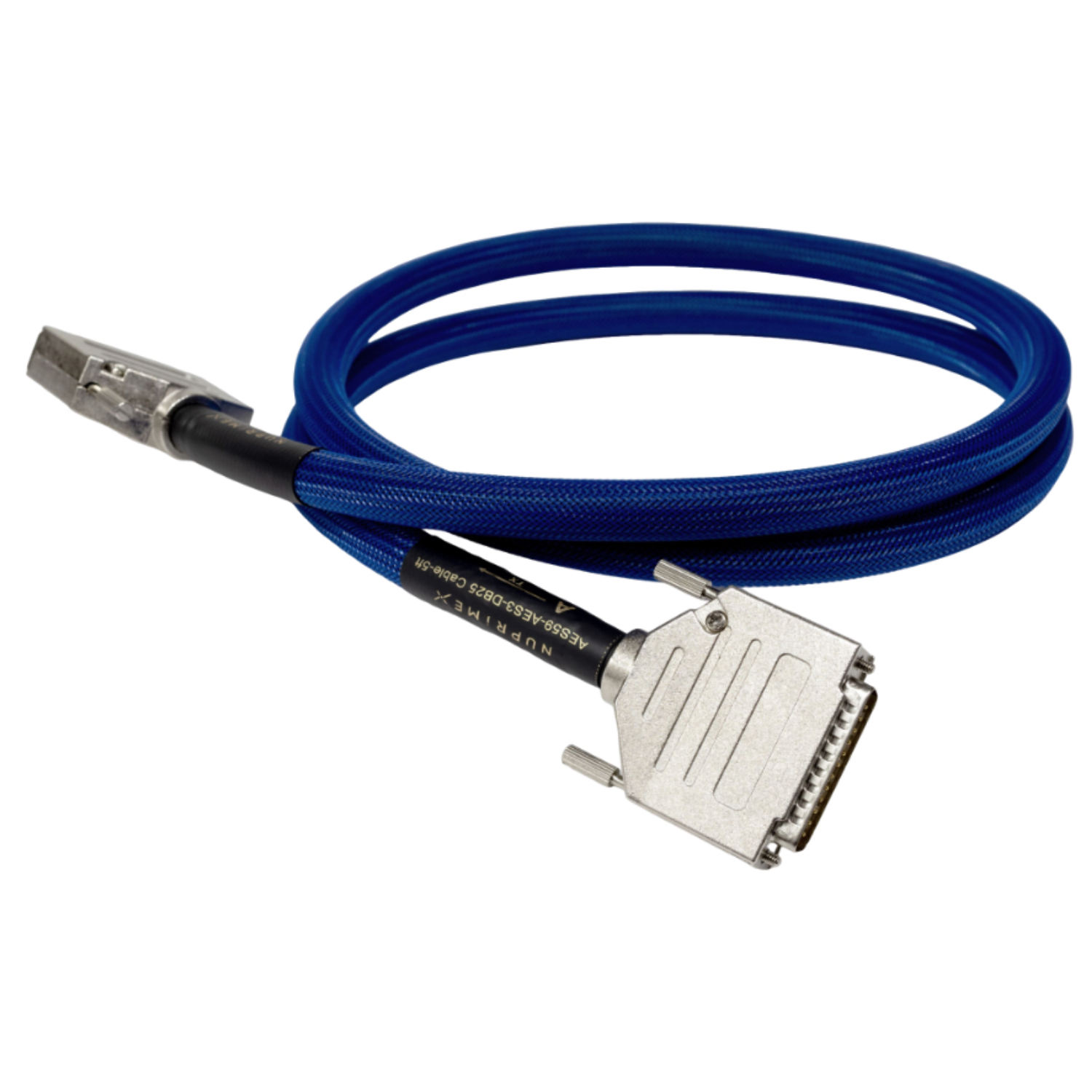

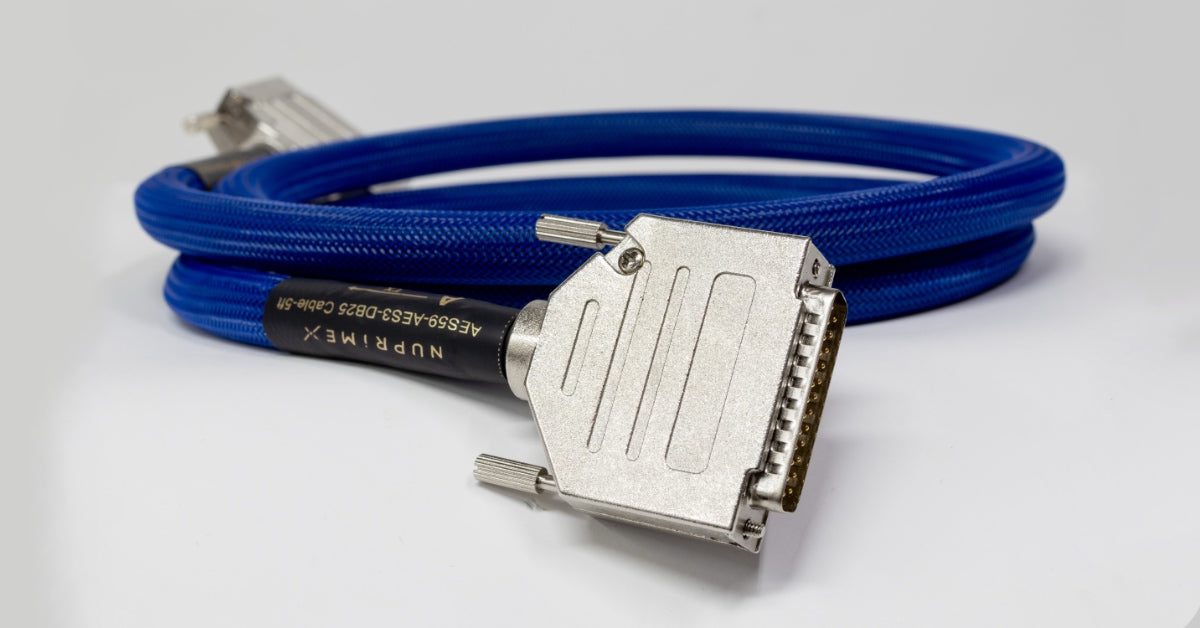

NuPrime AES-Core DB25-DB25 Cable

The NuPrime AES-Core DB25-DB25 is a studio-grade digital audio cable built to the AES59 standard, delivering reliable multichannel AES/EBU connectivity for professional studio, broadcast, and installation environments.

SPECIFICATIONS

Standards Compliance

AES59 (DB25 pinout for AES/EBU)
AES3 digital audio standard

Connectors

DB25 male to XLR
- 4 × XLR male (outputs)
- 4 × XLR female (inputs)

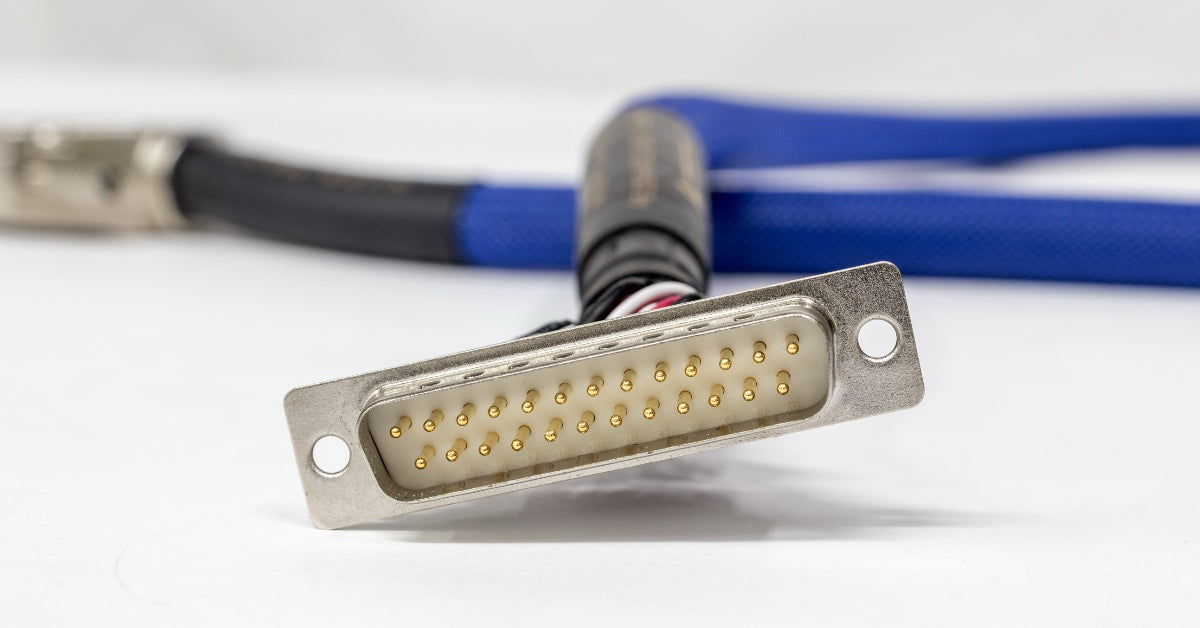

Precision-terminated, gold-plated contacts
Secure DB25 screw-lock design for reliable connection

Signal Format

Multichannel AES/EBU digital audio
Supports 8 AES channels total
8 channels input (via 4 XLR inputs)
8 channels output (via 4 XLR outputs)

Cable Construction

Individually shielded twisted pairs
Characteristic impedance: 110 Ω (AES/EBU compliant)
High-purity copper conductors
Overall braided and foil shielding for effective noise rejection

Performance

Low jitter and low signal attenuation
Supports sample rates up to 192 kHz and beyond
Excellent EMI/RFI immunity

Jacket

Durable PVC outer jacket
Flexible, abrasion-resistant construction

Color: Blue
Length: 2 m
Weight: 0.75 kg
Package Weight: 2.75 kg (shipping volume-weight)

Reference Information

AES59

AES59 defines the pin-out and wiring standard for AES3 digital audio signals when transmitted over DB25 (D-sub) connectors. It ensures that multi-channel AES3 connections (typically 8 channels in and 8 channels out) are interoperable between different manufacturers’ equipment — such as audio interfaces, consoles, and recorders.

Connector type: DB25 (25-pin D-sub)
Standardized mapping: Matches the TASCAM analog DB25 pinout, but carries digital AES3 signals instead of analog audio.
Purpose: Provides a consistent way to connect multiple AES3 channels through a single cable.

AES - Each DB25 port carries 8 channels (4 stereo pairs), so two DB25 connectors provide up to 16 channels of AES3 digital audio
