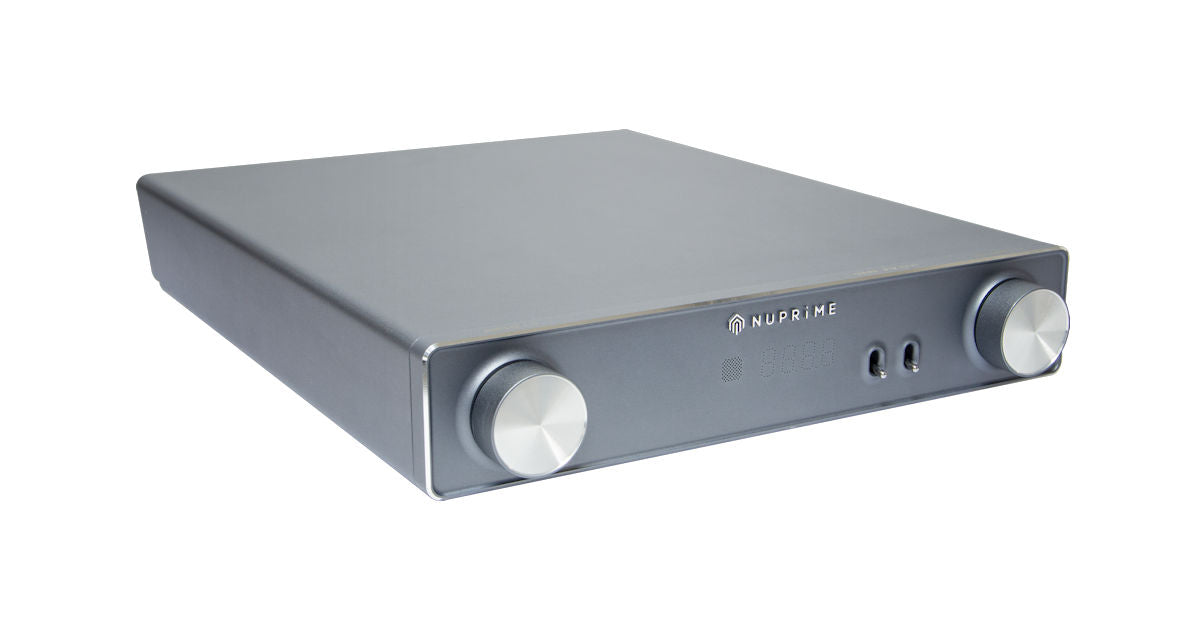

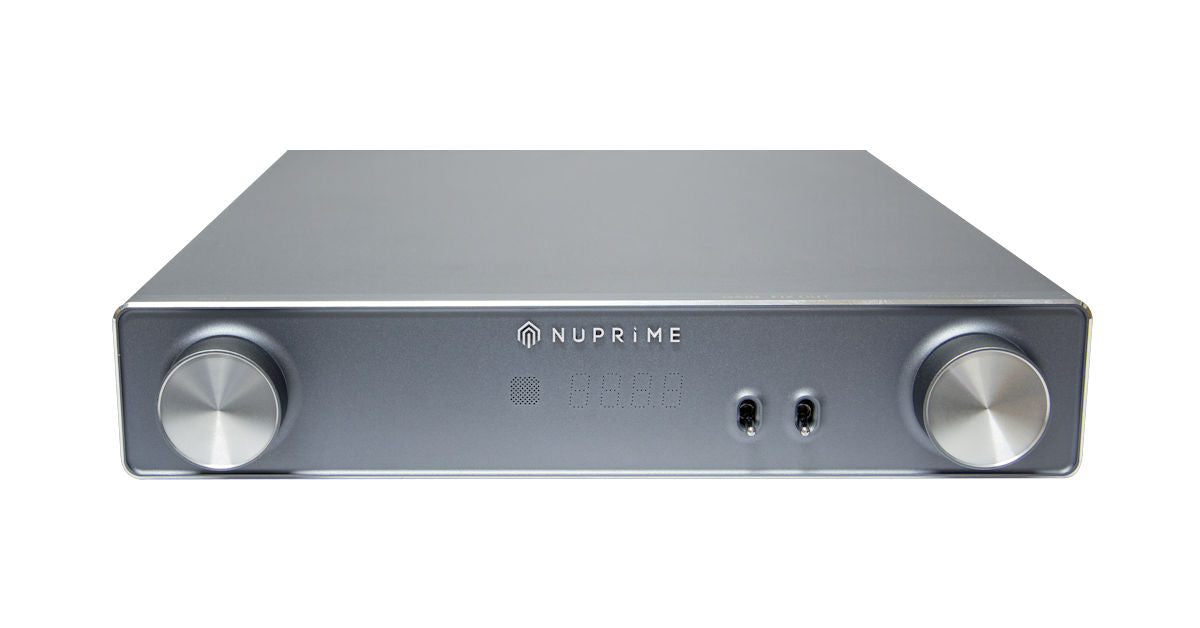

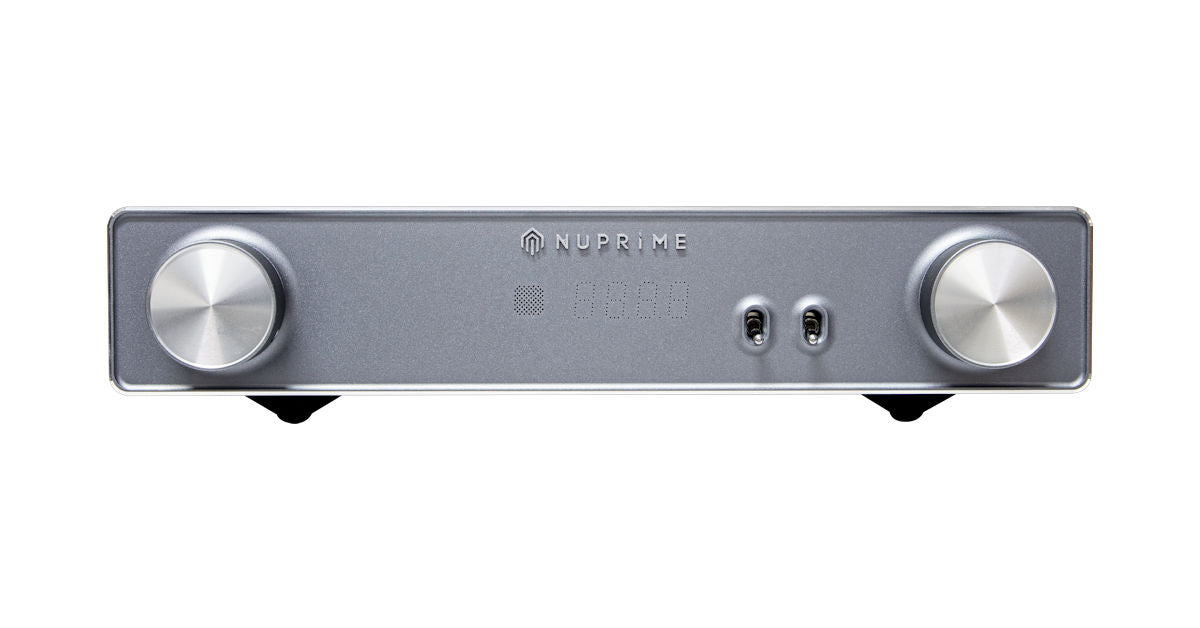

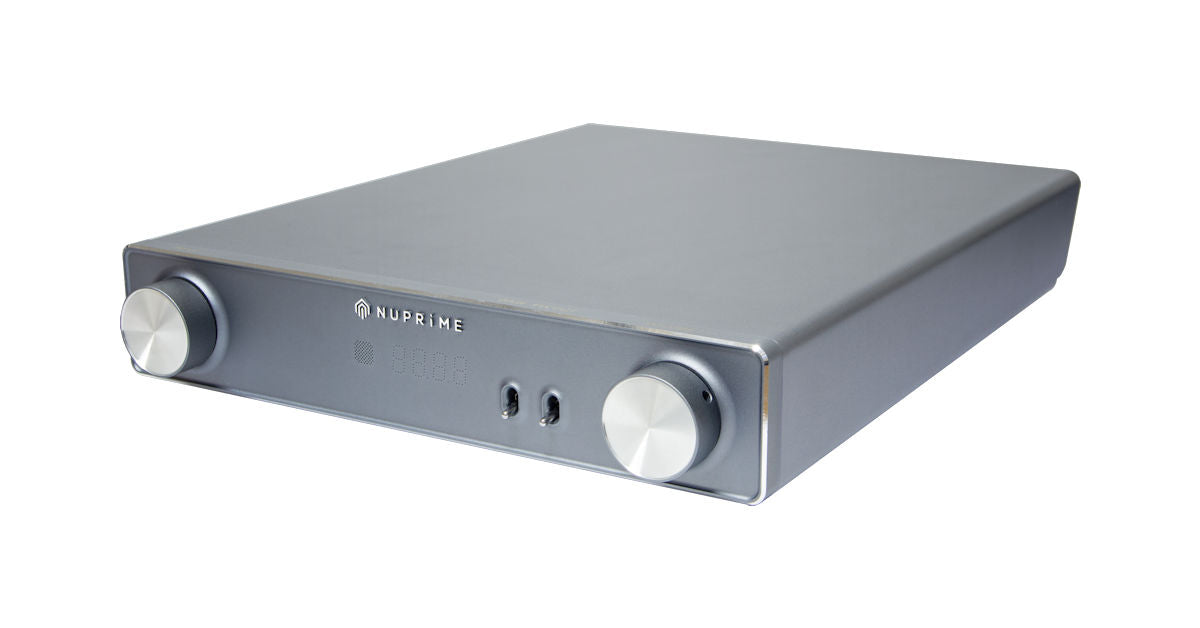

NuPrime AMG DAC

The AMG DAC uses dual ESS DACs with discrete Class-A transistors for natural, detailed, and expansive sound stage sound characteristics. With five digital including IIS/DSD and one analog stereo inputs, RCA stereo and XLR balanced outputs, and decoding capability of PCM 384K, DSD256, the NuPrime AMG-DAC is a reference-class DAC designed for studio professionals and high-end audiophiles.

Specifications:

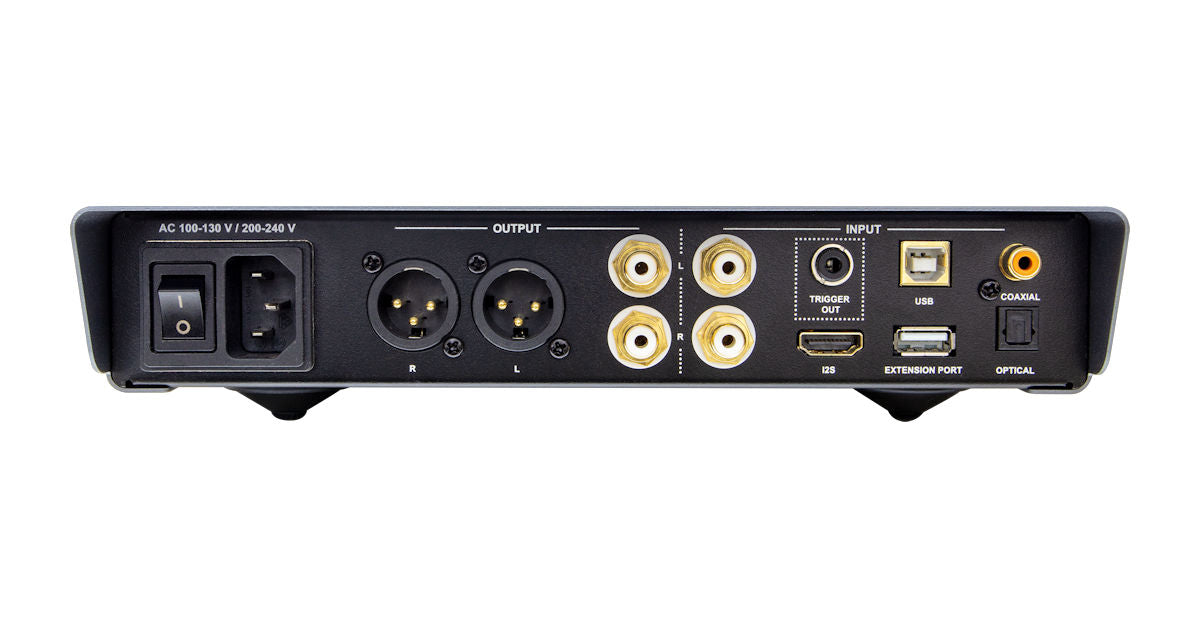

Inputs:

• C1: Coaxial input for CD/DVD/BD players, TV and any device with a coaxial source.
• O2: Optical input for CD/DVD/BD players, TV and any device with an optical source.
• U3: USB input for computer (PC/MAC) and for NAS devices.
• E4: Extension port for Bluetooth or WIFI. (Optional)
• A5: Stereo analog for CD/DVD/BD players, TV and any analog source device.
• HE: IIS/DSD Digital input With HDMI cable to transfer IIS and DSD data from NuPrime source devices. Do not connect to the HDMI output of Set Top Box or BD / DVD player.

Note: AMG-DAC does not guarantee that all NAS devices will operate and be compatible due to
wide variety of brands and custom specs.

Outputs:

• 1 x Balance XLR Out
• 1 x Stereo RCA Out
• 1 x TRIGGER out
• RCA unbalanced outputs: 2 Vrms
• XLR balanced outputs: 4 Vrms
• High Low Gain = X2
• Frequency Response: 20 Hz – 20 KHz / ±0.3 dB
• S/N ratio > 110 dB
• THD+N: < 0.05%
• Worldwide AC Voltage: 90VAC~130VAC / 210VAC~ 250VAC with Voltage Select Switch
• AC Fuse: Slow-blow, T2.5A, 250VAC
• Color: Grey
• Product Dimension:  55 x 235 x 300 mm (H x W x D)
• Package Dimension: 90 x 430 x 320 mm (H x W x D)
• Product Weight: 4kg
• Package Weight: 5.5kg

I2S Pin Definition
