NuPrime AoAES-F22D Network Audio Interface

NuPrime AoAES-F22D Network Audio Interface, AES3 Digital Bridge for Dante and AES67

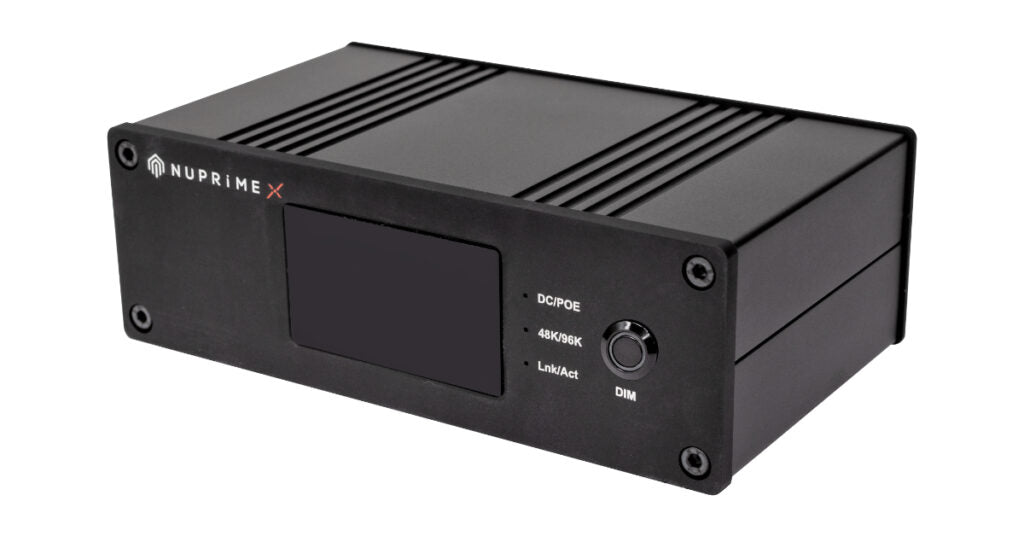

The NuPrime X AoAES-F22D is a professional four-channel network audio interface designed for studios, custom installations, and high-fidelity home cinemas. It serves as a high-performance bridge between digital equipment and Dante and AES67 IP audio networks, converting two sets of balanced AES3 digital signals to and from the network. Supporting audio up to 96kHz, it uses Power over Ethernet (PoE) so both power and multi-channel audio travel over a single CAT6 cable. The AoAES-F22D is available now at Vinyl Sound in Buffalo, NY USA.

Key Features

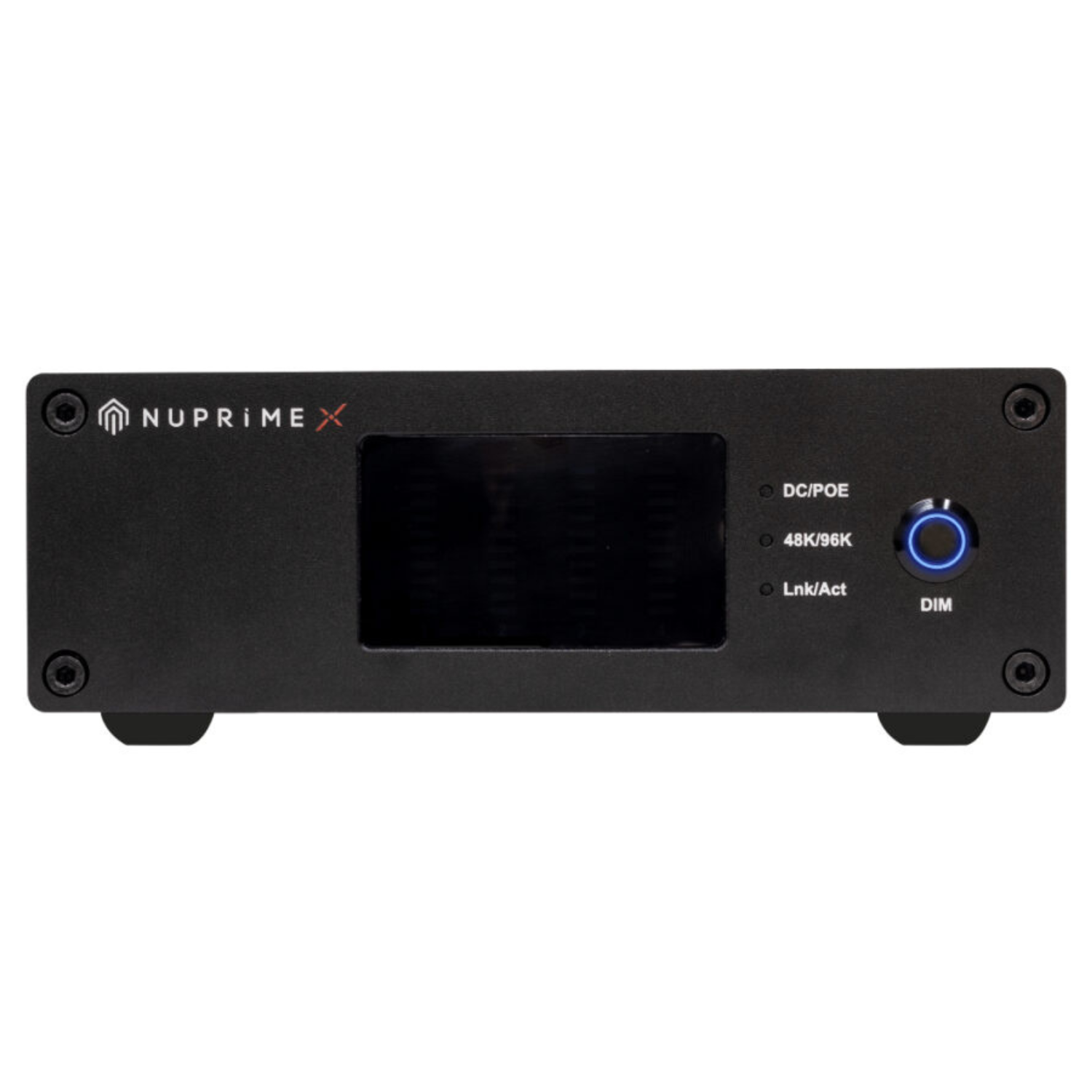

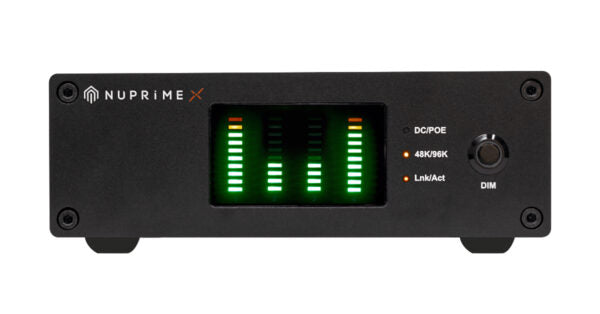

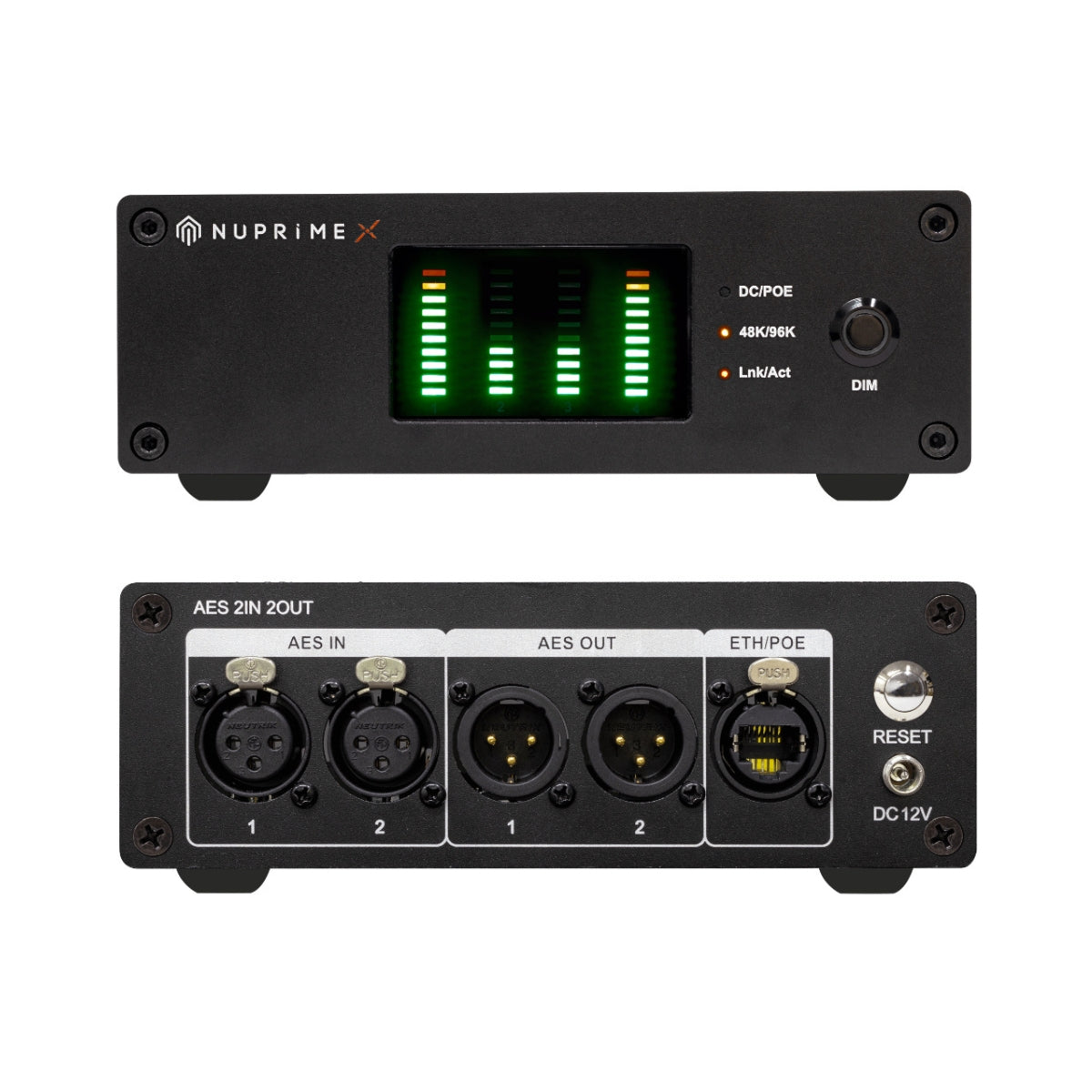

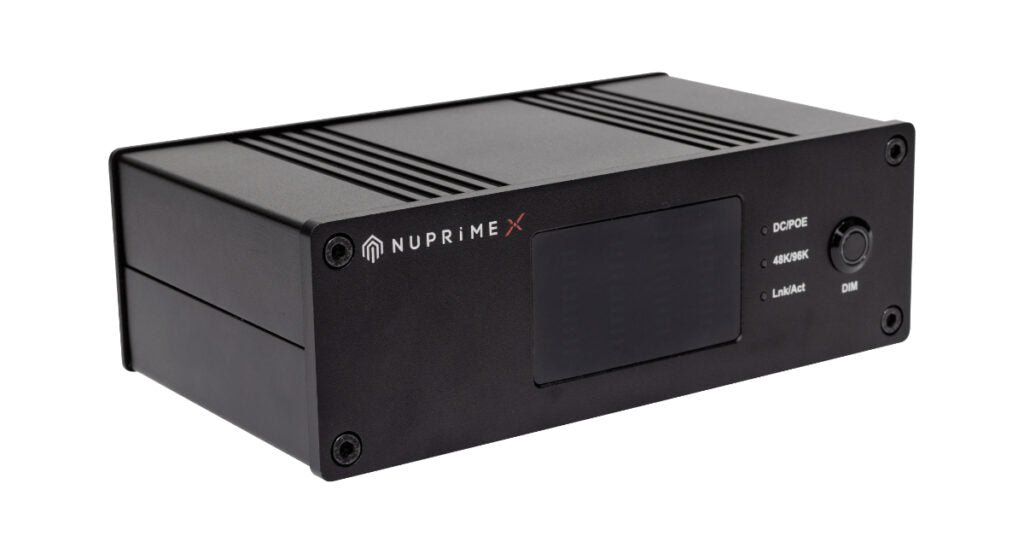

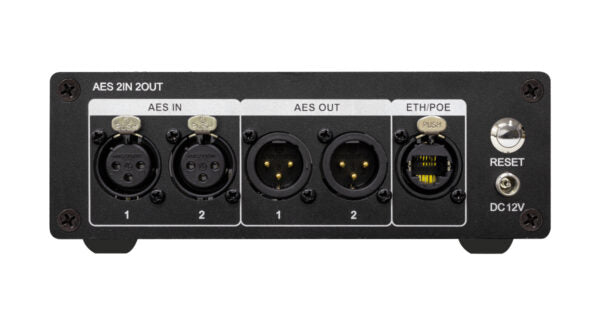

The AoAES-F22D uses audiophile-grade, gold-plated Neutrik XLR and RJ45 connectors for signal integrity and long-term reliability. Front-panel diagnostics give real-time insight through 4-channel level meters, network link and activity LEDs, sample-rate indicators, and continuous power monitoring, plus a Stealth Mode (DIM) that dims or disables front-panel lighting for dark rooms. For mission-critical use it offers dual power via PoE and 12V DC with seamless auto-failover, and its anodized, precision-milled aluminum chassis provides efficient heat dissipation and EMI shielding.

Technical Specifications

In the Box

High-grip adhesive rubber feet, user manual, 12V / 2A power adapter, and US / EU / UK power cords.

Why Buy from Vinyl Sound?

Vinyl Sound is an authorized NuPrime dealer in Buffalo, NY USA. The AoAES-F22D comes with full manufacturer warranty and expert support from our team, and we can help you plan a Dante or AES67 system around it.

Frequently Asked Questions

Q: What does the AoAES-F22D do in a Dante system?
A: It converts two sets of balanced AES3 digital signals to and from a Dante or AES67 IP network, up to 96kHz, letting you integrate AES3 digital equipment into a networked audio system. Connecting source and receiver channels is a simple point-and-click operation in the controller software.

Q: How is the AoAES-F22D powered?
A: It supports Power over Ethernet, so power and multi-channel audio run over a single CAT6 cable, plus a 12V DC input with automatic failover for redundancy. A 12V / 2A adapter is included, and the NuPrime SiGa Power75 can provide a low-noise 12V supply with the correct cable.

Q: How does it compare to the AoANA-F04A?
A: The AoAES-F22D handles AES3 digital signals to and from the network, while the AoANA-F04A provides four channels of balanced analog output. Choose based on whether your system needs AES3 digital I/O or analog outputs.

Q: Is the NuPrime AoAES-F22D available in the USA?
A: Yes. The NuPrime AoAES-F22D is available at Vinyl Sound, an authorized NuPrime dealer in Buffalo, NY USA. Contact us for system design and availability.
