NuPrime AoANA-F04A Network Audio Interface

$599.00

Product Details

NuPrime AoANA-F04A Network Audio Interface, Four-Channel Dante and AES67 Analog Output

The NuPrime X AoANA-F04A is a professional four-channel network audio interface designed for recording studios, custom installations, and high-fidelity home cinemas. It serves as a high-performance bridge between analog equipment and Dante and AES67 IP audio networks, providing four channels of balanced analog output from the network. Supporting audio up to 96kHz, it uses Power over Ethernet (PoE) so both power and multi-channel audio travel over a single CAT6 cable. The AoANA-F04A is available now at Vinyl Sound in Buffalo, NY USA.

Key Features

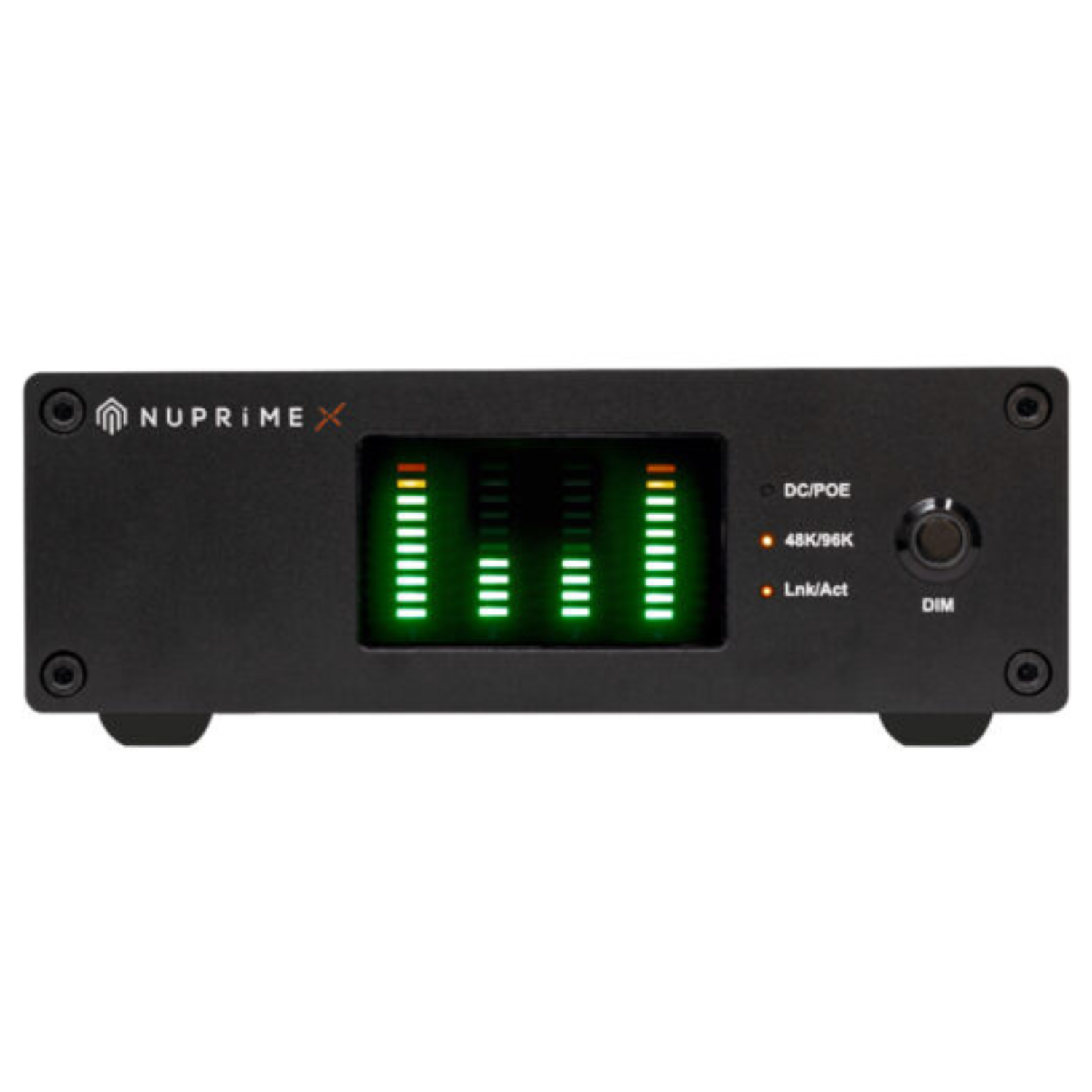

The AoANA-F04A uses audiophile-grade, gold-plated Neutrik XLR and RJ45 connectors for signal integrity and long-term reliability, with an AK4452VN DAC for natural, musical sound. Front-panel diagnostics give real-time insight through 4-channel level meters, network link and activity LEDs, sample-rate indicators, and continuous power monitoring, plus a Stealth Mode (DIM) that dims or disables front-panel lighting for dark rooms. For mission-critical use it offers dual power via PoE and 12V DC with seamless auto-failover, and its anodized, precision-milled aluminum chassis provides efficient heat dissipation and EMI shielding.

Technical Specifications

Specification	Detail
Type	4-channel network audio interface (analog output)
Network Protocols	Dante / AES67
Max Sample Rate	96kHz
DAC	AK4452VN

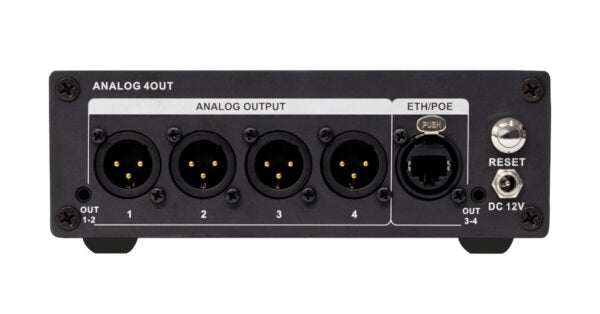

Analog Output	4x balanced XLR, 4Vrms max
Frequency Response	20Hz to 22kHz (±0.25dB)
Connectivity	Gold-plated Neutrik XLR and RJ45
Power	PoE and 12V DC with auto-failover
Chassis	Anodized aviation aluminum
Dimensions (W x D x H)	168 x 95 x 55 mm
Weight	688 g

In the Box

High-grip adhesive rubber feet, user manual, 12V / 2A power adapter, and US / EU / UK power cords.

Why Buy from Vinyl Sound?

Vinyl Sound is an authorized NuPrime dealer in Buffalo, NY USA. The AoANA-F04A comes with full manufacturer warranty and expert support from our team, and we can help you plan a Dante or AES67 system around it.

Frequently Asked Questions

Q: What does the AoANA-F04A do in a Dante system?
A: It takes four channels of audio from a Dante or AES67 IP network and converts them to four balanced analog XLR outputs, up to 96kHz. Connecting source and receiver channels is a simple point-and-click operation in the controller software, making it ideal for studios, custom installs, and home cinemas.

Q: How is the AoANA-F04A powered?
A: It supports Power over Ethernet, so power and multi-channel audio run over a single CAT6 cable, plus a 12V DC input with automatic failover for redundancy. A 12V / 2A adapter is included, and the NuPrime SiGa Power75 can provide a low-noise 12V supply with the correct cable.

Q: How does it compare to the AoAES-F22D?
A: The AoANA-F04A outputs balanced analog audio from the network, while the AoAES-F22D converts balanced AES3 digital signals to and from the Dante/AES67 network. Choose based on whether you need analog outputs or AES3 digital I/O.

Q: Is the NuPrime AoANA-F04A available in the USA?
A: Yes. The NuPrime AoANA-F04A is available at Vinyl Sound, an authorized NuPrime dealer in Buffalo, NY USA. Contact us for system design and availability.
